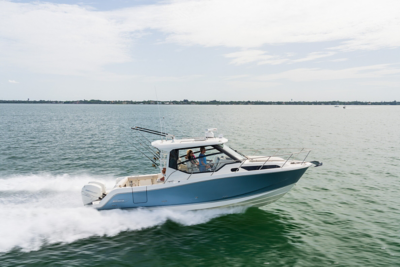

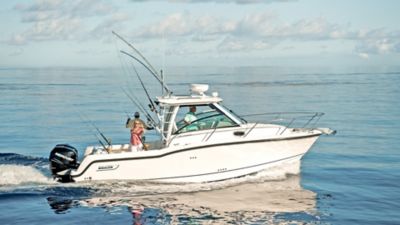

285 Conquest
Starting at $313023.0 MSRP i
Aboard the 285 Conquest®, anything is possible. Comfort-minded features and amenities enable active day cruises, serious saltwater fishing runs and impromptu overnighting with equal aplomb. Design details throughout maximize helm visibility, walkaround space, seating comfort and more. When not entertaining a crowd in the generous cockpit, head offshore to chase the big fish. Choose from three hardtop options and let the 285 open your horizons. Whaler knows what you need in a confidence-inspiring boat.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
285 CONQUEST FEATURES

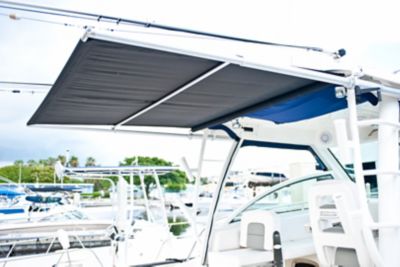

- Optional aft cockpit sunshade protects you from harsh rays.

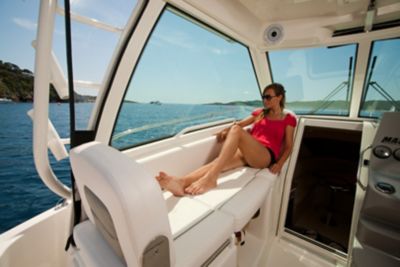

- Innovative port lounge seating is convertible and features plush backrests and cooler storage.
- Drive in comfort thanks to a helm seat with flip-up bolster and armrests.

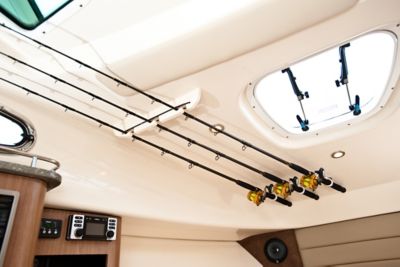

- Overhead rod racks in the cabin keep your equipment handy but safely out of the way.

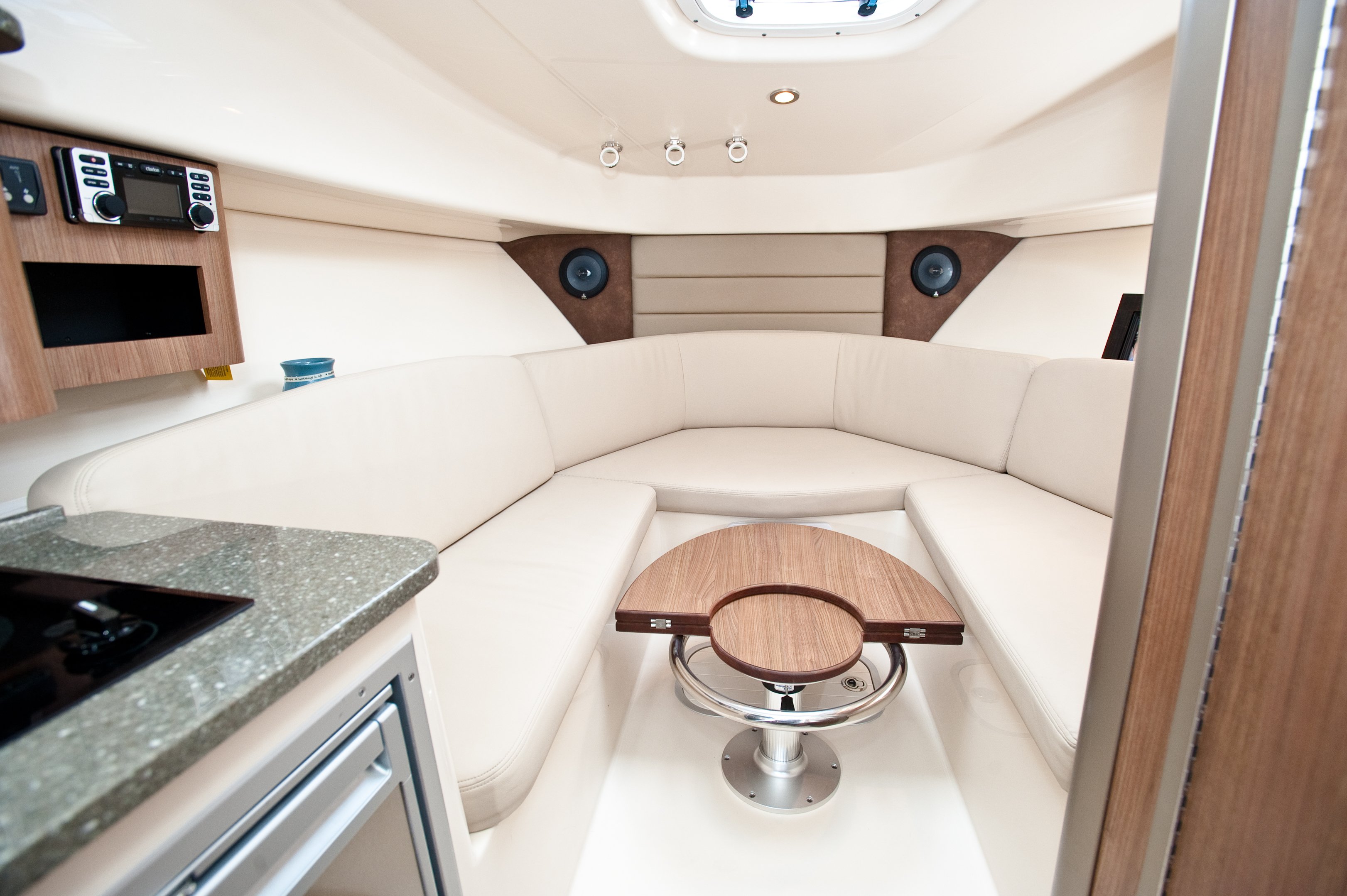

- Welcoming cabin sleeps 4 with a plush forward V-berth/dinette and midcabin double berth, plus optional HDTV, deluxe galley and private head.
Dimensions
27’ 10” (8.51 m)
L.O.A.
9’ 6” (2.90 m)
Beam
20” (0.50 m)
Draft (hull only)
25” (0.63 m)
Transom Height
20°
Deadrise at Transom
26 gallons (98.42 L)
Livewell Volume
8’ 10” (2.69 m)
Bridge Clearance (with hardtop)
9’ 4” (2.84 m)
Bridge Clearance (with radar and spotlight)
39’ 0”L X 9’ 6”W X 12’ 5”H
Package Boat Specs (on trailer/engine up)
B
European Certification
Weight
7,300 lbs (3,311 kg)
Weight (dry, no engine)
10,181 lbs (4,618 kg)
Weight (with engine, fuel and water)
Capacity
3,968 lbs (1,800 kg)
Maximum Weight Capacity
2,100 lbs (952 kg)
Swamped Capacity
12
Persons Capacity
200 gallons (757 L)
Fuel Capacity
30 gallons (113.5 L)
Water Capacity
6.5 gallons (24.6 L)
Waste Capacity
Engines
500 HP (372 kW)
Maximum Horsepower
500 HP (372 kW)
Minimum Horsepower
1,400 lbs (635 kg)
Maximum Engine Weight
27’ 10” (8.51 m)
L.O.A.
9’ 6” (2.90 m)
Beam
20” (0.50 m)
Draft (hull only)
25” (0.63 m)
Transom Height
20°
Deadrise at Transom
26 gallons (98.42 L)
Livewell Volume
8’ 10” (2.69 m)
Bridge Clearance (with hardtop)
9’ 4” (2.84 m)
Bridge Clearance (with radar and spotlight)
39’ 0”L X 9’ 6”W X 12’ 5”H
Package Boat Specs (on trailer/engine up)
B
European Certification
7,300 lbs (3,311 kg)
Weight (dry, no engine)
10,181 lbs (4,618 kg)
Weight (with engine, fuel and water)
3,968 lbs (1,800 kg)
Maximum Weight Capacity
2,100 lbs (952 kg)
Swamped Capacity
12
Persons Capacity
200 gallons (757 L)
Fuel Capacity
30 gallons (113.5 L)
Water Capacity
6.5 gallons (24.6 L)
Waste Capacity
500 HP (372 kW)
Maximum Horsepower
500 HP (372 kW)
Minimum Horsepower
1,400 lbs (635 kg)
Maximum Engine Weight
Standard features & Options
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
12-V receptacle
28” interior freeboard
8” stainless steel cleats - bow (2), spring line (2), stern with hawse pipes (2), anchor (1)
Acrylic transom door
Bow and stern lifting eyes
Cockpit coaming bolsters
Cockpit prep center - Corian solid-surface countertop with sink and storage (starboard side of cockpit)
Cockpit shower
Covered telescoping stainless steel swim ladder with stainless steel grab rail
Drink holders (8)
Gunnel mounted stainless steel rod holders (4)
Heavy-duty rub rail
Raw water washdown with coil hose storage
Self-bailing cockpit
Stainless steel anchor roller assembly with safety lanyard
Stainless steel cockpit toe rails
Stainless steel grab rails
Stern stainless steel hawse pipes with drink holders
Transom mounted stainless steel rod holders (3)
Welded stainless steel bow rail
Speakers (2)
Stainless steel grab rails along sides

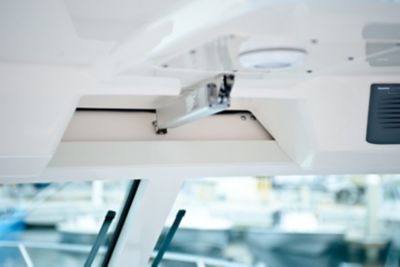

Tempered glass full front windshield with electric vent
Windshield wash system
Windshield wipers (port and starboard)
12-V receptacle
Captain’s storage compartment
Compass
Dual level molded-in footrests
Instrumentation and electrical switch panels with circuit breaker protection
Stainless steel steering wheel with knob
110-V outlet

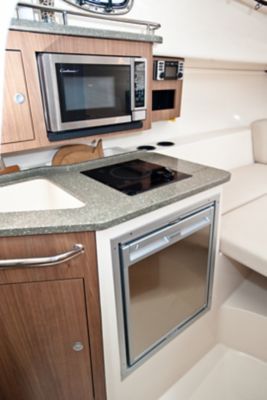

12-V / 120-V refrigerator
Corian solid surface countertop
Galley sink with faucet and cutting board
Microwave
Skylight over galley
Trash receptacle (under c-way step)
Wood grain galley cabinetry
Convertible port seat / lounge
Aft facing seat
Aft seating with reversible backrest
Cooler storage
Lounge filler
Foldaway stern bench seat
Helm seat with cushions and adjustable slider
Battery storage
Bow anchor locker with drain
Bow storage lockers under V-berth
Cabin interior rod racks (4)
Galley storage

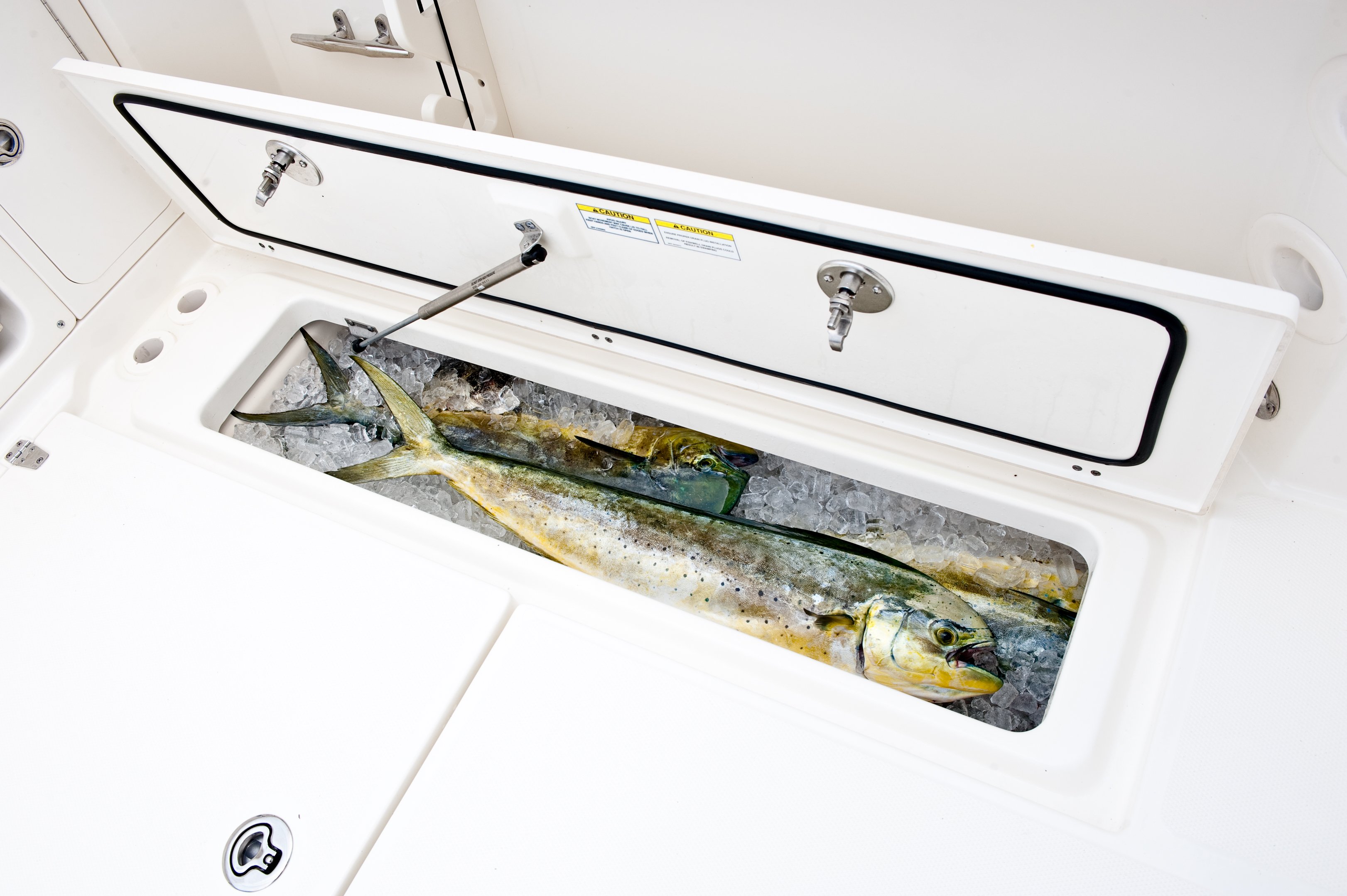

In-deck fishboxes with drain and pump-out (2)
Port tackle / storage at port lounge seat (3 drawers with pullout footrest)
Starboard storage at bait prep station (open storage - filler cushion storage and 5-gallon bucket)
Under gunnel rod racks (4)
500 GPH shower sump-pump
Hanging storage
Lighting
Mirror
Opening porthole with screen
Shelf with stainless steel retainer rail
Stainless steel sink with pressurized water system and pullout shower
Storage area (aft bulkhead and under countertop)
VacuFlush™ head with holding tank (6.5 gallons), dockside pump-out and overboard discharge
12-V receptacles (cabin and mid berth)
Cabin lights (5)
Carbon monoxide detector
Dinette table with gas-assist base
Drink holders (3) (forward berth)
Easy clean interior materials
Forward berth cushions with backrest
Lockable sliding acrylic cabin door
Mid double berth
Opening hatch with screen
Opening portholes with screens - galley (1), mid berth (1)
Stereo - JL Audio AM/FM, iPod controls, waterproof speakers (2 in cabin, 2 in cockpit), remote control, and MP3 input (Fusion Bluetooth enabled)(Fusion integration into Raymarine with navigation package)
V-berth filler cushions
250 CXL V8 DTS Black Dual Mercury® FourStroke engines with hydraulic power steering
Anchor windlass (low profile with rode and anchor) (FR 1,000 W)
Automatic bilge pumps (1,100 GPH forward, 2,000 GPH aft)
Battery trays with switches (3)
Cockpit lighting (blue/white LED)
Electric horn
Electric trim tabs with indicator
Engine fuel / water separators
Fuel tank (200 gallons)
High water bilge pump with alarm
Insulated livewell with light, raw water fill, blue interior and flow control
Navigation lights
Pressurized freshwater system
Raw water washdown with coil hose storage
Shore power with battery charger and galvanic isolator (ELCI system)
Stainless steel propellers
Stainless steel thru hulls
Tilt steering
Transducer mount area
Display key engine data on your smartphone (Android or Apple iPhone)
Bluetooth connection via Vessel View Mobile app (compatible while connected to stereo)
Troubleshooting assistance with dealer notification
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Abaco Blue
Abaco Blue
Fighting Lady Yellow
Fighting Lady Yellow
Horizon Blue
Horizon Blue
Ice Blue
Ice Blue
Jadestone
Jadestone
Oyster Grey
Oyster Grey
Platinum
Platinum
Sand Metallic
Sand Metallic
Steel Blue
Steel Blue
Tectonic Silver
Tectonic Silver
Wasabi
Wasabi
Graphic Colors
Black graphics
Black graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and stripe)
Red graphics
Red graphics
Silver graphics
Silver graphics
White graphics
White graphics
Frame Color
Black Frame
White Frame
Hardtop Underside Color
Abaco Blue
Abaco Blue
Horizon Blue
Horizon Blue
Platinum
Platinum
Steel Blue
Steel Blue
Dual Engines
250 CXL V8 DTS Black Dual Mercurys
FourStroke engines with hydraulic power steering (standard engine)
250 CXL V8 DTS White Dual Mercurys
FourStroke engines with hydraulic power steering
250 CXL V8 DTS Black Dual Mercurys w/JPO
FourStroke engines with Joystick Piloting; outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality (Raymarine or other standalone optional autopilots not permitted with Joystick Piloting)(Vessel View 4 display included)
250 CXL V8 DTS White Dual Mercurys w/JPO
FourStroke engines with Joystick Piloting; outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality (Raymarine or other standalone optional autopilots not permitted with Joystick Piloting)(Vessel View 4 display included)
Additional Seating

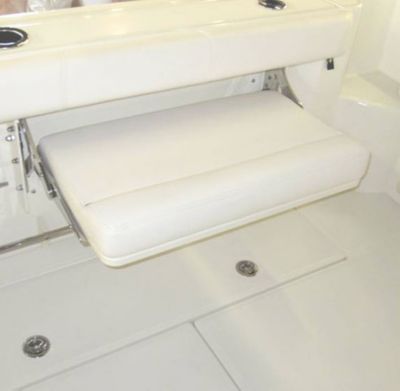

Seating - cockpit foldout bench seat (port)
(port side) (deletes rod racks)
Seating - cockpit foldout bench seat (stbd)
(starboard side) (deletes rod racks)
Seating - fold-down trolling seat (port)
(port side) (deletes rod racks)
Seating - fold-down trolling seat (stbd)
(starboard side) (deletes rod racks)
Seating - sun lounge
Railings and Rub Rails
Rails - split bow rail
(replaces standard bow rail)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Entertainment package
includes: 21 inch flat screen HDTV 12-V, DVD player, TV cable input
Refrigerator at cockpit
(stainless steel with Corian countertop)(not compatible with diesel heater system)
Table - cockpit
Table - cockpit

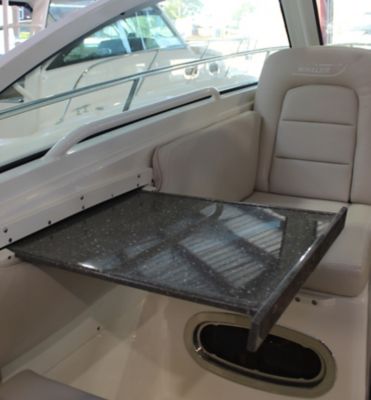

Table - helm deck table
with Corian countertop
Fishing Features
Outriggers - radial outriggers (black)
Outriggers - radial outriggers (black)
Notable Options & Accessories
12-V DC receptacles at transom
for electric reels / downriggers (2)

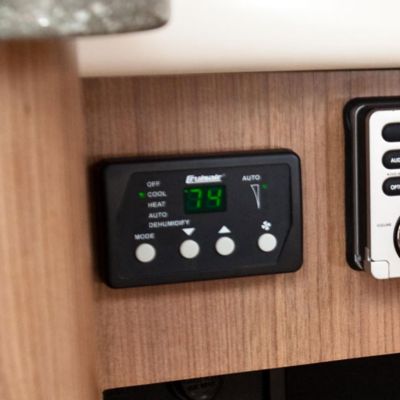

Air conditioning (reverse cycle 7,000 BTU)
Air conditioning (reverse cycle 7,000 BTU)
Anchor - stainless steel
Anchor - stainless steel
Anchor windlass chain (150 feet)
Bow thruster (12-V)
Bow thruster (12-V)
Cruising package
includes: dockside hookup for water, electric single burner stove, water heater
Full side glass
(integrated with aft legs and hard-top)
Generator (120V)
Generator (low CO gas (7kW))
Generator (low CO gas (7kW))
Lighting - underwater LED
Lighting - underwater LED
Premium package
includes: storage baskets (2) in mid cabin, VesselView 4 inch display (network connection to Raymarine with navigation package), interior lighting upgrades (reading light in forward berth, reading light in mid berth), premium audio package (4 watt stereo amp, cockpit speaker upgrade (2))
Privacy curtain (mid cabin)
(included in cabin comfort package)
Spotlight
Spotlight
Trailer - aluminum
Navigation
NAV PKG, SIMRAD 12" NSX
NAV PKG, SIMRAD 12" NSX

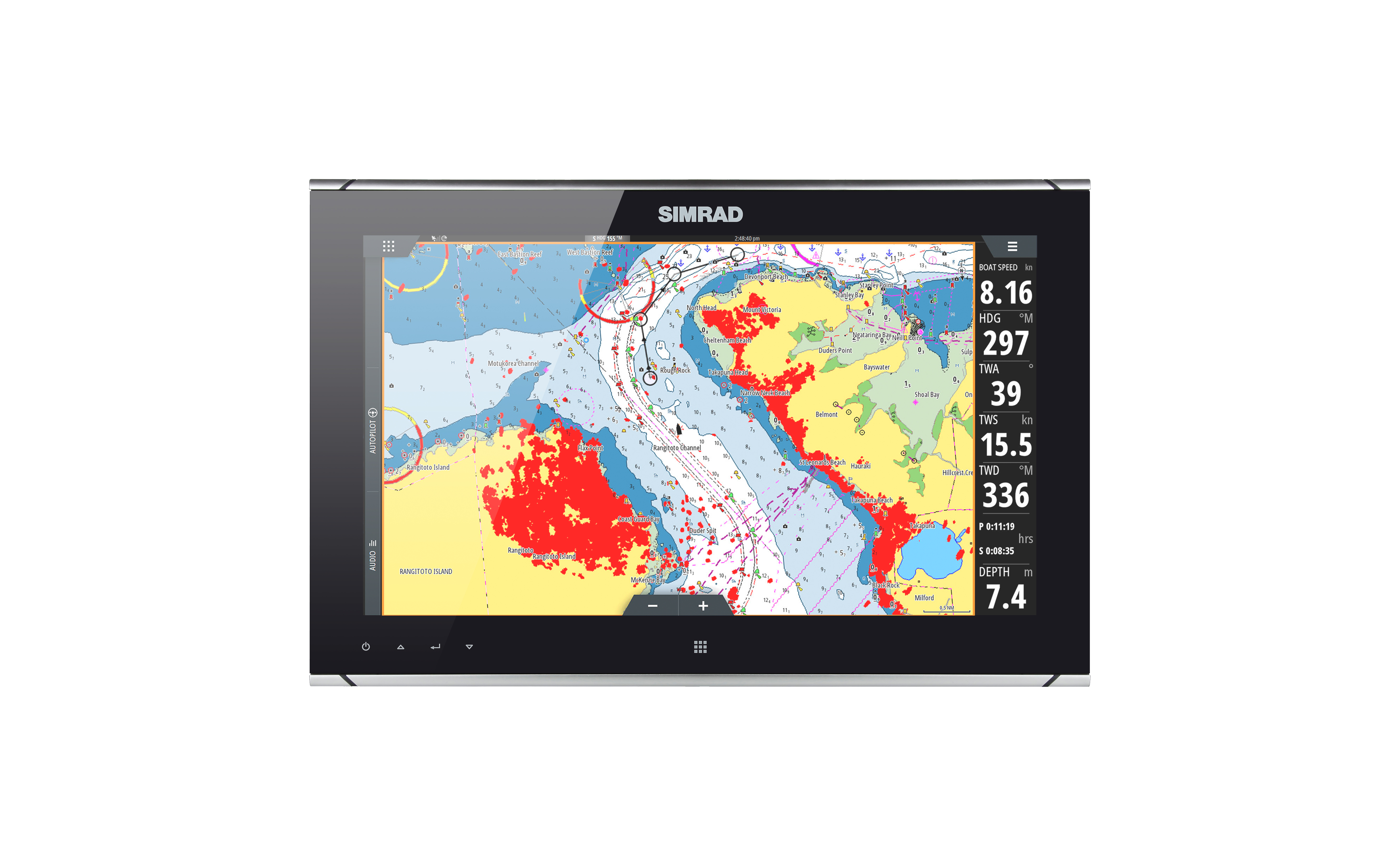

NAV PKG, SIMRAD 16" NSO
NAV PKG, SIMRAD 16" NSO
Electronics
AUTOPILOT SIMRAD NAC-2
Navionics Chart Card - Au/nz
Navionics Chart Card - Central/s. America
Navionics Chart Card - Europe/mid East/asia
RADAR, SIMRAD DOME HALO24
RADAR, SIMRAD DOME HALO24
Satellite radio - Sirius
satellite receiver with antenna

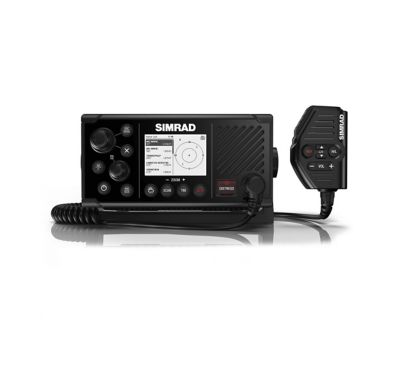

VHF RADIO (SIMRAD)
VHF RADIO (SIMRAD)
Canvas
Sun lounge cover
(black or blue)

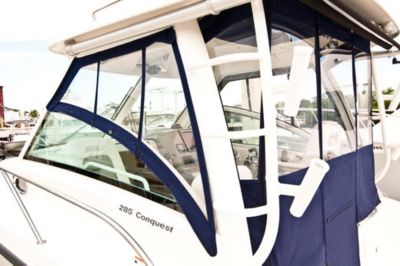

Weather curtain set for hardtop
(side curtains and aft drop curtain) (black or blue)
Weather curtain set for hardtop
with full side glass (aft drop curtain) (black or blue)
Standard Features
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
12-V receptacle
28” interior freeboard
8” stainless steel cleats - bow (2), spring line (2), stern with hawse pipes (2), anchor (1)
Acrylic transom door
Bow and stern lifting eyes
Cockpit coaming bolsters
Cockpit prep center - Corian solid-surface countertop with sink and storage (starboard side of cockpit)
Cockpit shower
Covered telescoping stainless steel swim ladder with stainless steel grab rail
Drink holders (8)
Gunnel mounted stainless steel rod holders (4)
Heavy-duty rub rail
Raw water washdown with coil hose storage
Self-bailing cockpit
Stainless steel anchor roller assembly with safety lanyard
Stainless steel cockpit toe rails
Stainless steel grab rails
Stern stainless steel hawse pipes with drink holders
Transom mounted stainless steel rod holders (3)
Welded stainless steel bow rail
Speakers (2)
Stainless steel grab rails along sides
Tempered glass full front windshield with electric vent
Windshield wash system
Windshield wipers (port and starboard)
12-V receptacle
Captain’s storage compartment
Compass
Dual level molded-in footrests
Instrumentation and electrical switch panels with circuit breaker protection
Stainless steel steering wheel with knob
110-V outlet
12-V / 120-V refrigerator
Corian solid surface countertop
Galley sink with faucet and cutting board
Microwave
Skylight over galley
Trash receptacle (under c-way step)
Wood grain galley cabinetry
Convertible port seat / lounge
Aft facing seat
Aft seating with reversible backrest
Cooler storage
Lounge filler
Foldaway stern bench seat
Helm seat with cushions and adjustable slider
Battery storage
Bow anchor locker with drain
Bow storage lockers under V-berth
Cabin interior rod racks (4)
Galley storage
In-deck fishboxes with drain and pump-out (2)
Port tackle / storage at port lounge seat (3 drawers with pullout footrest)
Starboard storage at bait prep station (open storage - filler cushion storage and 5-gallon bucket)
Under gunnel rod racks (4)
500 GPH shower sump-pump
Hanging storage
Lighting
Mirror
Opening porthole with screen
Shelf with stainless steel retainer rail
Stainless steel sink with pressurized water system and pullout shower
Storage area (aft bulkhead and under countertop)
VacuFlush™ head with holding tank (6.5 gallons), dockside pump-out and overboard discharge
12-V receptacles (cabin and mid berth)
Cabin lights (5)
Carbon monoxide detector
Dinette table with gas-assist base
Drink holders (3) (forward berth)
Easy clean interior materials
Forward berth cushions with backrest
Lockable sliding acrylic cabin door
Mid double berth
Opening hatch with screen
Opening portholes with screens - galley (1), mid berth (1)
Stereo - JL Audio AM/FM, iPod controls, waterproof speakers (2 in cabin, 2 in cockpit), remote control, and MP3 input (Fusion Bluetooth enabled)(Fusion integration into Raymarine with navigation package)
V-berth filler cushions
250 CXL V8 DTS Black Dual Mercury® FourStroke engines with hydraulic power steering
Anchor windlass (low profile with rode and anchor) (FR 1,000 W)
Automatic bilge pumps (1,100 GPH forward, 2,000 GPH aft)
Battery trays with switches (3)
Cockpit lighting (blue/white LED)
Electric horn
Electric trim tabs with indicator
Engine fuel / water separators
Fuel tank (200 gallons)
High water bilge pump with alarm
Insulated livewell with light, raw water fill, blue interior and flow control
Navigation lights
Pressurized freshwater system
Raw water washdown with coil hose storage
Shore power with battery charger and galvanic isolator (ELCI system)
Stainless steel propellers
Stainless steel thru hulls
Tilt steering
Transducer mount area
Display key engine data on your smartphone (Android or Apple iPhone)
Bluetooth connection via Vessel View Mobile app (compatible while connected to stereo)
Troubleshooting assistance with dealer notification
