325 Conquest Pilothouse
Meet the 325 Conquest Pilothouse, a cabin boat that combines rugged capability and remarkable sophistication. No matter the weather conditions, the Pilothouse is designed to keep you safe and comfortable, thanks to an enclosed helm area that's loaded with smart amenities. Performance is better than ever, too, thanks to a redesigned hull that delivers improved planing and stability. Entertain friends and family, head offshore in search of fish, or plan an overnight stay at a new destination: The 325 Conquest Pilothouse lets you do it all with no hassles, no excuses. The SUV of the Sea has arrived.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
325 CONQUEST PILOTHOUSE FEATURES
- Enclosed full front glass windshield and integrated hardtop with aft bulkhead and doors provide superior weather protection, with a slide-down section of bulkhead glass that opens up the area on nice days.
- Starboard dive door with removable swim ladder improves accessibility for swimming and watersports, and aids anglers in dragging large catches on deck.
- Features for serious fishing include a prep center with sink and storage, in-deck fishboxes, Simrad electronics and more.
- Deluxe cabin includes convertible V-berth sleeping/dining area, full-height hanging locker and deckhouse windows for plenty of natural light.
- Unique portside lounge seat with hidden table converts to multiple positions.
- Dual 300-hp Mercury Verado® engines available with Joystick Piloting for effortless docking.
- Optional Seakeeper gyro-stabilizing system available.
Dimensions
32’ 3” (9.83 m)
L.O.A.
10’ 8” (3.25 m)
Beam
26” (0.66 m)
Draft (hull only)
20°
Deadrise at Transom
25” (0.65 m)
Transom Height
9’ 3” (2.82 m)
Bridge Clearance (with hardtop)
10’ 7” (3.23 m)
Bridge Clearance (with hardtop, radar and spotlight)
B
European Certification
Weight
10,500 lbs (4,762 kg)
Weight (dry, no engine)
14,290 lbs (6,482 kg)
Weight (with engines, fuel and water)
Capacity
4,300 lbs (1,950 kg)
Maximum Weight Capacity
1,400 lbs (635 kg)
Maximum Engine Weight
2,300 lbs (1,043 kg)
Swamped Capacity
14
Persons Capacity
46 gallons (174 L)
Water Capacity
12 gallons (45 L)
Waste Capacity
300 gallons (1,135 L)
Fuel Capacity
Engines
800 HP (597 kW)
Maximum Horsepower
600 HP (447 kW)
Minimum Horsepower
32’ 3” (9.83 m)
L.O.A.
10’ 8” (3.25 m)
Beam
26” (0.66 m)
Draft (hull only)
20°
Deadrise at Transom
25” (0.65 m)
Transom Height
9’ 3” (2.82 m)
Bridge Clearance (with hardtop)
10’ 7” (3.23 m)
Bridge Clearance (with hardtop, radar and spotlight)
B
European Certification
10,500 lbs (4,762 kg)
Weight (dry, no engine)
14,290 lbs (6,482 kg)
Weight (with engines, fuel and water)
4,300 lbs (1,950 kg)
Maximum Weight Capacity
1,400 lbs (635 kg)
Maximum Engine Weight
2,300 lbs (1,043 kg)
Swamped Capacity
14
Persons Capacity
46 gallons (174 L)
Water Capacity
12 gallons (45 L)
Waste Capacity
300 gallons (1,135 L)
Fuel Capacity
800 HP (597 kW)
Maximum Horsepower
600 HP (447 kW)
Minimum Horsepower
Standard features & Options
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
8” stainless steel cleats - anchor cleat (pop-up cross tie cleat) (1), stern with hawse pipes (2)
10” stainless steel cleats - bow (2), spring line (2)
28” cockpit depth
12-V receptacle
Acrylic transom door
Anchor roller assembly with safety lanyard (stainless steel)
Bow and stern lifting eyes
Coaming bolsters (cockpit)
Deckhouse windows (port and starboard)
Dive door (molded fiberglass boarding door on starboard side with removable stainless-steel dive ladder)
Hawse pipes with drink holders (stern) (stainless steel)
Motorwell drains
Cockpit prep center - Corian solid-surface countertop with sink and storage (starboard side of cockpit)
Rails - bow rail (welded stainless steel)
Rails - grab rails (stainless steel)
Rails - rub rail (black) (heavy-duty)
Rails - toe rails (cockpit) (stainless steel)
Raw water washdown
Rod holders (4) (gunnel-mounted) (stainless steel)
Rod holders (3) (transom-mounted) (stainless steel)
Self-bailing cockpit
Shower (cockpit)
Storage drawer system (cockpit)
Swim ladder (covered telescoping swim ladder with grab rail) (stainless steel)
USB outlet
Aft bulkhead (pilothouse) (must select full side glass)
Carbon monoxide detector
Cockpit floodlight, dome light, and rod holders (4)
Full side glass integrated with aft legs and hardtop
Integrated windshield, hardtop and pilothouse bulkhead
Locking door with full length glass
Opening window (portside - aft)
Sink with Corian countertop
Speakers (2)
Stainless steel grab rails along sides for moving forward
Tempered glass full enclosure windshield system with electric vent
Windshield washer system
Windshield wipers (port and starboard)
12-V receptacle
Compass
Cupholders (2)
Console storage with dash mat
Dual level molded-in footrests
Electronics mounting surface (space for two 12” screens)
Instrumentation and electrical switch panels with circuit breaker protection
Steering wheel with knob (stainless steel)
USB outlet
110-V outlet
12-V / 120-V refrigerator
Countertop (Corian solid surface)
Sink with faucet
Microwave
Skylight over galley
Trash receptacle (under c-way step)
Wood grain lower galley cabinetry
Convertible aft port seat/lounge (double-wide aft seating)
Convertible forward port seat/lounge - includes conversion to forward or aft seated positions, cockpit table on gas-assist high/low pedestal, cup holders (2) and lounge filler cushion
Foldaway stern bench seat
Helm seat with adjustable slider
Pullout footrest for portside conversion seatback (for aft-facing seat)
Bow anchor locker with drain
Bow storage lockers under V-berth
Galley storage
Hanging locker
In-deck fishboxes (40 gallons each) with drain and pump-out (2)
Port cockpit storage drawers
Rod racks (cabin interior) (3)
Gaff/boat hook/scrub brush storage (under gunnel) (2)
500 GPH shower sump-pump
Countertop (Corian solid surface)
Hooks (2) (flip-down hanging storage) (stainless steel)
Lighting
Mirror
Opening porthole with screen
Shelf with stainless steel retainer rail
Sink with pressurized water system and pullout shower
Storage area
VacuFlush™ head with holding tank, dockside pump-out and overboard discharge (12 gallons)
Vinyl floor
12-V receptacle (cabin)
Cabin lighting
Carbon monoxide detector
Cushions with backrest (forward berth)
Dinette table (wood) (hinged) (with gas-assisted base)
Drink holders (forward berth)
Easy clean interior materials
Lockable sliding acrylic cabin door
Mid double berth
Opening hatch with screen
Opening portholes with screens - galley (1), head (1)
Stereo - JL Audio AM/FM with CD player, Bluetooth, JL speakers (includes 2 of each: 7.7 aft cockpit, 7.7 hardtop, 6.5 cabin interior), JL amplifier M400/4 (Fusion integration into Raymarine with navigation package)
USB receptacles (cabin and midberth)
V-berth filler cushions
Wood flooring
300 V8 DTS Black Dual Mercury Verado engines with VesselView 7 display and hydraulic power steering (network connection to Simrad with Navigation Package)
Anchor windlass - low profile with rode and anchor (1,000W)
Automatic bilge pumps (1,100 GPH forward, 2,000 GPH aft)
Battery trays (4) with remote battery switches
Cockpit lighting (blue/white LED)
Electric horn
Electric trim tabs with indicator
Engine fuel / water separators
Freshwater system
Fuel tank (300 gallons)
High water bilge pump with alarm (2,000 GPH)
Insulated livewell with light, blue interior and flow control
Navigation lights
Propellers (stainless steel)
Raw water washdown
Shore power with battery charger and galvanic isolator (ELCI system) (single 30A)
Shower (cockpit)
Stainless steel thru hulls
Tilt steering
Transducer mount area
Display key engine data on your smartphone (Android or Apple iPhone)
Bluetooth connection via Vessel View Mobile app (compatible while connected to stereo)
Troubleshooting assistance with dealer notification
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Abaco Blue
Abaco Blue
Fighting Lady Yellow
Fighting Lady Yellow
Horizon Blue
Horizon Blue
Ice Blue
Ice Blue
Jadestone
Jadestone
Oyster Grey
Oyster Grey
Platinum
Platinum
Sand Metallic
Sand Metallic
Steel Blue
Steel Blue
Tectonic Silver
Tectonic Silver
Wasabi
Wasabi
Graphic Colors
Black graphics
Black graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and stripe)
Red graphics
Red graphics
Silver graphics
Silver graphics
White graphics
White graphics
Hardtop Underside Color
Abaco Blue
Abaco Blue
Horizon Blue
Horizon Blue
Platinum
Platinum
Steel Blue
Steel Blue
Dual Engines
300 V8 DTS Black Dual Mercury Verados
engines with VesselView 7 inch display and hydraulic power steering(standard engine)
300 V8 DTS White Dual Mercury Verados
engines with VesselView 7 inch display and hydraulic power steering
300 V8 DTS Black Dual Mercury Verados w/JPO
engines with Joystick Piloting; outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality (Simrad or other standalone optional autopilots not permitted with Joystick Piloting)
300 V8 DTS White Dual Mercury Verados w/JPO
engines with Joystick Piloting; outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality (Simrad or other standalone optional autopilots not permitted with Joystick Piloting)
-(USE-FOR-JOYSTICK-OPTION-TOO))
350 L6 DTS Black Dual Mercury Verados
engines with Vessel View 7 inch Display and hydraulic power steering (91 octane fuel recommended)
-(USE-FOR-JOYSTICK-OPTION-TOO))
350 L6 DTS White Dual Mercury Verados
engines with Vessel View 7 inch Display and hydraulic power steering (91 octane fuel recommended)
350 L6 DTS Black Dual Mercury Verados w/JPO
engines with Joystick Piloting.Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting) (91 octane fuel recommended)
350 L6 DTS White Dual Mercury Verados w/JPO
engines with Joystick piloting.Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting) (91 octane fuel recommended)
400 L6 DTS Black Dual Mercury Verados
engines with hydraulic power steering (91 octane fuel recommended)
400 L6 DTS White Dual Mercury Verados
engines with hydraulic power steering (91 octane fuel recommended)
400 L6 DTS Black Dual Mercury Verados w/JPO
engines with Joystick Piloting.Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting) (must select Premium Package or Vessel View 4 inch Display)
400 L6 DTS White Dual Mercury Verados w/JPO
engines with Joystick Piloting.Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting) (must select Premium Package or Vessel View 4 inch Display)
Railings and Rub Rails
Rails - split bow rail
Rails - split bow rail
Rails- white rub rail with stainless insert
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Fishing Features
Outriggers - radial outriggers (black)
Notable Options & Accessories
Anchor - stainless steel
Anchor windlass chain (150 feet)
Bow thruster (12-V)
Cockpit refrigerator (220V)
Generator (low CO gas 7kW Westerbeke)
Gyroscopic Stabilizer
Hardtop hatches
(opening deck hatches in hardtop)
Lighting - underwater LED
Privacy curtain (mid cabin)
Spotlight
Trailer - aluminum
Windshield defroster
Navigation
NAV PKG, SIMRAD 12" NSX ADDT'L DISP
NAV PKG, SIMRAD 16" NSO
NAV PKG, SIMRAD 16" NSO
NAV PKG, SIMRAD 16" NSO ADDT'L DISP
NAV PKG, SIMRAD 16" NSO ADDT'L DISP
Electronics
AUTOPILOT SIMRAD NAC-2
Navionics Chart Card - Au/nz
Navionics Chart Card - Central/s. America
Navionics Chart Card - Europe/mid East/asia

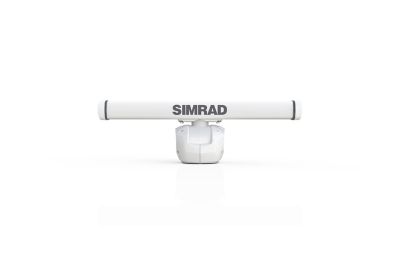

RADAR, SIMRAD OPEN ARRAY HALO 48"
RADAR, SIMRAD OPEN ARRAY HALO 48"

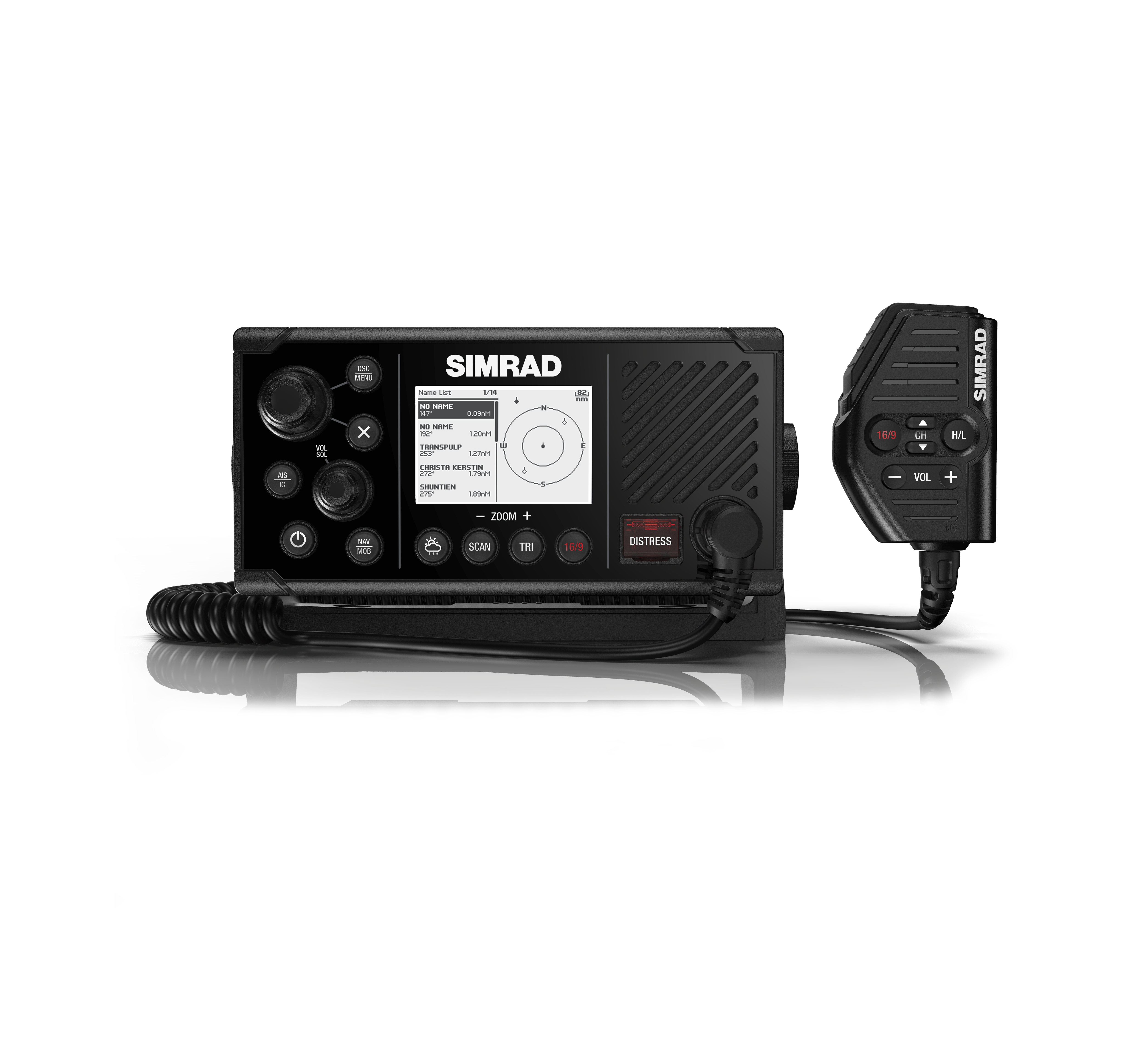

VHF RADIO (SIMRAD)
VHF RADIO (SIMRAD)
Standard Features
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
8” stainless steel cleats - anchor cleat (pop-up cross tie cleat) (1), stern with hawse pipes (2)
10” stainless steel cleats - bow (2), spring line (2)
28” cockpit depth
12-V receptacle
Acrylic transom door
Anchor roller assembly with safety lanyard (stainless steel)
Bow and stern lifting eyes
Coaming bolsters (cockpit)
Deckhouse windows (port and starboard)
Dive door (molded fiberglass boarding door on starboard side with removable stainless-steel dive ladder)
Hawse pipes with drink holders (stern) (stainless steel)
Motorwell drains
Cockpit prep center - Corian solid-surface countertop with sink and storage (starboard side of cockpit)
Rails - bow rail (welded stainless steel)
Rails - grab rails (stainless steel)
Rails - rub rail (black) (heavy-duty)
Rails - toe rails (cockpit) (stainless steel)
Raw water washdown
Rod holders (4) (gunnel-mounted) (stainless steel)
Rod holders (3) (transom-mounted) (stainless steel)
Self-bailing cockpit
Shower (cockpit)
Storage drawer system (cockpit)
Swim ladder (covered telescoping swim ladder with grab rail) (stainless steel)
USB outlet
Aft bulkhead (pilothouse) (must select full side glass)
Carbon monoxide detector
Cockpit floodlight, dome light, and rod holders (4)
Full side glass integrated with aft legs and hardtop
Integrated windshield, hardtop and pilothouse bulkhead
Locking door with full length glass
Opening window (portside - aft)
Sink with Corian countertop
Speakers (2)
Stainless steel grab rails along sides for moving forward
Tempered glass full enclosure windshield system with electric vent
Windshield washer system
Windshield wipers (port and starboard)
12-V receptacle
Compass
Cupholders (2)
Console storage with dash mat
Dual level molded-in footrests
Electronics mounting surface (space for two 12” screens)
Instrumentation and electrical switch panels with circuit breaker protection
Steering wheel with knob (stainless steel)
USB outlet
110-V outlet
12-V / 120-V refrigerator
Countertop (Corian solid surface)
Sink with faucet
Microwave
Skylight over galley
Trash receptacle (under c-way step)
Wood grain lower galley cabinetry
Convertible aft port seat/lounge (double-wide aft seating)
Convertible forward port seat/lounge - includes conversion to forward or aft seated positions, cockpit table on gas-assist high/low pedestal, cup holders (2) and lounge filler cushion
Foldaway stern bench seat
Helm seat with adjustable slider
Pullout footrest for portside conversion seatback (for aft-facing seat)
Bow anchor locker with drain
Bow storage lockers under V-berth
Galley storage
Hanging locker
In-deck fishboxes (40 gallons each) with drain and pump-out (2)
Port cockpit storage drawers
Rod racks (cabin interior) (3)
Gaff/boat hook/scrub brush storage (under gunnel) (2)
500 GPH shower sump-pump
Countertop (Corian solid surface)
Hooks (2) (flip-down hanging storage) (stainless steel)
Lighting
Mirror
Opening porthole with screen
Shelf with stainless steel retainer rail
Sink with pressurized water system and pullout shower
Storage area
VacuFlush™ head with holding tank, dockside pump-out and overboard discharge (12 gallons)
Vinyl floor
12-V receptacle (cabin)
Cabin lighting
Carbon monoxide detector
Cushions with backrest (forward berth)
Dinette table (wood) (hinged) (with gas-assisted base)
Drink holders (forward berth)
Easy clean interior materials
Lockable sliding acrylic cabin door
Mid double berth
Opening hatch with screen
Opening portholes with screens - galley (1), head (1)
Stereo - JL Audio AM/FM with CD player, Bluetooth, JL speakers (includes 2 of each: 7.7 aft cockpit, 7.7 hardtop, 6.5 cabin interior), JL amplifier M400/4 (Fusion integration into Raymarine with navigation package)
USB receptacles (cabin and midberth)
V-berth filler cushions
Wood flooring
300 V8 DTS Black Dual Mercury Verado engines with VesselView 7 display and hydraulic power steering (network connection to Simrad with Navigation Package)
Anchor windlass - low profile with rode and anchor (1,000W)
Automatic bilge pumps (1,100 GPH forward, 2,000 GPH aft)
Battery trays (4) with remote battery switches
Cockpit lighting (blue/white LED)
Electric horn
Electric trim tabs with indicator
Engine fuel / water separators
Freshwater system
Fuel tank (300 g
