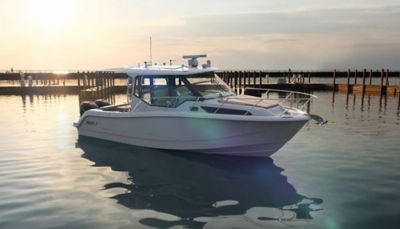

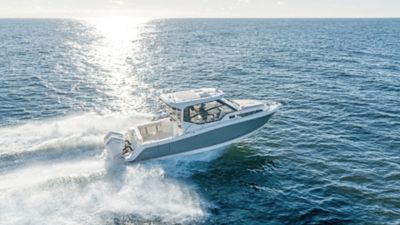

325 Conquest

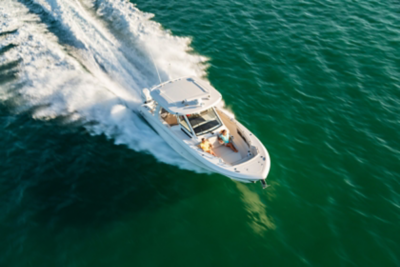

Aboard the 325 Conquest, the horizon opens up to any adventure. This 32-foot dual-console cabin cruiser can take you and your crew anywhere you care to roam, whether it’s cruising the docks for an afternoon of dining and shopping, or venturing offshore to pursue big game. Remarkable features include but are not limited to the ultra-convertible port lounge, a customizable aft fishing cockpit, a full front glass windshield for incredible visibility, and a spacious cabin perfect for overnighting. And thanks to a keel-up redesign of Whaler’s unsinkable hull, the Conquest delivers smooth, seamless performance with better planing and stability than ever before. The 325 Conquest truly will exceed your expectations in every way.
?$FG-577-359-D$&fit=crop&fmt=jpg)
?$C-800-500-D$&fit=crop&fmt=jpg)
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
325 CONQUEST FEATURES

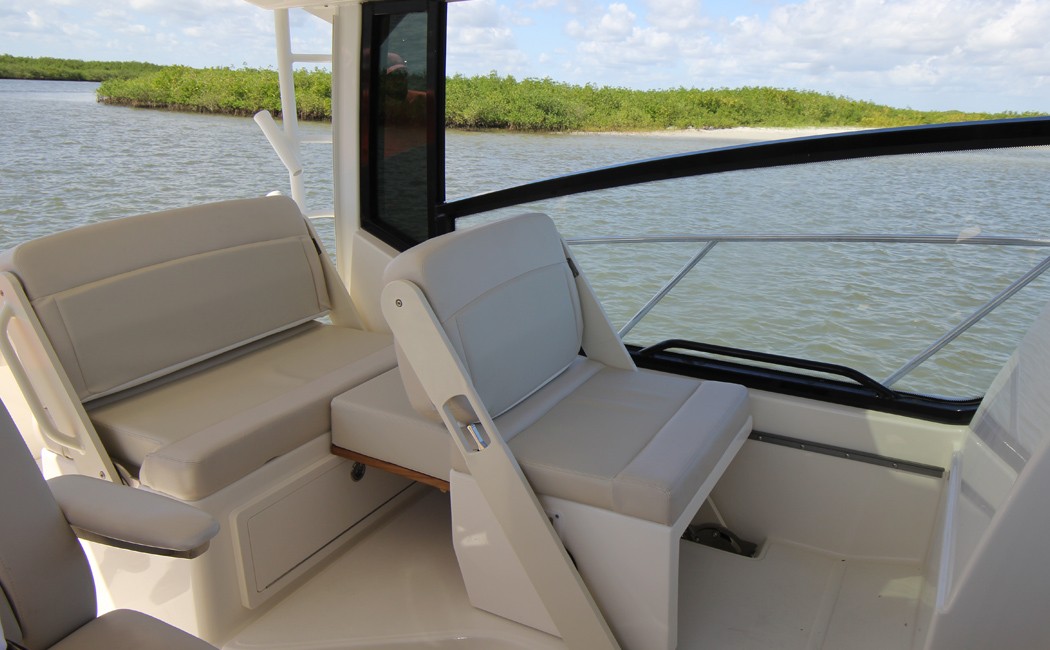

- Innovative portside lounge with hidden table converts to multiple positions
- Standard half side and optional full side glass provides a sense of intimacy with the water

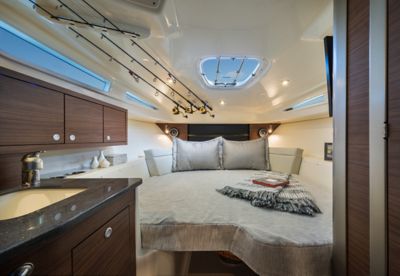

- Deluxe cabin includes convertible V-berth sleeping/dining area, full-height hanging locker, and deckhouse windows for plenty of natural light
- Starboard dive door lets anglers drag large catches on deck more easily, while a removable swim ladder enables easier re-boarding after swimming

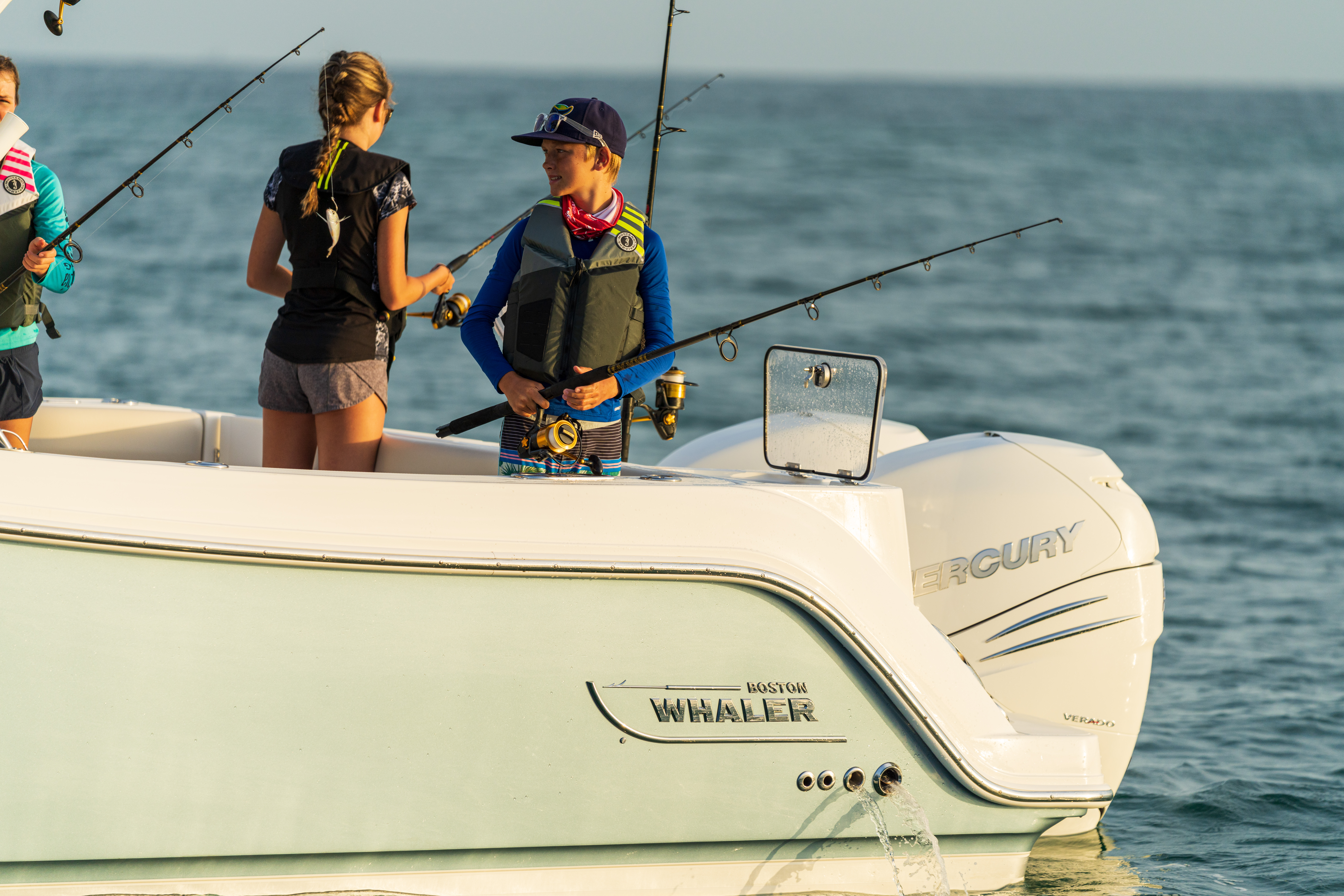

- Fishing features include a well-equipped prep center, in-deck fishboxes, insulated livewell and more

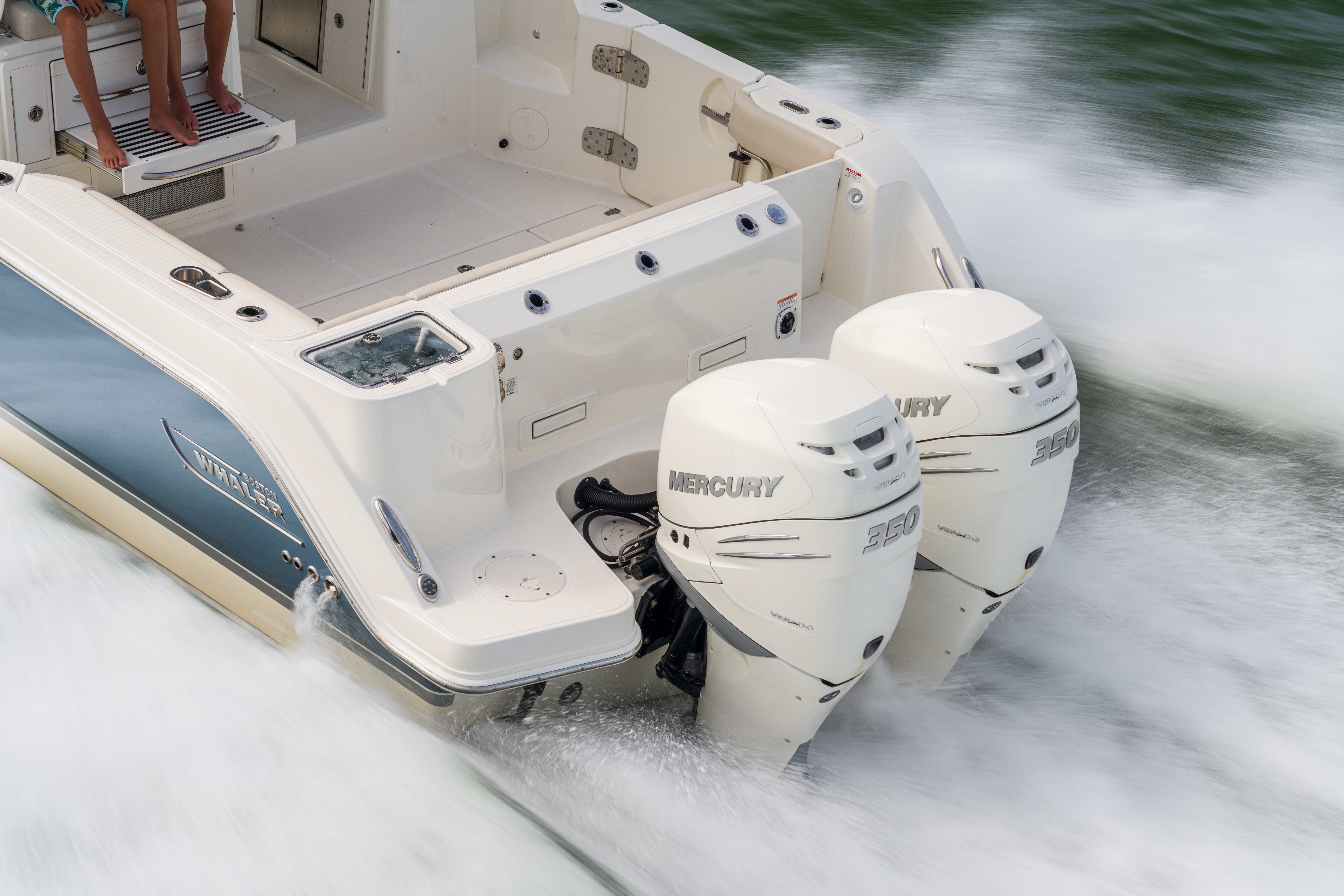

- Standard dual 300-hp Mercury Verados with options up to dual 400-hp and/or Joystick Piloting

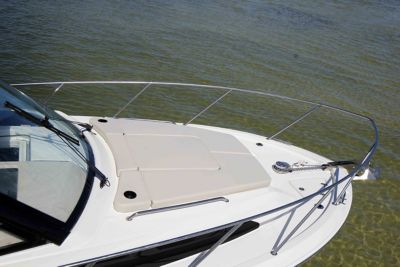

- Comfortable and spacious bow sun lounge features handrails for added safety
- Available with Seakeeper gyro-stabilizing system
- Optional aft bulkhead along with optional full side glass encloses helm deck provinging the the ultimate in weather protection
Capacity
14
Persons Capacity
300 gallons (1,135 L)
Fuel Capacity
1,400 lbs (635 kg)
Maximum Engine Weight
4,300 lbs (1,950 kg)
Maximum Weight Capacity
2,300 lbs (1,043 kg)
Swamped Capacity
12 gallons (45 L)
Waste Capacity
46 gallons (174 L)
Water Capacity
Dimensions
32’ 3” (9.83 m)
L.O.A.
10"8" (3.25 M)
Beam
9'3" (2.82 M)
Bridge Clearance (with hardtop)
10’ 7” (3.23 m)
Bridge Clearance (with hardtop, radar and spotlight)
20º
Deadrise at Transom
26” (0.66 m)
Draft (hull only)
25” (0.65 m)
Transom Height
Engines
800 HP (597 kW)
Maximum Horsepower
600 HP (447 kW)
Minimum Horsepower
Weight
10,500 lbs (4,762 kg)
Weight (dry, no engine)
14,290 (6,482 kg)
Weight (with engine, fuel and water)
14,290 lbs (6,482 kg)
Weight (with engines, fuel and water)
14
Persons Capacity
300 gallons (1,135 L)
Fuel Capacity
1,400 lbs (635 kg)
Maximum Engine Weight
4,300 lbs (1,950 kg)
Maximum Weight Capacity
2,300 lbs (1,043 kg)
Swamped Capacity
12 gallons (45 L)
Waste Capacity
46 gallons (174 L)
Water Capacity
32’ 3” (9.83 m)
L.O.A.
10"8" (3.25 M)
Beam
9'3" (2.82 M)
Bridge Clearance (with hardtop)
10’ 7” (3.23 m)
Bridge Clearance (with hardtop, radar and spotlight)
20º
Deadrise at Transom
26” (0.66 m)
Draft (hull only)
25” (0.65 m)
Transom Height
800 HP (597 kW)
Maximum Horsepower
600 HP (447 kW)
Minimum Horsepower
10,500 lbs (4,762 kg)
Weight (dry, no engine)
14,290 (6,482 kg)
Weight (with engine, fuel and water)
14,290 lbs (6,482 kg)
Weight (with engines, fuel and water)
Standard features & Options
STEREO SYSTEM (JL Audio integration into Simrad Navigation Package)
JL Audio MM105-HR stereo with Dash mounted remote volume/mute knob
AM/FM/HD Radio, USB audio, and Sirus XMTM ready
Iphone/Android compatible via integrated Bluetooth 5.0
JL waterproof speakers (4) and 400W Amplifier
Courtesy blue lighting
Speakers (2)
Stainless steel grab rails along sides for moving forward
Tempered glass full front windshield with dual electric vent
Windshield washer system
Windshield wipers (port and starboard)
Integrated single-piece windshield (white or black depending on frame color selection) and hardtop
Cockpit floodlight, dome light, and rod holders (4) (white or black depending on frame color selection)
12-V receptacle (cabin and mid berth)
Cabin lighting
Carbon monoxide detector
Cushions with backrest (forward berth)

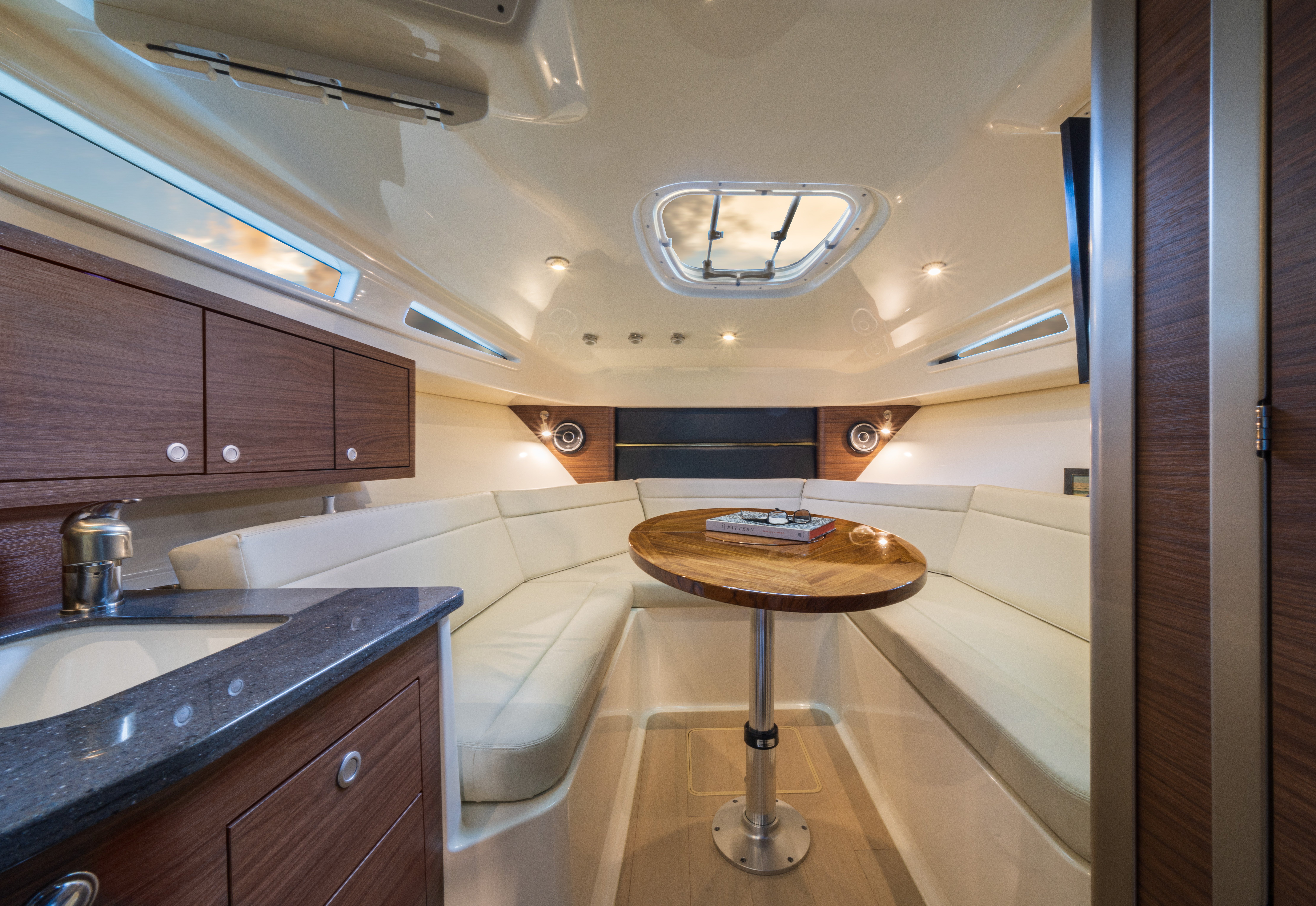

Dinette table (wood) (hinged) (with gas-assisted base)
Drink holders (forward berth)
Easy clean interior materials
Lockable sliding acrylic cabin door
Mid double berth
Opening hatch with screen
Opening portholes with screens - galley (1), head (1)
USB receptacles (cabin and midberth)
12-V receptacle
Compass
Console storage with dash mat
Cupholders (2)
Dual level molded-in footrests
Electronics mounting surface (space for two 12” screens)
Instrumentation and electrical switch panels with circuit breaker protection
Steering wheel with knob (stainless steel)
USB outlet
12” SIMRAD NSX ELECTRONICS/NAVIGATION PACKAGE
Simrad NSX 12” MFD (GPS, hart plotter, Fishfinder)
Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan)
C-Map® DiscoverTM X Chart Card: North America/Canada
10” stainless steel cleats – 10” bow (2), 10” spring line (2), 8” stern with hawse pipes (2), pop up cross tie cleats
12-V receptacle
28” cockpit depth
8” stainless steel anchor cleat (1)
Acrylic transom door
Anchor roller assembly with safety lanyard (stainless steel)
Bow and stern lifting eyes
Coaming bolsters (cockpit)
Cockpit prep center - Corian solid-surface countertop with sink and storage (starboard side of cockpit)
Deckhouse windows (port and starboard)
Dive door (molded fiberglass boarding door on starboard side with removable stainless-steel dive ladder)
Hawse pipes with drink holders (stern) -stainless steel
Motorwell drains
Welded bow rails - stainless steel
Grab rails - stainless steel
Rails - rub rail (black) (heavy-duty)
Toe rails - stainless steel
Raw water washdown
Transom-mounted rod holders (3) - stainless steel
Gunnel-mounted rod holders (4) - stainless steel
Self-bailing cockpit
Shower (cockpit)
Storage drawer system (port cockpit)

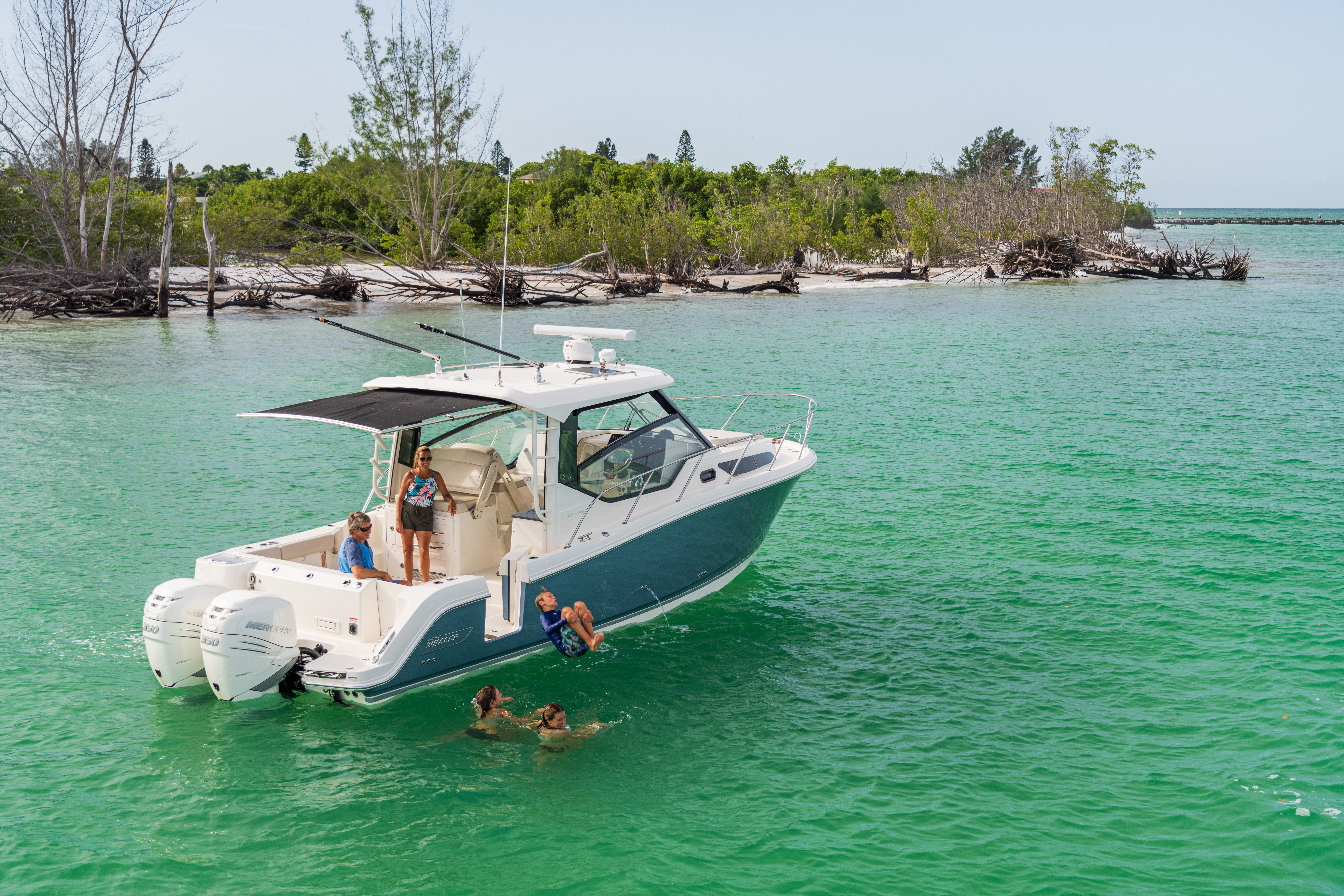

Swim ladder (covered telescoping swim ladder with grab rail) (stainless steel)
USB outlet
110-V outlet

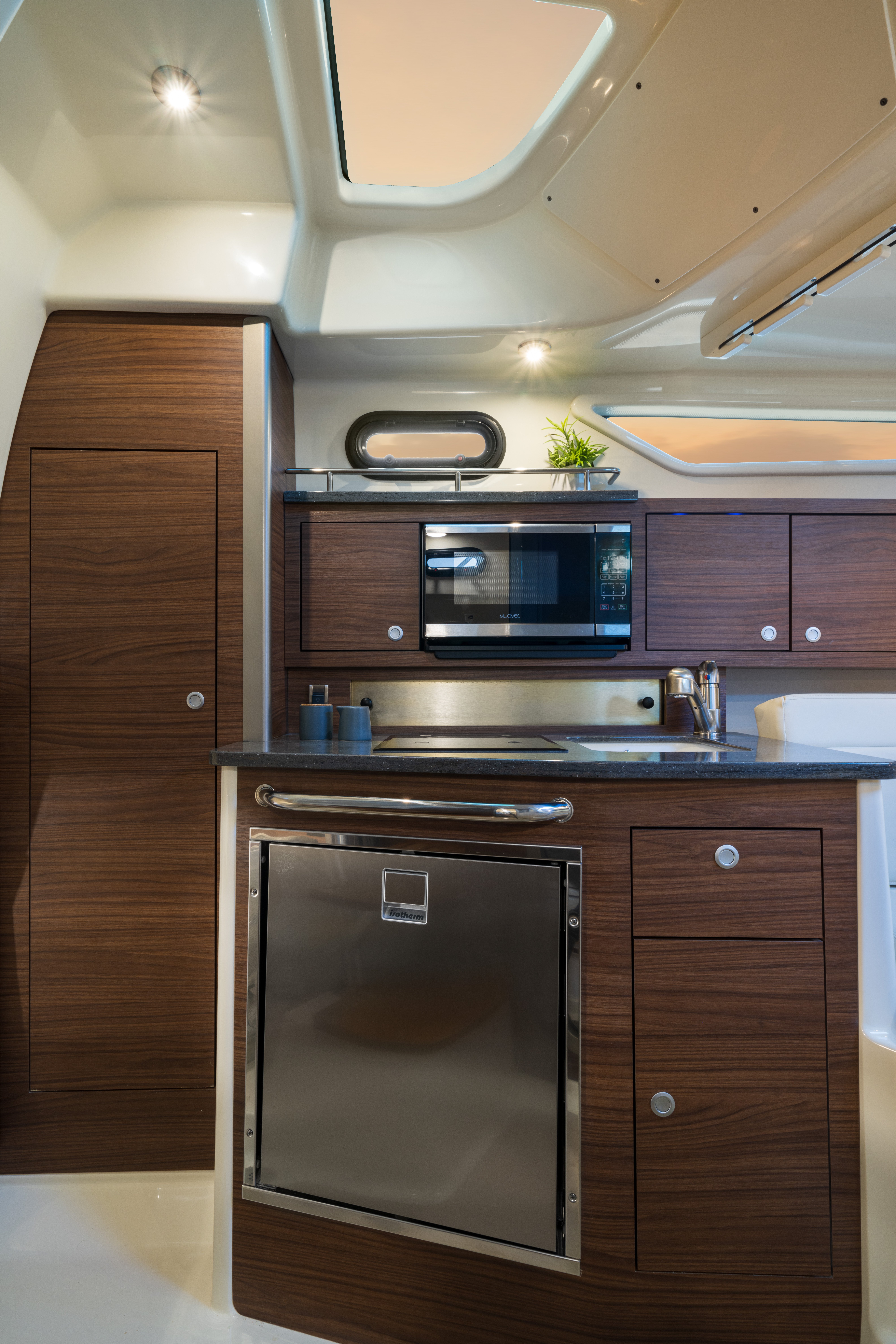

12-V / 120-V refrigerator
Countertop (Corian solid surface)
Microwave
Sink with faucet
Skylight over galley
Trash receptacle (under c-way step)
Wood grain lower galley cabinetry

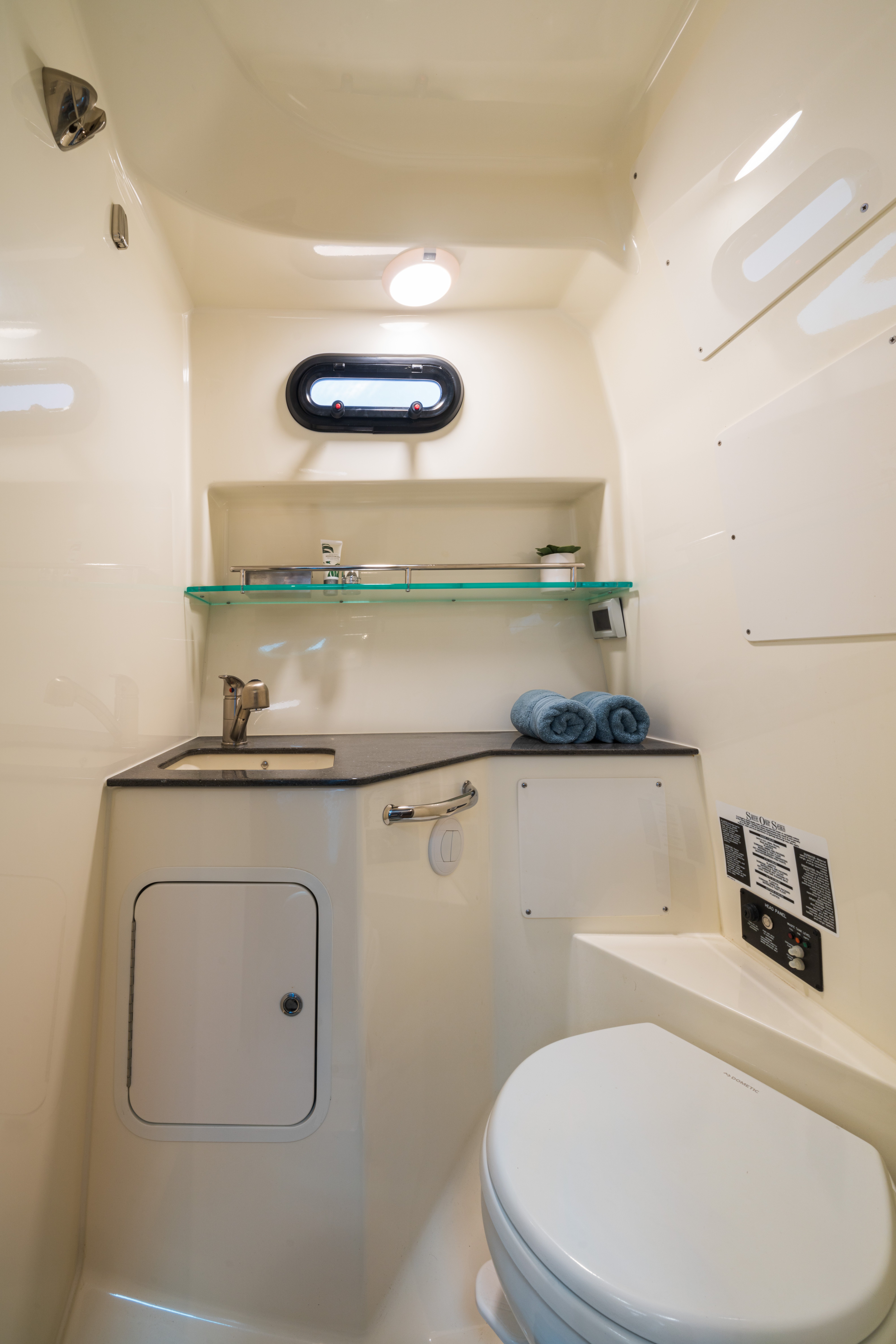

500 GPH shower sump-pump
Countertop (Corian solid surface)
Hooks (2) (hanging storage) (stainless steel)
Lighting
Mirror
Opening porthole with screen
Shelf with stainless steel retainer rail
Sink with pressurized water system and pullout shower
Storage area
VacuFlush™ head with holding tank, dockside pump-out and overboard discharge (12 gallons)
Vinyl floor
300 V8 DTS Dual Black Mercury Verado with hydraulic power steering
Anchor windlass - low profile with rode and anchor (1,000W)
Automatic bilge pumps (1,100 GPH forward, 2,000 GPH aft)
Battery trays (4) with remote battery switches
Cockpit lighting (blue/white LED)
Electric horn
Electric trim tabs with indicator
Engine fuel/water separators
Fuel tank (300 gallons)
High water bilge pump with alarm (2,000 GPH)
Insulated livewell with light, blue interior and flow control
Navigation lights
Propellers (stainless steel)
Raw water washdown
Shore power with battery charger and galvanic isolator (ELCI system) (single 30A)
Shower (cockpit)
Stainless steel thru hulls
Tilt steering
Transducer mount area
Integrated Mercury SmartCraft Connect
Freshwater system
Convertible aft port seat/lounge (double-wide aft seating)
Convertible forward port seat/lounge - includes conversion to forward or aft seated positions, cockpit table on gas-assist high/low pedestal, cup holders (2) and lounge filler cushion

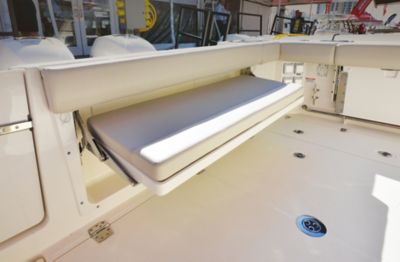

Foldaway stern bench seat
Helm seat with adjustable slider
Pullout footrest for portside conversion seatback (for aft-facing seat)
Bow anchor locker with drain
Bow storage lockers under V-berth
Gaff/boat hook/scrub brush storage (under gunnel) (2)
Galley storage
Hanging locker
In-deck fishboxes (40 gallons each) with drain and pump-out (2)
Port cockpit storage drawers
Rod racks (cabin interior) (3)
Bluetooth connection vi Vessel View Mobile app (compatible while connected to stereo)
Display key engine data on your smartphone (Android or Apple iPhone)
Troubleshooting assistance with dealer notification
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and stripe)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue

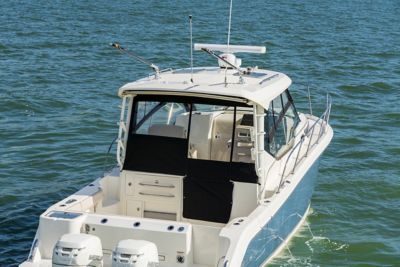

Helm Deck Enclosure
Full Enclosure and Hardtop System
Full Enclosure and Hardtop System

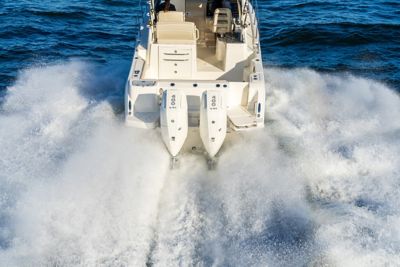

Dual Engines
400 V10 DTS Dual Black Mercury Verado Engines
with hydraulic power steeringand fuel/water separator
400 V10 DTS Dual White Mercury Verado Engines
with hydraulic power steeringand fuel/water separator
300 V8 DTS Black Dual Mercury Verados w/JPO
400 V10 DTS Dual Black Mercury Verado Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting) (must select Premium Package or Vessel View 4 Display)
400 V10 DTS Dual White Mercury Verado Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting) (must select Premium Package or Vessel View 4 Display)
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert

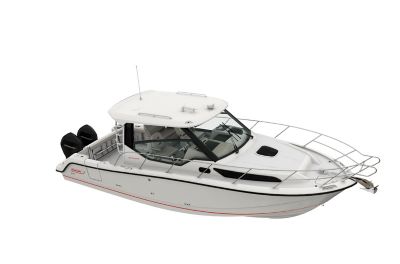

Rails - split bow rail
Rails - split bow rail

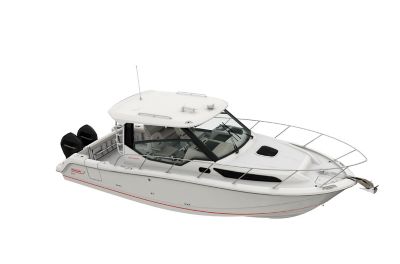

Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Entertaining Features
Refrigerator at cockpit
(stainless steel) (12V/12V)

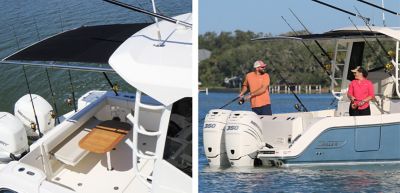

Table - at cockpit
(teak with satin urethane finish)

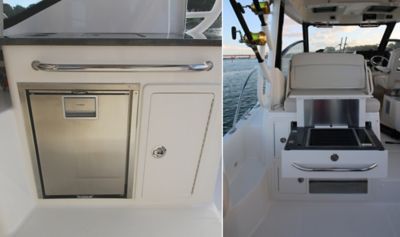

Summer kitchen
(must select generator for use away from shore power) \u1a includes cockpit refrigerator, Corian countertop at starboard sink, GFCI circuit protection with outlet on helm deck, pull-out cockpit grill with cutting board and storage drawers
Fishing Features

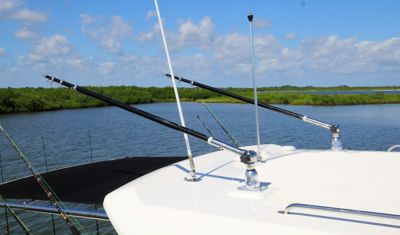

Outriggers - radial outriggers (black)
Outriggers - radial outriggers (black)
Notable Options & Accessories
Storage cabinets
(located starboard interior)
Windshield defroster

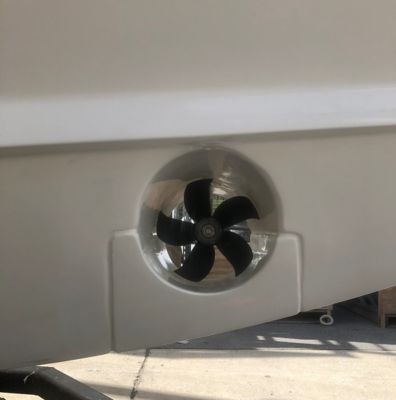

Bow thruster (12-V)
Bow thruster (12-V)

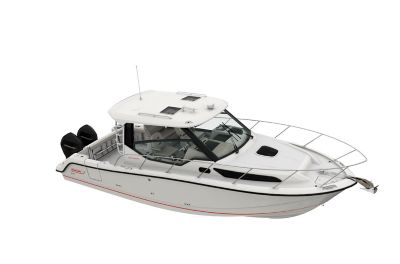

Hardtop hatches
(opening deck hatches in hardtop)

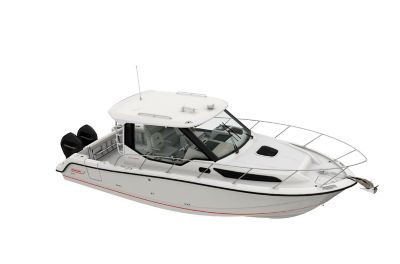

Full side glass
integrated with aft legs and hardtop

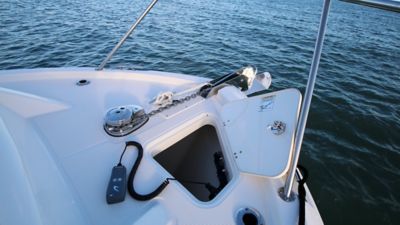

Anchor windlass chain (150 feet)
Anchor windlass chain (150 feet)
Anchor - stainless steel
Anchor - stainless steel

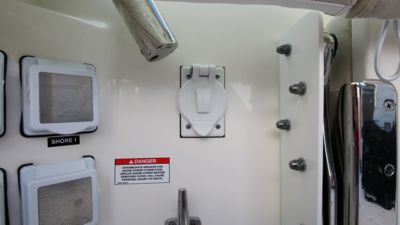

12-V DC receptacles
(electric reels/downriggers) (2)
Air conditioning- reverse cycle (8,000 BTU)
Air conditioning- reverse cycle (8,000 BTU)
Spotlight
Spotlight

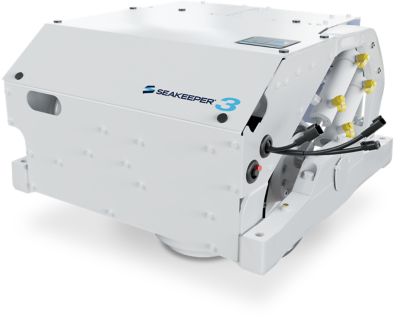

Seakeeper 3 Gyroscopic Stabilizer
Seakeeper 3 Gyroscopic Stabilizer

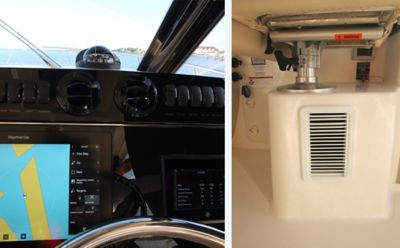

Air conditioning at helm deck
(includes second 3 amp shore power service) (must select air conditioning) (not compatible with heater system)
Privacy curtain (mid cabin)
Lighting - underwater LED
Generator (120V)
Generator (220V)
Trailer - aluminum
Navigation

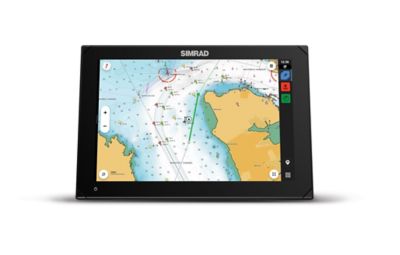

NAV PKG, SIMRAD 12" NSX ADDT'L DISP
NAV PKG, SIMRAD 12" NSX ADDT'L DISP
Nav Package, Simrad 16" NSO
Includes: (Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder), Integrated Mercury VesselView Link , GS25 GPS Antenna 15 N2K with Heading Sensor)

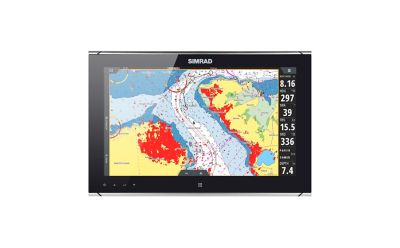

NAV PKG, SIMRAD 16" NSO ADDT'L DISP
NAV PKG, SIMRAD 16" NSO ADDT'L DISP
NAV PKG, SIMRAD 12" NSX
Includes: (Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder),Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), C-Map® DiscoverTM X Chart Card: North America/Canada, Integrated Mercury SmartCraft Connect)
Electronics

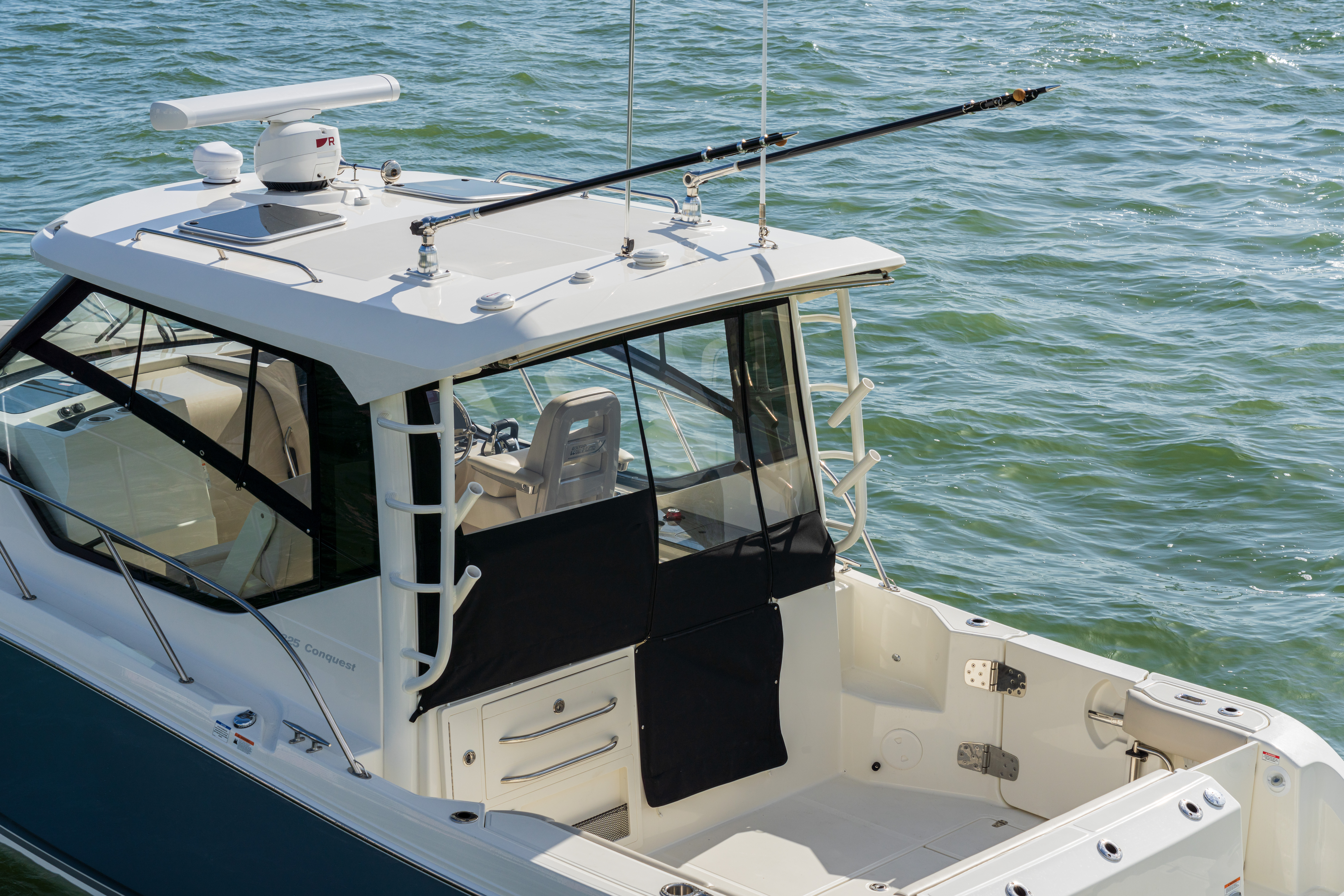

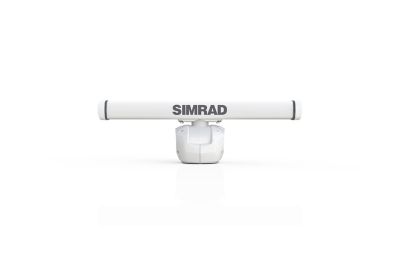

RADAR, SIMRAD OPEN ARRAY HALO 48"
RADAR, SIMRAD OPEN ARRAY HALO 48"

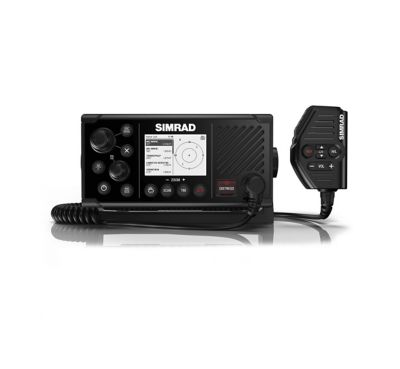

VHF RADIO (SIMRAD)
VHF RADIO (SIMRAD)
AUTOPILOT SIMRAD NAC-2
Satellite Radio - Sirius
satellite receiver with antenna
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
Standard Features
STEREO SYSTEM (JL Audio integration into Simrad Navigation Package)
JL Audio MM105-HR stereo with Dash mounted remote volume/mute knob
AM/FM/HD Radio, USB audio, and Sirus XMTM ready
Iphone/Android compatible via integrated Bluetooth 5.0
JL waterproof speakers (4) and 400W Amplifier
Courtesy blue lighting
Speakers (2)
Stainless steel grab rails along sides for moving forward
Tempered glass full front windshield with dual electric vent
Windshield washer system
Windshield wipers (port and starboard)
Integrated single-piece windshield (white or black depending on frame color selection) and hardtop
Cockpit floodlight, dome light, and rod holders (4) (white or black depending on frame color selection)
12-V receptacle (cabin and mid berth)
Cabin lighting
Carbon monoxide detector
Cushions with backrest (forward berth)
Dinette table (wood) (hinged) (with gas-assisted base)
Drink holders (forward berth)
Easy clean interior materials
Lockable sliding acrylic cabin door
Mid double berth
Opening hatch with screen
Opening portholes with screens - galley (1), head (1)
USB receptacles (cabin and midberth)
12-V receptacle
Compass
Console storage with dash mat
Cupholders (2)
Dual level molded-in footrests
Electronics mounting surface (space for two 12” screens)
Instrumentation and electrical switch panels with circuit breaker protection
Steering wheel with knob (stainless steel)
USB outlet
12” SIMRAD NSX ELECTRONICS/NAVIGATION PACKAGE
Simrad NSX 12” MFD (GPS, hart plotter, Fishfinder)
Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan)
C-Map® DiscoverTM X Chart Card: North America/Canada
10” stainless steel cleats – 10” bow (2), 10” spring line (2), 8” stern with hawse pipes (2), pop up cross tie cleats
12-V receptacle
28” cockpit depth
8” stainless steel anchor cleat (1)
Acrylic transom door
Anchor roller assembly with safety lanyard (stainless steel)
Bow and stern lifting eyes
Coaming bolsters (cockpit)
Cockpit prep center - Corian solid-surface countertop with sink and storage (starboard side of cockpit)
Deckhouse windows (port and starboard)
Dive door (molded fiberglass boarding door on starboard side with removable stainless-steel dive ladder)
Hawse pipes with drink holders (stern) -stainless steel
Motorwell drains
Welded bow rails - stainless steel
Grab rails - stainless steel
Rails - rub rail (black) (heavy-duty)
Toe rails - stainless steel
Raw water washdown
Transom-mounted rod holders (3) - stainless steel
Gunnel-mounted rod holders (4) - stainless steel
Self-bailing cockpit
Shower (cockpit)
Storage drawer system (port cockpit)
Swim ladder (covered telescoping swim ladder with grab rail) (stainless steel)
USB outlet
110-V outlet
12-V / 120-V refrigerator
Countertop (Corian solid surface)
Microwave
Sink with faucet
Skylight over galley
Trash receptacle (under c-way step)
Wood grain lower galley cabinetry
500 GPH shower sump-pump
Countertop (Corian solid surface)
Hooks (2) (hanging storage) (stainless steel)
Lighting
Mirror
Opening porthole with screen
Shelf with stainless steel retainer rail
Sink with pressurized water system and pullout shower
Storage area
VacuFlush™ head with holding tank, dockside pump-out and overboard discharge (12 gallons)
Vinyl floor
300 V8 DTS Dual Black Mercury Verado with hydraulic power steering
Anchor windlass - low profile with rode and anchor (1,000W)
Automatic bilge pumps (1,100 GPH forward, 2,000 GPH aft)
Battery trays (4) with remote battery switches
Cockpit lighting (blue/white LED)
Electric horn
Electric trim tabs with indicator
Engine fuel/water separators
Fuel tank (300 gallons)
High water bilge pump with alarm (2,000 GPH)
Insulated livewell with light, blue interior and flow control
Navigation lights
Propellers (stainless steel)
Raw water washdown
Shore power with battery charger and galvanic isolator (ELCI system) (single 30A)
Shower (cockpit)
Stainless steel thru hulls
Tilt steering
Transducer mount area
Integrated Mercury SmartCraft Connect
Freshwater system
Convertible aft port seat/lounge (double-wide aft seating)
Convertible forward port seat/lounge - includes conversion to forward or aft seated positions, cockpit table on gas-assist high/low pedestal, cup holders (2) and lounge filler cushion
Foldaway stern bench seat
Helm seat with adjustable slider
Pullout footrest for portside conversion seatback (for aft-facing seat)
Bow anchor locker with drain
Bow storage lockers under V-berth
Gaff/boat hook/scrub brush storage (under gunnel) (2)
Galley storage
Hanging locker
In-deck fishboxes (40 gallons each) with drain and pump-out (2)
Port cockpit storage drawers
Rod racks (cabin interior) (3)
Bluetooth connection vi Vessel View Mobile app (compatible while connected to stereo)
Display key engine data on your smartphone (Android or Apple iPhone)
Troubleshooting assistance with dealer notification
Options
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and stripe)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Helm Deck Enclosure
Full Enclosure and Hardtop System
Full Enclosure and Hardtop System
Dual Engines
400 V10 DTS Dual Black Mercury Verado Engines
with hydraulic power steeringand fuel/water separator
400 V10 DTS Dual White Mercury Verado Engines
with hydraulic power steeringand fuel/water separator
300 V8 DTS Black Dual Mercury Verados w/JPO
400 V10 DTS Dual Black Mercury Verado Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting) (must select Premium Package or Vessel View 4 Display)
400 V10 DTS Dual White Mercury Verado Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting) (must select Premium Package or Vessel View 4 Display)
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails - split bow rail
Rails - split bow rail
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Entertaining Features
Refrigerator at cockpit
(stainless steel) (12V/12V)
Table - at cockpit
(teak with satin urethane finish)
Summer kitchen
(must select generator for use away from shore power) \u1a includes cockpit refrigerator, Corian countertop at starboard sink, GFCI circuit protection with outlet on helm deck, pull-out cockpit grill with cutting board and storage drawers
Fishing Features
Outriggers - radial outriggers (black)
Outriggers - radial outriggers (black)
Notable Options & Accessories
Storage cabinets
(located starboard interior)
Windshield defroster
Bow thruster (12-V)
Bow thruster (12-V)
Hardtop hatches
(opening deck hatches in hardtop)
Full side glass
integrated with aft legs and hardtop
Anchor windlass chain (150 feet)
Anchor windlass chain (150 feet)
Anchor - stainless steel
Anchor - stainless steel
12-V DC receptacles
(electric reels/downriggers) (2)
Air conditioning- reverse cycle (8,000 BTU)
Air conditioning- reverse cycle (8,000 BTU)
Spotlight
Spotlight
Seakeeper 3 Gyroscopic Stabilizer
Seakeeper 3 Gyroscopic Stabilizer
Air conditioning at helm deck
(includes second 3 amp shore power service) (must select air conditioning) (not compatible with heater system)
Privacy curtain (mid cabin)
Lighting - underwater LED
Generator (120V)
Generator (220V)
Trailer - aluminum
Navigation
NAV PKG, SIMRAD 12" NSX ADDT'L DISP
NAV PKG, SIMRAD 12" NSX ADDT'L DISP
Nav Package, Simrad 16" NSO
Includes: (Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder), Integrated Mercury VesselView Link , GS25 GPS Antenna 15 N2K with Heading Sensor)
NAV PKG, SIMRAD 16" NSO ADDT'L DISP
NAV PKG, SIMRAD 16" NSO ADDT'L DISP
NAV PKG, SIMRAD 12" NSX
Includes: (Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder),Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), C-Map® DiscoverTM X Chart Card: North America/Canada, Integrated Mercury SmartCraft Connect)
Electronics
RADAR, SIMRAD OPEN ARRAY HALO 48"
RADAR, SIMRAD OPEN ARRAY HALO 48"
VHF RADIO (SIMRAD)
VHF RADIO (SIMRAD)
AUTOPILOT SIMRAD NAC-2
Satellite Radio - Sirius
satellite receiver with antenna
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)

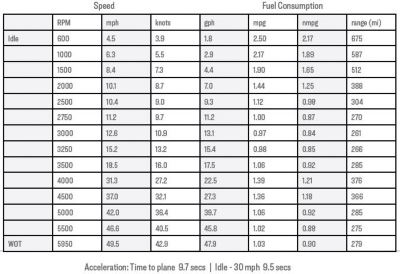

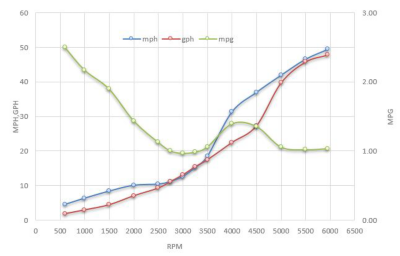

Model: 325 Conquest
Hull #: USBWCE0408F920
Engine: Twin Mercury 300 V8 AMS
Horsepower: 600
Gear Ratio: 1.85 : 1
Prop: 16" x 18" Enertia Eco
Fuel Capacity: 300 gallons
Notable Options: Anchor Windlass Chain, 4kW Open Array Radar, Sunshade, Cruising Package, Heater System, Starboard Interior Storage Cabinet, Cockpit Table, Port Cockpit Folding Seat, Cockpit Refrigerator
Test Date: 20-Nov-2019
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 12,640 lbs
Fuel: 144 gal.
Water: 41 gal.
Test Gear: 25 lbs
Personnel: 395 lbs
Test Weight: 14,288 lbs
Water Conditions: 65° F
Weather Conditions: 71° F

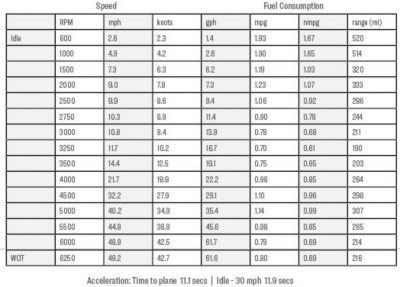

Model: 325 Conquest
Hull #: USBWCE0011H920
Engine: Twin Mercury 350 Verado (with gyro)
Horsepower: 700
Gear Ratio: 1.75 : 1
Prop: 16" x 17" Enertia Eco
Fuel Capacity: 300 gallons
Notable Options: Generator, Joystick piloting, Cruising package, Radar, Electronics, Cockpit A/C, Sunshade, Cockpit bench seat, Gyro
Test Date: 08-July-2019
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 14,731 lbs
Fuel: 177 gal.
Water: 46 gal.
Test Gear: 25 lbs
Personnel: 350 lbs
Test Weight: 16,579 lbs
Water Conditions: 85° F
Weather Conditions: 83° F

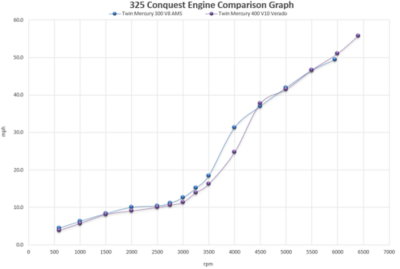

Model: 325 Conquest
Hull #: USBWCE1689C323
Engine: Twin Mercury 400 V10 Verado
Horsepower: 800
Gear Ratio: 2.08:1
Prop: 21P Revolution X
Fuel Capacity: 300 gallons
Notable Options: Stainless Steel Anchor, Chain Option, A/C, Sunshade, Cockpit Refrigerator, Full Side Glass, Generator, Radar
Test Date: 16-May-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 13,164 lbs
Fuel: 167 gal.
Water: 32 gal.
Test Gear: 25 lbs
Personnel: 425 lbs
Test Weight: 14,908 lbs
Water Conditions: 83° F
Weather Conditions: 70° F
Model: 325 Conquest
Hull #: USBWCE0408F920
Engine: Twin Mercury 300 V8 AMS
Horsepower: 600
Gear Ratio: 1.85 : 1
Prop: 16" x 18" Enertia Eco
Fuel Capacity: 300 gallons
Notable Options: Anchor Windlass Chain, 4kW Open Array Radar, Sunshade, Cruising Package, Heater System, Starboard Interior Storage Cabinet, Cockpit Table, Port Cockpit Folding Seat, Cockpit Refrigerator
Test Date: 20-Nov-2019
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 12,640 lbs
Fuel: 144 gal.
Water: 41 gal.
Test Gear: 25 lbs
Personnel: 395 lbs
Test Weight: 14,288 lbs
Water Conditions: 65° F
Weather Conditions: 71° F

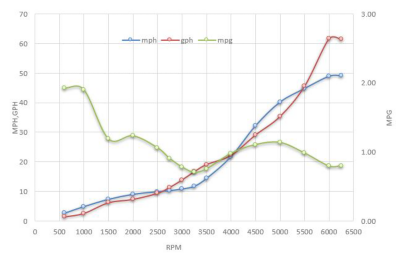

Model: 325 Conquest
Hull #: USBWCE0011H920
Engine: Twin Mercury 350 Verado (with gyro)
Horsepower: 700
Gear Ratio: 1.75 : 1
Prop: 16" x 17" Enertia Eco
Fuel Capacity: 300 gallons
Notable Options: Generator, Joystick piloting, Cruising package, Radar, Electronics, Cockpit A/C, Sunshade, Cockpit bench seat, Gyro
Test Date: 08-July-2019
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 14,731 lbs
Fuel: 177 gal.
Water: 46 gal.
Test Gear: 25 lbs
Personnel: 350 lbs
Test Weight: 16,579 lbs
Water Conditions: 85° F
Weather Conditions: 83° F
Model: 325 Conquest
Hull #: USBWCE1689C323
Engine: Twin Mercury 400 V10 Verado
Horsepower: 800
Gear Ratio: 2.08:1
Prop: 21P Revolution X
Fuel Capacity: 300 gallons

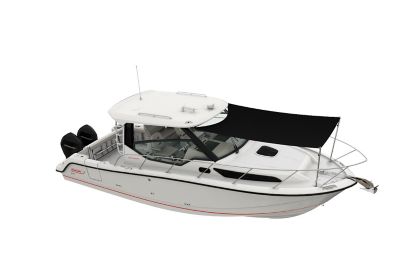

Notable Options: Stainless Steel Anchor, Chain Option, A/C, Sunshade, Cockpit Refrigerator, Full Side Glass, Generator, Radar
Test Date: 16-May-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 13,164 lbs
Fuel: 167 gal.
Water: 32 gal.
Test Gear: 25 lbs
Personnel: 425 lbs
Test Weight: 14,908 lbs
Water Conditions: 83° F
Weather Conditions: 70° F
