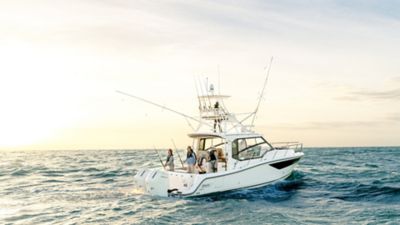

365 Conquest
The powerful, stylish, and comfortable 365 Conquest brings everything to any day of the year—rain or shine, foul or fair. It’s a premiere, multi-day vessel that can transport you to the destination of your dreams, a high-end offshore fishing machine equipped for any quarry, and a luxurious entertainment platform for friends and families with versatile seating, sleeping, and dining amenities. Impeccable style, impressive versatility, and Whaler’s legendary unsinkable construction mean you can customize the 365 Conquest to meet your exacting needs—even if your needs are different from season to season. Cruising dockside shops and restaurants, anchoring overnight in the bay, gathering the family for a multi-day getaway, or relaxing on a sand bar—this multi-talented offshore craft can do it all. With the 365 Conquest, you can finally conquer the calendar. Make it yours, and make every day matter.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
365 CONQUEST FEATURES
- Versatile enough for fishing or entertaining on one-day, overnight, or multi-day trips

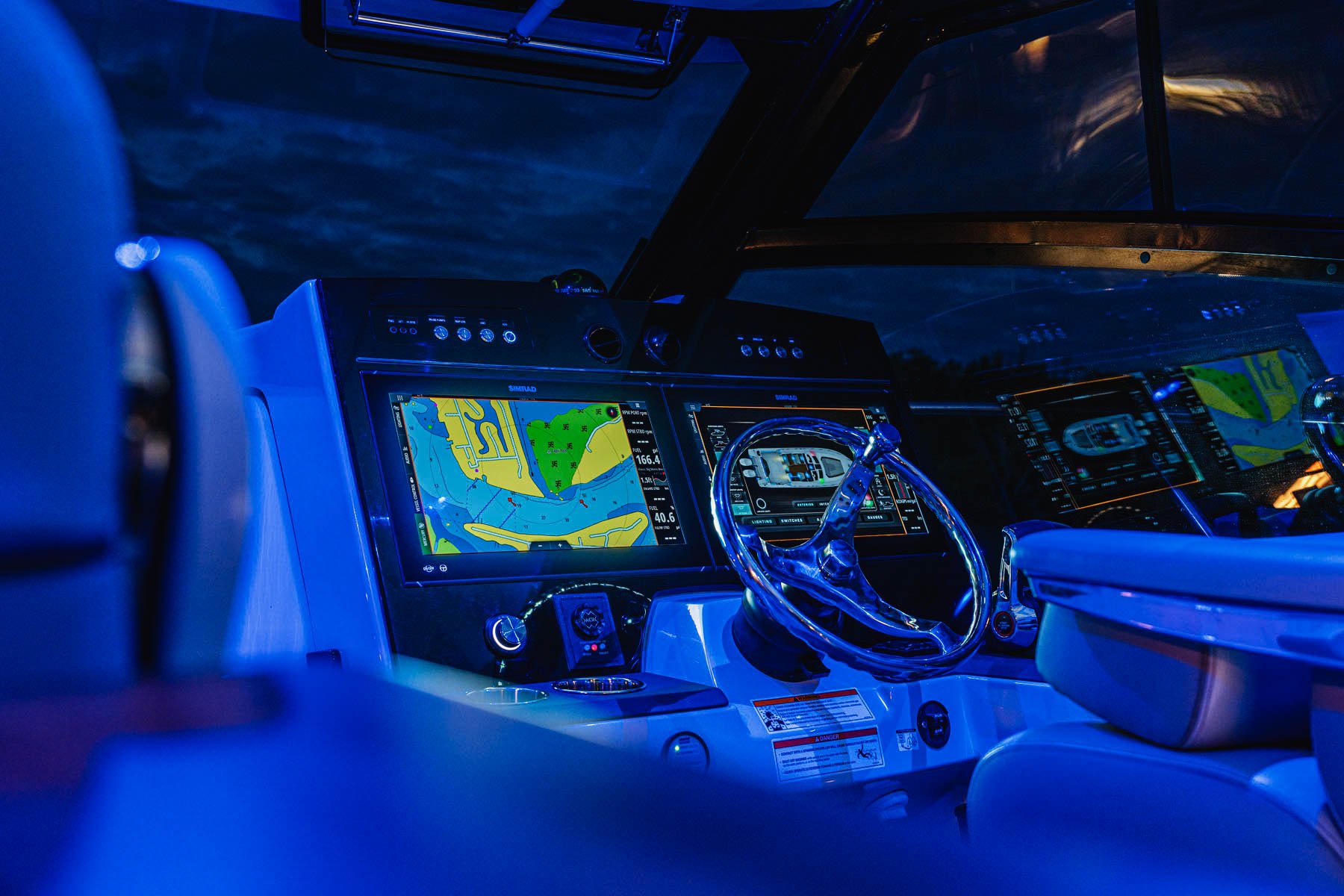

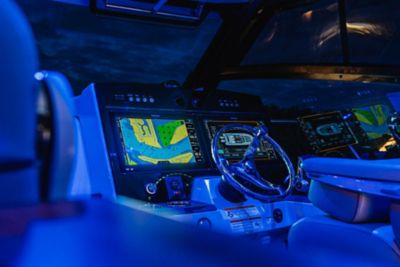

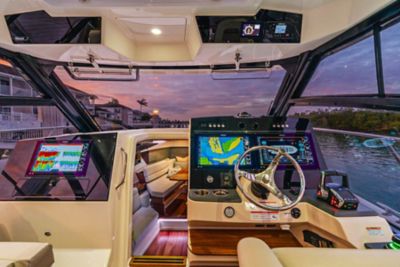

- Helm with dual 19" Simrad® displays, quick find switches, and adjustable captain’s chair
- Convertible port lounge with underway, dining, and padded lounge positions
- Optional U-shaped seating configuration that redefines comfort and socialization on the water, providing unparalleled versatility in the cockpit
- Dynamic cabin system sleeps five, with dry head and separate shower
- Generous storage throughout the boat for extended-stay supplies
- Legendary, unsinkable Boston Whaler hull design
- Innovative hardtop with canvas storage and manual-flip sunroof
- Half-glass, optional full glass or fully enclosed (pilothouse) cockpit options
Capacity
16
Persons Capacity
50 gal (189 L)
Fuel Capacity (diesel generator)
410 gal (1,552 L)
Fuel Capacity
2,700 lbs (1,225 kg)
Maximum Engine Weight
3,405 lbs (1,545 kg)
Maximum Weight Capacity
3,500 lbs (1,588 kg)
Swamped Capacity
20 gal (75 L)
Waste Capacity
52 gal (197 L)
Water Capacity
Dimensions
36' 6" (11.07 m)
L.O.A.
12' 0" (3.66 m)
Beam
10' 10" (3.30 m)
Bridge Clearance (with hardtop and radar)
16' 0" (4.87 m)
Bridge Clearance (with hardtop and upper station)
9' 10" (2.99 m)
Bridge Clearance (with hardtop)
25' 4" (7.72 m)
Bridge Clearance (with upper station and outriggers)
35' 8" (10.84 m)
Centerline (hull only)
28" in (0.71 m)
Cockpit Depth
19º
Deadrise at Transom
31" in (0.79 m)
Draft
19 gal (72 L)
Livewell Volume
15º
Transom Angle
30” in (0.76 m)
Transom Height
Engines
1200 hp (850 kW)
Maximum Horsepower
Weight
17,603 lbs (7,985 kg)
Weight (dry, no engine)
23,447 lbs (10,635 kg)
Weight (with engine, fuel and water)
16
Persons Capacity
50 gal (189 L)
Fuel Capacity (diesel generator)
410 gal (1,552 L)
Fuel Capacity
2,700 lbs (1,225 kg)
Maximum Engine Weight
3,405 lbs (1,545 kg)
Maximum Weight Capacity
3,500 lbs (1,588 kg)
Swamped Capacity
20 gal (75 L)
Waste Capacity
52 gal (197 L)
Water Capacity
36' 6" (11.07 m)
L.O.A.
12' 0" (3.66 m)
Beam
10' 10" (3.30 m)
Bridge Clearance (with hardtop and radar)
16' 0" (4.87 m)
Bridge Clearance (with hardtop and upper station)
9' 10" (2.99 m)
Bridge Clearance (with hardtop)
25' 4" (7.72 m)
Bridge Clearance (with upper station and outriggers)
35' 8" (10.84 m)
Centerline (hull only)
28" in (0.71 m)
Cockpit Depth
19º
Deadrise at Transom
31" in (0.79 m)
Draft
19 gal (72 L)
Livewell Volume
15º
Transom Angle
30” in (0.76 m)
Transom Height
1200 hp (850 kW)
Maximum Horsepower
17,603 lbs (7,985 kg)
Weight (dry, no engine)
23,447 lbs (10,635 kg)
Weight (with engine, fuel and water)
Standard features & Options
32” flat screen HDTV with remote HDMI connection
Carbon monoxide and smoke detectors
LED overhead lights (10)
LED RGB diffused courtesy lighting dimmable via app or GUI
Easy to clean interior materials
Hardwood cabin sole - teak
Lockable acrylic cabin door
Skylights
Microwave
10” Stainless steel cleats; bow (2), stern with hawse pipes (2 per side), spring line (2), bow (1)
10” stainless steel pull-up cleats; cross tie cleats at transom (2)
Boarding ladder - Covered telescoping swim ladder with stainless steel grab rail
Boarding door - Molded fiberglass boarding/dive door, starboard side with removable telescoping stainless-steel dive ladder with dedicated storage in dive door and flip out re-boarding grab rail
Bow eye - heavy duty polished stainless steel
Coaming bolsters with integrated rope lights – cockpit
Dockside cable TV inlet with low profile digital antenna on hardtop and boost control in cabin
Downrigger weight holders (2 port side)
Freshwater shower with hot and cold water near dive door and transom door
Freshwater washdown, stainless steel faucet located in anchor locker
Hawse pipe with integrated drink holders (1) port side
Lighting - LED RGB diffused courtesy lighting dimmable via app or GUI
Lighting – Digitally controlled blue Walkway lights with automatic day/night senor (6)
Livewell - pressurized insulated (19-gallon) in aft port corner with clear lid, blue interior and dual red LED lights
Logo – Chrome Boston Whaler Logo & model designator
Rails - cockpit toe rail, stainless steel under gunnel storage shelf with downrigger weight holders (Port side)
Rails - hand rails; companion way to helm deck and into cabin, boarding ladders, prep station - welded stainless steel
Rails - high bow rails, welded stainless steel
Raw-water washdown - stainless steel faucet located in cockpit
Rod holders - forward deck mounted stainless steel (2)
Rod holders - gunnel mounted stainless steel (5) – cockpit foldout bench seat port side option deletes (1) rod holder Rod holders - transom mounted stainless steel (4)
Windlass with 400' rode and chain with handheld remote-control, stainless-steel swivel, polished stainless-steel anchor (35 lbs.) and polished stainless-steel bow roller davit
Rub rail - Heavy duty white rub rail with stainless steel insert
Self-bailing cockpit sole
Transom door – 1.5” thick acrylic with stainless steel latch
16,000 BTU AC unit with 2 helm vents, wet bar area vent, and discharge from hardtop to port helm deck
Accent gelcoat color to reduce glare
Compass with lighting
Defogger system, port and starboard 120V heater with blower
Drink holders – Stainless steel; extended depth (1), standard depth (1)
Electrical switch panel with SS push button switches with illuminated text
Footrest molded into console with solid teak steps with satin

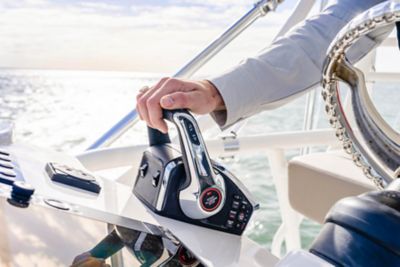

Mercury DTS dual binnacle controls with integrated Auto Drive Trim, push button start/stop controls
Storage recess on top of dash with (1) dual USB
Ignition key switches - located in the cabin MDP with push button start/stop at helm
Storage at starboard coaming pocket with (1) 12-V wireless cell phone charging holder and LED light - blue
Steering wheel - cast stainless steel with knob and tilt helm
Stereo volume control – JL Audio®
Trim tab control
120-V receptacle (Port and Starboard side)
USB power receptacle (Port and Starboard side)
Drink holders – Stainless steel standard depth (4)
Opening hatch with solar shade and sky screen
Overhead Reading lights (2)
LED RGB overhead and floor accent lighting dimmable via app or GUI
V-berth dinette with high gloss wood table. Table drops with electrically actuated pedestal enabling V-berth seating to convert into queen size island bed with fitted sheet, comforter, and two regular size pillowcases
Hardwood cabin sole - teak
Privacy curtain
Overhead Reading lights (3)
Headboard flip down storage (port)
U-shape seating that converts to berth
120V receptacle
USB power receptacle
Canvas - side and aft rigid Makrolon® polycarbonate weather enclosure with door to cockpit, black Stamoid®
Deck hatch - manual opening, integrated into hardtop
Horn - Electric dual polished stainless-steel trumpet horns
Integrated aluminum hardtop/windshield frame - black
Ladder access to hardtop (white or black depending on frame color selection)
LED flood lights - cockpit (2), bow (1)
LED navigation lights, stainless steel, recessed in hardtop
LED RGBW map/overhead lights
Open tempered side glass
Outrigger ready
Rail - Handhold along hardtop for egress to foredeck
Rod holders (4)
Speakers - Premium integrated JL Audio 7.7” speakers (aft)(2)
Windshield - full height, single piece front tempered glass providing unobstructed visibility, with dual electric actuated vents with independent control
Windshield wipers - (2) pantograph, with intermittent control and wash system
Acrylic/glass dash
Storage recess on top of dash
Storage: glovebox style with (1) USB-A / USB-C and LED light - blue
Port aft seat - forward facing; 2-person seat with conversion seatback for aft facing mezzanine seat
Pullout footrest at portside conversion seatback for aft facing seat
Port Console seat – Single person seat with conversion seatback to face forward or face aft for dinette seating
Table - Teak, satin finish with electric high/low pedestal converting from dinette to lounge in low position
Lounge filler cushions
Helm seat – fore and aft electrically adjusted with swivel
Cockpit foldout stern bench seat
All Rails Welded 316-L Stainless Steel
All Hardware 316-L Stainless Steel
Vinylester barrier coat over entire hull and hull sides
Prep area with solid surface counter and pull-out electric grill
Pull-out drawer storage compartment on starboard cockpit wall includes 5-gallon pail and grill utensil
Countertop - solid surface
Drink holders – Stainless steel; extended depth (1), standard depth (1)
Rail - stainless steel handrail
Receptacle 120-V
Refrigerator / freezer - stainless steel 12-V / 120-V, 3.0 cu ft.
Sink with SS faucet (hot and cold), with filler cutting board and dedicated filler cutting board storage
Wood accents– Teak wood facia under the counter edge
Premium DSP tuned multi zone System with hideaway receiver (JL Audio integration into Simrad Navigation Package) - JL Audio MM105-HR stereo with Dash mounted stereo remote volume/mute knob. - AM/FM/HD Radio, dual USB and dual AUX input - iPod / iPhone / Android compatible via integrated Bluetooth 5.0 or USB (lossless compatible) - Sirius XM option ready - JL Audio Digital Signal Processor (DSP) system with custom tuned audio, optimized for audiophile experience. - Amplifiers - TBD Watts Digital Signal Processing (DSP) (MV800/8i, M400/4)
Helm Deck - JL stereo speakers M6 7.7” coax classic white/Gun metal grill (2) on port and starboard consoles reflecting off the windshield - JL stereo speakers M6 7.7” coax classic white/Gun metal grill (2) in aft part of hardtop - Stereo remote control – JL Audio Wireless remote at helm and in lounge area that controls the stereo and volume of the 4 speakers
Cockpit - JL 7.7” coax classic white/Gun metal grill (2) in aft corners
Cabin Main Area - TV, 32” flat screen LED HDTV with remote HDMI connection adjacent to 120V outlet - JL 6.5” coax interior speakers - Stereo remote control
Bilge storage box – dedicated open storage
Bow anchor locker with drains with LED light
Cabinets – Interior: Teak Straight Grain finish
Cabin - cedar lined hanging locker with light and cubby storage
Cabin - mid berth port side storage compartment
Cabin - under port settee seating
Helm deck – storage in port seat
Helm deck – storage under port electric table with LED light - white
Cockpit - downrigger weight holders (2)
Cockpit - storage with 5-gallon pail and grill utensil storage
Cockpit - rod holders under gunnel port (2) (deleted with port foldout bench seat option)
Cockpit wet bar – includes hot/cold faucet with stowable dual purpose cutting board/work surface sink cover
Fishboxes – 50 gallon capacity (ea), insulated in deck with pump-out (2)
Dash surface – custom black acrylic integrated with switch panels and flush mounting of dual displays
Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder)
Simrad NSO evo3S 16” screen (Additional Display)
Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan)
Integrated Mercury VesselView Link
Simrad RS40 VHF Radio with AIS and HS40 wireless handset
Large 3-person settee
Convertible settee seat back for prep/work surface
Overhead under cabinet LED light - white
Under seat insulated storage
Drawers (2)
Footrest – pull-out for port aft facing convertible seat
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
White
Graphic Colors
Silver Graphics
Silver Graphics
Blue Graphics
Blue Graphics
White Graphics
White Graphics
Black Graphics
Black Graphics
Red Graphics
Red Graphics
Chrome Graphics
Chrome Graphics
Frame Color
White Frame
Black Frame
Tops & Towers
Upper station with triple Joystick Piloting
Upper station with triple Joystick Piloting
Upper station with dual Joystick Piloting
Upper station with dual Joystick Piloting
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Helm Deck Enclosure
Full side glass
Full height side glass with pop and slide, full beam aft enclosure with Stamoid® (White or Black depending on frame color selection), and rigid Makrolon® Polycarbonate windows(deletes side curtains)
Full Enclosure and Hardtop System
bulkhead – black powder coated aluminum construction with manual gas assisted port & starboard opening tempered glass windows with positive locks in closed position, carbon monoxide and smoke detectors, door – aft opening (to port) black powder coated aluminum construction with full height tempered glass and keyed lock, integrated, black powder coated aluminum hardtop/windshield frame, outrigger ready, rail - handhold along hardtop for egress to foredeck rod holders on port and starboard ladder supports (4), side glass - full height tempered side glass with pop and slide openings

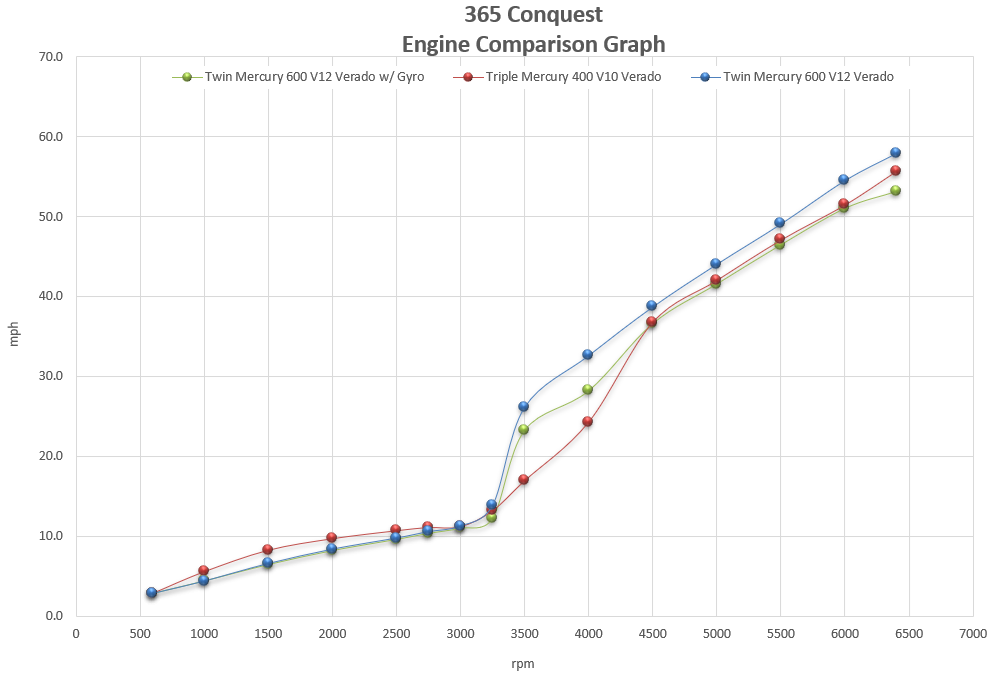

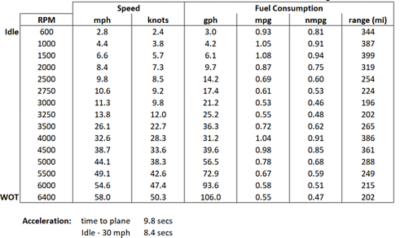

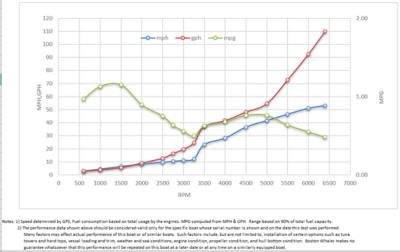

Dual Engines
600 V12 DTS Dual Black Mercury Four Strokes with Joystick Piloting
Outboard docking system with joystick, electronic steering and electronic remote control (ERC).
600 V12 DTS Dual White Mercury Four Strokes with Joystick Piloting
Outboard docking system with joystick, electronic steering and electronic remote control (ERC).

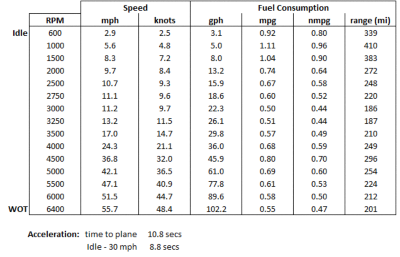

Triple Engines
400 V10 DTS Triple Black Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering and electronic remote control (ERC). (91 octane fuel recommended)
400 V10 DTS Triple White Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering and electronic remote control (ERC). (91 octane fuel recommended)
Painted Engines
Painted engines (for triple engines)
Packages
Sun lounge
forward deck sun-pad with drink holders, teak accents, grab rails and canvas cover
Cockpit slide out seat
Cockpit slide out seat
Railings and Rub Rails
Black rubrail with stainless steel insert
Black rubrail with stainless steel insert
Rails - split bow rail
Rails - split bow rail
Entertaining Features
Cooktop (single burner)
added to starboard helm deck wet bar
Summer kitchen - with freezer
includes Corian countertop, black or tan canvas cover, 4 stainless steel cupholders, sink with hot and cold fresh water and filler board, electric grill with Corian cover that replaces prep station grill with a storage drawer, starboard pull-out drawer with storage, dedicated port side 5 gallon bucket, LED RGB diffused courtesy light) (replaces aft cockpit flip down seat, not compatible with deluxe prep center or other summer kitchen options)
Frostbox Chiller System refrigeration 120v cooler only
seat cooler drawer
TV mid-cabin
32" includes HDMI
Cockpit table package
includes both port and starboard cockpit tables, dedicated storage under mechanical hatch, cockpit slide out seat: pullout aft facing seat at cockpit level
Frostbox Chiller System refrigeration 120v
seat cooler drawer, port and starboard fishboxes
Cooktop (single burner 120V)
must select Galley option
Cabin Comfort Package
fitted sheet set with pillowcases (2), comforter and throw pillows (6)
Galley
includes 120-V receptacle, dedicated work surface lighting, USB power receptacle, microwave, refrierator/freezer (stainless steel, 12-V/120-V, 2.3 cu.ft), sink with hot and cold water faucet, solid surface countertop(Corian), stainless steel accent rail, trash receptacle, wood grain finish cabinets with storage (teak straight grain finish), descreases length of port setee by 37"
Fishing Features
Rod storage
Rod storage
Outriggers - Deluxe Radial Outriggers
Gemlux Bluewater with 22” ft carbon Fiber outriggers with high polished stainless steel base with full rotational and vertical control from inside helm deck (hardtop mounted) (not compatible with upper station)
Upper station outriggers
23’ lift out outboard outriggers (2)
Notable Options & Accessories
Water Delivery (with upper station and JPO)
Water Delivery (with upper station and JPO)
Flooring - cockpit teak wood flooring
helm deck area only
Engine flushing system
Engine flushing system
Hardtop storage rack
Hardtop storage rack
Water delivery (with JPO)
Water delivery (with JPO)
Fender Hangers - stainless steel (6)
Fender Hangers - stainless steel (6)
Remote mast light/Antenna powerbase
Remote mast light/Antenna powerbase
Seakeeper 4.5 Gyroscopic Stabilizer (220V)
deletes standard bilge storage box
Shore power cable reel
50’, with electric assist for rewind - Glendinning CRMA50
Anchor windlass chain
Anchor windlass chain
12V DC receptacle
12V DC receptacle
European shore power
European shore power
Spotlight
Spotlight

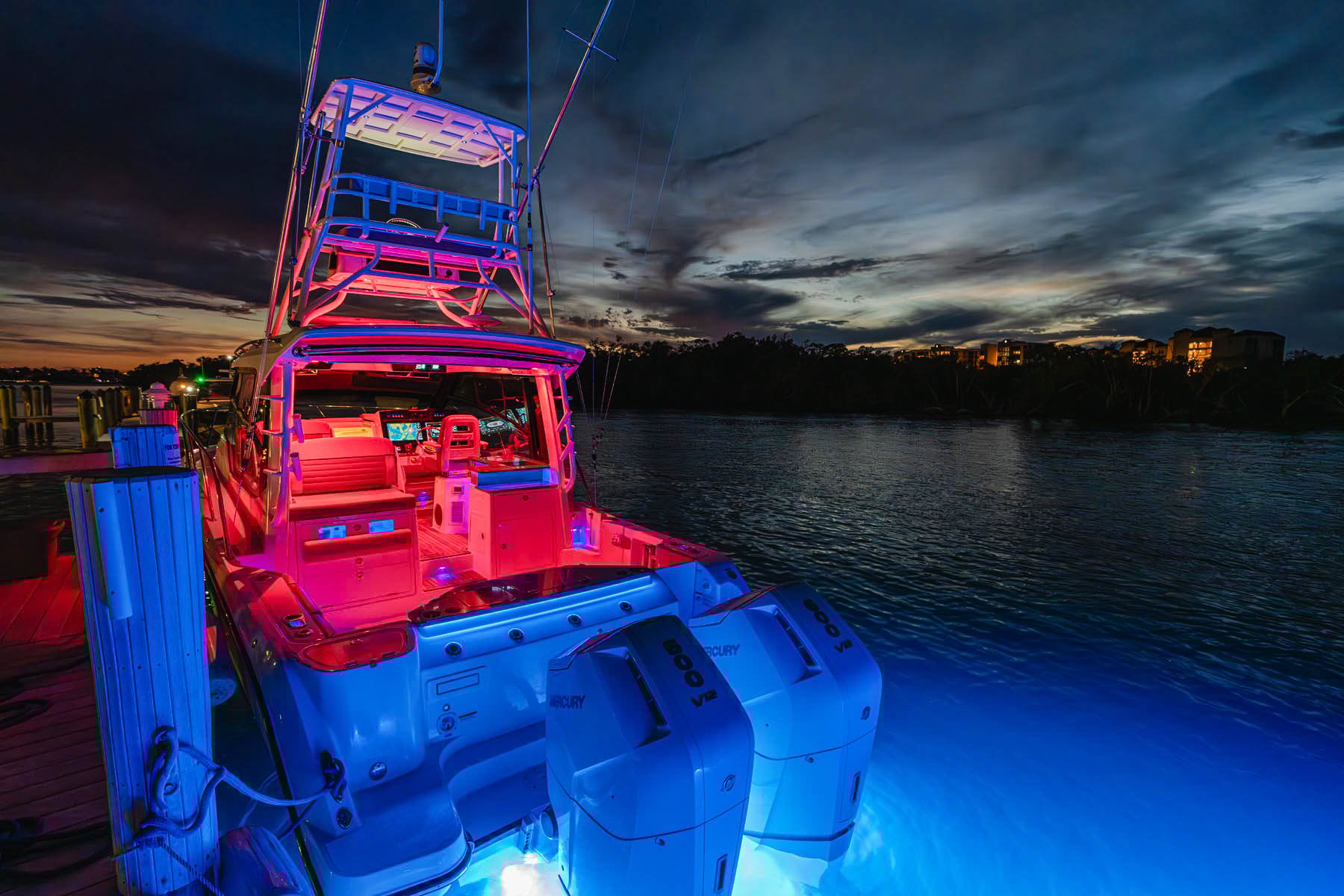

Lighting - underwater LED
Lighting - underwater LED
Generator (220v)
international
Commissioning kit
includes air horn, boat hook, dock lines (8), fenders (4), fire extinguishers (2), first aid kit, flare kit, life vests (10Q type 1 offshore with custom storage bags), spare fuel filters (2 or 3 depending on engine), throw cushion and tool kit
Battery Package (for dual engines with Joystick Piloting)
factory installed group 31 Interstate Batteries (5) with 3-year warranty (dual engines) (not compatible with triple engine options)
Battery Package (for triple engines with Joystick Piloting)
factory installed group 31 Interstate Batteries (6) with 3-year warranty (triple engines) (not compatible with dual engine options)
Navigation
Nav Package, Dual Simrad 19" NSO
dash surface – custom black acrylic integrated with switch panels and flush mounting of dual displays, Simrad NSO evo3S 19” screen (GPS, Chart Plotter, Fishfinder), Simrad NSO evo3S 19” screen (Additional Display)
Nav Package, Simrad 19" NSO Additional Display
(Port side console only) Dash surface (custom black acrylic flush mounted) Simrad NSO EVO3S 19" screen (GPS, Chart plotter and Fishfinder)
Electronics
CMAP Chart Card - Asia
CMAP Chart Card - Asia
FLIR thermal night vision with pan, tilt and zoom
M332 thermal camera with pan, tilt and 4X zoom, image stabilization, mounted on top of 30” pedestal for 360 deg view (Not included with upper station, camera moves to top of upper station if selected)
Vessel View Mobile
Vessel View Mobile
Satellite Weather and Radio
Satellite Weather and Radio
Auto ID system NSPL-500 transceiver
Simrad RS40-B VHF Radio with AIS transmitter/receiver and Simrad NSPL-500 Antenna Splitter
CHIRP Sonar with 3D
Simrad S5100 1kw dual channel CHIRP sounder module, Airmar 1000 watt recessed thru hull dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included, replaces Active Imaging 3-in-1 transducer
Theft Deterrant with First Mate Dual System
Whaler Watch mobile app, First Mate Safety & Security System – anti theft feature immobilizes engines, Telematics tracking system with GeoFence notification, remote monitoring and notification of high-water bilge alarm, tank levels, batteries, shore power connections and propulsion system information, remote control of CTSY lights, UW lights, hardtop lights, remote control of cabin A/C, deck A/C
Theft Deterrant with First Mate Triple System
Whaler Watch mobile app, First Mate Safety & Security System – anti theft feature immobilizes engines, Telematics tracking system with GeoFence notification, remote monitoring and notification of high-water bilge alarm, tank levels, batteries, shore power connections and propulsion system information, remote control of CTSY lights, UW lights, hardtop lights, remote control of cabin A/C, deck A/C
Satellite Radio
Sirius® satellite receiver with antenna
Premium audio package
10” subwoofer at helm deck, 8.8” (2) at outboard cockpit coaming
CMAP Discovery Chart Card - South America/Caribbean
CMAP Discovery Chart Card - South America/Caribbean
CMAP Discovery Chart Card - Central/West Europe
CMAP Discovery Chart Card - Central/West Europe
CMAP Discovery Chart Card - North/Central Europe
CMAP Discovery Chart Card - North/Central Europe
CMAP Discovery Chart Card - Southern Europe
CMAP Discovery Chart Card - Southern Europe
CMAP Discovery Chart Card - Arica/Arabic Sea
CMAP Discovery Chart Card - Arica/Arabic Sea
CMAP Discovery Chart Card - Australia/New Zealand
CMAP Discovery Chart Card - Australia/New Zealand
Simrad 48" Radar Open Array Bird+
Simrad HALO 3004 130W Pulse Compression Radar with 48” Open Array Antenna
First mate safety and security system FOB kit
includes additional Man Overboard (MOB) QTY 4
First mate safety and security system triple
triple engine (includes captain FOB and 3 passenger FOB’s) (not compatible with dual engine option) (included with Theft Deterrent System Option)
First mate safety and security system dual
dual engine (includes captain FOB and 3 passenger FOB’s) (not compatible with triple engine options) (included with Theft Deterrent System Option)
Sunshades
Sunshade at cockpit
on deck side glass and windshield (black mesh material that attaches to exterior of the glass)
Sunshade at bow
(manual setup) (attaches to hardtop and 2 poles on forward bow)
Canvas
Tan Canvas
Tan Canvas
Black Canvas
Black Canvas
Canvas cover package
includes cockpit foldout stern seat backrest cover, port forward cover, helm seat cover, port aft seat cover, starboard aft seat cover, port and starboard helm covers, engine covers. Must select black or tan
Canvas mesh windshield shades
Canvas mesh windshield shades
Mooring cover
Mooring cover
Standard Features
32” flat screen HDTV with remote HDMI connection
Carbon monoxide and smoke detectors
LED overhead lights (10)
LED RGB diffused courtesy lighting dimmable via app or GUI
Easy to clean interior materials
Hardwood cabin sole - teak
Lockable acrylic cabin door
Skylights
Microwave
10” Stainless steel cleats; bow (2), stern with hawse pipes (2 per side), spring line (2), bow (1)
10” stainless steel pull-up cleats; cross tie cleats at transom (2)
Boarding ladder - Covered telescoping swim ladder with stainless steel grab rail
Boarding door - Molded fiberglass boarding/dive door, starboard side with removable telescoping stainless-steel dive ladder with dedicated storage in dive door and flip out re-boarding grab rail
Bow eye - heavy duty polished stainless steel
Coaming bolsters with integrated rope lights – cockpit
Dockside cable TV inlet with low profile digital antenna on hardtop and boost control in cabin
Downrigger weight holders (2 port side)
Freshwater shower with hot and cold water near dive door and transom door
Freshwater washdown, stainless steel faucet located in anchor locker
Hawse pipe with integrated drink holders (1) port side
Lighting - LED RGB diffused courtesy lighting dimmable via app or GUI
Lighting – Digitally controlled blue Walkway lights with automatic day/night senor (6)
Livewell - pressurized insulated (19-gallon) in aft port corner with clear lid, blue interior and dual red LED lights
Logo – Chrome Boston Whaler Logo & model designator
Rails - cockpit toe rail, stainless steel under gunnel storage shelf with downrigger weight holders (Port side)
Rails - hand rails; companion way to helm deck and into cabin, boarding ladders, prep station - welded stainless steel
Rails - high bow rails, welded stainless steel
Raw-water washdown - stainless steel faucet located in cockpit
Rod holders - forward deck mounted stainless steel (2)
Rod holders - gunnel mounted stainless steel (5) – cockpit foldout bench seat port side option deletes (1) rod holder Rod holders - transom mounted stainless steel (4)
Windlass with 400' rode and chain with handheld remote-control, stainless-steel swivel, polished stainless-steel anchor (35 lbs.) and polished stainless-steel bow roller davit
Rub rail - Heavy duty white rub rail with stainless steel insert
Self-bailing cockpit sole
Transom door – 1.5” thick acrylic with stainless steel latch
16,000 BTU AC unit with 2 helm vents, wet bar area vent, and discharge from hardtop to port helm deck
Accent gelcoat color to reduce glare
Compass with lighting
Defogger system, port and starboard 120V heater with blower
Drink holders – Stainless steel; extended depth (1), standard depth (1)
Electrical switch panel with SS push button switches with illuminated text
Footrest molded into console with solid teak steps with satin
Mercury DTS dual binnacle controls with integrated Auto Drive Trim, push button start/stop controls
Storage recess on top of dash with (1) dual USB
Ignition key switches - located in the cabin MDP with push button start/stop at helm
Storage at starboard coaming pocket with (1) 12-V wireless cell phone charging holder and LED light - blue
Steering wheel - cast stainless steel with knob and tilt helm
Stereo volume control – JL Audio®
Trim tab control
120-V receptacle (Port and Starboard side)
USB power receptacle (Port and Starboard side)
Drink holders – Stainless steel standard depth (4)
Opening hatch with solar shade and sky screen
Overhead Reading lights (2)
LED RGB overhead and floor accent lighting dimmable via app or GUI
V-berth dinette with high gloss wood table. Table drops with electrically actuated pedestal enabling V-berth seating to convert into queen size island bed with fitted sheet, comforter, and two regular size pillowcases
Hardwood cabin sole - teak
Privacy curtain
Overhead Reading lights (3)
Headboard flip down storage (port)
U-shape seating that converts to berth
120V receptacle
USB power receptacle
Canvas - side and aft rigid Makrolon® polycarbonate weather enclosure with door to cockpit, black Stamoid®
Deck hatch - manual opening, integrated into hardtop
Horn - Electric dual polished stainless-steel trumpet horns
Integrated aluminum hardtop/windshield frame - black
Ladder access to hardtop (white or black depending on frame color selection)
LED flood lights - cockpit (2), bow (1)
LED navigation lights, stainless steel, recessed in hardtop
LED RGBW map/overhead lights
Open tempered side glass
Outrigger ready
Rail - Handhold along hardtop for egress to foredeck
Rod holders (4)
Speakers - Premium integrated JL Audio 7.7” speakers (aft)(2)
Windshield - full height, single piece front tempered glass providing unobstructed visibility, with dual electric actuated vents with independent control
Windshield wipers - (2) pantograph, with intermittent control and wash system
Acrylic/glass dash
Storage recess on top of dash
Storage: glovebox style with (1) USB-A / USB-C and LED light - blue
Port aft seat - forward facing; 2-person seat with conversion seatback for aft facing mezzanine seat
Pullout footrest at portside conversion seatback for aft facing seat
Port Console seat – Single person seat with conversion seatback to face forward or face aft for dinette seating
Table - Teak, satin finish with electric high/low pedestal converting from dinette to lounge in low position
Lounge filler cushions
Helm seat – fore and aft electrically adjusted with swivel
Cockpit foldout stern bench seat
All Rails Welded 316-L Stainless Steel
All Hardware 316-L Stainless Steel
Vinylester barrier coat over entire hull and hull sides
Prep area with solid surface counter and pull-out electric grill
Pull-out drawer storage compartment on starboard cockpit wall includes 5-gallon pail and grill utensil
Countertop - solid surface
Drink holders – Stainless steel; extended depth (1), standard depth (1)
Rail - stainless steel handrail
Receptacle 120-V
Refrigerator / freezer - stainless steel 12-V / 120-V, 3.0 cu ft.
Sink with SS faucet (hot and cold), with filler cutting board and dedicated filler cutting board storage
Wood accents– Teak wood facia under the counter edge
Premium DSP tuned multi zone System with hideaway receiver (JL Audio integration into Simrad Navigation Package) - JL Audio MM105-HR stereo with Dash mounted stereo remote volume/mute knob. - AM/FM/HD Radio, dual USB and dual AUX input - iPod / iPhone / Android compatible via integrated Bluetooth 5.0 or USB (lossless compatible) - Sirius XM option ready - JL Audio Digital Signal Processor (DSP) system with custom tuned audio, optimized for audiophile experience. - Amplifiers - TBD Watts Digital Signal Processing (DSP) (MV800/8i, M400/4)
Helm Deck - JL stereo speakers M6 7.7” coax classic white/Gun metal grill (2) on port and starboard consoles reflecting off the windshield - JL stereo speakers M6 7.7” coax classic white/Gun metal grill (2) in aft part of hardtop - Stereo remote control – JL Audio Wireless remote at helm and in lounge area that controls the stereo and volume of the 4 speakers
Cockpit - JL 7.7” coax classic white/Gun metal grill (2) in aft corners
Cabin Main Area - TV, 32” flat screen LED HDTV with remote HDMI connection adjacent to 120V outlet - JL 6.5” coax interior speakers - Stereo remote control
Bilge storage box – dedicated open storage
Bow anchor locker with drains with LED light
Cabinets – Interior: Teak Straight Grain finish
Cabin - cedar lined hanging locker with light and cubby storage
Cabin - mid berth port side storage compartment
Cabin - under port settee seating
Helm deck – storage in port seat
Helm deck – storage under port electric table with LED light - white
Cockpit - downrigger weight holders (2)
Cockpit - storage with 5-gallon pail and grill utensil storage
Cockpit - rod holders under gunnel port (2) (deleted with port foldout bench seat option)
Cockpit wet bar – includes hot/cold faucet with stowable dual purpose cutting board/work surface sink cover
Fishboxes – 50 gallon capacity (ea), insulated in deck with pump-out (2)
Dash surface – custom black acrylic integrated with switch panels and flush mounting of dual displays
Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder)
Simrad NSO evo3S 16” screen (Additional Display)
Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan)
Integrated Mercury VesselView Link
Simrad RS40 VHF Radio with AIS and HS40 wireless handset
Large 3-person settee
Convertible settee seat back for prep/work surface
Overhead under cabinet LED light - white
Under seat insulated storage
Drawers (2)
Footrest – pull-out for port aft facing convertible seat
Options
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
White
Graphic Colors
Silver Graphics
Silver Graphics
Blue Graphics
Blue Graphics
White Graphics
White Graphics
Black Graphics
Black Graphics
Red Graphics
Red Graphics
Chrome Graphics
Chrome Graphics
Frame Color
White Frame
Black Frame
Tops & Towers
Upper station with triple Joystick Piloting
Upper station with triple Joystick Piloting
Upper station with dual Joystick Piloting
Upper station with dual Joystick Piloting
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Helm Deck Enclosure
Full side glass
Full height side glass with pop and slide, full beam aft enclosure with Stamoid® (White or Black depending on frame color selection), and rigid Makrolon® Polycarbonate windows(deletes side curtains)
Full Enclosure and Hardtop System
bulkhead – black powder coated aluminum construction with manual gas assisted port & starboard opening tempered glass windows with positive locks in closed position, carbon monoxide and smoke detectors, door – aft opening (to port) black powder coated aluminum construction with full height tempered glass and keyed lock, integrated, black powder coated aluminum hardtop/windshield frame, outrigger ready, rail - handhold along hardtop for egress to foredeck rod holders on port and starboard ladder supports (4), side glass - full height tempered side glass with pop and slide openings
Dual Engines
600 V12 DTS Dual Black Mercury Four Strokes with Joystick Piloting
Outboard docking system with joystick, electronic steering and electronic remote control (ERC).
600 V12 DTS Dual White Mercury Four Strokes with Joystick Piloting
Outboard docking system with joystick, electronic steering and electronic remote control (ERC).
Triple Engines
400 V10 DTS Triple Black Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering and electronic remote control (ERC). (91 octane fuel recommended)
400 V10 DTS Triple White Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering and electronic remote control (ERC). (91 octane fuel recommended)
Painted Engines
Painted engines (for triple engines)
Packages
Sun lounge
forward deck sun-pad with drink holders, teak accents, grab rails and canvas cover
Cockpit slide out seat
Cockpit slide out seat
Railings and Rub Rails
Black rubrail with stainless steel insert
Black rubrail with stainless steel insert
Rails - split bow rail
Rails - split bow rail
Entertaining Features
Cooktop (single burner)
added to starboard helm deck wet bar
Summer kitchen - with freezer
includes Corian countertop, black or tan canvas cover, 4 stainless steel cupholders, sink with hot and cold fresh water and filler board, electric grill with Corian cover that replaces prep station grill with a storage drawer, starboard pull-out drawer with storage, dedicated port side 5 gallon bucket, LED RGB diffused courtesy light) (replaces aft cockpit flip down seat, not compatible with deluxe prep center or other summer kitchen options)
Frostbox Chiller System refrigeration 120v cooler only
seat cooler drawer
TV mid-cabin
32" includes HDMI
Cockpit table package
includes both port and starboard cockpit tables, dedicated storage under mechanical hatch, cockpit slide out seat: pullout aft facing seat at cockpit level
Frostbox Chiller System refrigeration 120v
seat cooler drawer, port and starboard fishboxes
Cooktop (single burner 120V)
must select Galley option
Cabin Comfort Package
fitted sheet set with pillowcases (2), comforter and throw pillows (6)
Galley
includes 120-V receptacle, dedicated work surface lighting, USB power receptacle, microwave, refrierator/freezer (stainless steel, 12-V/120-V, 2.3 cu.ft), sink with hot and cold water faucet, solid surface countertop(Corian), stainless steel accent rail, trash receptacle, wood grain finish cabinets with storage (teak straight grain finish), descreases length of port setee by 37"
Fishing Features
Rod storage
Rod storage
Outriggers - Deluxe Radial Outriggers
Gemlux Bluewater with 22” ft carbon Fiber outriggers with high polished stainless steel base with full rotational and vertical control from inside helm deck (hardtop mounted) (not compatible with upper station)
Upper station outriggers
23’ lift out outboard outriggers (2)
Notable Options & Accessories
Water Delivery (with upper station and JPO)
Water Delivery (with upper station and JPO)
Flooring - cockpit teak wood flooring
helm deck area only
Engine flushing system
Engine flushing system
Hardtop storage rack
Hardtop storage rack
Water delivery (with JPO)
Water delivery (with JPO)
Fender Hangers - stainless steel (6)
Fender Hangers - stainless steel (6)
Remote mast light/Antenna powerbase
Remote mast light/Antenna powerbase
Seakeeper 4.5 Gyroscopic Stabilizer (220V)
deletes standard bilge storage box
Shore power cable reel
50’, with electric assist for rewind - Glendinning CRMA50
Anchor windlass chain
Anchor windlass chain
12V DC receptacle
12V DC receptacle
European shore power
European shore power
Spotlight
Spotlight
Lighting - underwater LED
Lighting - underwater LED
Generator (220v)
international
Commissioning kit
includes air horn, boat hook, dock lines (8), fenders (4), fire extinguishers (2), first aid kit, flare kit, life vests (10Q type 1 offshore with custom storage bags), spare fuel filters (2 or 3 depending on engine), throw cushion and tool kit
Battery Package (for dual engines with Joystick Piloting)
factory installed group 31 Interstate Batteries (5) with 3-year warranty (dual engines) (not compatible with triple engine options)
Battery Package (for triple engines with Joystick Piloting)
factory installed group 31 Interstate Batteries (6) with 3-year warranty (triple engines) (not compatible with dual engine options)
Navigation
Nav Package, Dual Simrad 19" NSO
dash surface – custom black acrylic integrated with switch panels and flush mounting of dual displays, Simrad NSO evo3S 19” screen (GPS, Chart Plotter, Fishfinder), Simrad NSO evo3S 19” screen (Additional Display)
Nav Package, Simrad 19" NSO Additional Display
(Port side console only) Dash surface (custom black acrylic flush mounted) Simrad NSO EVO3S 19" screen (GPS, Chart plotter and Fishfinder)
Electronics
CMAP Chart Card - Asia
CMAP Chart Card - Asia
FLIR thermal night vision with pan, tilt and zoom
M332 thermal camera with pan, tilt and 4X zoom, image stabilization, mounted on top of 30” pedestal for 360 deg view (Not included with upper station, camera moves to top of upper station if selected)
Vessel View Mobile
Vessel View Mobile
Satellite Weather and Radio
Satellite Weather and Radio
Auto ID system NSPL-500 transceiver
Simrad RS40-B VHF Radio with AIS transmitter/receiver and Simrad NSPL-500 Antenna Splitter
CHIRP Sonar with 3D
Simrad S5100 1kw dual channel CHIRP sounder module, Airmar 1000 watt recessed thru hull dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included, replaces Active Imaging 3-in-1 transducer
Theft Deterrant with First Mate Dual System
Whaler Watch mobile app, First Mate Safety & Security System – anti theft feature immobilizes engines, Telematics tracking system with GeoFence notification, remote monitoring and notification of high-water bilge alarm, tank levels, batteries, shore power connections and propulsion system information, remote control of CTSY lights, UW lights, hardtop lights, remote control of cabin A/C, deck A/C
Theft Deterrant with First Mate Triple System
Whaler Watch mobile app, First Mate Safety & Security System – anti theft feature immobilizes engines, Telematics tracking system with GeoFence notification, remote monitoring and notification of high-water bilge alarm, tank levels, batteries, shore power connections and propulsion system information, remote control of CTSY lights, UW lights, hardtop lights, remote control of cabin A/C, deck A/C
Satellite Radio
Sirius® satellite receiver with antenna
Premium audio package
10” subwoofer at helm deck, 8.8” (2) at outboard cockpit coaming
CMAP Discovery Chart Card - South America/Caribbean
CMAP Discovery Chart Card - South America/Caribbean
CMAP Discovery Chart Card - Central/West Europe
CMAP Discovery Chart Card - Central/West Europe
CMAP Discovery Chart Card - North/Central Europe
CMAP Discovery Chart Card - North/Central Europe
CMAP Discovery Chart Card - Southern Europe
CMAP Discovery Chart Card - Southern Europe
CMAP Discovery Chart Card - Arica/Arabic Sea
CMAP Discovery Chart Card - Arica/Arabic Sea
CMAP Discovery Chart Card - Australia/New Zealand
CMAP Discovery Chart Card - Australia/New Zealand
Simrad 48" Radar Open Array Bird+
Simrad HALO 3004 130W Pulse Compression Radar with 48” Open Array Antenna
First mate safety and security system FOB kit
includes additional Man Overboard (MOB) QTY 4
First mate safety and security system triple
triple engine (includes captain FOB and 3 passenger FOB’s) (not compatible with dual engine option) (included with Theft Deterrent System Option)
First mate safety and security system dual
dual engine (includes captain FOB and 3 passenger FOB’s) (not compatible with triple engine options) (included with Theft Deterrent System Option)
Sunshades
Sunshade at cockpit
on deck side glass and windshield (black mesh material that attaches to exterior of the glass)
Sunshade at bow
(manual setup) (attaches to hardtop and 2 poles on forward bow)
Canvas
Tan Canvas
Tan Canvas
Black Canvas
Black Canvas
Canvas cover package
includes cockpit foldout stern seat backrest cover, port forward cover, helm seat cover, port aft seat cover, starboard aft seat cover, port and starboard helm covers, engine covers. Must select black or tan
Canvas mesh windshield shades
Canvas mesh windshield shades
Mooring cover
Mooring cover

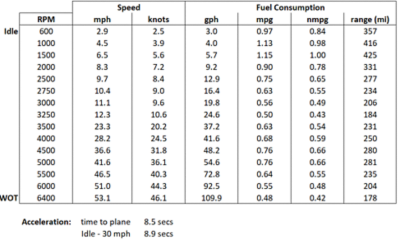

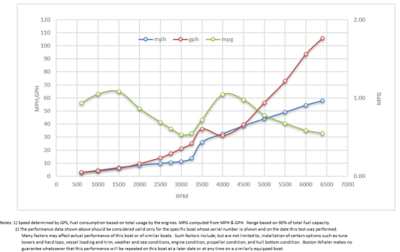

Model: 365 Conquest
Hull #: USBWCE0162F223
Engine: Twin Mercury 600 V12
Horsepower: 1200
Gear Ratio: 2.5 : 1
Prop: 24.5P Verado 12
Fuel Capacity: 410 gal.
Notable Options: Gyro, Upper Station, Diesel Generator, Joystick Piloting, Retractable Sunshade, Premium Audio, Underwater Lights, Galley Delete, Summer Kitchen w/ Freezer
Test Date: 24-May-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 21,372 lbs
Fuel: 197 gal.
Water: 52 gal.
Test Gear: 25 lbs
Personnel: 430 lbs
Test Weight: 28,830 lbs
Water Conditions: 80° F
Weather Conditions: 76° F
Model: 365 Conquest
Hull #: USBWCE0162F223
Engine: Twin Mercury 600 V12
Horsepower: 1200
Gear Ratio: 2.5 : 1
Prop: 24.5P Verado 12
Fuel Capacity: 410 gal.
Notable Options: Gyro, Upper Station, Diesel Generator, Joystick Piloting, Retractable Sunshade, Premium Audio, Underwater Lights, Galley Delete, Summer Kitchen w/ Freezer
Test Date: 24-May-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 21,372 lbs
Fuel: 197 gal.
Water: 52 gal.
Test Gear: 25 lbs
Personnel: 430 lbs
Test Weight: 28,830 lbs
Water Conditions: 80° F
Weather Conditions: 76° F
