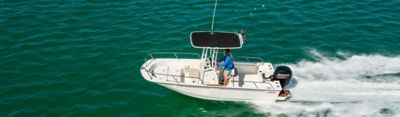

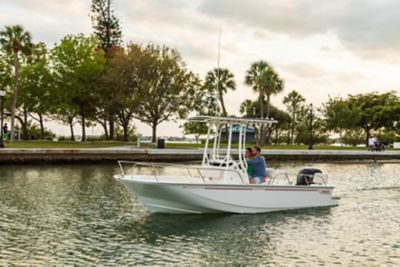

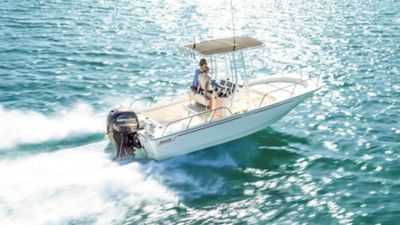

190 Montauk
The 190 Montauk is a paragon of inshore versatility, with classic Whaler design, time-tested utility, and the capability you need for fishing, watersports, or just entertaining family and friends on the weekend. The center console design delivers a spacious, comfortable interior, and massive storage in the bow makes room for everything you need for a day on the water. This 19-foot fishing boat is big enough for a full day’s fishing yet nimble enough to navigate shallow inland waterways, making it perfect for all your boating needs.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
190 MONTAUK FEATURES
- Optional Simrad technology for precise navigation and enhanced onboard control

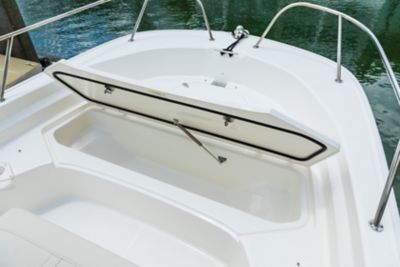

- Convenient forward fish box/storage compartment with overboard drain.

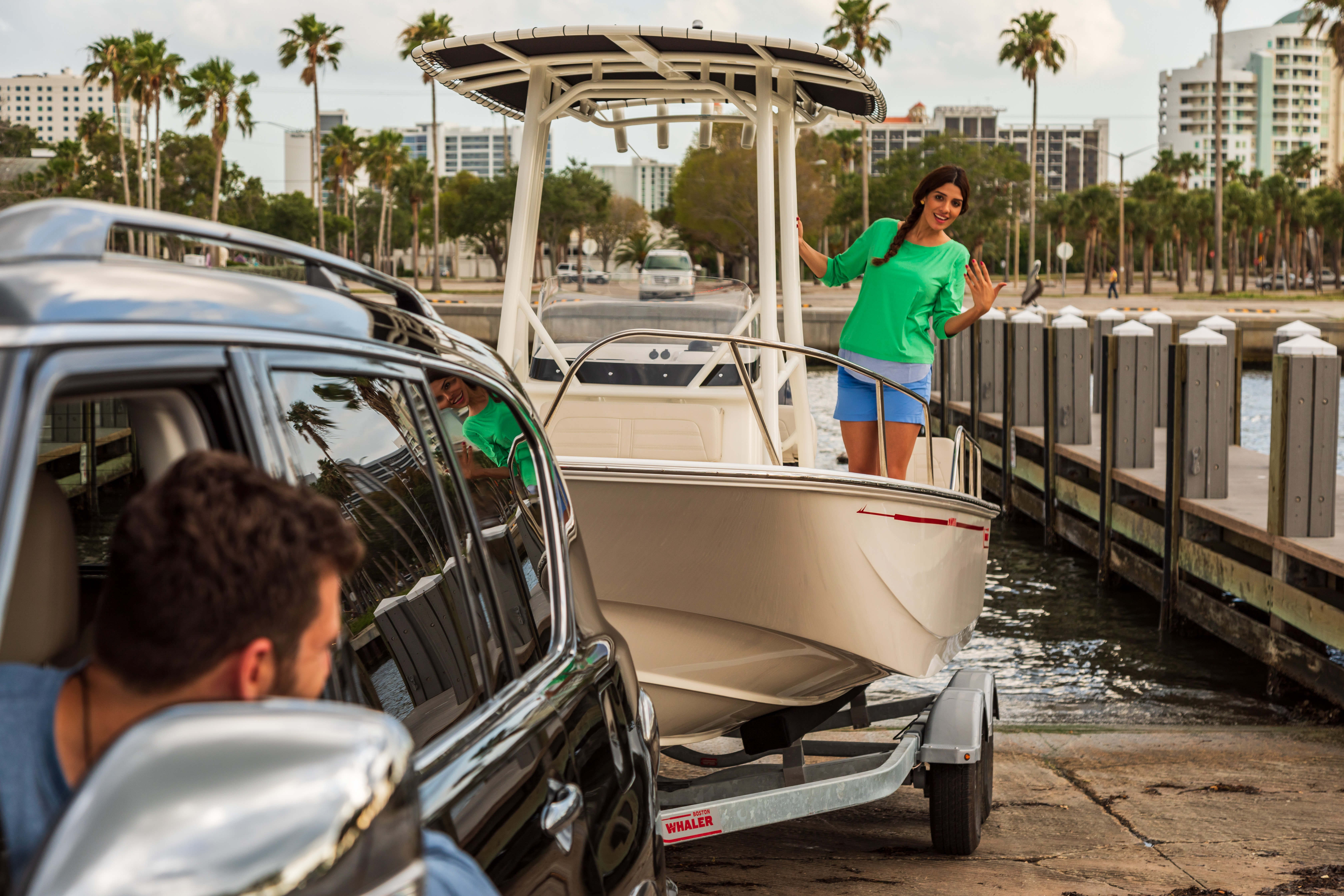

- Standard galvanized trailer with swing tongue, LED lights, and disc brakes for easy towing.
- 60-gallon integrated fuel tank.
- Optional Fishing Package includes 72-quart cooler seat, tackle drawers, and console rod holders.

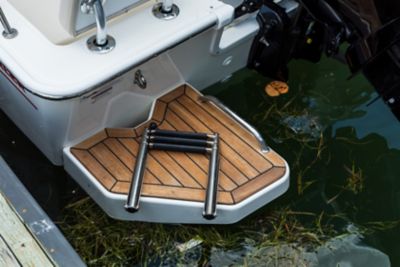

- Fiberglass swim platform with stainless steel, telescoping swim ladder aids re-entry from the water.
- Standard 115-hp EXLPT Mercury® Command Thrust FourStroke engine or optional 150 XL with hydraulic steering.
- Teak package adds stylish touches to the boarding steps and swim ladder.
Capacity
8
Persons Capacity
60 gallons (227 L)
Fuel Capacity
2,500 lbs (1,134 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
Dimensions
19’ 4” (5.89 m)
L.O.A.
8’ (2.43 m)
Beam
60” (1.52 m)
Bridge Clearance (no top)
126” (3.2m)
Bridge Clearance (on trailer with T-Top)
87” (2.20 m)
Bridge Clearance (with suntop)
90” (2.28 m)
Bridge Clearance (with T-Top)
13” (0.33 m)
Draft
25” (0.63 m)
Transom Height
Engines
150 HP (112 kW)
Maximum Horsepower
530 lbs (240 kg)
Maximum Engine Weight
115 HP (86 kW)
Minimum Horsepower
Weight
2,000 lbs. (907 kg)
Weight (dry, no engine)
2,769 lbs (1,256 kg)
Weight (with engine, fuel and water)
8
Persons Capacity
60 gallons (227 L)
Fuel Capacity
2,500 lbs (1,134 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
19’ 4” (5.89 m)
L.O.A.
8’ (2.43 m)
Beam
60” (1.52 m)
Bridge Clearance (no top)
126” (3.2m)
Bridge Clearance (on trailer with T-Top)
87” (2.20 m)
Bridge Clearance (with suntop)
90” (2.28 m)
Bridge Clearance (with T-Top)
13” (0.33 m)
Draft
25” (0.63 m)
Transom Height
150 HP (112 kW)
Maximum Horsepower
530 lbs (240 kg)
Maximum Engine Weight
115 HP (86 kW)
Minimum Horsepower
2,000 lbs. (907 kg)
Weight (dry, no engine)
2,769 lbs (1,256 kg)
Weight (with engine, fuel and water)
Standard features & Options
12-V receptacle
Access door with lockable stainless steel latch
Acrylic windshield
Binnacle control
Compass
Drink holders (4)
Electric horn
Electrical switch panel with circuit breaker protection
Fire extinguisher pocket
Grab rail - welded stainless steel
Partitioned storage at top of helm
Steering wheel - stainless steel
19” interior freeboard
8" stainless steel cleats (3)
Boarding steps - molded in port and starboard
Bow locker with fiberglass cover and overboard drain
Bow rail - welded stainless steel
Drink holders (6)
Forward fishbox / storage with overboard drain
Heavy-duty rub rail
Lifting eyes - bow and stern
Rod holders (4)
Self-bailing cockpit sole
Side rails - welded stainless steel
Swim platform (fiberglass) with grab rail and telescoping stainless steel swim ladder
Disc brakes
LED lights
Tie-downs
Torsion Axle
Trailer jack
Winch with nylon strap
Spare tire with radial tires
115 EXLPT EFI Command Thrust FourStroke Mercury® engine
Smart Craft digital gauges
Battery box with hold-down strap in console
Bilge pump with float switch
Classic style navigation lights
Fuel tank (60 gallons)
Hydraulic steering
Propeller - stainless steel
Vessel view mobile

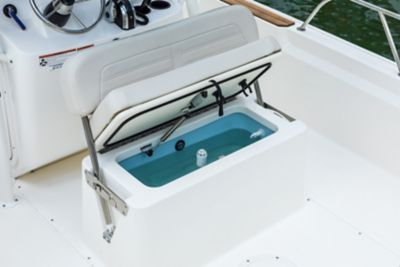

Reversible pilot seat with locking backrest and storage underneath
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
White
White
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and harpoon)
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Black Frame
(must select tow arch and/or t-top)
Packages
Rails - complete rail package
(includes high bow rail, low profile bow rail, high aft rail, low profile aft rail)
Teak package
(includes teak boarding steps and teak flooring on swim ladder)
Fishing package
(includes console mounted rod holders (4), cooler (72 qt) with cushion and backrest, tackle drawers (2))
Railings and Rub Rails
Rails - low profile bow rail
(deletes bow rail) (compatible with split bow rail)
Rails - low profile stern rail
(deletes stern rail)
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails- split bow rail with high side rails
(replaces standard bow rail) (not compatible with trolling motor panel)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Fishing Features
Trolling motor panel with battery boxes(2)
and wiring (deletes standard bow rail)
Livewell with blue interior
(located at reversible pilot seat)
Navigation
Nav Package, Simrad 7" NSX
Nav Package, Simrad 7" NSX
Nav Package, Simrad 9" NSX
Nav Package, Simrad 9" NSX
Electronics
VHF Radio (Simrad)
VHF Radio (Simrad)
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
Stereo - JL MM55 Audio AM/FM
with waterproof speakers (2) and MP3/USB inputs (JL Audio Bluetooth enabled)
First Mate Safety & Security System Fob Kit
First Mate Safety & Security System Fob Kit
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
FIRST MATE SAFETY & SECURITY SYS SGL
FIRST MATE SAFETY & SECURITY SYS SGL
Standard Features
12-V receptacle
Access door with lockable stainless steel latch
Acrylic windshield
Binnacle control
Compass
Drink holders (4)
Electric horn
Electrical switch panel with circuit breaker protection
Fire extinguisher pocket
Grab rail - welded stainless steel
Partitioned storage at top of helm
Steering wheel - stainless steel
19” interior freeboard
8" stainless steel cleats (3)
Boarding steps - molded in port and starboard
Bow locker with fiberglass cover and overboard drain
Bow rail - welded stainless steel
Drink holders (6)
Forward fishbox / storage with overboard drain
Heavy-duty rub rail
Lifting eyes - bow and stern
Rod holders (4)
Self-bailing cockpit sole
Side rails - welded stainless steel
Swim platform (fiberglass) with grab rail and telescoping stainless steel swim ladder
Disc brakes
LED lights
Tie-downs
Torsion Axle
Trailer jack
Winch with nylon strap
Spare tire with radial tires
115 EXLPT EFI Command Thrust FourStroke Mercury® engine
Smart Craft digital gauges
Battery box with hold-down strap in console
Bilge pump with float switch
Classic style navigation lights
Fuel tank (60 gallons)
Hydraulic steering
Propeller - stainless steel
Vessel view mobile
Reversible pilot seat with locking backrest and storage underneath
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Options
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
White
White
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and harpoon)
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Black Frame
(must select tow arch and/or t-top)
Packages
Rails - complete rail package
(includes high bow rail, low profile bow rail, high aft rail, low profile aft rail)
Teak package
(includes teak boarding steps and teak flooring on swim ladder)
Fishing package
(includes console mounted rod holders (4), cooler (72 qt) with cushion and backrest, tackle drawers (2))
Railings and Rub Rails
Rails - low profile bow rail
(deletes bow rail) (compatible with split bow rail)
Rails - low profile stern rail
(deletes stern rail)
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails- split bow rail with high side rails
(replaces standard bow rail) (not compatible with trolling motor panel)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Fishing Features
Trolling motor panel with battery boxes(2)
and wiring (deletes standard bow rail)
Livewell with blue interior
(located at reversible pilot seat)
Navigation
Nav Package, Simrad 7" NSX
Nav Package, Simrad 7" NSX
Nav Package, Simrad 9" NSX
Nav Package, Simrad 9" NSX
Electronics
VHF Radio (Simrad)
VHF Radio (Simrad)
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
Stereo - JL MM55 Audio AM/FM
with waterproof speakers (2) and MP3/USB inputs (JL Audio Bluetooth enabled)
First Mate Safety & Security System Fob Kit
First Mate Safety & Security System Fob Kit
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
FIRST MATE SAFETY & SECURITY SYS SGL
FIRST MATE SAFETY & SECURITY SYS SGL

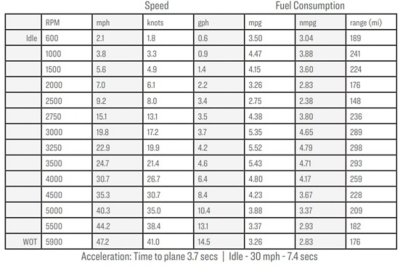

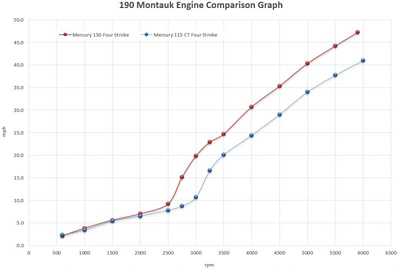

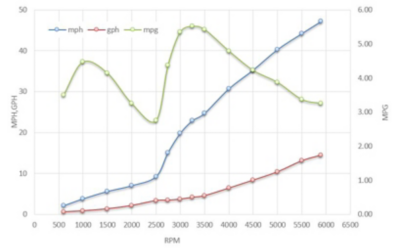

Model: 190 Montauk
Hull #: USBWCE1653L718
Engine: Mercury 150 FourStroke
Horsepower: 150
Gear Ratio: 1.92 : 1
Prop: 14 5/8 x 17 Enertia
Fuel Capacity: 60 gallons
Notable Options: T-Top, Reversible pilot seat with livewell, Teak package, SS rub rail, Trolling motor panel, Stereo, Electronics
Test Date: 02-February-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 2,660 lbs
Fuel: 30 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 360 lbs
Test Weight: 3,225 lbs
Water Conditions: 64 degrees F
Weather Conditions: 70 degrees F

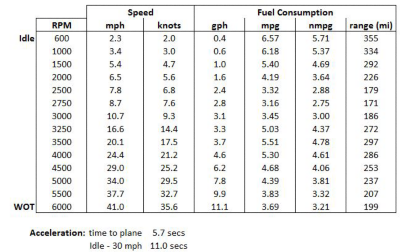

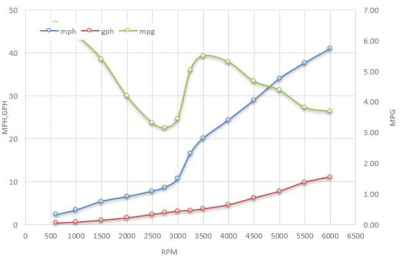

Model: 190 Montauk
Hull #: USBWCE2279E818
Engine: Mercury 115 CT FourStroke
Horsepower: 115
Gear Ratio: 2.38:1
Prop: 14 3/8” x 19” Enertia
Fuel Capacity: 60 gallons
Notable Options: T-Top, reversible pilot seat with livewell, split bow rail, aft seating, bow cushion
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 2,590 lbs
Fuel: 30 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 330 lbs
Test Weight: 3,125 lbs
Water Conditions: 76 degrees F
Weather Conditions: 73 degrees F
Model: 190 Montauk
Hull #: USBWCE1653L718
Engine: Mercury 150 FourStroke
Horsepower: 150
Gear Ratio: 1.92 : 1
Prop: 14 5/8 x 17 Enertia
Fuel Capacity: 60 gallons
Notable Options: T-Top, Reversible pilot seat with livewell, Teak package, SS rub rail, Trolling motor panel, Stereo, Electronics
Test Date: 02-February-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 2,660 lbs
Fuel: 30 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 360 lbs
Test Weight: 3,225 lbs
Water Conditions: 64 degrees F
Weather Conditions: 70 degrees F
Model: 190 Montauk
Hull #: USBWCE2279E818
Engine: Mercury 115 CT FourStroke
Horsepower: 115
Gear Ratio: 2.38:1
Prop: 14 3/8” x 19” Enertia
Fuel Capacity: 60 gallons

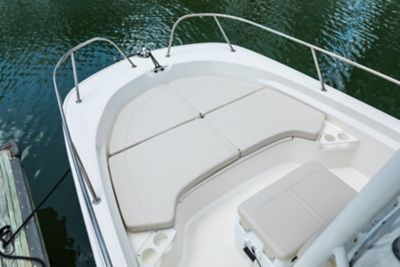

Notable Options: T-Top, reversible pilot seat with livewell, split bow rail, aft seating, bow cushion
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 2,590 lbs
Fuel: 30 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 330 lbs
Test Weight: 3,125 lbs
Water Conditions: 76 degrees F
Weather Conditions: 73 degrees F
