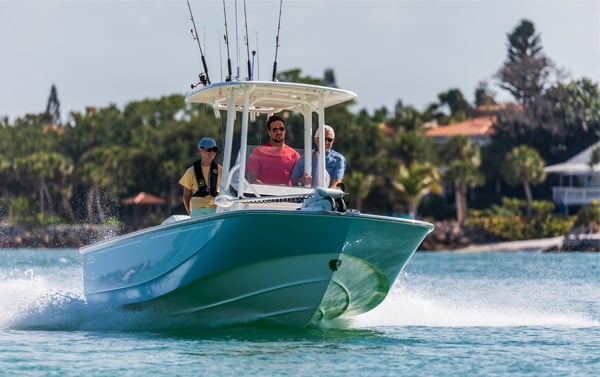

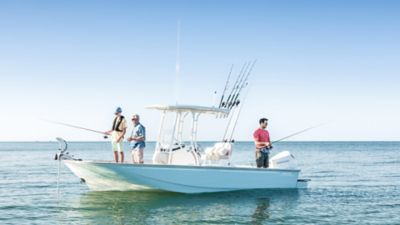

210 Montauk
The flagship of the beloved Montauk family, the 210 Montauk offers Whaler’s legendary unsinkable hull with hose-and-go utility, spacious comfort in the center console-equipped interior, and a host of standard features that make it an inshore and nearshore classic beloved by generations of boaters. Options for this classic 21-ft. fishing and cruising boat include bow cushions with backrests, a deluxe leaning post with live well, and an impressive fishing package that equips you to take on any quarry.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
210 MONTAUK FEATURES
- Optional Simrad technology for precise navigation and enhanced onboard control
- Sleek optional fiberglass hardtop option provides protection from the elements

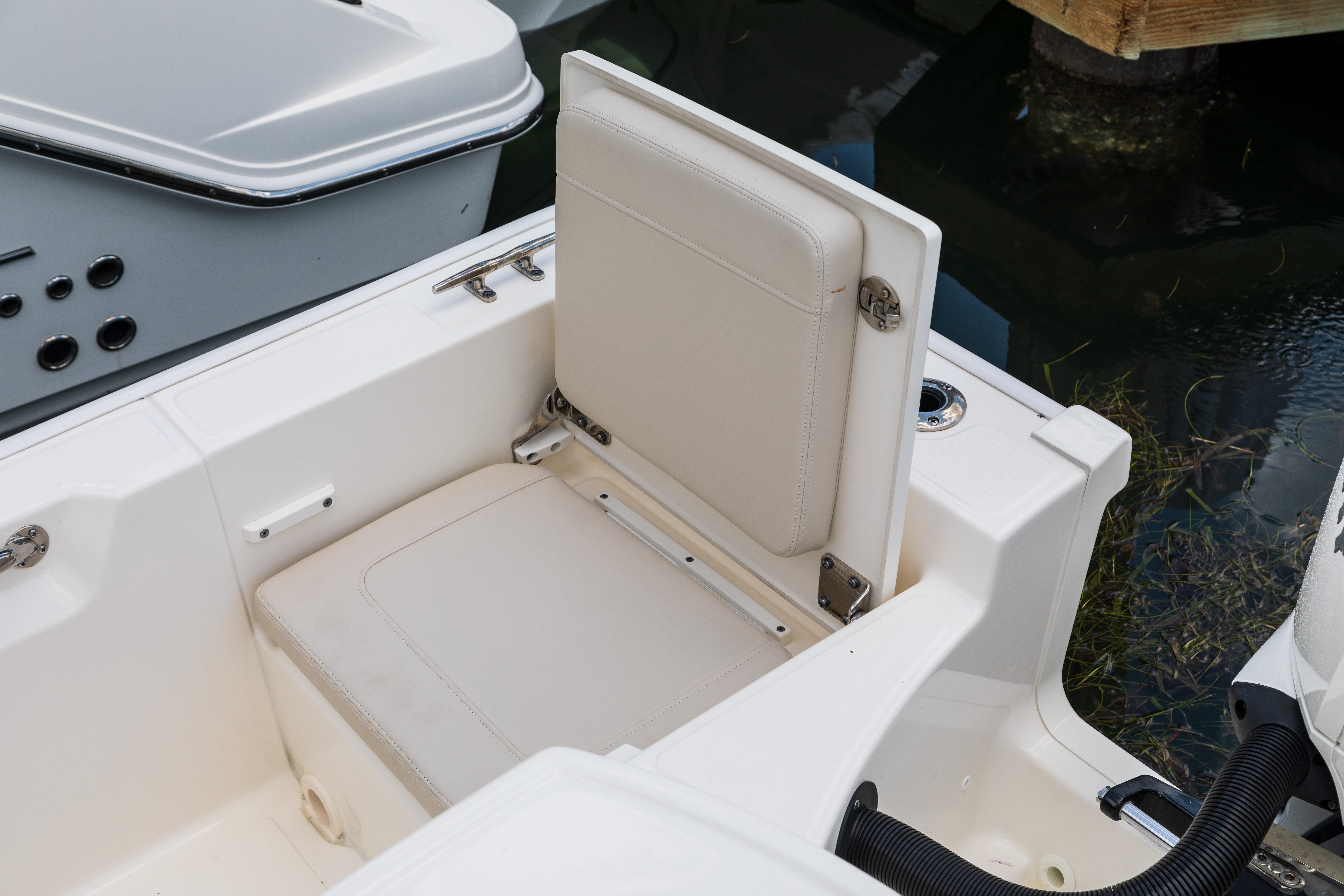

- Integrated aft quarter seats give more passengers a comfortable place to ride.

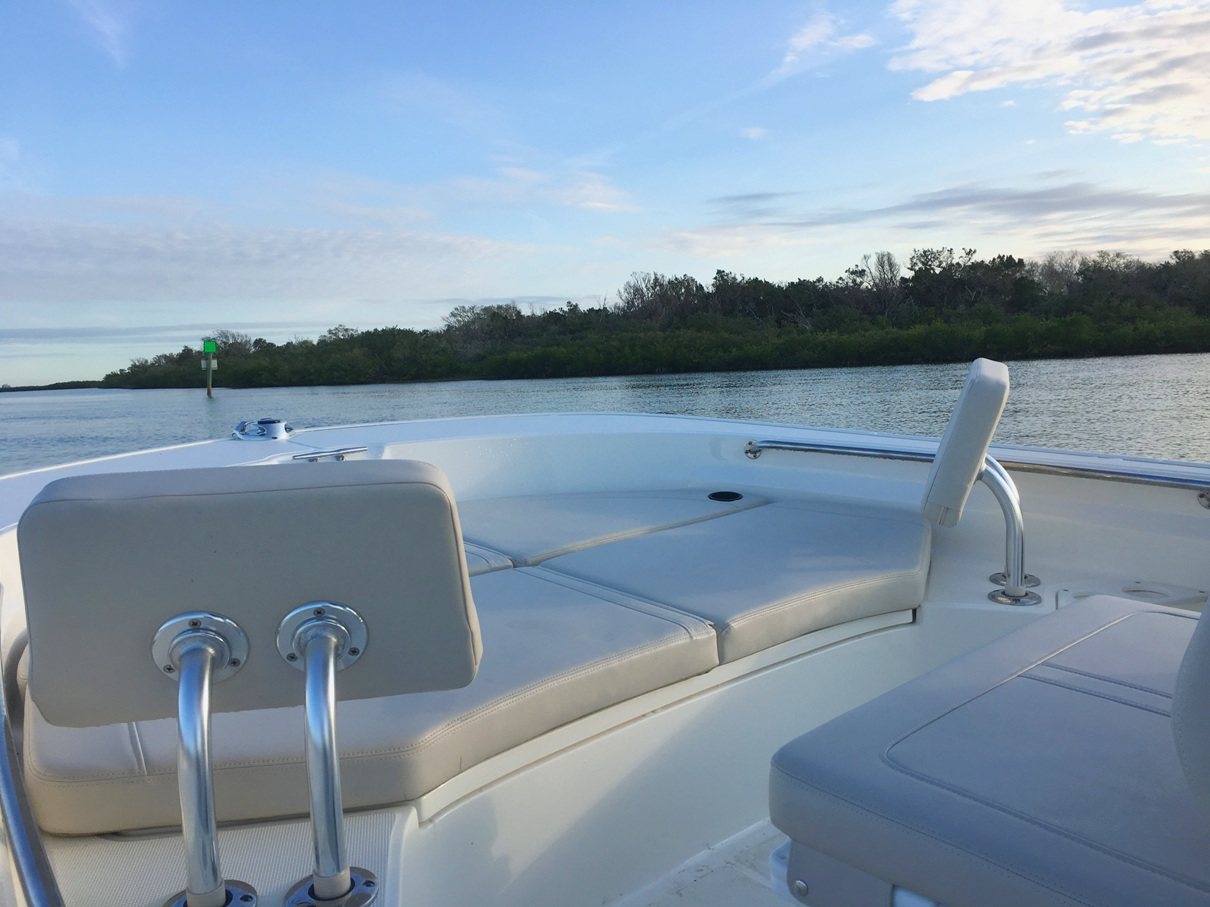

- Optional seating package includes bow cushions with backrests and rod holders
- Optional Fishing Package includes 94-quart cooler seat, rod holders and tackle drawers.

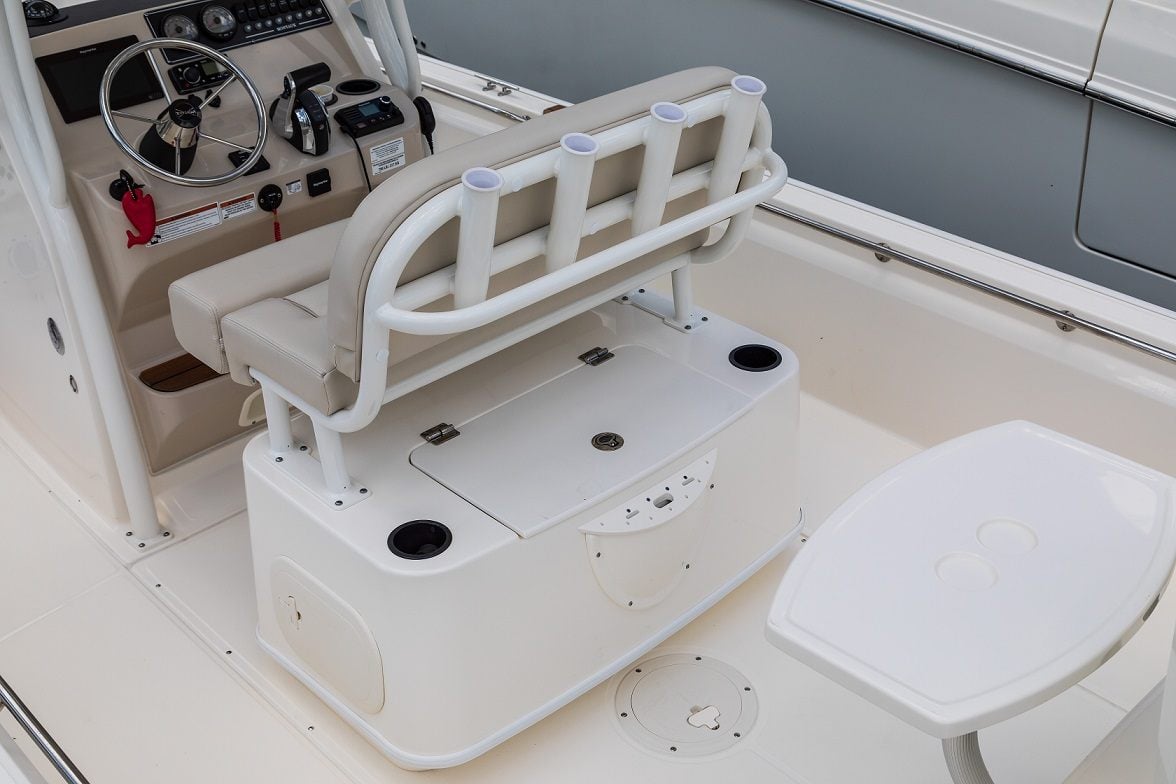

- Deluxe Leaning Post option adds 30-gallon livewell and raw-water washdown.
- Standard galvanized trailer with LED lights, disc brakes, and swing tongue for easy travel to and from the boat launch.
- 150-hp Mercury® XL EFI FourStroke engine, with power options up to 200-hp.
- Teak package adds stylish touches to the boarding steps, swim ladder, and helm footrests.
Capacity
9
Persons Capacity
66.5 gallons (252 L)
Fuel Capacity
2,800 lbs (1,270 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
Dimensions
21’ 4” (6.50 m)
L.O.A.
8’ 6” (2.59 m)
Beam
65" (1.65 m)
Bridge Clearance (no top)
133" (3.37 m)
Bridge Clearance (on Trailer w/Hardtop)
93" (2.36 m)
Bridge Clearance (on trailer with T-Top)
95" (2.41 m)
Bridge Clearance (with Hardtop)
87” (2.20 m)
Bridge Clearance (with suntop)
15” (0.38 m)
Draft
12 gallons (45.4 L)
Livewell Volume (optional)
25” (.63 m)
Deadrise at Transom
Engines
200 HP (149 kW)
Maximum Horsepower
700 lbs (318 kg)
Maximum Engine Weight
150 HP (112 kW)
Minimum Horsepower
Weight
2,650 lbs (1,202 kg)
Weight (dry, no engine)
3,650 lbs (1,656 kg)
Weight (with engine, fuel and water)
9
Persons Capacity
66.5 gallons (252 L)
Fuel Capacity
2,800 lbs (1,270 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
21’ 4” (6.50 m)
L.O.A.
8’ 6” (2.59 m)
Beam
65" (1.65 m)
Bridge Clearance (no top)
133" (3.37 m)
Bridge Clearance (on Trailer w/Hardtop)
93" (2.36 m)
Bridge Clearance (on trailer with T-Top)
95" (2.41 m)
Bridge Clearance (with Hardtop)
87” (2.20 m)
Bridge Clearance (with suntop)
15” (0.38 m)
Draft
12 gallons (45.4 L)
Livewell Volume (optional)
25” (.63 m)
Deadrise at Transom
200 HP (149 kW)
Maximum Horsepower
700 lbs (318 kg)
Maximum Engine Weight
150 HP (112 kW)
Minimum Horsepower
2,650 lbs (1,202 kg)
Weight (dry, no engine)
3,650 lbs (1,656 kg)
Weight (with engine, fuel and water)
Standard features & Options
12V receptacle
Access door with lockable stainless steel latch
Acrylic windshield
Drink holders (2)
Electric horn

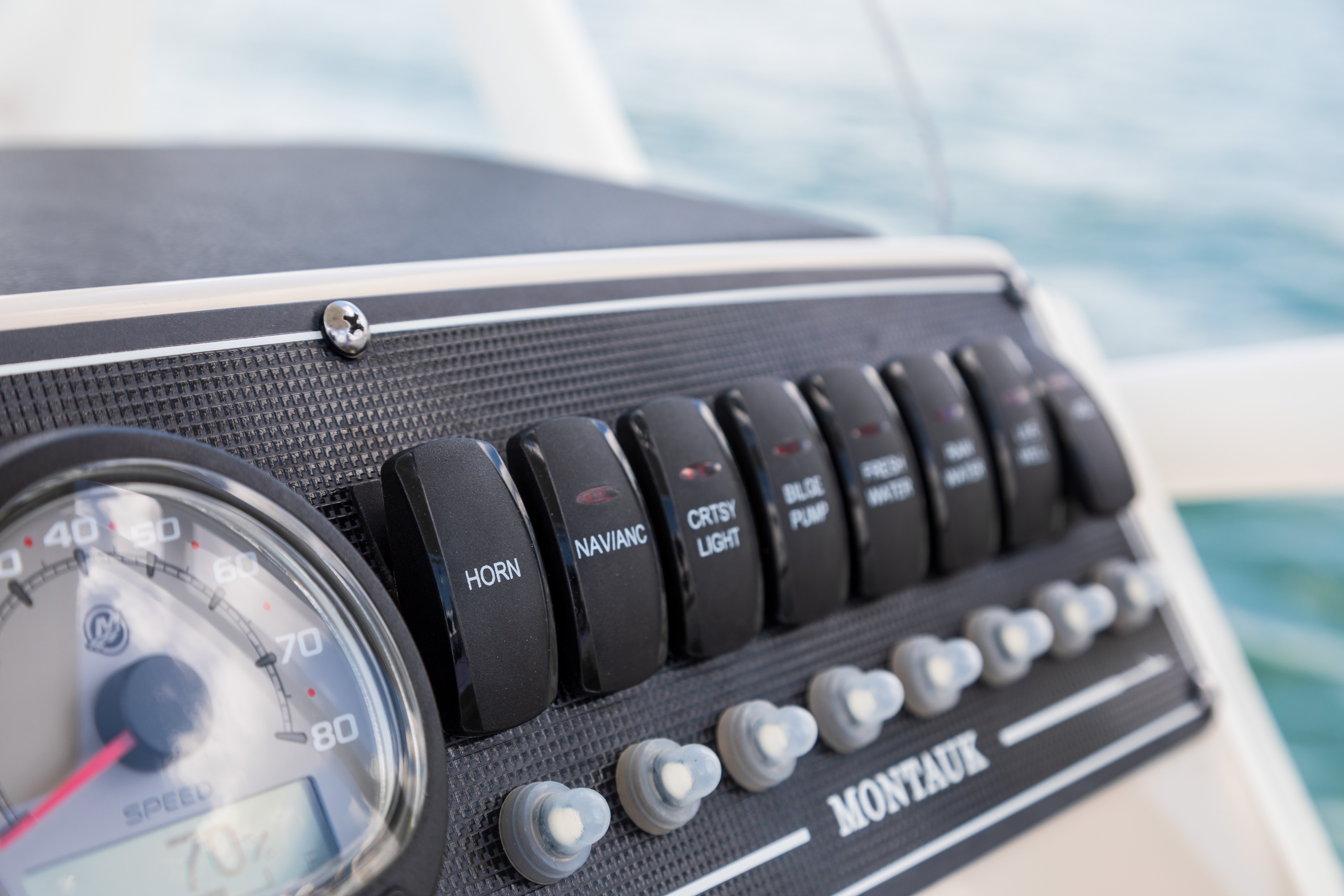

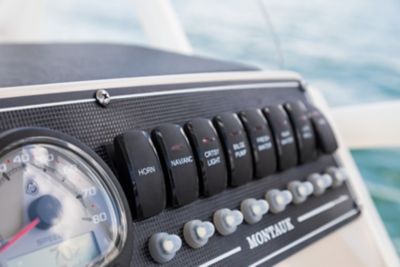

Electrical switch panel with circuit breaker protection
Mercury® binnacle control
Partitioned storage at top of helm
Stainless steel steering wheel
Welded stainless steel grab rail
19” interior freeboard
8” stainless steel cleats (5)
Boarding steps (midship)(molded-in port and starboard)
Bow and stern lifting eyes

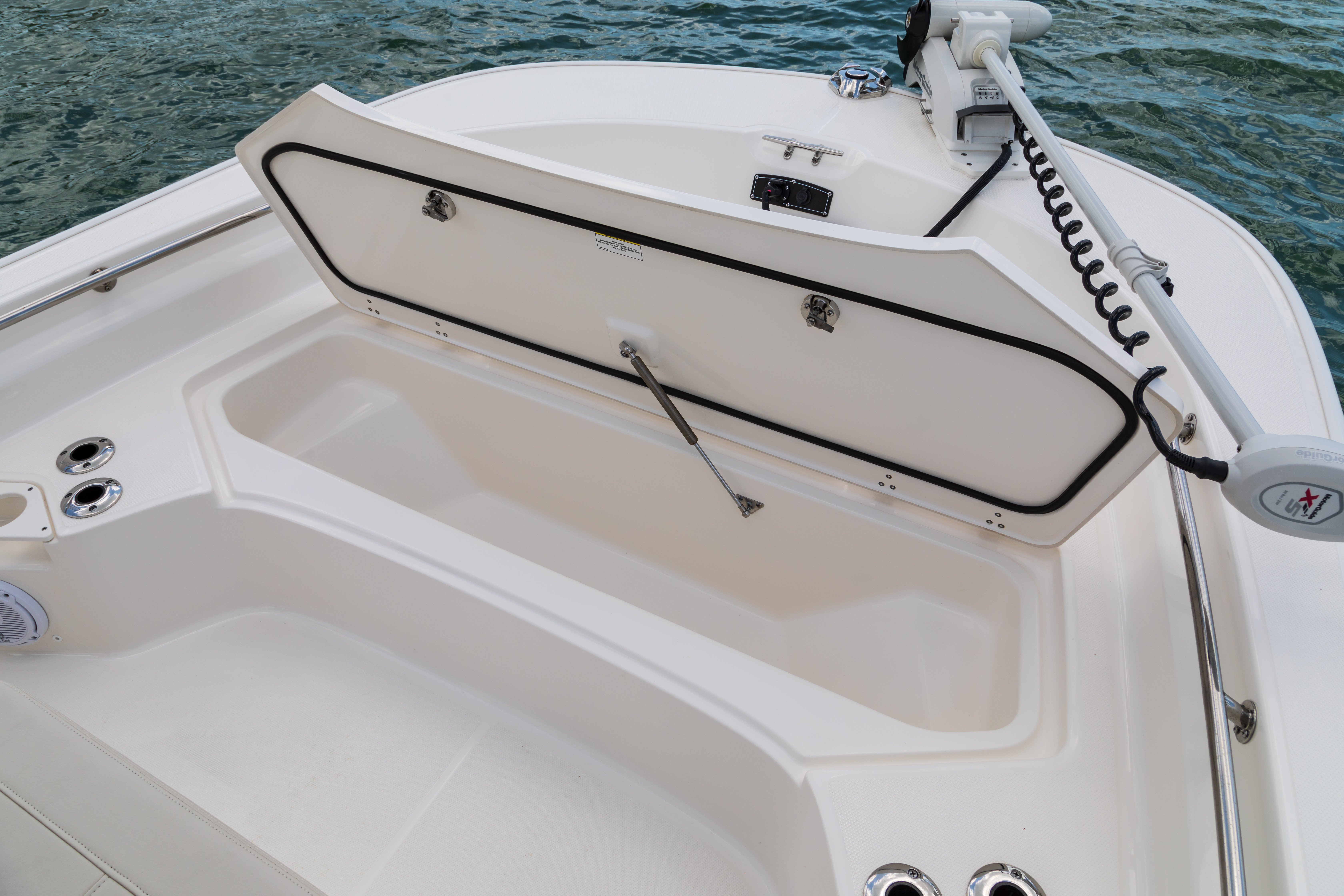

Bow locker with fiberglass cover and overboard drain
Bow rail - welded stainless steel
Cup holders at bow (2)
Forward fishbox with overboard drain
Heavy-duty rub rail
Integrated transom storage
Rod holders (4)(stern)
Side rails - stainless steel
Swim platform with grab rail and telescoping stainless steel swim ladder (fiberglass)
Disc brakes
LED lights
Tie-downs
Torsion Axle
Trailer jack
Winch with nylon strap
Spare tire with radial tires
150 XL EFI Mercury FourStroke engine
Analog instrumentation and Smart Craft digital gauges
Battery box and switch with hold-down strap in console
Bilge pump with float switch (2)
Classic style navigation lights
Fuel tanks - integrated (25 gallons)
Hydraulic steering
Propeller - stainless steel
Vessel view mobile
Reversible pilot seat with locking backrest and storage
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
White
White
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and harpoon)
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Black Frame
(must select tow arch and/or hardtop)
Tops & Towers

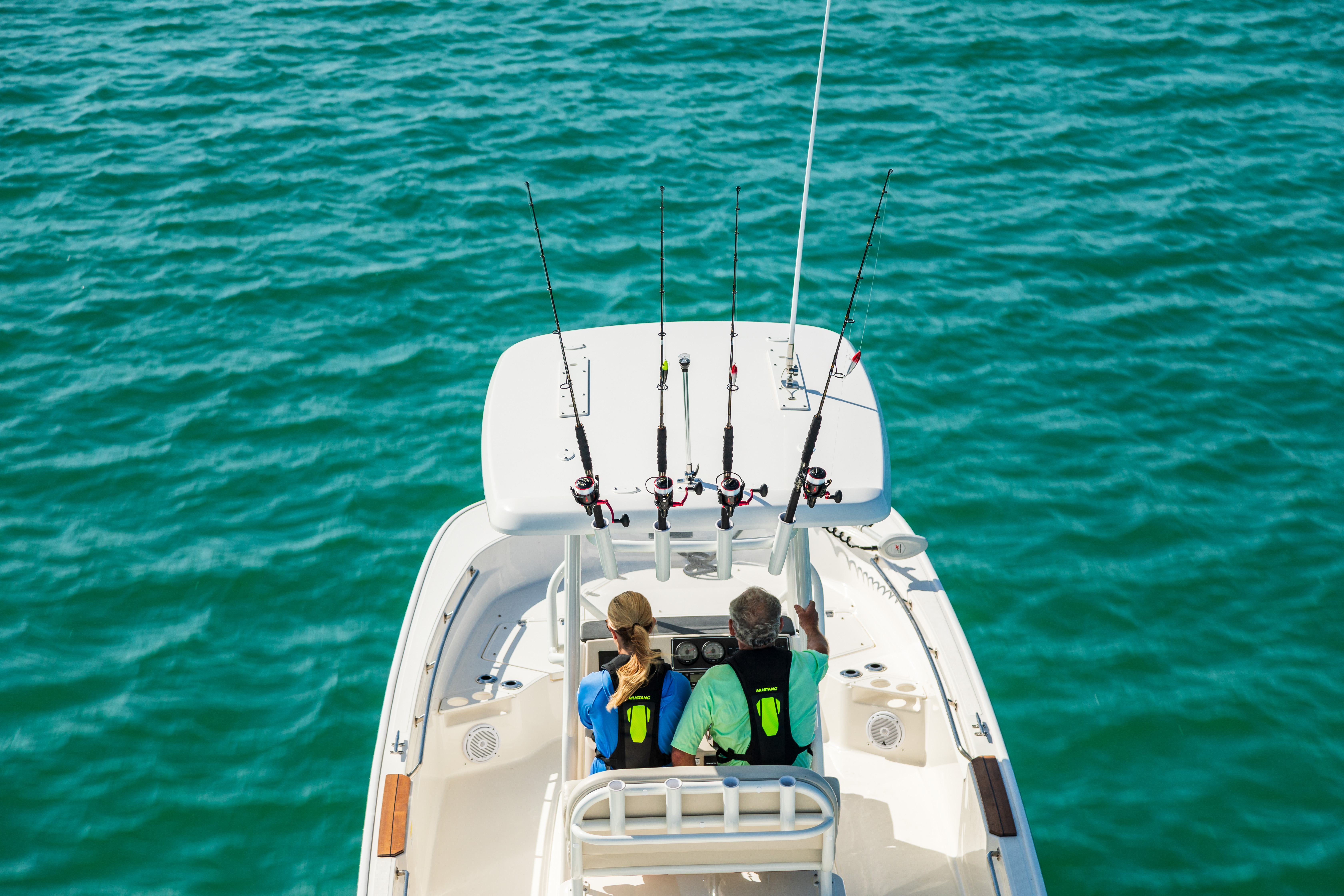

T-Top (powder coated)
includes 5 rod holders
Suntop with boot
(black or blue) and stainless-steel fittings
Hardtop (fiberglass)
includes dome light (red and white), lifejacket storage, rod holders (4) (must select frame color, white or black)
Hardtop Underside Color
Platinum
Platinum
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Packages
Seating package
(includes: bow cushion - 2 pieces, bow cushion back rests and stainless steel bow rod holders - 4)
Cockpit seating package
(includes: reversable pilot seat, knife/leader holder (located on reversable pilot seat), livewell (25 gallon) with blue interior (located in reversable pilot seat), raw-water washdown (located on stern deck), stainless rod holders (2) (located on reversable pilot seat), 94 qt. cooler seat with cushion and backrest, console mounted rod holders (6) (deleted with fiberglass hardtop or t-top selection) (not compatible with the fishing package)
Deluxe cockpit seating package
(includes: deluxe leaning post with flip-up bolsters, livewell (30-gallon) with blue interior (located in deluxe leaning post), cup holders (2) (located on deluxe leaning post), fiberglass base (located on deluxe leaning post), knife/leader holder (located on deluxe leaning post), raw water washdown (located on stern deck), rod holders (4) (located on deluxe leaning post), 94-qt. cooler seat with cushion and backrest, and console mounted rod holders (6) (deleted with fiberglass hardtop or t-top selection)
Helm Seating
Reversible pilot seat with locking backrest and storage underneath
Railings and Rub Rails
Rails - low profile bow rail
(deletes bow rail)
Rails - low profile stern rail
(deletes stern rail)
Rails - complete rail package
(includes bow rail (high and low profile), aft rail (high and low profile))
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails - split bow rail
(replaces standard bow rail) (not compatible with trolling motor panel)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Entertaining Features
Table - at cockpit
Table - at cockpit
Fishing Features
Trolling motor panel
with battery boxes (2) and wiring (deletes standard bow rail) (not compatible with freshwater shower) (includes low profile bow rail option)
Fishing package
(includes bow rod holders (4), console mounted rod holders (6) (deleted with fiberglass hardtop or t-top selection), cooler (94 qt) with cushion and backrest, tackle drawers (2) (mounted in reversible pilot seat) (not compatible with reversible pilot seat with livewell or deluxe leaning post))
Notable Options & Accessories
Glovebox
Glovebox
Teak package
(includes teak boarding steps, teak flooring on swim ladder and teak helm footrests)
Porta potti with deck pump-out
Porta potti with deck pump-out
Freshwater shower
(12 gallons) (not compatible with trolling motor panel)
Bow tow eye
Bow tow eye
Electric trim tabs with indicators
Electric trim tabs with indicators
Tow arch (powder coated)
(must select frame color, white or black)
Raw water wash down
Upgraded console cooler
(upgraded 65 Qt. Yeti cooler seat with cushion ; must select cockpit seating package, deluxe cockpit seating package or fishing package)
Navigation

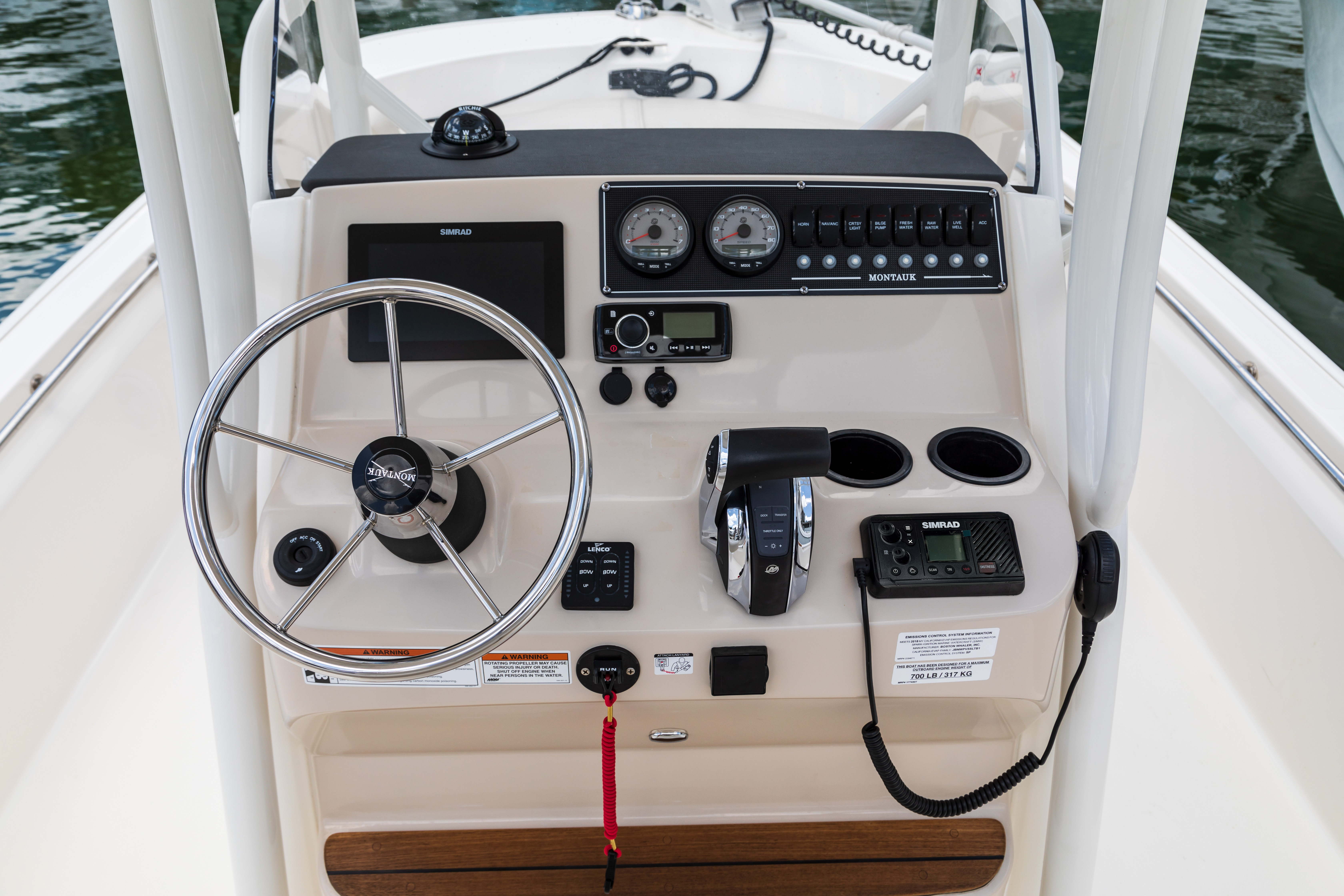

Nav Package, Simrad 7" NSX
Nav Package, Simrad 7" NSX
Nav Package, Simrad 9" NSX
Nav Package, Simrad 9" NSX
Electronics
VHF Radio (Simrad)
VHF Radio (Simrad)
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
Stereo - JL MM55 Audio AM/FM
with waterproof speakers (2) and MP3/USB inputs (JL Audio Bluetooth enabled)
First Mate Safety & Security System Fob Kit
First Mate Safety & Security System Fob Kit
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
FIRST MATE SAFETY & SECURITY SYS SGL
FIRST MATE SAFETY & SECURITY SYS SGL
Canvas
Combo cover -deluxe leaning post/console
(black or blue) (not compatible with leaning post with cooler)
Combo cover -reversible pilot seat/console
(black or blue)
Combo cover -reversible pilot seat/livewell
(covers seat, livewell and console) (black or blue)
Black Canvas
Blue Canvas
Standard Features
12V receptacle
Access door with lockable stainless steel latch
Acrylic windshield
Drink holders (2)
Electric horn
Electrical switch panel with circuit breaker protection
Mercury® binnacle control
Partitioned storage at top of helm
Stainless steel steering wheel
Welded stainless steel grab rail
19” interior freeboard
8” stainless steel cleats (5)
Boarding steps (midship)(molded-in port and starboard)
Bow and stern lifting eyes
Bow locker with fiberglass cover and overboard drain
Bow rail - welded stainless steel
Cup holders at bow (2)
Forward fishbox with overboard drain
Heavy-duty rub rail
Integrated transom storage
Rod holders (4)(stern)
Side rails - stainless steel
Swim platform with grab rail and telescoping stainless steel swim ladder (fiberglass)
Disc brakes
LED lights
Tie-downs
Torsion Axle
Trailer jack
Winch with nylon strap
Spare tire with radial tires
150 XL EFI Mercury FourStroke engine
Analog instrumentation and Smart Craft digital gauges
Battery box and switch with hold-down strap in console
Bilge pump with float switch (2)
Classic style navigation lights
Fuel tanks - integrated (25 gallons)
Hydraulic steering
Propeller - stainless steel
Vessel view mobile
Reversible pilot seat with locking backrest and storage
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Options
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
White
White
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and harpoon)
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Black Frame
(must select tow arch and/or hardtop)
Tops & Towers
T-Top (powder coated)
includes 5 rod holders
Suntop with boot
(black or blue) and stainless-steel fittings
Hardtop (fiberglass)
includes dome light (red and white), lifejacket storage, rod holders (4) (must select frame color, white or black)
Hardtop Underside Color
Platinum
Platinum
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Packages
Seating package
(includes: bow cushion - 2 pieces, bow cushion back rests and stainless steel bow rod holders - 4)
Cockpit seating package
(includes: reversable pilot seat, knife/leader holder (located on reversable pilot seat), livewell (25 gallon) with blue interior (located in reversable pilot seat), raw-water washdown (located on stern deck), stainless rod holders (2) (located on reversable pilot seat), 94 qt. cooler seat with cushion and backrest, console mounted rod holders (6) (deleted with fiberglass hardtop or t-top selection) (not compatible with the fishing package)
Deluxe cockpit seating package
(includes: deluxe leaning post with flip-up bolsters, livewell (30-gallon) with blue interior (located in deluxe leaning post), cup holders (2) (located on deluxe leaning post), fiberglass base (located on deluxe leaning post), knife/leader holder (located on deluxe leaning post), raw water washdown (located on stern deck), rod holders (4) (located on deluxe leaning post), 94-qt. cooler seat with cushion and backrest, and console mounted rod holders (6) (deleted with fiberglass hardtop or t-top selection)
Helm Seating
Reversible pilot seat with locking backrest and storage underneath
Railings and Rub Rails
Rails - low profile bow rail
(deletes bow rail)
Rails - low profile stern rail
(deletes stern rail)
Rails - complete rail package
(includes bow rail (high and low profile), aft rail (high and low profile))
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails - split bow rail
(replaces standard bow rail) (not compatible with trolling motor panel)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Entertaining Features
Table - at cockpit
Table - at cockpit
Fishing Features
Trolling motor panel
with battery boxes (2) and wiring (deletes standard bow rail) (not compatible with freshwater shower) (includes low profile bow rail option)
Fishing package
(includes bow rod holders (4), console mounted rod holders (6) (deleted with fiberglass hardtop or t-top selection), cooler (94 qt) with cushion and backrest, tackle drawers (2) (mounted in reversible pilot seat) (not compatible with reversible pilot seat with livewell or deluxe leaning post))
Notable Options & Accessories
Glovebox
Glovebox
Teak package
(includes teak boarding steps, teak flooring on swim ladder and teak helm footrests)
Porta potti with deck pump-out
Porta potti with deck pump-out
Freshwater shower
(12 gallons) (not compatible with trolling motor panel)
Bow tow eye
Bow tow eye
Electric trim tabs with indicators
Electric trim tabs with indicators
Tow arch (powder coated)
(must select frame color, white or black)
Raw water wash down
Upgraded console cooler
(upgraded 65 Qt. Yeti cooler seat with cushion ; must select cockpit seating package, deluxe cockpit seating package or fishing package)
Navigation
Nav Package, Simrad 7" NSX
Nav Package, Simrad 7" NSX
Nav Package, Simrad 9" NSX
Nav Package, Simrad 9" NSX
Electronics
VHF Radio (Simrad)
VHF Radio (Simrad)
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
Stereo - JL MM55 Audio AM/FM
with waterproof speakers (2) and MP3/USB inputs (JL Audio Bluetooth enabled)
First Mate Safety & Security System Fob Kit
First Mate Safety & Security System Fob Kit
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
FIRST MATE SAFETY & SECURITY SYS SGL
FIRST MATE SAFETY & SECURITY SYS SGL
Canvas
Combo cover -deluxe leaning post/console
(black or blue) (not compatible with leaning post with cooler)
Combo cover -reversible pilot seat/console
(black or blue)
Combo cover -reversible pilot seat/livewell
(covers seat, livewell and console) (black or blue)
Black Canvas
Blue Canvas

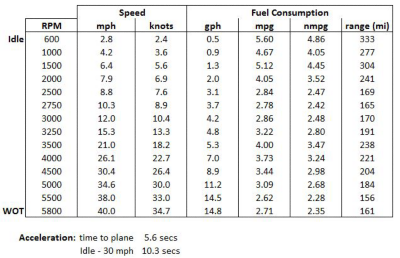

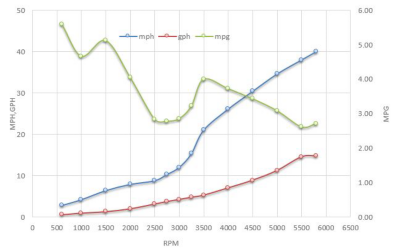

Model: 210 Montauk
Hull #: USBWCE1177J718
Engine: Mercury 150 FourStroke
Horsepower: 150
Gear Ratio: 1.92 : 1
Prop: 15” x 15” Enertia
Fuel Capacity: 66 gallons
Notable Options: Hardtop, Deluxe leaning post with livewell, teak package, portable head, stainless steel rub rail, trolling motor panel with two batteries, trim tabs, stereo, electronics
Test Date: 10-January-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 3,763 lbs
Fuel: 49 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 400 lbs
Test Weight: 4,484 lbs
Water Conditions: 59° F
Weather Conditions: 67° F

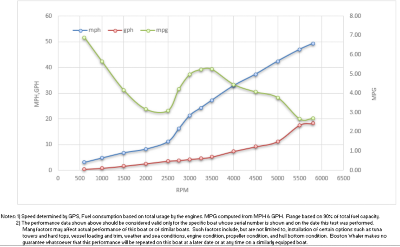

Model: 210 Montauk
Hull #: USBWCE1987B818
Engine: Mercury 200 V6 CMS
Horsepower: 200
Gear Ratio: 1.85 : 1
Prop: 14 1/2” X 18” Enertia
Fuel Capacity: 66 gallons
Notable Options: Hardtop, Deluxe leaning post with livewell,Fishing Package, trim tabs, SS Rub Rail, Stereo, Electronics
Test Date: 3-May-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 30 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 385 lbs
Test Weight: N/A
Water Conditions: 75° F
Weather Conditions: 69° F

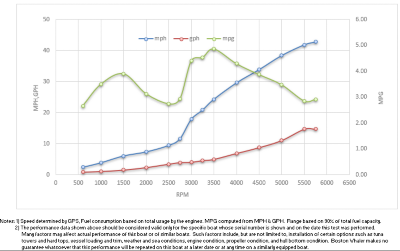

Model: 210 Montauk
Hull #: USBWCE1851B121
Engine: Mercury 150 Four Stroke
Horsepower: 150
Gear Ratio: 1.92:1
Prop: 16P Enertia
Fuel Capacity: 66 gallons
Notable Options: Low Profile Rails, Bow Cushion w/ Backrest, Leaning Post w/ Cooler, Suntop w/ Boot, Portable Head w/ Pumpout, Raw Water Washdown
Test Date: 22-February-2021
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 3,275 lbs
Fuel: 42 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 400 lbs
Test Weight: 3,953 lbs
Water Conditions: 65° F
Weather Conditions: 72° F

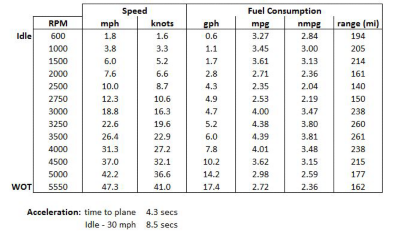

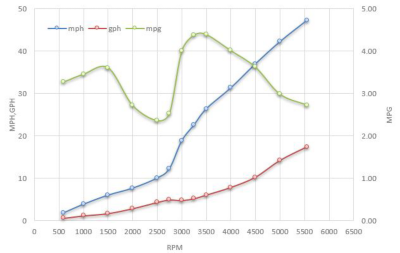

Model: 210 Montauk
Hull #: USBWCE1534A818
Engine: Mercury 200 V6 CMS
Horsepower: 200
Gear Ratio: 1.85 : 1
Prop: 18P Enertia
Fuel Capacity: 66 gallons
Notable Options: Deluxe L/P w/ Livewell, Bow Rod Holders, Bow Cushion w/ Backrest, Portable Head
Test Date: 6-March-2018
Model: 210 Montauk
Hull #: USBWCE1534A818
Engine: Mercury 200 V6 CMS
Horsepower: 200
Gear Ratio: 1.85 : 1
Prop: 18P Enertia
Fuel Capacity: 66 gallons
Notable Options: Deluxe L/P w/ Livewell, Bow Rod Holders, Bow Cushion w/ Backrest, Portable Head
Test Date: 6-March-2018
Water Conditions: 73 F
Weather Conditions: 75 F
Model: 210 Montauk
Hull #: USBWCE1177J718
Engine: Mercury 150 FourStroke
Horsepower: 150
Gear Ratio: 1.92 : 1
Prop: 15” x 15” Enertia
Fuel Capacity: 66 gallons
Notable Options: Hardtop, Deluxe leaning post with livewell, teak package, portable head, stainless steel rub rail, trolling motor panel with two batteries, trim tabs, stereo, electronics
Test Date: 10-January-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 3,763 lbs
Fuel: 49 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 400 lbs
Test Weight: 4,484 lbs
Water Conditions: 59° F
Weather Conditions: 67° F
Model: 210 Montauk
Hull #: USBWCE1987B818
Engine: Mercury 200 V6 CMS
Horsepower: 200
Gear Ratio: 1.85 : 1
Prop: 14 1/2” X 18” Enertia
Fuel Capacity: 66 gallons
Notable Options: Hardtop, Deluxe leaning post with livewell,Fishing Package, trim tabs, SS Rub Rail, Stereo, Electronics
Test Date: 3-May-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 30 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 385 lbs
Test Weight: N/A
Water Conditions: 75° F
Weather Conditions: 69° F
Model: 210 Montauk
Hull #: USBWCE1851B121
Engine: Mercury 150 Four Stroke
Horsepower: 150
Gear Ratio: 1.92:1
Prop: 16P Enertia
Fuel Capacity: 66 gallons
Notable Options: Low Profile Rails, Bow Cushion w/ Backrest, Leaning Post w/ Cooler, Suntop w/ Boot, Portable Head w/ Pumpout, Raw Water Washdown
Test Date: 22-February-2021
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 3,275 lbs
Fuel: 42 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 400 lbs
Test Weight: 3,953 lbs
Water Conditions: 65° F
Weather Conditions: 72° F
Model: 210 Montauk
Hull #: USBWCE1534A818
Engine: Mercury 200 V6 CMS
Horsepower: 200
Gear Ratio: 1.85 : 1
Prop: 18P Enertia
Fuel Capacity: 66 gallons
Notable Options: Deluxe L/P w/ Livewell, Bow Rod Holders, Bow Cushion w/ Backrest, Portable Head
Test Date: 6-March-2018
Model: 210 Montauk
Hull #: USBWCE1534A818
Engine: Mercury 200 V6 CMS
Horsepower: 200
Gear Ratio: 1.85 : 1
Prop: 18P Enertia
Fuel Capacity: 66 gallons
Notable Options: Deluxe L/P w/ Livewell, Bow Rod Holders, Bow Cushion w/ Backrest, Portable Head
Test Date: 6-March-2018
Water Conditions: 73 F
Weather Conditions: 75 F
