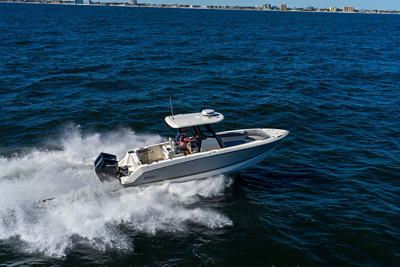

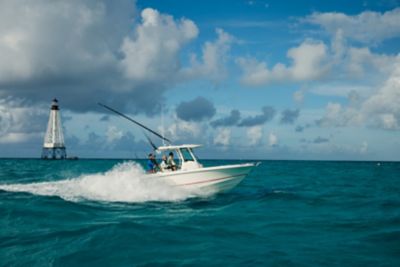

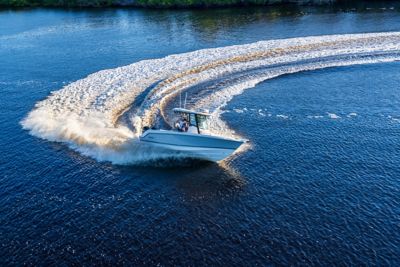

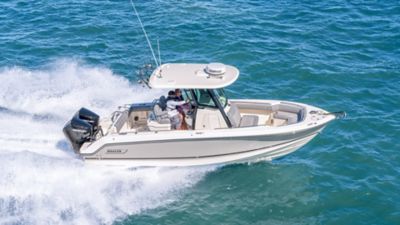

250 Outrage
With Whaler’s legendary unsinkable hull, a perfected interior fishing layout, fully integrated Simrad® technology, and single or twin Mercury® outboards, the 250 Outrage is a tour de force in the world of offshore angling. The center console design provides commanding visibility and control, and forward lounges provide comfort for those that want to relax on board. There’s no limit to what this 25-ft. offshore center console boat can do, so bring your biggest expectations and live out your most exciting adventures.
-final?$FG-406-202-D$&fit=crop&fmt=jpg)
-final?$C-800-500-D$&fit=crop&fmt=jpg)
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.

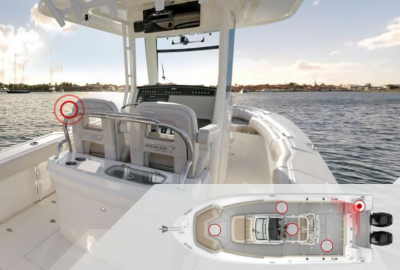

Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
250 OUTRAGE FEATURES
- Optional Simrad technology for precise navigation and enhanced onboard control
- Featuring an optional hardtop with full glass windshield crafted to provide unobstructed panoramic views while ensuring maximum visibility and protection from the elements

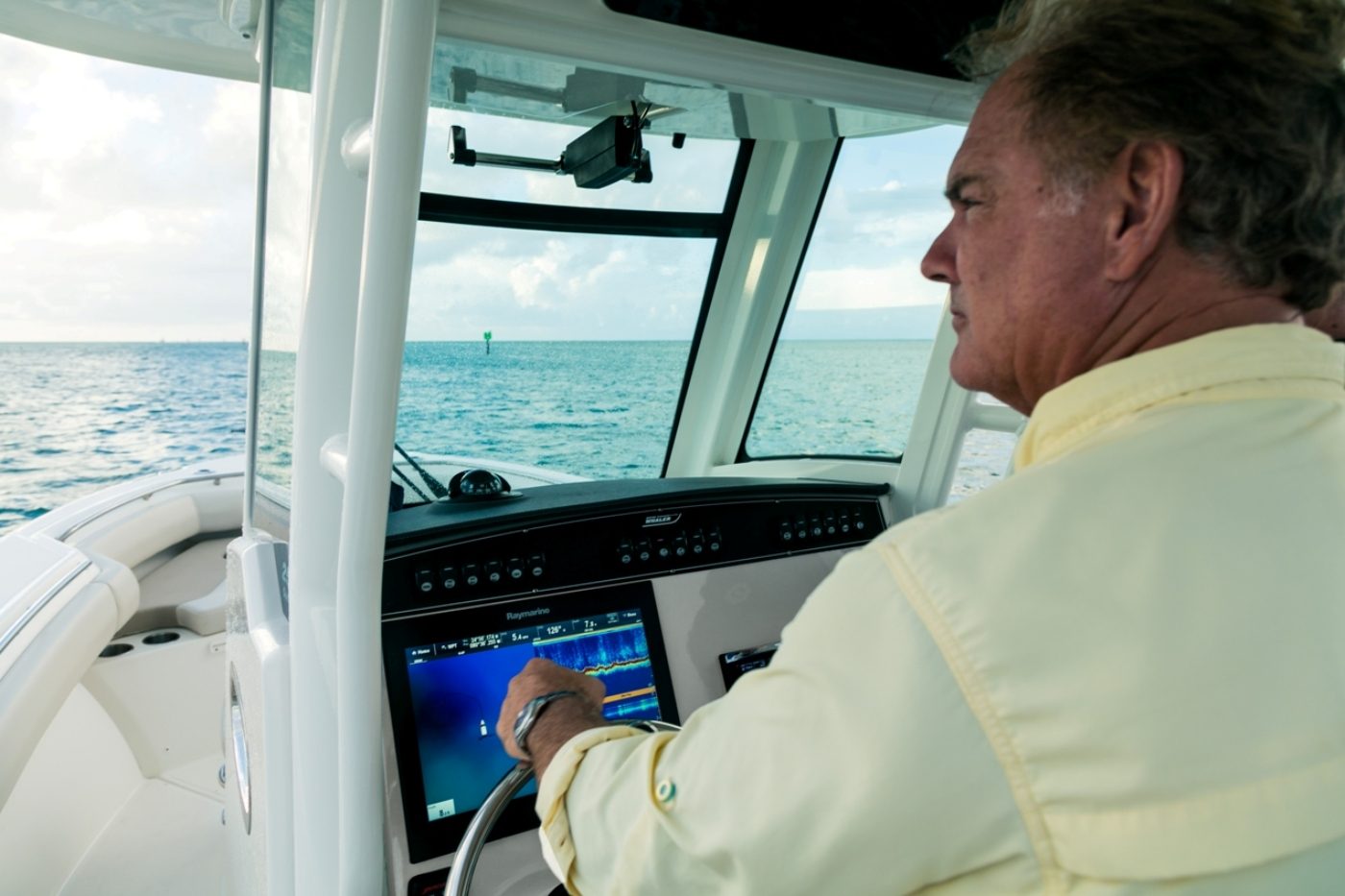

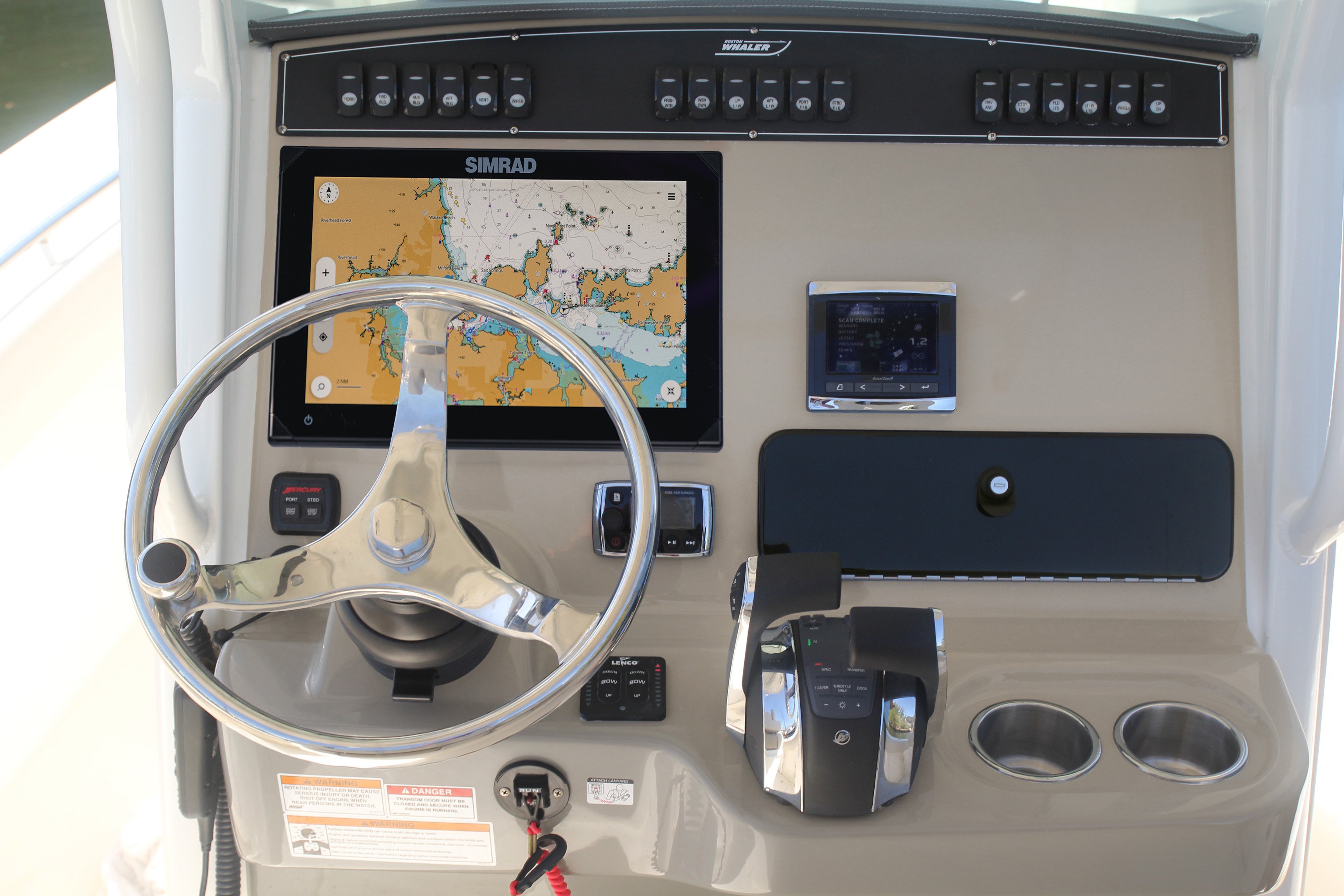

- Helm accommodates two 12-inch displays or a single 16" display, while foot-rest and seating adjust for comfort
- Spacious open bow features large, convenient storage compartments and conversation-friendly seating.
- Well-equipped leaning post includes 30-gallon livewell, ample storage and more.
- Deluxe helm seat upgrade provides captain's chair and stationary companion seat
- Single or Dual Mercury power options with a standard 300 V8 DTS Mercury Verado with hydraulic power steering
Capacity
12
Persons Capacity
172 gallons (651 L)
Fuel Capacity
3,642 lbs. (1,652 kg)
Maximum Weight Capacity
2,980 lbs. (1,352 kg)
Swamped Capacity
26 gallons (98.4 L)
Water Capacity
Dimensions
25’ 5” (7.75m)
L.O.A.
9’ (2.74m)
Beam
7’0” (2.13 m)
Bridge Clearance (no top)
9’8” (2.95 m)
Bridge Clearance (with Hardtop and Radar)
8’7” (2.62 m)
Bridge Clearance (with Hardtop)
8’3” (2.51 m)
Bridge Clearance (with T-Top)
20” (.46m)
Draft
30 gallons (113.5 L)
Livewell Volume
30" Single (.76 m)
Transom Height (25" .63 m Dual)
Engines
450 HP (336 kW)
Maximum Horsepower
1,400 lbs (635 kg)
Maximum Engine Weight
350 HP (261 kW)
Minimum Horsepower
Weight
5,350 lbs. (2,427 kg)
Weight (dry, no engine)
7,325 lbs. (3,322 kg)
Weight (with engines, fuel and water)
12
Persons Capacity
172 gallons (651 L)
Fuel Capacity
3,642 lbs. (1,652 kg)
Maximum Weight Capacity
2,980 lbs. (1,352 kg)
Swamped Capacity
26 gallons (98.4 L)
Water Capacity
25’ 5” (7.75m)
L.O.A.
9’ (2.74m)
Beam
7’0” (2.13 m)
Bridge Clearance (no top)
9’8” (2.95 m)
Bridge Clearance (with Hardtop and Radar)
8’7” (2.62 m)
Bridge Clearance (with Hardtop)
8’3” (2.51 m)
Bridge Clearance (with T-Top)
20” (.46m)
Draft
30 gallons (113.5 L)
Livewell Volume
30" Single (.76 m)
Transom Height (25" .63 m Dual)
450 HP (336 kW)
Maximum Horsepower
1,400 lbs (635 kg)
Maximum Engine Weight
350 HP (261 kW)
Minimum Horsepower
5,350 lbs. (2,427 kg)
Weight (dry, no engine)
7,325 lbs. (3,322 kg)
Weight (with engines, fuel and water)
Standard features & Options
12-V receptacle
Access panels to electronics
Acrylic entry door with lock
Bi-level molded console footrests
Compass
Console grab rails -stainless steel
Dash visor
Drink holders (2)
Easy access storage space for personal items
Electronics surface that accommodates two (12”) displays or single (16”)
Enclosed head/storage area in console with easy clean liner
Fold-down step inside console
Glove box - lockable dry storage
Instrumentation and electrical switch panel with circuit breaker protection and illuminated text
Interior courtesy light
Molded tempered glass windshield
Port window with screen - stainless steel
Portable head with pump-out
Remote ignition key switches with pushbutton start at helm
Steering wheel with knob - cast stainless steel
28” interior freeboard
8" stainless steel cleats; bow (2), spring line (2), stern with hawse pipes (2), anchor locker (1)
Acrylic transom door with stainless steel latch
Aft coaming bolsters
Anchor roller - stainless steel
Bow and stern eyes
Cockpit courtesy light
Drink holders (4 in bow, 2 in hawse pipes, 2 in leaning post, 2 in helm)
Heavy-duty rub rail
Motorwell drains
Rod holders - gunnel mounted (4)
Rod holders - transom mounted (3)
Rod racks - under gunnel
Self-bailing cockpit sole
Swim platform with covered telescoping swim ladder with stainless steel grab rail
Toe rails - stainless steel
Welded low profile rail - stainless steel
Bait prep area
Drink holders (2)
Grab rail - welded stainless steel
Pressurized livewell with lid and blue interior (30-gallons)
Tackle storage drawers (3)
Upholstered leaning post with flip-up bolster and backrest
White and red livewell lights
172-gallon fuel tank
300 V8 DTS Mercury Verado with hydraulic power steering and fuel/water separator
Automatic bilge pumps, 750 GPH fwd, 1100 GPH aft
Battery trays (2) with switch
Electric horn
Electrical distribution / breaker panel with key switches (inside console)
Fishbox pump-out
Freshwater system with 26-gallon tank and transom shower
LED navigation lights
Propeller - stainless steel
Raw-water washdown
Recessed electric trim tabs with indicators
Tilt steering
Fold-away stern seat
Forward console seat with insulated storage
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Aft storage center (1 port side top loading, 1 forward loading) (deleted with optional aft livewell)
Bow anchor storage with hatch
Bow storage locker with hatch, gasket and overboard drain
Insulated forward in-deck storage with hatch and overboard drain
Lockable console storage
Port & starboard fishboxes with pump-out and drains
Under gunnel rod racks (2 per side)
Bluetooth connection via Vessel View Mobile app (compatible while connected to stereo)
Display key engine data on your smartphone (Android or Apple iPhone)
Gelcoat Hull Side Colors
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Platinum
Platinum
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver stripe)
Upholstery Package
Shore (Tan) Exterior Upholstery Package (standard)
Sea (Gray) Exterior Upholstery Package
Sea (Gray) Exterior Upholstery Package
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Black Frame
(must select a hardtop or T-Top option)
Tops & Towers
Hardtop with electronics box and Windshield wiper
(includes: bow area floodlight, cockpit floodlights (2), dome light (red and white), electronics box, lifejacket storage, outrigger ready, rod holders (5) (white or black depending on frame color selection), tempered glass windshield with power actuated vent. Available with dual engine options only)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Single Engine
300 V8 DTS Mercury Verado
with hydraulic power steering and fuel/water separator
300 V8 DTS White Mercury Verado with hydraulic power steering and fuel/water separator
300 V8 DTS White Mercury Verado with hydraulic power steering and fuel/water separator
Dual Engines
200 V6 DTS Black Dual Mercury FourStroke
engines with hydraulic power steering and fuel/water separators
200 V6 DTS White Dual Mercury FourStroke
engines with hydraulic power steering and fuel/water separators
225 V6 DTS Black Dual Mercury FourStroke
engines with hydraulic power steering and fuel/water separators
225 V6 DTS White Dual Mercury FourStroke
engines hydraulic power steering and fuel/water separators
Painted Engines
Painted Engine (Single)
Painted Engines (Dual)
Helm Seating

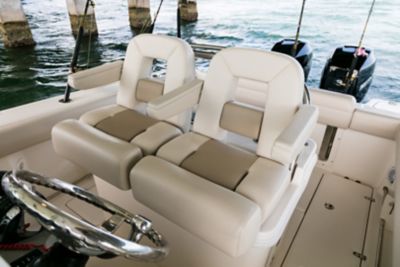

Seating - deluxe helm seating
captain's chair and companion seat with armrests
Packages
Premium Package
8" cross tie cleats at transom, bow cushions, cockpit line holders (4), deluxe helm seating: captain's chair with companion seat and armrests, drink holders (8) - stainless steel, forward coaming bolsters, pullout sprayer in console (under gunnel storage shelves), fender clips – stainless steel, pull-out, flush mounted (Qty 4),Vacu-Flush toilet, holding tank, overboard discharge and dockside pump-out
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails - split bow rail
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Fishing Features
Radial outriggers
black, requires Hardtop
Livewell - 14 gallons - port aft
Livewell - 14 gallons - port aft
Notable Options & Accessories

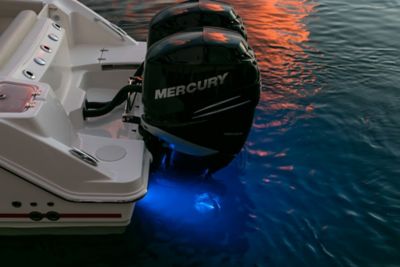

Lighting - underwater LED (dual engine)
Lighting - underwater LED (dual engine)
Batteries - GR31 AGM (factory installed) (for single engine options)
Battery charging system (220V)

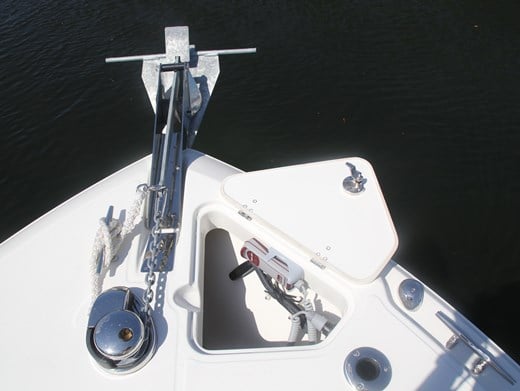

Anchor windlass chain (150 foot)
(must select anchor windlass)
Bow tow eye
Bow tow eye
Trailer - aluminum
Battery charging system (US)
Navigation
Nav Package, Simrad 12" NSX Add'l Display
Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder, Smart Craft Connect)
Nav Package, Simrad 16" NSO
Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder), Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury VesselView Link , GS25 GPS Antenna 15 N2K with Heading Sensor

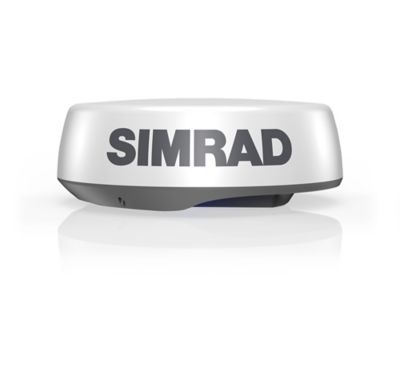

Radar, Simard Dome Halo24
Radar, Simard Dome Halo24
Nav Package, Simrad 12" NSX
(includes: Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder), Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury SmartCraft Connect and C-Map® DiscoverTM X Chart Card: North America/Canada)
Electronics

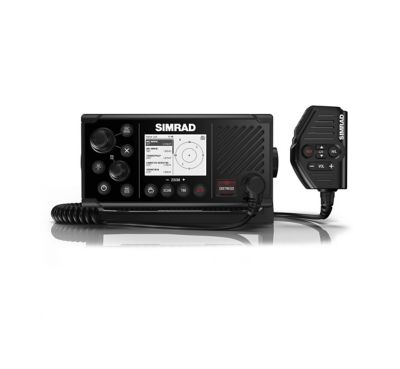

VHF Radio (Simrad)
Simrad RS40 VHF Radio with AIS and HS40 wireless handset
Vessel View 4 inch display
Vessel View 4 inch display
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
Stereo - JL MM55 Audio AM/FM
with waterproof speakers (2), MP3/USB inputs, and Bluetooth compatibility
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
First Mate Safety & Security Sys – Single Engine
(Includes Captain FOB and 3 passenger FOB’s) (Not compatible with Dual Engine options)
First Mate Safety & Security System(Dual Engine)
(Includes Captain FOB and 3 passenger FOB’s)
First Mate Safety & Security FOB Kit
(Includes additional Man Overboard (MOB) FOB’s for additional passengers (Qty 4)
Standard Features
12-V receptacle
Access panels to electronics
Acrylic entry door with lock
Bi-level molded console footrests
Compass
Console grab rails -stainless steel
Dash visor
Drink holders (2)
Easy access storage space for personal items
Electronics surface that accommodates two (12”) displays or single (16”)
Enclosed head/storage area in console with easy clean liner
Fold-down step inside console
Glove box - lockable dry storage
Instrumentation and electrical switch panel with circuit breaker protection and illuminated text
Interior courtesy light
Molded tempered glass windshield
Port window with screen - stainless steel
Portable head with pump-out
Remote ignition key switches with pushbutton start at helm
Steering wheel with knob - cast stainless steel
28” interior freeboard
8" stainless steel cleats; bow (2), spring line (2), stern with hawse pipes (2), anchor locker (1)
Acrylic transom door with stainless steel latch
Aft coaming bolsters
Anchor roller - stainless steel
Bow and stern eyes
Cockpit courtesy light
Drink holders (4 in bow, 2 in hawse pipes, 2 in leaning post, 2 in helm)
Heavy-duty rub rail
Motorwell drains
Rod holders - gunnel mounted (4)
Rod holders - transom mounted (3)
Rod racks - under gunnel
Self-bailing cockpit sole
Swim platform with covered telescoping swim ladder with stainless steel grab rail
Toe rails - stainless steel
Welded low profile rail - stainless steel
Bait prep area
Drink holders (2)
Grab rail - welded stainless steel
Pressurized livewell with lid and blue interior (30-gallons)
Tackle storage drawers (3)
Upholstered leaning post with flip-up bolster and backrest
White and red livewell lights
172-gallon fuel tank
300 V8 DTS Mercury Verado with hydraulic power steering and fuel/water separator
Automatic bilge pumps, 750 GPH fwd, 1100 GPH aft
Battery trays (2) with switch
Electric horn
Electrical distribution / breaker panel with key switches (inside console)
Fishbox pump-out
Freshwater system with 26-gallon tank and transom shower
LED navigation lights
Propeller - stainless steel
Raw-water washdown
Recessed electric trim tabs with indicators
Tilt steering
Fold-away stern seat
Forward console seat with insulated storage
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Aft storage center (1 port side top loading, 1 forward loading) (deleted with optional aft livewell)
Bow anchor storage with hatch
Bow storage locker with hatch, gasket and overboard drain
Insulated forward in-deck storage with hatch and overboard drain
Lockable console storage
Port & starboard fishboxes with pump-out and drains
Under gunnel rod racks (2 per side)
Bluetooth connection via Vessel View Mobile app (compatible while connected to stereo)
Display key engine data on your smartphone (Android or Apple iPhone)
Options
Gelcoat Hull Side Colors
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Platinum
Platinum
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver stripe)
Upholstery Package
Shore (Tan) Exterior Upholstery Package (standard)
Sea (Gray) Exterior Upholstery Package
Sea (Gray) Exterior Upholstery Package
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Black Frame
(must select a hardtop or T-Top option)
Tops & Towers
Hardtop with electronics box and Windshield wiper
(includes: bow area floodlight, cockpit floodlights (2), dome light (red and white), electronics box, lifejacket storage, outrigger ready, rod holders (5) (white or black depending on frame color selection), tempered glass windshield with power actuated vent. Available with dual engine options only)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Single Engine
300 V8 DTS Mercury Verado
with hydraulic power steering and fuel/water separator
300 V8 DTS White Mercury Verado with hydraulic power steering and fuel/water separator
300 V8 DTS White Mercury Verado with hydraulic power steering and fuel/water separator
Dual Engines
200 V6 DTS Black Dual Mercury FourStroke
engines with hydraulic power steering and fuel/water separators
200 V6 DTS White Dual Mercury FourStroke
engines with hydraulic power steering and fuel/water separators
225 V6 DTS Black Dual Mercury FourStroke
engines with hydraulic power steering and fuel/water separators
225 V6 DTS White Dual Mercury FourStroke
engines hydraulic power steering and fuel/water separators
Painted Engines
Painted Engine (Single)
Painted Engines (Dual)
Helm Seating
Seating - deluxe helm seating
captain's chair and companion seat with armrests
Packages
Premium Package
8" cross tie cleats at transom, bow cushions, cockpit line holders (4), deluxe helm seating: captain's chair with companion seat and armrests, drink holders (8) - stainless steel, forward coaming bolsters, pullout sprayer in console (under gunnel storage shelves), fender clips – stainless steel, pull-out, flush mounted (Qty 4),Vacu-Flush toilet, holding tank, overboard discharge and dockside pump-out
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails - split bow rail
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Fishing Features
Radial outriggers
black, requires Hardtop
Livewell - 14 gallons - port aft
Livewell - 14 gallons - port aft
Notable Options & Accessories
Lighting - underwater LED (dual engine)
Lighting - underwater LED (dual engine)
Batteries - GR31 AGM (factory installed) (for single engine options)
Battery charging system (220V)
Anchor windlass chain (150 foot)
(must select anchor windlass)
Bow tow eye
Bow tow eye
Trailer - aluminum
Battery charging system (US)
Navigation
Nav Package, Simrad 12" NSX Add'l Display
Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder, Smart Craft Connect)
Nav Package, Simrad 16" NSO
Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder), Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury VesselView Link , GS25 GPS Antenna 15 N2K with Heading Sensor
Radar, Simard Dome Halo24
Radar, Simard Dome Halo24
Nav Package, Simrad 12" NSX
(includes: Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder), Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury SmartCraft Connect and C-Map® DiscoverTM X Chart Card: North America/Canada)
Electronics
VHF Radio (Simrad)
Simrad RS40 VHF Radio with AIS and HS40 wireless handset
Vessel View 4 inch display
Vessel View 4 inch display
CMAP Discovery X Chart Card - Asia
(Only compatible with NSX Displays)
Stereo - JL MM55 Audio AM/FM
with waterproof speakers (2), MP3/USB inputs, and Bluetooth compatibility
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
First Mate Safety & Security Sys – Single Engine
(Includes Captain FOB and 3 passenger FOB’s) (Not compatible with Dual Engine options)
First Mate Safety & Security System(Dual Engine)
(Includes Captain FOB and 3 passenger FOB’s)
First Mate Safety & Security FOB Kit
(Includes additional Man Overboard (MOB) FOB’s for additional passengers (Qty 4)

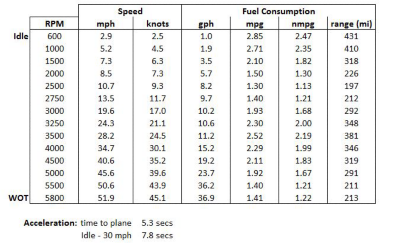

Model: 250 Outrage
Hull #: USBWCE1061K516
Engine: Dual Mercury 200 V6 CMS
Horsepower: 400
Gear Ratio: 1.85 : 1
Prop: 14 3/8” x 19” Enertia
Fuel Capacity: 172 gallons
Notable Options: T-Top, Premium Package, Windlass, Aft Livewell
Test Date: 22-March-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 6,911 lbs
Fuel: 86 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 390 lbs
Test Weight: 7,850 lbs
Water Conditions: 72° F
Weather Conditions: 66° F

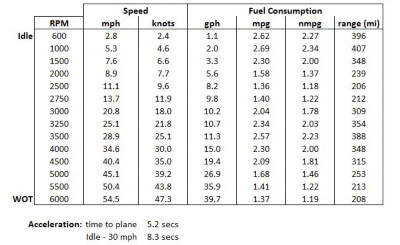

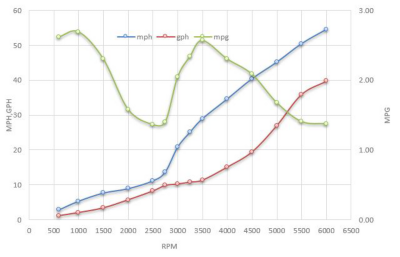

Model: 250 Outrage
Hull #: USBWCE1061K516
Engine: Dual Mercury 225 V6 CMS
Horsepower: 450
Gear Ratio: 1.85 : 1
Prop: 14 3/8” x 19” Enertia
Fuel Capacity: 172 gallons
Notable Options: Hardtop, Premium Package, Windlass, Aft Livewell
Test Date: 26-March-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 6,911 lbs
Fuel: 65 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 390 lbs
Test Weight: 7,721 lbs
Water Conditions: 70° F
Weather Conditions: 70° F
Model: 250 Outrage
Hull #: USBWCE1061K516
Engine: Dual Mercury 200 V6 CMS
Horsepower: 400
Gear Ratio: 1.85 : 1
Prop: 14 3/8” x 19” Enertia
Fuel Capacity: 172 gallons
Notable Options: T-Top, Premium Package, Windlass, Aft Livewell
Test Date: 22-March-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 6,911 lbs
Fuel: 86 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 390 lbs
Test Weight: 7,850 lbs
Water Conditions: 72° F
Weather Conditions: 66° F
Model: 250 Outrage
Hull #: USBWCE1061K516
Engine: Dual Mercury 225 V6 CMS
Horsepower: 450
Gear Ratio: 1.85 : 1
Prop: 14 3/8” x 19” Enertia
Fuel Capacity: 172 gallons
Notable Options: Hardtop, Premium Package, Windlass, Aft Livewell
Test Date: 26-March-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 6,911 lbs
Fuel: 65 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 390 lbs
Test Weight: 7,721 lbs
Water Conditions: 70° F
Weather Conditions: 70° F
