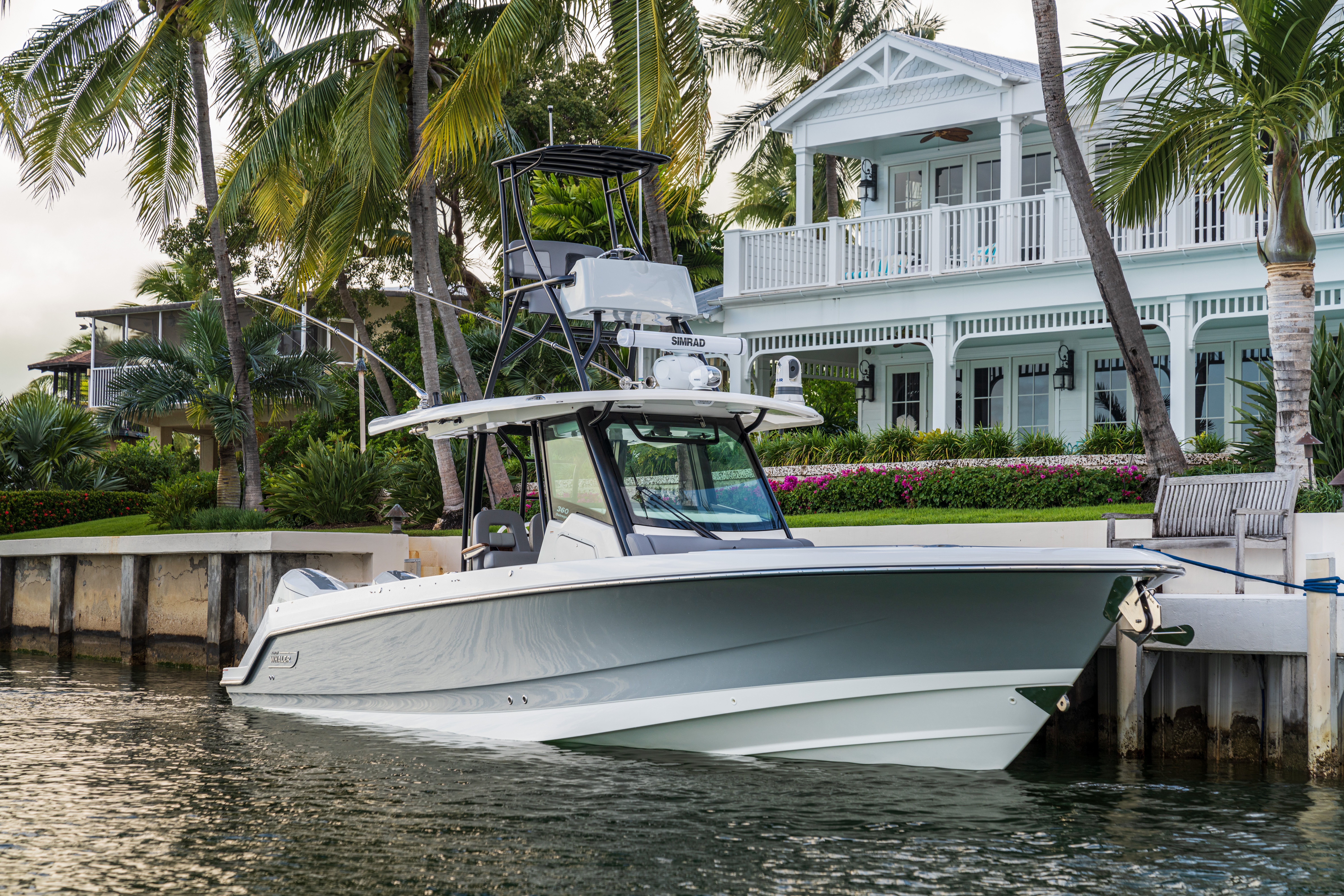

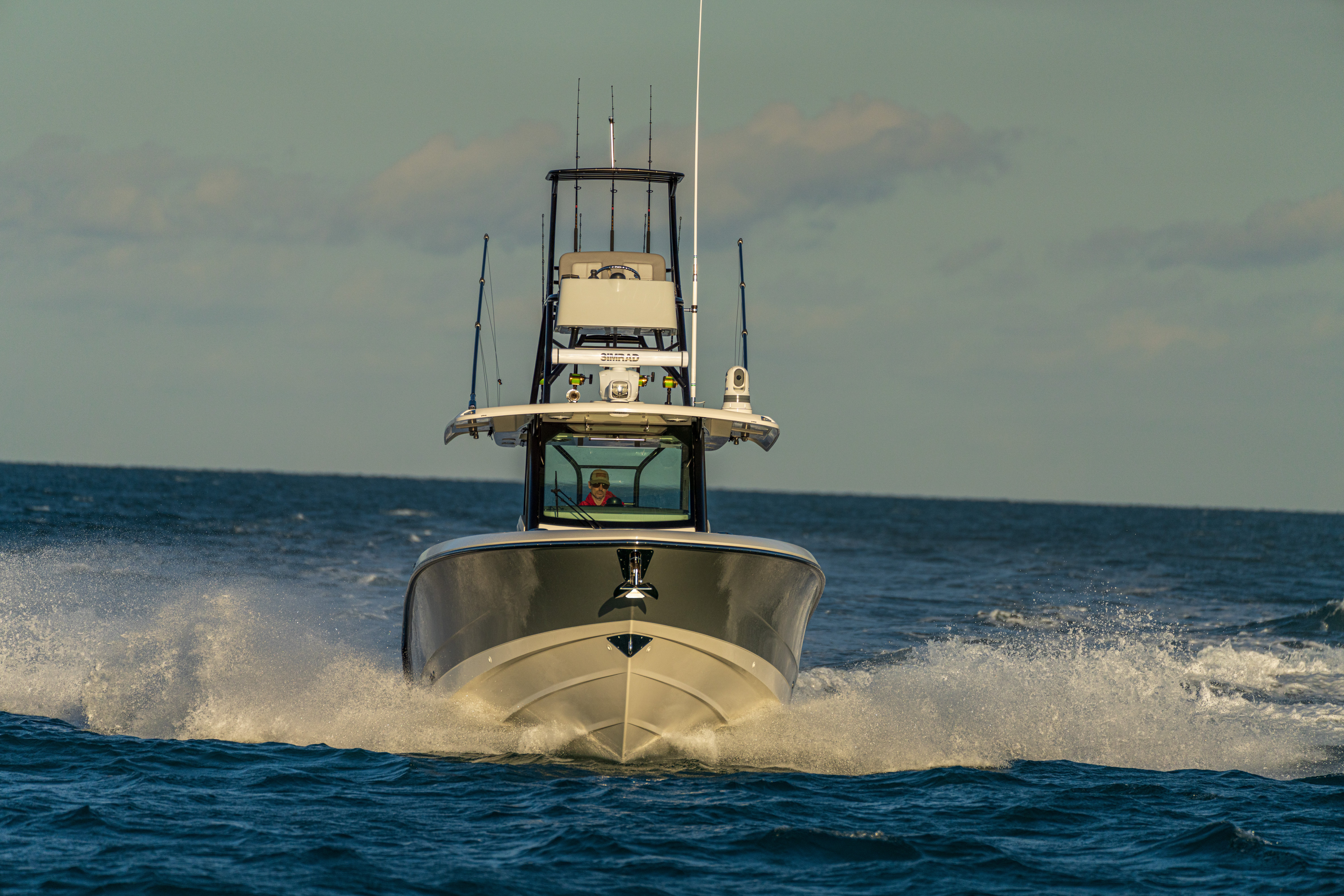

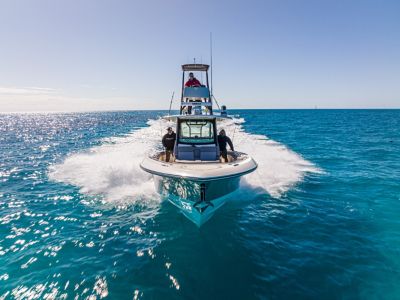

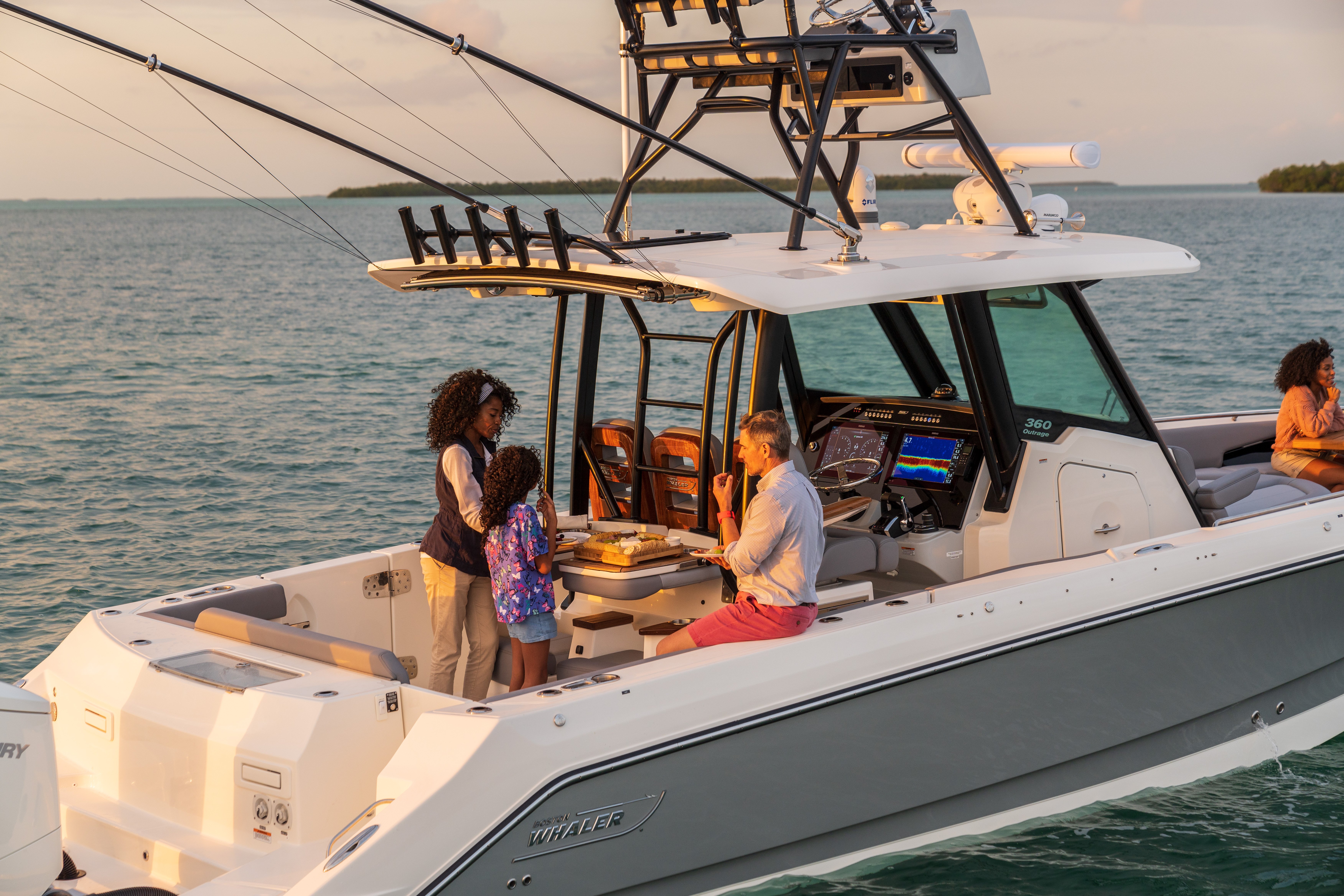

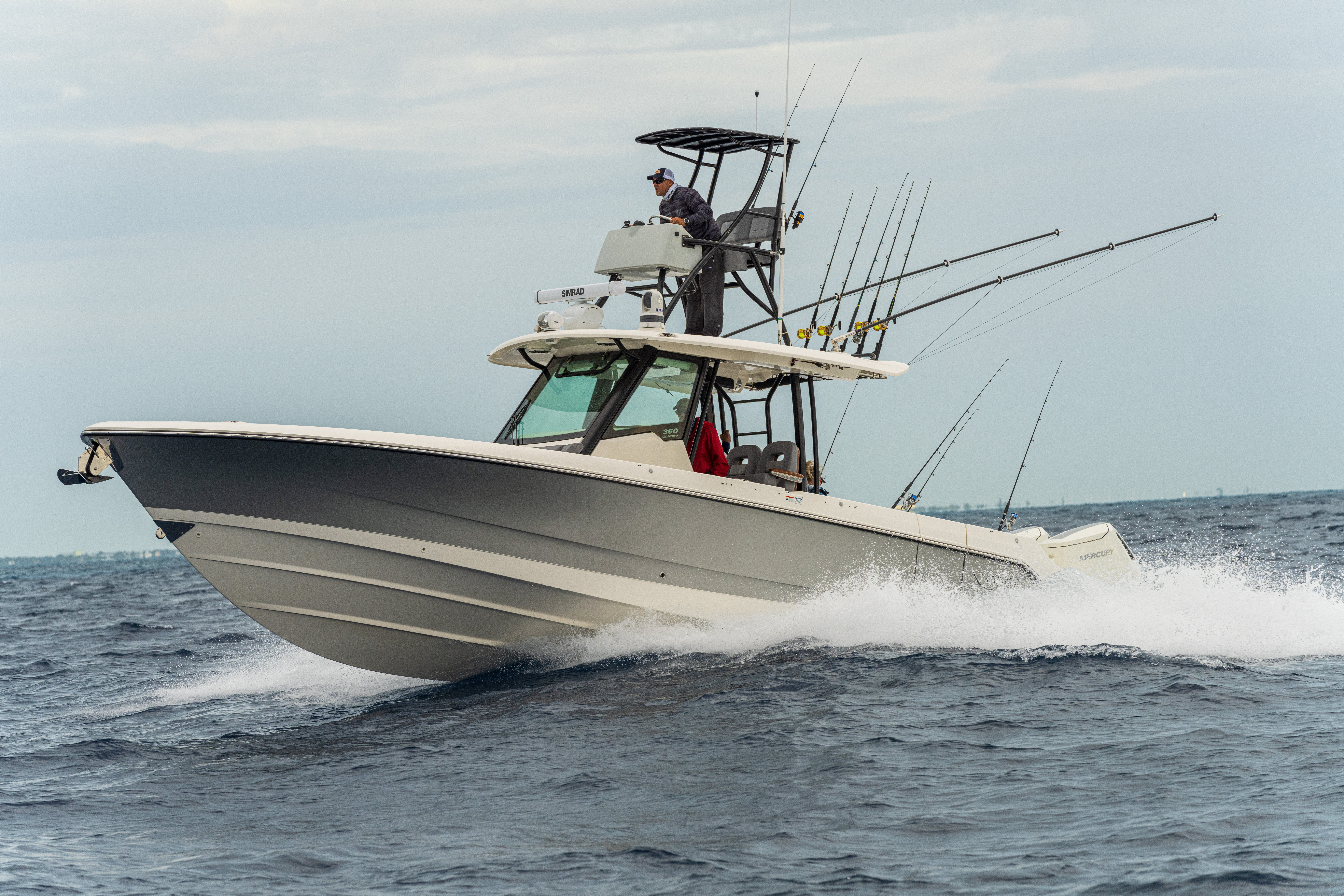

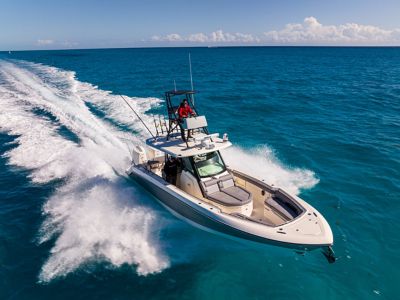

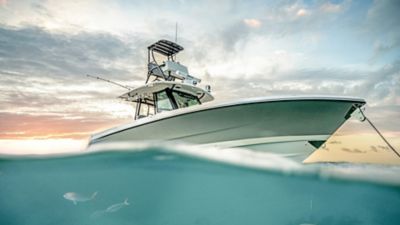

360 Outrage
Offshore excellence is at the core of the formidable 360 Outrage—from the unsinkable Whaler hull to the commanding center console to the full range of offshore angling features. Designed with optimized fishability from bow to stern, no species can hide once you have them in your sights. Cutting edge technology integrates all boat functions through an intuitive Simrad® touchscreen. Unrivaled power-matched propulsion systems get you to the destination faster and keep you on the water longer, making this 36-ft. center console boat one of the most powerful and capable offshore fishing boats in its class.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.

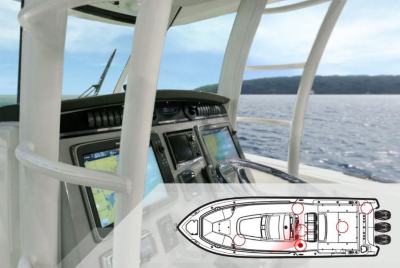

Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
360 OUTRAGE FEATURES
- Triple 300-HP V8 Mercury engines with Joystick piloting as well as options including triple 400-HP V10 Mercury FourStrokes or twin 600-HP V12 Verados to deliver exhilarating speed, acceleration and precision with maximized fuel efficiency

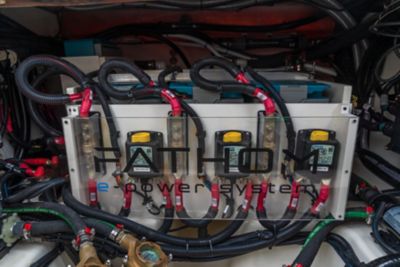

- Optional advanced Fathom technology, a first-of-its-kind boat electrification system
- A state-of-the-art helm station with Simrad electronics
- Digital switching technology empowers remote control of key systems.

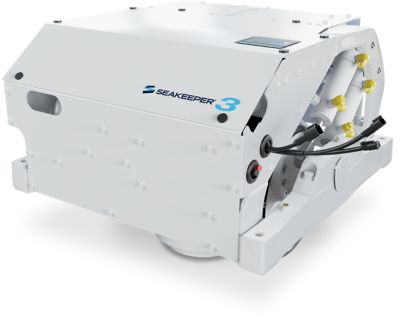

- Available gyro-stabilization ensures comfort in rolling seas
- Reconfigured bow seating affords more space and easier access to the windlass/anchor and improved ability to fish from the bow
- More personalized cockpit offers options for entertaining with an optional Summer Kitchen
- Improved storage throughout the boat, resulting in more useable bow storage, a more organized cabin, and better designated sleeping space in the V-berth
- Centerline hardtop access lets user feels much more secure
Capacity
14
Persons Capacity
415 gallons (1,571 L)
Fuel Capacity
5,810 lbs (2,635 kg)
Maximum Weight Capacity
5,000 lbs (2,268 kg)
Swamped Capacity
10 gallons (38 L)
Waste Capacity
45 gallons (170 L)
Water Capacity
Dimensions
36' 5" (11.12m)
L.O.A.
11' 3" (3.43m)
Beam
9' 2" (2.79m)
Bridge Clearance (with top)
15' (4.57 m)
Bridge Clearance (with upper station )
27" (0.81m)
Draft
30" (.8 m)
Transom Height
Engines
1,200 HP (1,193 kW)
Maximum Horsepower
2,650 lbs (1,202 kg)
Maximum Engine Weight
900 HP (671 kW)
Minimum Horsepower
Weight
13,383 lbs (6,070 kg)
Weight (dry, no engine)
18,281 lbs (8,292 kg)
Weight (with engine, fuel and water)
14
Persons Capacity
415 gallons (1,571 L)
Fuel Capacity
5,810 lbs (2,635 kg)
Maximum Weight Capacity
5,000 lbs (2,268 kg)
Swamped Capacity
10 gallons (38 L)
Waste Capacity
45 gallons (170 L)
Water Capacity
36' 5" (11.12m)
L.O.A.
11' 3" (3.43m)
Beam
9' 2" (2.79m)
Bridge Clearance (with top)
15' (4.57 m)
Bridge Clearance (with upper station )
27" (0.81m)
Draft
30" (.8 m)
Transom Height
1,200 HP (1,193 kW)
Maximum Horsepower
2,650 lbs (1,202 kg)
Maximum Engine Weight
900 HP (671 kW)
Minimum Horsepower
13,383 lbs (6,070 kg)
Weight (dry, no engine)
18,281 lbs (8,292 kg)
Weight (with engine, fuel and water)
Standard features & Options
Electronics box, lockable

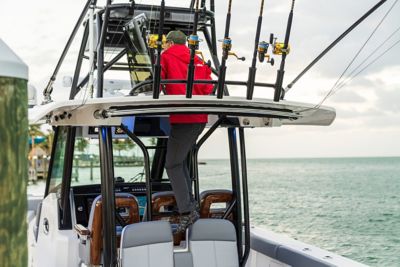

Hardtop access: aft center ladder to acrylic hatch in hardtop
Hardtop support frame: Custom powder coated aluminum frame integrated into the deck providing unobstructed walkways
Lighting - LED 3-color courtesy chart lights (red, blue or white) (3)
Lighting - LED flood lights - aft cockpit area (2)
Lighting - LED flood lights - bow area (1)
Lighting - LED navigation lights flush mounted in hardtop

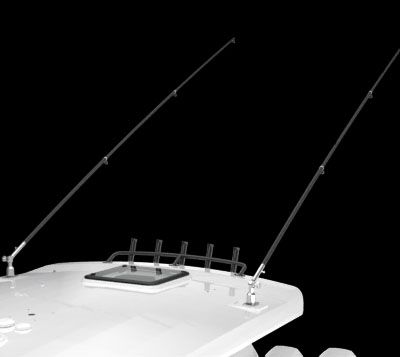

Outrigger ready
Rod holders - Powder coated Aluminum frame, hardtop mounted on aft end (5) (white or black depending on frame color)
Windshield - Tempered curved glass with power actuated vent, with tempered full height side glass
Windshield wiper with wash system and intermittent control
120-V outlet
500 GPH shower sump
Flooring – Solid Teak
Lighting - LED diffused courtesy lights (blue)
Lighting - LED switchable overhead lights (4) (white)
Mattress – 5” foam cushion
Portlight - Opening (1)
Rod storage – hidden holders (4) built in face and toe kick of the vanity
Seat – Teak seat with satin varnish, hinged over toilet in shower area
Shower with curtain and pullout faucet sprayer from vanity (cold only without optional Convenience Package)
Storage cabinet
Toilet - Vacu-Flush® toilet, holding tank with tank level sensor, tank vent filter, overboard discharge, and dockside pump-out
Vanity cabinet with Solid Surface top, fiberglass sink, pullout faucet (cold water only without optional Convenience Package), storage and wastebasket underneath with trash shoot in counter surface
SIMRAD Active Imaging 3-in-1 sonar with CHIRP, SideScan and DownScan
SIMRAD RS40 VHF with AIS – receive only
SIMRAD HS40 wireless handset offering full control of the fixed mount RS40)

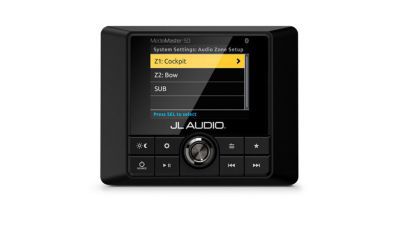

Stereo System- Premium DSP tuned multi Zone System with hideway receiver(JL Audio integration into Simrad Navigation Package). JL Audio MM105-HR stereo with Dash mounted stereo remote volume/mute knobAM/FM/HD Radio, dual USB and dual AUX input, iPod / iPhone / Android compatible via integrated Bluetooth 5.0 or USB (lossless compatible)Sirius XM option ready, Amplifiers. Stero system - Premium DSP tuned multi zone system with hideway receiver. 1200 Watts Digital Signal Processing (DSP) custom tuned sound system by JL Audio acoustic expert (MV800/8i, M400/4)
Helm/Cockpit- JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in hardtop. JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard aft cockpit corners. JL subwoofer M6 10” subwoofer Sport Whaler white/Gun metal grill. Stereo remote control – JL Audio Wireless remote on armrest of aft facing couch that controls the stereo and volume of the aft cockpit speakers
Bow- JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in hardtop JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard bow seating pockets. Stereo remote controls (2) – JL Audio Wireless remotes on flip down lounge armrest and port bow seating that controls the stereo and volume of the bow speakers
Simrad - 16" NSO evo3s electronocs navigation package
Stereo system - Premium DSP tuned multi zone system with hideway receiver
Dual USB charging port on couch armrest
120-V electrical outlet located on starboard side

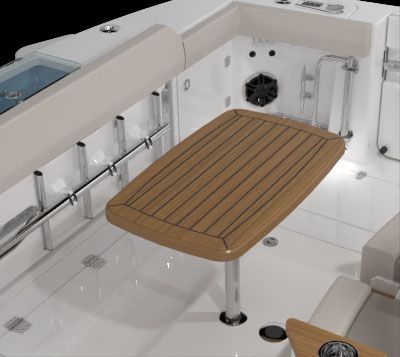

Aft facing couch with storage under hinged seats, SS cup holders recessed into Teak armrests (2)
Grab rails (2)

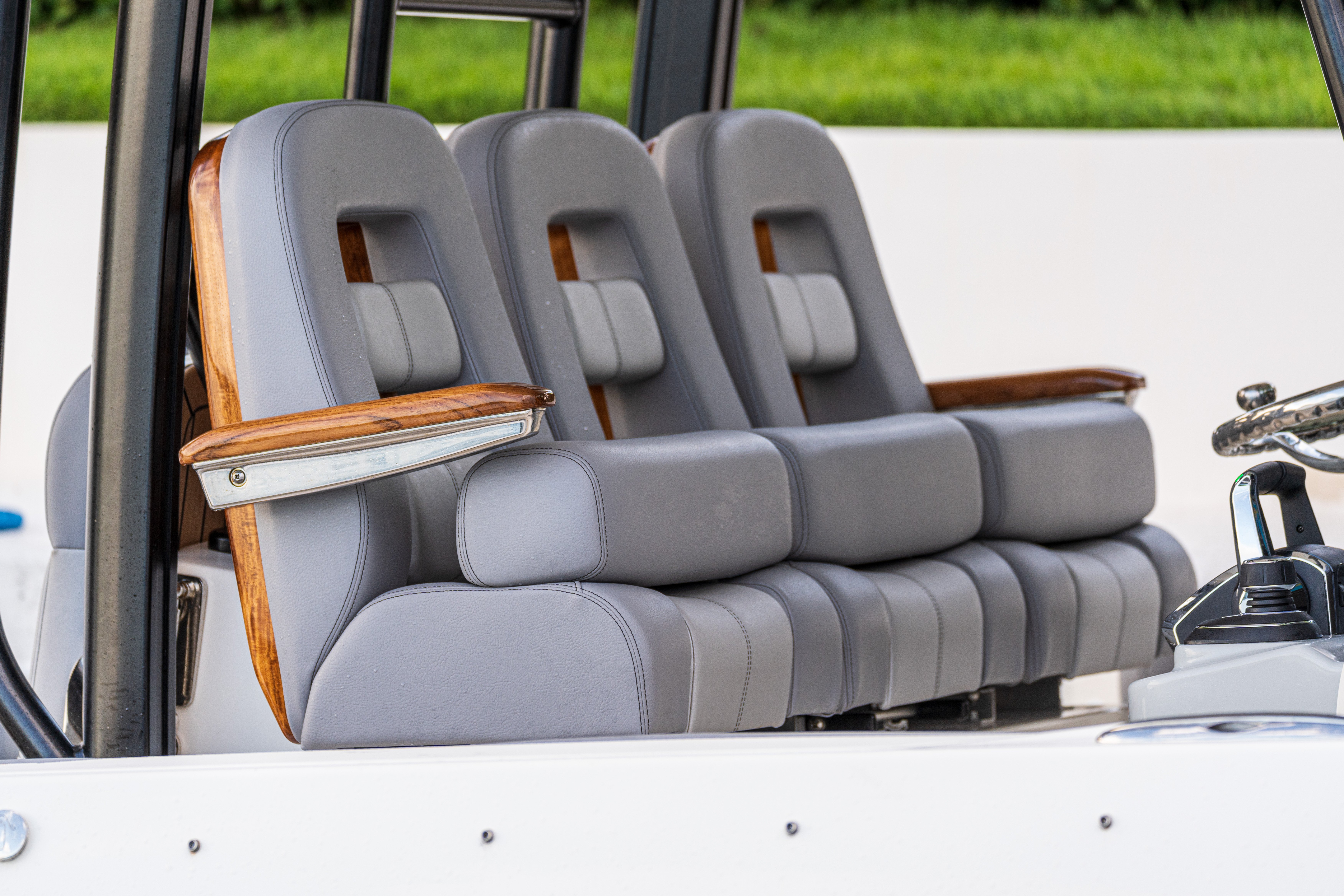

Helm and companion bolster style seats (3) with outboard fold-down armrests (2) (center seat has manual fore and aft adjustment)
Prep Station Work surface; Easy stow-and-go work surface with teak counter and SS cup holders (4)
Steps/Ladder on centerline providing easy access to the hardtop through a hatch.
Storage drawers (3) on port side of helm seating area (Replaced with shallow storage box with Gyro option or Port Refrigerator Option)
10” stainless steel cleats - stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
10” stainless steel pull-up cleats - bow (2), mid-ship spring line (2), crosstie cleats at transom (2)
28” interior freeboard
Anchor roller davit - polished stanless steel through hull

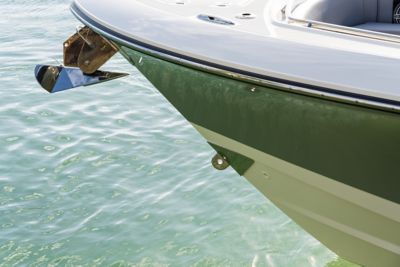

Bow eye
Coaming bolsters from bow to stern
Dive door - molded fiberglass boarding door on port side with removable stainless steel dive ladder with dedicated storage
Drink holders - stainless steel; (4) at bow seating, (2) in hawse pipes, (2) at helm, (2) in cockpit couch armrests, (2) at forward console lounge
Lighting – LED accent lights: (4-blue) low light accent lights at boarding and walkway areas with auto turn on by an ambient light sensor
Lighting – LED courtesy lighting throughout cockpit, white/blue rope lighting
Lighting – LED courtesy lights; (4-white) in mechanical bilge, (2-blue) in bow seating storage compartments with auto turn on by ambient light sensor, (2-white) in bow lounge storage compartment, (1-white) in anchor working area, (2-white/blue) in aft facing couch storage
Livewell - Pressurized (55-gallon) located at the transom on centerline. With clear acrylic lid, blue interior with removable divider and dual Red LED lighting, 2000 GPH pump
Logo - Boston Whaler Chrome Logo – Hull sides

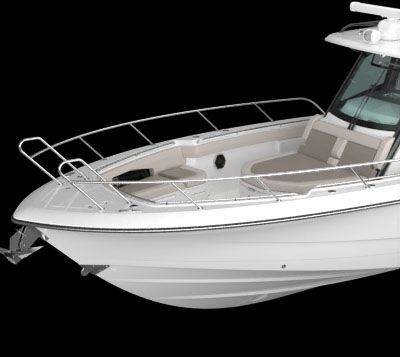

Rails: Bow rail - low profile interior rail - welded stainless steel
Rails: Cockpit toe rails - stainless steel
Rails: Grab rails - stainless steel; (2) at forward lounge, (2) couch leaning post, cabin companion way
Rod holders - (3) under starboard gunnel for 6’ rods (deleted with cockpit seating option)
Rod holders - Powder coated Aluminum frame, hardtop mounted on aft end (5) (white or black depending on frame color)
Rod holders - stainless steel, gunnel mounted; (4) at bow, (3) stbd cockpit, (3) port cockpit, (4) transom mounted,
Rub Rail - Heavy duty white rub rail with stainless steel insert
Self-bailing cockpit sole
Shelf - under gunnel storage shelf with downrigger weight holders (2 per side)
Swim platform with recessed telescoping boarding ladder and grab rail
Transom door – Acrylic with a stainless steel latch
Center helm layout
Compass with back lighting
Dash visor with custom stitched cover and recessed storage tray with a dual USB and 12v charging receptacles.
Defogger system, port and stbd 12v heaters with blowers
Door – Fiberglass, locking - side entry with stainless steel pantograph hinge
Drink holders Stainless Steel; Extra deep (1), standard depth (1)
Electronics mounting surface with space for dual 19” displays
Glovebox – locking with Dual USB charging receptacle and Stereo Aux USB input
Footrest molded into console with fold-down standing platform with maintenance free, anti-fatigue synthetic surface, provides improved visibility for captain and starboard passenger.
Ignition Switches - remote key switches located in lockable Main DC panel cabinet

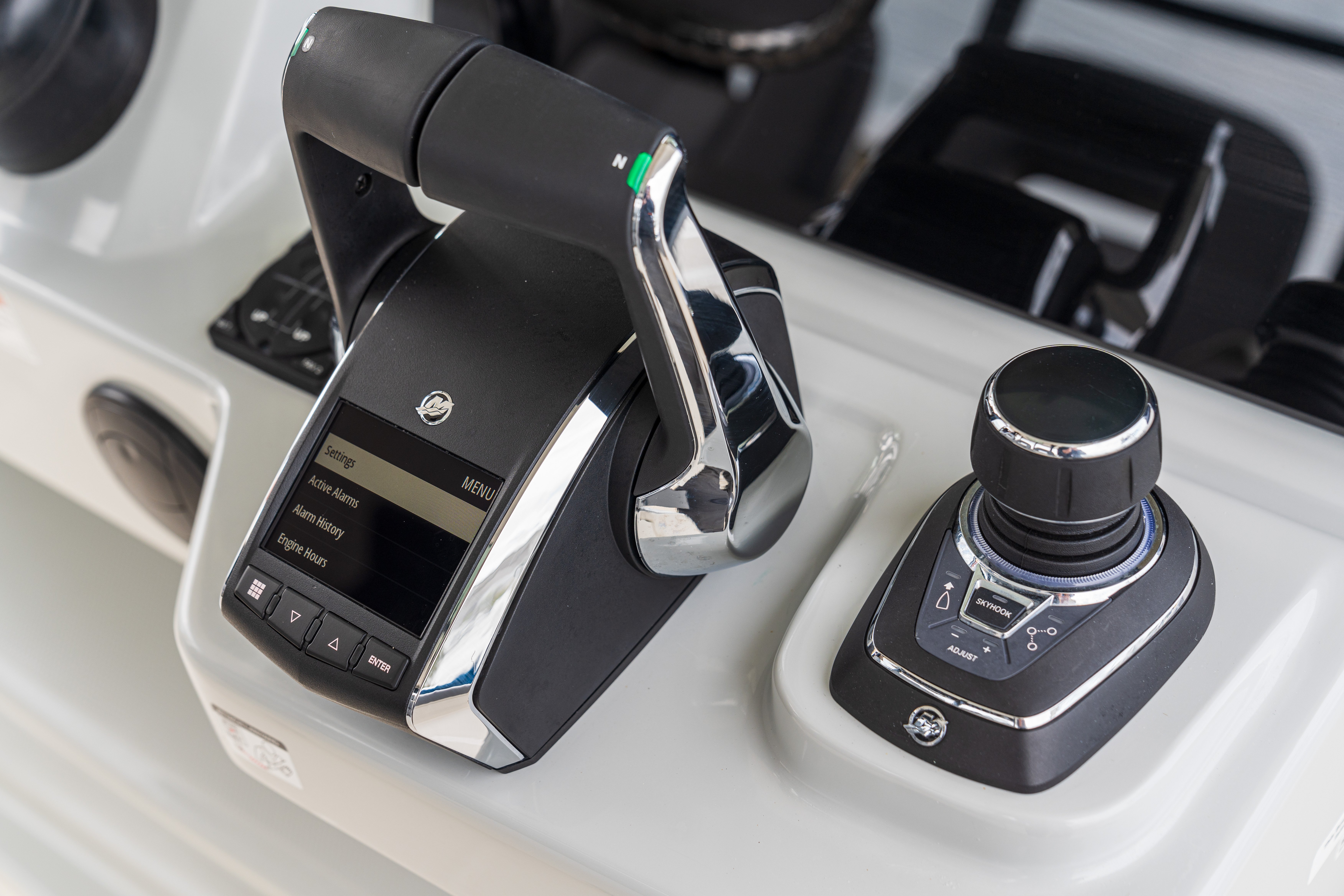

Mercury DTS dual binnacle controls with integrated Auto Drive Trim, push button start/stop controls
Steering wheel - cast stainless steel with knob and tilt helm
Switch panel with illuminated text that automatically comes on at dusk

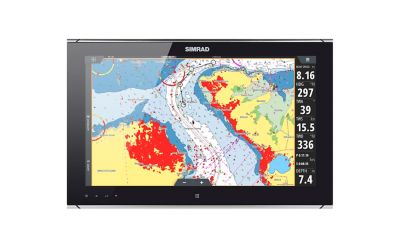

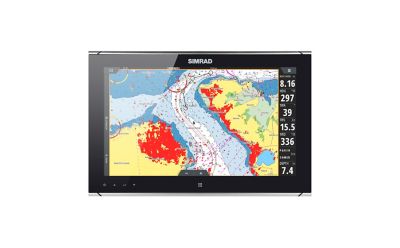

Nav Package, Simrad 16" NSO (includes: Simrad NSO 16” MFD (GPS, Chart plotter, Fishfinder), (CHIRP, SideScan, DownScan), Integrated Mercury VesselVIew Link, Simrad RS40 VHF Radio with AIS and HS40 wireless handset, GS25 GPS Antenna 15 N2K with Heading Sensor, Simrad S5100 1kw Dual channel CHIRP Sounder Module, Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included)
Stereo System (includes: Premium DSP tuned multi Zone System with hideway receiver (JL Audio integration into Simrad Navigation Package). JL Audio MM105-HR stereo with Dash mounted stereo remote volume/mute knob. AM/FM/HD Radio, dual USB and dual AUX input, iPod / iPhone / Android compatible via integrated Bluetooth 5.0 or USB (lossless compatible). Sirius XM option ready, Amplifiers - 1200 Watts Digital Signal Processing (DSP) custom tuned sound system by JL Audio acoustic expert (MV800/8i, M400/4).
Helm/Cockpit (includes: JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in hardtop. JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard side deck coaming. JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard aft cockpit corners. JL subwoofer M6 8” (1) additional Sport subwoofer Whaler white/Gun metal grill subwoofer.Cabin: JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in headliner Stereo remote control – JL Audio Wireless remote on armrest of aft facing couch that controls the stereo and volume of the aft cockpit speakers
Bow (includes: JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in hardtop. JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard bow seating pockets. Stereo remote controls (2) – JL Audio Wireless remotes on flip down lounge armrest and port bow seating that controls the stereo and volume of the bow speakers
30-amp shore power inlet with battery charger, galvanic isolator and 50’ shore power cord

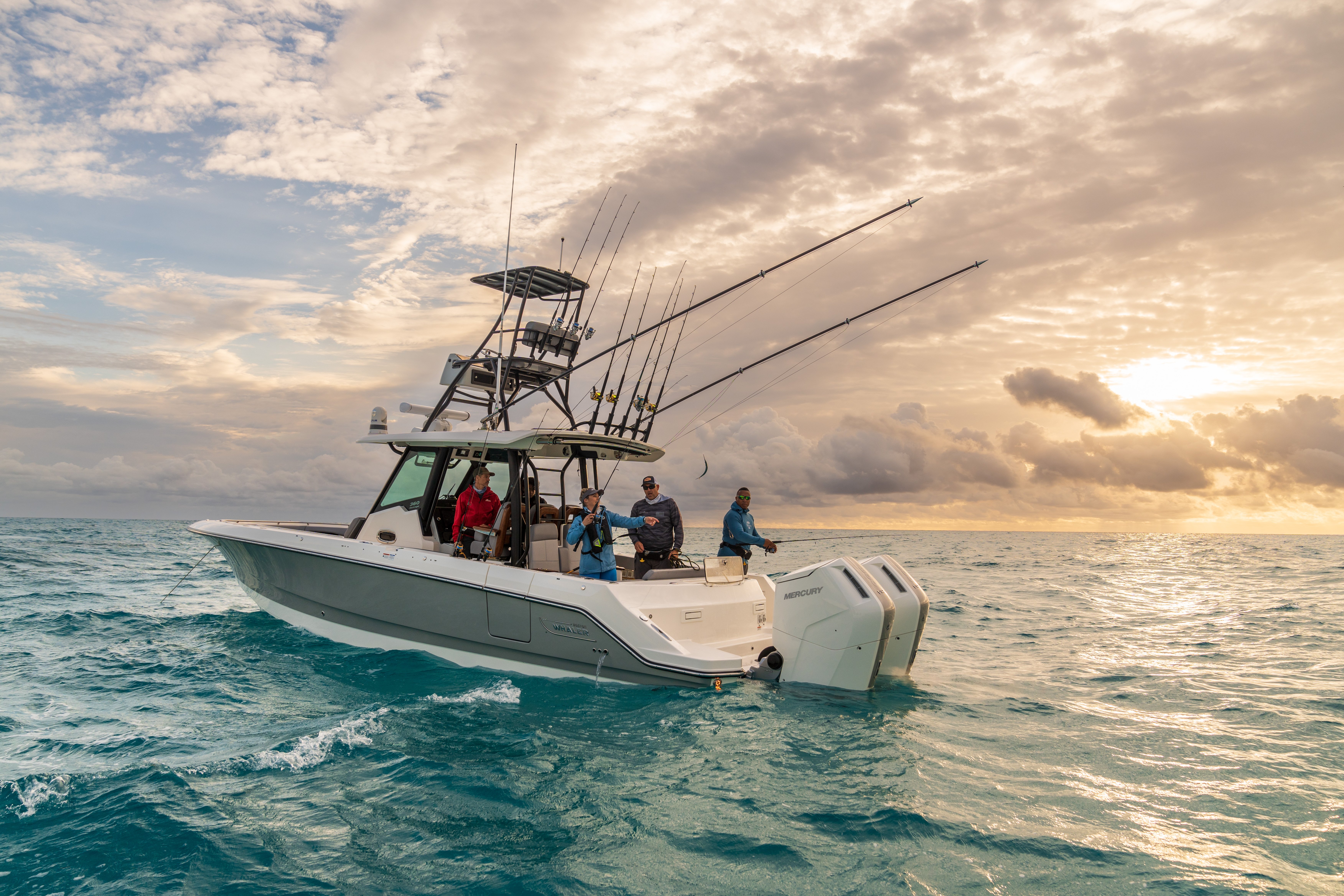

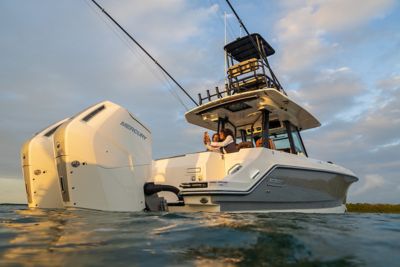

300 V8 DTS Black Triple Mercury FourStrokes with JOYSTICK PILOTING
415-gallon aluminum fuel tank
Auto text backlighting with light sensor - Dash panel switches and cockpit switches
Battery chargers – Engine Batteries (40 amp) and House Batteries (40 amp) 12-V multistage smart charging
Battery trays Engine (3), House/Thruster (3) with remote switches and automatic charging/paralleling relays
Bilge pump – automatic with visual indicator (2000 GPH bilge)
Bilge pumps – high water bilge pumps, automatic with visual and audible notification (2000 GPH aft, 1100 GPH cabin)
Bonding system for underwater through hull fittings
Controlling: Wiper/wash, Running/Anchor lights, O/H lights (Red/Blue/White), Ctsy cockpit lights (white/Blue), Underwater lighting,
Digital Vessel Control and Monitoring System
Faucet - freshwater stainless steel washdown faucets in anchor locker and aft port cockpit corner
Faucet - raw-water stainless steel washdown faucet aft port cockpit corner
Filters - engine fuel/water separators
Freshwater system with 45-gallon tank
Horn - Electric trumpet horn
Monitoring: Batteries, Tanks, Bilge pumps
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not compatible with Joystick Piloting)
Propellers – stainless steel
Seacocks - cast bronze (below waterline)
Shower - freshwater dive door shower (cold only without optional Convenience Package)
Shower - freshwater transom shower (cold only without optional Convenience Package)
Thru hulls - cast bronze (below waterline)
Thru hulls - stainless steel (above waterline)
Transducer pocket in hull bottom for flush mounting B275 transducer (transducer included with Chirp/3D Sonar opt.)
Trim tabs - Electric trim tabs with indicator (stainless steel planes, dual ram, Dynamic Running Surface auto control)

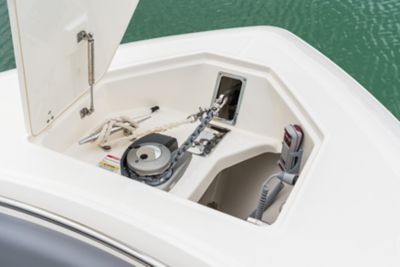

Windlass with 400’ rode and 35lb polished stainless-steel anchor
Aft facing seating with SS drink holders integrated into the teak armrest (2)

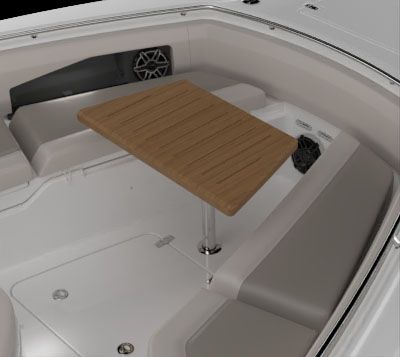

Bow console lounge with fold-down armrests; (2) drink holders, Dual USB charging ports
Filler step/seat with cushion at bow – removable providing unobstructed access to bow
Foldaway stern bench seat
Forward port and starboard seats with fold up lounge backrests, (4) drink holders, wireless stereo remote control, storage pockets in coaming with dual USB charging ports, fish box pump out switch
Helm and companion flip up bolster style seats (3) with (2) fold-down armrests (center seat is mechanically adjustable fore and aft)
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bow anchor locker with drains
Cabin storage in vanity, Forward hinged cabinet and under berth mattress
Console lounge - lockable console front storage (with LED lighting); holds 2 five-gallon buckets (included)
Electronics box - Lockable storage box in hardtop
Fishboxes - insulated in floor fishboxes with pump-out; aft (2), forward (1)
Glovebox - lockable
Side coaming storage boxes with LED lighting
Storage compartment under aft facing seating with LED lighting
Storage compartment with 5-gal bucket in aft port transom coaming
Storage drawer (3) on port side of helm seating area (Deleted with Gyro)
Storage drawers (3) on starboard side of helm seating area (deleted with refrigerator or DLX Prep Station options)
Storage under bow seating with LED lighting
Under gunnel cockpit storage shelves
Digital Vessel Control and Monitoring System: Batteries, Tanks, Bilge pumps
Gelcoat Full Hull Colors
White Hull
White Hull
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red Graphics
Red Graphics
Black Graphics
Black Graphics
White Graphics
White Graphics
Silver Graphics
Silver Graphics
Blue Graphics
Blue Graphics
Upholstery Package
Shore (Tan) Exterior Upholstery Package (standard)

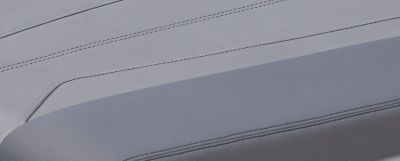

Sea (Gray) Exterior Uphostery Package
Sea (Gray) Exterior Uphostery Package
Frame Color

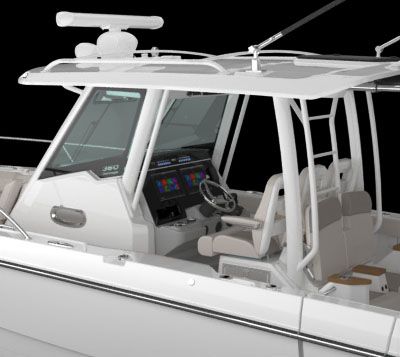

Frame - White
Frame - White

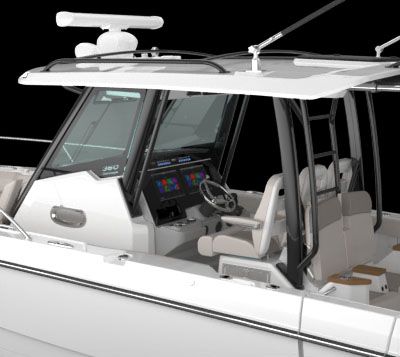

Frame - Black
Frame - Black
Tops & Towers

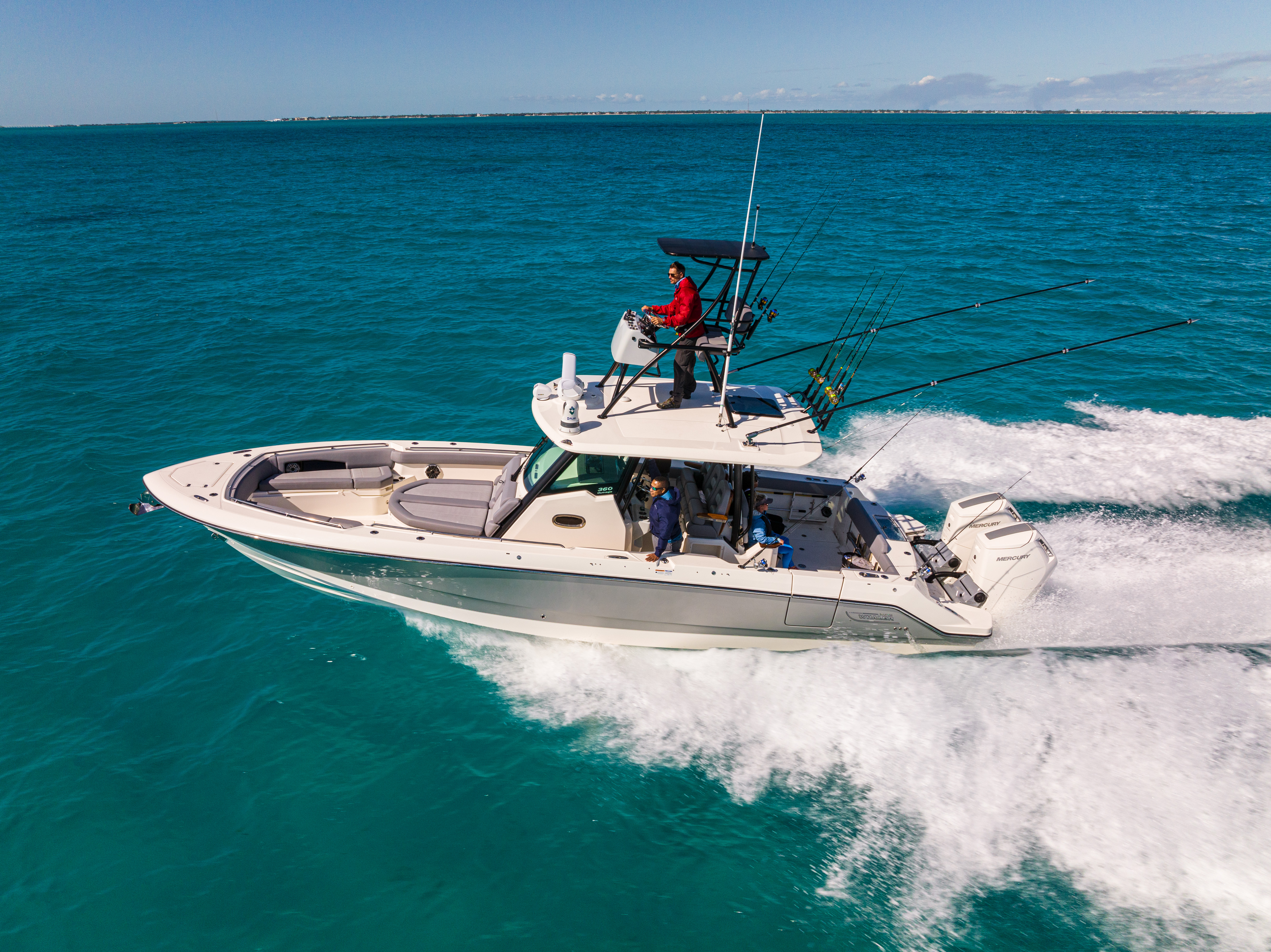

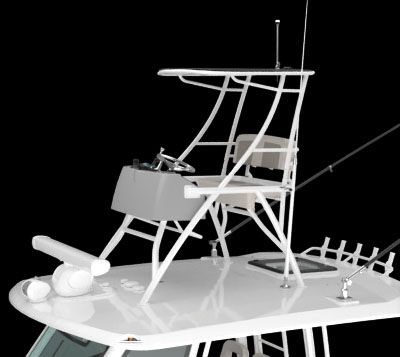

Upper station with joystick piloting
Upper station with joystick piloting
Hardtop Underside Color
Abaco blue
Abaco blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Dual Engines

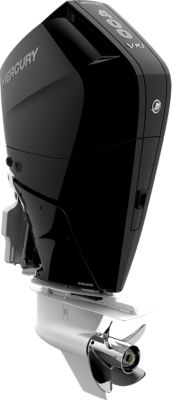

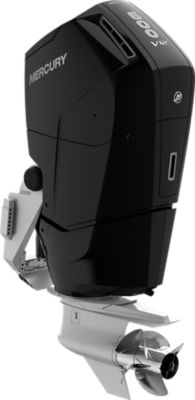

600 V12 DTS Black Dual Mercury Fourstrokes with Joystick Piloting
600 V12 DTS Black Dual Mercury Fourstrokes with Joystick Piloting

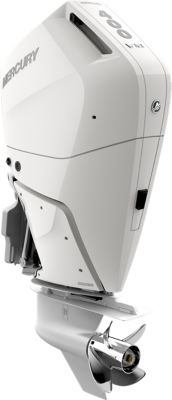

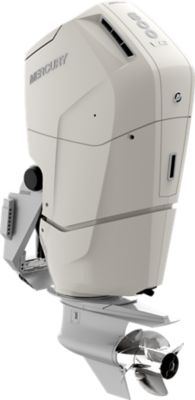

600 V12 DTS White Dual Mercury Verados with Joystick Piloting
600 V12 DTS White Dual Mercury Verados with Joystick Piloting
Triple Engines

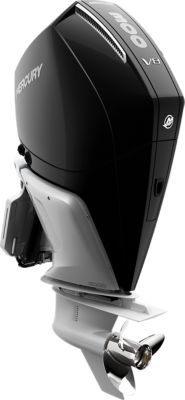

300 V8 DTS Black Triple Mercury Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)

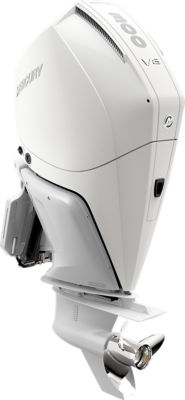

300 V8 White Triple Mercury Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
400 V10 DTS Triple Black Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
400 V10 DTS Triple White Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Painted Engines
Painted engine Accents (for triple engines)
Additional Seating
Seating - starboard cockpit fold-out bench seat
Seating - fold down trolling seats (2)
Railings and Rub Rails
Rails - black rub rail with stainless steel insert
Rails - split bow rail
Rails - split bow rail
Entertaining Features

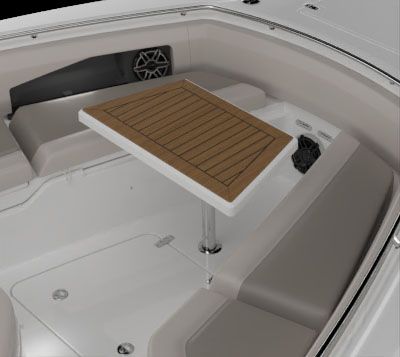

Table - fiberglass bow table
Table - fiberglass bow table
Table - solid teak bow table
Table - solid teak bow table
Table - solid teak cockpit table
Table - solid teak cockpit table
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)

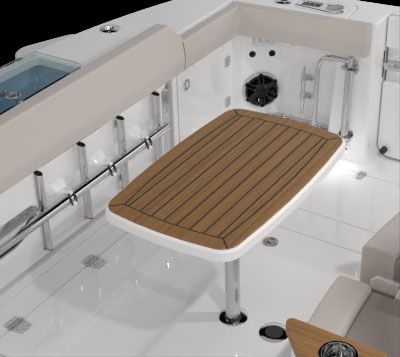

Table - cockpit (fiberglass)
Table - cockpit (fiberglass)
Refrigerator/Freezer -Starboard pull-out
Fishing Features
Rod storage
Outriggers - Deluxe Hardtop Mounted
Outriggers - Deluxe Hardtop Mounted
Notable Options & Accessories
Seakeeper 3 Gyroscopic Stabilizer
Seakeeper 3 Gyroscopic Stabilizer
Trim tabs - Manual
Trim tabs - Manual

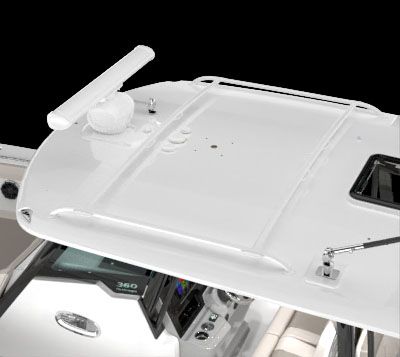

Hardtop roof rack
Hardtop roof rack
Yach tender package
Deluxe Transom Prep Station

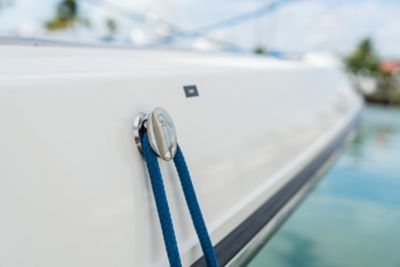

Fender hangers- stainless steel
Fender hangers- stainless steel
Convenience package
Anchor Windlass Chain (300 feet)
Anchor Windlass Chain (300 feet)
Fathom - Lithium Ion Battery system (dual engines)
Fathom - Lithium Ion Battery system (dual engines)
Fathom - Lithium Ion Battery system (triple engines)
Fathom - Lithium Ion Battery system (triple engines)
Exterior teak detail package
12-V receptacles at transom
Bow tow eye
Bow tow eye

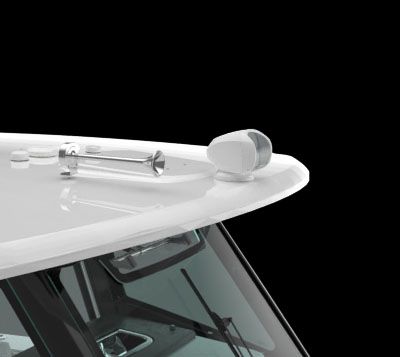

Spotlight
Spotlight

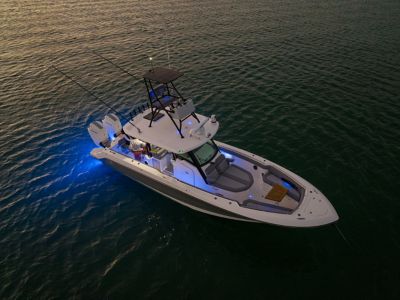

Lighting - underwater LED (blue)
Lighting - underwater LED (blue)
Generator (120v)
Generator (220V)
Water delivery at manufacturing plant (with upper station)
Water delivery at manufacturing plant
Bow Thruster
Navigation
Simrad 16 NSO Additional Display
Simrad 16 NSO Additional Display
Simrad 19 NSO Display
Simrad 19 NSO Display
Simrad 19 NSO Additional Display
Simrad 19 NSO Additional Display
Electronics
M364C Thermal Night Vision w hardtop mount
M332 Thermal Night Vision w hardtop mount

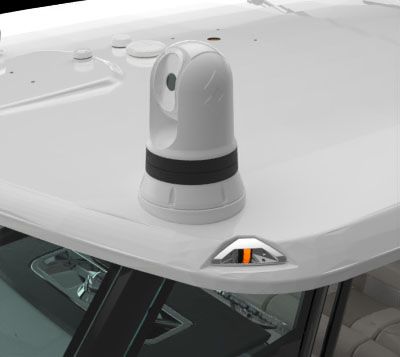

Flir M-332 Thermal Night Vision
Flir M-332 Thermal Night Vision
Sirius satellite weather
Sirius satellite weather

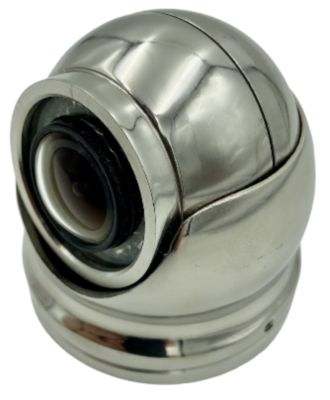

Camera - Cockpit Rear View
Camera - Cockpit Rear View
Simrad Automatic Identification

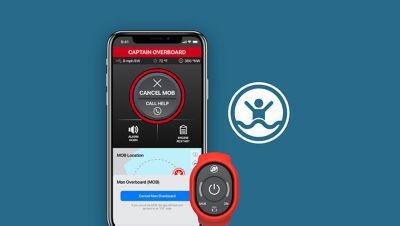

Theft Deterrent System w/ First Mate w/Connectivity
Theft Deterrent System w/First Mate
First Mate Safety & Security System Dual Engine
First Mate Safety & Security Sys Dual Engine (Includes Captain FOB and 3 passenger FOBs) (Not compatible with Single Engine option) (Included with Theft Deterrent System Option)
First mate Safety & Security System Triple engine
First mate Safety & Security System Triple engine
First Mate Safety & Security System FOB Kit
First Mate Safety & Security System FOB Kit
Satellite Radio - Sirius
Satellite Radio - Sirius
Premium stereo
Premium stereo
Simrad Radar - Open Array (36")
Simrad Radar - Open Array (36")

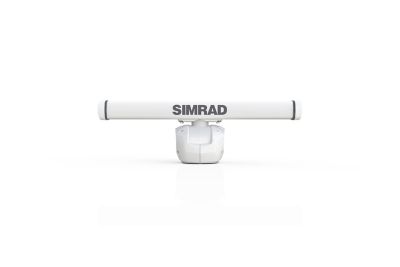

Simrad Radar - Open Array (48")
CMAP Discovery Chart Card - S.America/Carib
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Cent/West Europe
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Nor/Cent Europe
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Southern Europe
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Africa/Arabic Sea
(Only compatible with NSO displays)
CMAP Discovery Chart Card - AU/NZ
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Asia
(Only compatible with NSO displays)
Sunshades

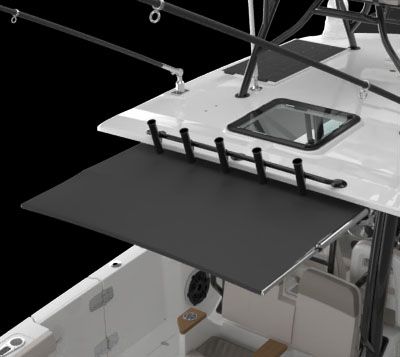

Sunshade at Cockpit - retractable
Sunshade at Cockpit - retractable

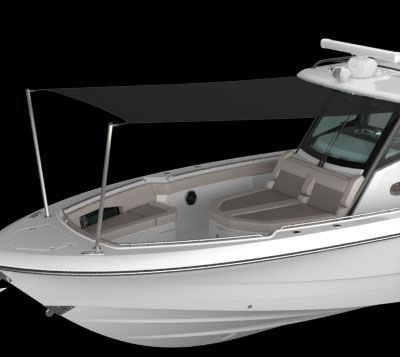

Sunshade at bow
Sunshade at bow
Canvas
Canvas cover package
Canvas cover package
Canvas mooring cover
Canvas mooring cover
Hardtop enclosure curtains
Tan Canvas
Standard Features
Electronics box, lockable
Hardtop access: aft center ladder to acrylic hatch in hardtop
Hardtop support frame: Custom powder coated aluminum frame integrated into the deck providing unobstructed walkways
Lighting - LED 3-color courtesy chart lights (red, blue or white) (3)
Lighting - LED flood lights - aft cockpit area (2)
Lighting - LED flood lights - bow area (1)
Lighting - LED navigation lights flush mounted in hardtop
Outrigger ready
Rod holders - Powder coated Aluminum frame, hardtop mounted on aft end (5) (white or black depending on frame color)
Windshield - Tempered curved glass with power actuated vent, with tempered full height side glass
Windshield wiper with wash system and intermittent control
120-V outlet
500 GPH shower sump
Flooring – Solid Teak
Lighting - LED diffused courtesy lights (blue)
Lighting - LED switchable overhead lights (4) (white)
Mattress – 5” foam cushion
Portlight - Opening (1)
Rod storage – hidden holders (4) built in face and toe kick of the vanity
Seat – Teak seat with satin varnish, hinged over toilet in shower area
Shower with curtain and pullout faucet sprayer from vanity (cold only without optional Convenience Package)
Storage cabinet
Toilet - Vacu-Flush® toilet, holding tank with tank level sensor, tank vent filter, overboard discharge, and dockside pump-out
Vanity cabinet with Solid Surface top, fiberglass sink, pullout faucet (cold water only without optional Convenience Package), storage and wastebasket underneath with trash shoot in counter surface
SIMRAD Active Imaging 3-in-1 sonar with CHIRP, SideScan and DownScan
SIMRAD RS40 VHF with AIS – receive only
SIMRAD HS40 wireless handset offering full control of the fixed mount RS40)
Stereo System- Premium DSP tuned multi Zone System with hideway receiver(JL Audio integration into Simrad Navigation Package). JL Audio MM105-HR stereo with Dash mounted stereo remote volume/mute knobAM/FM/HD Radio, dual USB and dual AUX input, iPod / iPhone / Android compatible via integrated Bluetooth 5.0 or USB (lossless compatible)Sirius XM option ready, Amplifiers. Stero system - Premium DSP tuned multi zone system with hideway receiver. 1200 Watts Digital Signal Processing (DSP) custom tuned sound system by JL Audio acoustic expert (MV800/8i, M400/4)
Helm/Cockpit- JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in hardtop. JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard aft cockpit corners. JL subwoofer M6 10” subwoofer Sport Whaler white/Gun metal grill. Stereo remote control – JL Audio Wireless remote on armrest of aft facing couch that controls the stereo and volume of the aft cockpit speakers
Bow- JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in hardtop JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard bow seating pockets. Stereo remote controls (2) – JL Audio Wireless remotes on flip down lounge armrest and port bow seating that controls the stereo and volume of the bow speakers
Simrad - 16" NSO evo3s electronocs navigation package
Stereo system - Premium DSP tuned multi zone system with hideway receiver
Dual USB charging port on couch armrest
120-V electrical outlet located on starboard side
Aft facing couch with storage under hinged seats, SS cup holders recessed into Teak armrests (2)
Grab rails (2)
Helm and companion bolster style seats (3) with outboard fold-down armrests (2) (center seat has manual fore and aft adjustment)
Prep Station Work surface; Easy stow-and-go work surface with teak counter and SS cup holders (4)
Steps/Ladder on centerline providing easy access to the hardtop through a hatch.
Storage drawers (3) on port side of helm seating area (Replaced with shallow storage box with Gyro option or Port Refrigerator Option)
10” stainless steel cleats - stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
10” stainless steel pull-up cleats - bow (2), mid-ship spring line (2), crosstie cleats at transom (2)
28” interior freeboard
Anchor roller davit - polished stanless steel through hull
Bow eye
Coaming bolsters from bow to stern
Dive door - molded fiberglass boarding door on port side with removable stainless steel dive ladder with dedicated storage
Drink holders - stainless steel; (4) at bow seating, (2) in hawse pipes, (2) at helm, (2) in cockpit couch armrests, (2) at forward console lounge
Lighting – LED accent lights: (4-blue) low light accent lights at boarding and walkway areas with auto turn on by an ambient light sensor
Lighting – LED courtesy lighting throughout cockpit, white/blue rope lighting
Lighting – LED courtesy lights; (4-white) in mechanical bilge, (2-blue) in bow seating storage compartments with auto turn on by ambient light sensor, (2-white) in bow lounge storage compartment, (1-white) in anchor working area, (2-white/blue) in aft facing couch storage
Livewell - Pressurized (55-gallon) located at the transom on centerline. With clear acrylic lid, blue interior with removable divider and dual Red LED lighting, 2000 GPH pump
Logo - Boston Whaler Chrome Logo – Hull sides
Rails: Bow rail - low profile interior rail - welded stainless steel
Rails: Cockpit toe rails - stainless steel
Rails: Grab rails - stainless steel; (2) at forward lounge, (2) couch leaning post, cabin companion way
Rod holders - (3) under starboard gunnel for 6’ rods (deleted with cockpit seating option)
Rod holders - Powder coated Aluminum frame, hardtop mounted on aft end (5) (white or black depending on frame color)
Rod holders - stainless steel, gunnel mounted; (4) at bow, (3) stbd cockpit, (3) port cockpit, (4) transom mounted,
Rub Rail - Heavy duty white rub rail with stainless steel insert
Self-bailing cockpit sole
Shelf - under gunnel storage shelf with downrigger weight holders (2 per side)
Swim platform with recessed telescoping boarding ladder and grab rail
Transom door – Acrylic with a stainless steel latch
Center helm layout
Compass with back lighting
Dash visor with custom stitched cover and recessed storage tray with a dual USB and 12v charging receptacles.
Defogger system, port and stbd 12v heaters with blowers
Door – Fiberglass, locking - side entry with stainless steel pantograph hinge
Drink holders Stainless Steel; Extra deep (1), standard depth (1)
Electronics mounting surface with space for dual 19” displays
Glovebox – locking with Dual USB charging receptacle and Stereo Aux USB input
Footrest molded into console with fold-down standing platform with maintenance free, anti-fatigue synthetic surface, provides improved visibility for captain and starboard passenger.
Ignition Switches - remote key switches located in lockable Main DC panel cabinet
Mercury DTS dual binnacle controls with integrated Auto Drive Trim, push button start/stop controls
Steering wheel - cast stainless steel with knob and tilt helm
Switch panel with illuminated text that automatically comes on at dusk
Nav Package, Simrad 16" NSO (includes: Simrad NSO 16” MFD (GPS, Chart plotter, Fishfinder), (CHIRP, SideScan, DownScan), Integrated Mercury VesselVIew Link, Simrad RS40 VHF Radio with AIS and HS40 wireless handset, GS25 GPS Antenna 15 N2K with Heading Sensor, Simrad S5100 1kw Dual channel CHIRP Sounder Module, Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included)
Stereo System (includes: Premium DSP tuned multi Zone System with hideway receiver (JL Audio integration into Simrad Navigation Package). JL Audio MM105-HR stereo with Dash mounted stereo remote volume/mute knob. AM/FM/HD Radio, dual USB and dual AUX input, iPod / iPhone / Android compatible via integrated Bluetooth 5.0 or USB (lossless compatible). Sirius XM option ready, Amplifiers - 1200 Watts Digital Signal Processing (DSP) custom tuned sound system by JL Audio acoustic expert (MV800/8i, M400/4).
Helm/Cockpit (includes: JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in hardtop. JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard side deck coaming. JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard aft cockpit corners. JL subwoofer M6 8” (1) additional Sport subwoofer Whaler white/Gun metal grill subwoofer.Cabin: JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in headliner Stereo remote control – JL Audio Wireless remote on armrest of aft facing couch that controls the stereo and volume of the aft cockpit speakers
Bow (includes: JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) in hardtop. JL stereo speakers M6 7.7” coax Sport Whaler white/Gun metal grill (2) port and starboard bow seating pockets. Stereo remote controls (2) – JL Audio Wireless remotes on flip down lounge armrest and port bow seating that controls the stereo and volume of the bow speakers
30-amp shore power inlet with battery charger, galvanic isolator and 50’ shore power cord
300 V8 DTS Black Triple Mercury FourStrokes with JOYSTICK PILOTING
415-gallon aluminum fuel tank
Auto text backlighting with light sensor - Dash panel switches and cockpit switches
Battery chargers – Engine Batteries (40 amp) and House Batteries (40 amp) 12-V multistage smart charging
Battery trays Engine (3), House/Thruster (3) with remote switches and automatic charging/paralleling relays
Bilge pump – automatic with visual indicator (2000 GPH bilge)
Bilge pumps – high water bilge pumps, automatic with visual and audible notification (2000 GPH aft, 1100 GPH cabin)
Bonding system for underwater through hull fittings
Controlling: Wiper/wash, Running/Anchor lights, O/H lights (Red/Blue/White), Ctsy cockpit lights (white/Blue), Underwater lighting,
Digital Vessel Control and Monitoring System
Faucet - freshwater stainless steel washdown faucets in anchor locker and aft port cockpit corner
Faucet - raw-water stainless steel washdown faucet aft port cockpit corner
Filters - engine fuel/water separators
Freshwater system with 45-gallon tank
Horn - Electric trumpet horn
Monitoring: Batteries, Tanks, Bilge pumps
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not compatible with Joystick Piloting)
Propellers – stainless steel
Seacocks - cast bronze (below waterline)
Shower - freshwater dive door shower (cold only without optional Convenience Package)
Shower - freshwater transom shower (cold only without optional Convenience Package)
Thru hulls - cast bronze (below waterline)
Thru hulls - stainless steel (above waterline)
Transducer pocket in hull bottom for flush mounting B275 transducer (transducer included with Chirp/3D Sonar opt.)
Trim tabs - Electric trim tabs with indicator (stainless steel planes, dual ram, Dynamic Running Surface auto control)
Windlass with 400’ rode and 35lb polished stainless-steel anchor
Aft facing seating with SS drink holders integrated into the teak armrest (2)
Bow console lounge with fold-down armrests; (2) drink holders, Dual USB charging ports
Filler step/seat with cushion at bow – removable providing unobstructed access to bow
Foldaway stern bench seat
Forward port and starboard seats with fold up lounge backrests, (4) drink holders, wireless stereo remote control, storage pockets in coaming with dual USB charging ports, fish box pump out switch
Helm and companion flip up bolster style seats (3) with (2) fold-down armrests (center seat is mechanically adjustable fore and aft)
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bow anchor locker with drains
Cabin storage in vanity, Forward hinged cabinet and under berth mattress
Console lounge - lockable console front storage (with LED lighting); holds 2 five-gallon buckets (included)
Electronics box - Lockable storage box in hardtop
Fishboxes - insulated in floor fishboxes with pump-out; aft (2), forward (1)
Glovebox - lockable
Side coaming storage boxes with LED lighting
Storage compartment under aft facing seating with LED lighting
Storage compartment with 5-gal bucket in aft port transom coaming
Storage drawer (3) on port side of helm seating area (Deleted with Gyro)
Storage drawers (3) on starboard side of helm seating area (deleted with refrigerator or DLX Prep Station options)
Storage under bow seating with LED lighting
Under gunnel cockpit storage shelves
Digital Vessel Control and Monitoring System: Batteries, Tanks, Bilge pumps
Options
Gelcoat Full Hull Colors
White Hull
White Hull
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red Graphics
Red Graphics
Black Graphics
Black Graphics
White Graphics
White Graphics
Silver Graphics
Silver Graphics
Blue Graphics
Blue Graphics
Upholstery Package
Shore (Tan) Exterior Upholstery Package (standard)
Sea (Gray) Exterior Uphostery Package
Sea (Gray) Exterior Uphostery Package
Frame Color
Frame - White
Frame - White
Frame - Black
Frame - Black
Tops & Towers
Upper station with joystick piloting
Upper station with joystick piloting
Hardtop Underside Color
Abaco blue
Abaco blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Dual Engines
600 V12 DTS Black Dual Mercury Fourstrokes with Joystick Piloting
600 V12 DTS Black Dual Mercury Fourstrokes with Joystick Piloting
600 V12 DTS White Dual Mercury Verados with Joystick Piloting
600 V12 DTS White Dual Mercury Verados with Joystick Piloting
Triple Engines
300 V8 DTS Black Triple Mercury Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
300 V8 White Triple Mercury Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
400 V10 DTS Triple Black Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
400 V10 DTS Triple White Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Painted Engines
Painted engine Accents (for triple engines)
Additional Seating
Seating - starboard cockpit fold-out bench seat
Seating - fold down trolling seats (2)
Railings and Rub Rails
Rails - black rub rail with stainless steel insert
Rails - split bow rail
Rails - split bow rail
Entertaining Features
Table - fiberglass bow table
Table - fiberglass bow table
Table - solid teak bow table
Table - solid teak bow table
Table - solid teak cockpit table
Table - solid teak cockpit table
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
Table - cockpit (fiberglass)
Table - cockpit (fiberglass)
Refrigerator/Freezer -Starboard pull-out
Fishing Features
Rod storage
Outriggers - Deluxe Hardtop Mounted
Outriggers - Deluxe Hardtop Mounted
Notable Options & Accessories
Seakeeper 3 Gyroscopic Stabilizer
Seakeeper 3 Gyroscopic Stabilizer
Trim tabs - Manual
Trim tabs - Manual
Hardtop roof rack
Hardtop roof rack
Yach tender package
Deluxe Transom Prep Station
Fender hangers- stainless steel
Fender hangers- stainless steel
Convenience package
Anchor Windlass Chain (300 feet)
Anchor Windlass Chain (300 feet)
Fathom - Lithium Ion Battery system (dual engines)
Fathom - Lithium Ion Battery system (dual engines)
Fathom - Lithium Ion Battery system (triple engines)
Fathom - Lithium Ion Battery system (triple engines)
Exterior teak detail package
12-V receptacles at transom
Bow tow eye
Bow tow eye
Spotlight
Spotlight
Lighting - underwater LED (blue)
Lighting - underwater LED (blue)
Generator (120v)
Generator (220V)
Water delivery at manufacturing plant (with upper station)
Water delivery at manufacturing plant
Bow Thruster
Navigation
Simrad 16 NSO Additional Display
Simrad 16 NSO Additional Display
Simrad 19 NSO Display
Simrad 19 NSO Display
Simrad 19 NSO Additional Display
Simrad 19 NSO Additional Display
Electronics
M364C Thermal Night Vision w hardtop mount
M332 Thermal Night Vision w hardtop mount
Flir M-332 Thermal Night Vision
Flir M-332 Thermal Night Vision
Sirius satellite weather
Sirius satellite weather
Camera - Cockpit Rear View
Camera - Cockpit Rear View
Simrad Automatic Identification
Theft Deterrent System w/ First Mate w/Connectivity
Theft Deterrent System w/First Mate
First Mate Safety & Security System Dual Engine
First Mate Safety & Security Sys Dual Engine (Includes Captain FOB and 3 passenger FOBs) (Not compatible with Single Engine option) (Included with Theft Deterrent System Option)
First mate Safety & Security System Triple engine
First mate Safety & Security System Triple engine
First Mate Safety & Security System FOB Kit
First Mate Safety & Security System FOB Kit
Satellite Radio - Sirius
Satellite Radio - Sirius
Premium stereo
Premium stereo
Simrad Radar - Open Array (36")
Simrad Radar - Open Array (36")
Simrad Radar - Open Array (48")
CMAP Discovery Chart Card - S.America/Carib
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Cent/West Europe
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Nor/Cent Europe
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Southern Europe
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Africa/Arabic Sea
(Only compatible with NSO displays)
CMAP Discovery Chart Card - AU/NZ
(Only compatible with NSO displays)
CMAP Discovery Chart Card - Asia
(Only compatible with NSO displays)
Sunshades
Sunshade at Cockpit - retractable
Sunshade at Cockpit - retractable
Sunshade at bow
Sunshade at bow
Canvas
Canvas cover package
Canvas cover package
Canvas mooring cover
Canvas mooring cover
Hardtop enclosure curtains
Tan Canvas
Model: 360 Outrage
Hull #: USBWCE0004F122
Engine: Dual Mercury 600 Verado V12
Horsepower: 1200
Gear Ratio: 2.50:1
Prop: 27.5P Verado V12
Fuel Capacity: 415 gal.
Notable Options:Gyro, Upper Station, Inverter, Joystick Piloting, Retractable Sunshade, Premium Audio, Underwater Lights
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 18,687 lbs
Fuel: 207 gal.
Water: 0 gal.
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 20,345 lbs
Water Conditions: 69° F
Weather Conditions: 75° F

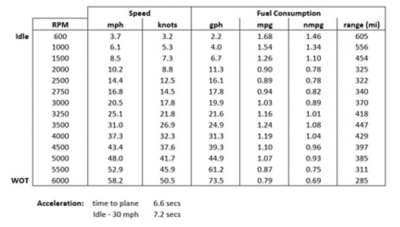

Model: 350 Outrage
Hull #: USBWCE1437K819
Engine: Triple Mercury 300 V8 AMS
Horsepower: 900
Gear Ratio: 1.85 : 1
Prop: 16 x 20, 21, 20 Eco Enertia
Fuel Capacity: 400 gallons
Notable Options: Joystick Piloting, Bow Rail, Retractable Sunshade, Premium Audio, Dual 16” Electronics, Radar, Stbd Cockpit Folding Bench
Test Date: 18-Jan-2019
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: NA
Fuel: 203 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: NA
Water Conditions: 57° F
Weather Conditions: 50° F

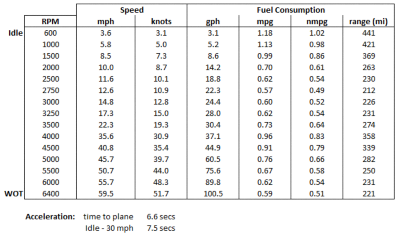

Model: 360 Outrage
Hull #: USBWCE1955E323
Engine: Triple Mercury 400 V10 Verado
Horsepower: 1200
Gear Ratio: 2.08:1
Prop: 22P Revolution X
Fuel Capacity: 415 gal.
Notable Options: Inverter, Refrigerator, Joystick Piloting, Retractable Sunshade, Premium Audio, Underwater Lights, Radial Outriggers, Teak Package
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 15,157 lbs
Fuel: 222 gal.
Water: 30 gal.
Test Gear: 25 lbs
Personnel: 430 lbs
Test Weight: 17,228 lbs
Water Conditions: 85° F
Weather Conditions: 82° F
Model: 360 Outrage
Hull #: USBWCE0004F122
Engine: Dual Mercury 600 Verado V12
Horsepower: 1200
Gear Ratio: 2.50:1
Prop: 27.5P Verado V12
Fuel Capacity: 415 gal.
Notable Options:Gyro, Upper Station, Inverter, Joystick Piloting, Retractable Sunshade, Premium Audio, Underwater Lights
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 18,687 lbs
Fuel: 207 gal.
Water: 0 gal.
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 20,345 lbs
Water Conditions: 69° F
Weather Conditions: 75° F

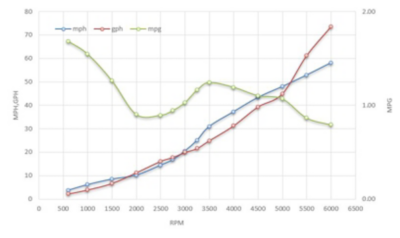

Model: 350 Outrage
Hull #: USBWCE1437K819
Engine: Triple Mercury 300 V8 AMS
Horsepower: 900
Gear Ratio: 1.85 : 1
Prop: 16 x 20, 21, 20 Eco Enertia
Fuel Capacity: 400 gallons
Notable Options: Joystick Piloting, Bow Rail, Retractable Sunshade, Premium Audio, Dual 16” Electronics, Radar, Stbd Cockpit Folding Bench
Test Date: 18-Jan-2019
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: NA
Fuel: 203 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: NA
Water Conditions: 57° F
Weather Conditions: 50° F
Model: 360 Outrage
Hull #: USBWCE1955E323
Engine: Triple Mercury 400 V10 Verado
Horsepower: 1200
Gear Ratio: 2.08:1
Prop: 22P Revolution X
Fuel Capacity: 415 gal.
Notable Options: Inverter, Refrigerator, Joystick Piloting, Retractable Sunshade, Premium Audio, Underwater Lights, Radial Outriggers, Teak Package
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 15,157 lbs
Fuel: 222 gal.
Water: 30 gal.
Test Gear: 25 lbs
Personnel: 430 lbs
Test Weight: 17,228 lbs
Water Conditions: 85° F
Weather Conditions: 82° F
