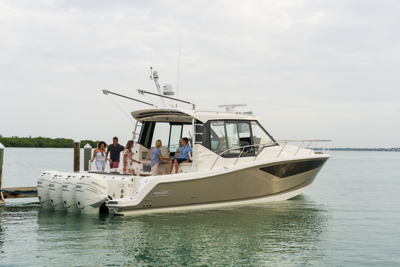

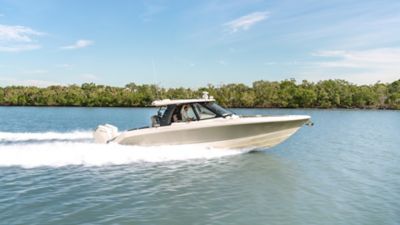

380 Realm

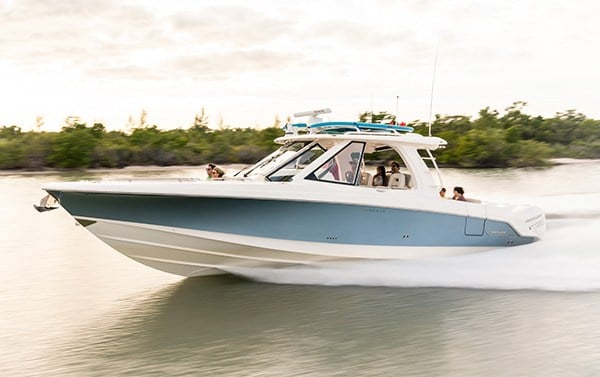

At nearly 40 feet and with a maximum 1,600 horsepower, the 380 Realm express cabin cruiser is a sleek and powerful offshore boat that synthesizes sumptuous comfort amenities, advanced power and performance, and a peerless fishing experience. The commanding center console layout provides seamless Simrad® integration with all navigation and power functions, and the customizable aft deck is ideal for angling or entertaining. Below deck, you’ll find a stunningly appointed cabin with refined and relaxing features that make short or long stays on the water transformative. Explore the many benefits of this 38-ft. express cruiser boat today, and finally make your grandest boating dreams real.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.

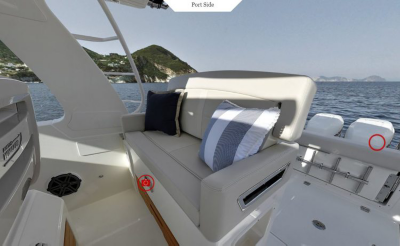

Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
380 REALM FEATURES
Comfortable seating, with additional 2nd row seating and a spacious bow area
Simrad electronics, including new integrations such as: JL Head Units, Stainless Steel Switches, RGB Courtesy Lighting, Auto Dimming, Red/White/Blue Map Light
- Impressive engine options include: quad 300-HP V8 Mercury Verados, quad 400-HP V10 Mercury Verados or twin 600-HP V12 Mercury Verados
- Nested wind-break door in full windshield provides protection as well as easy bow access.

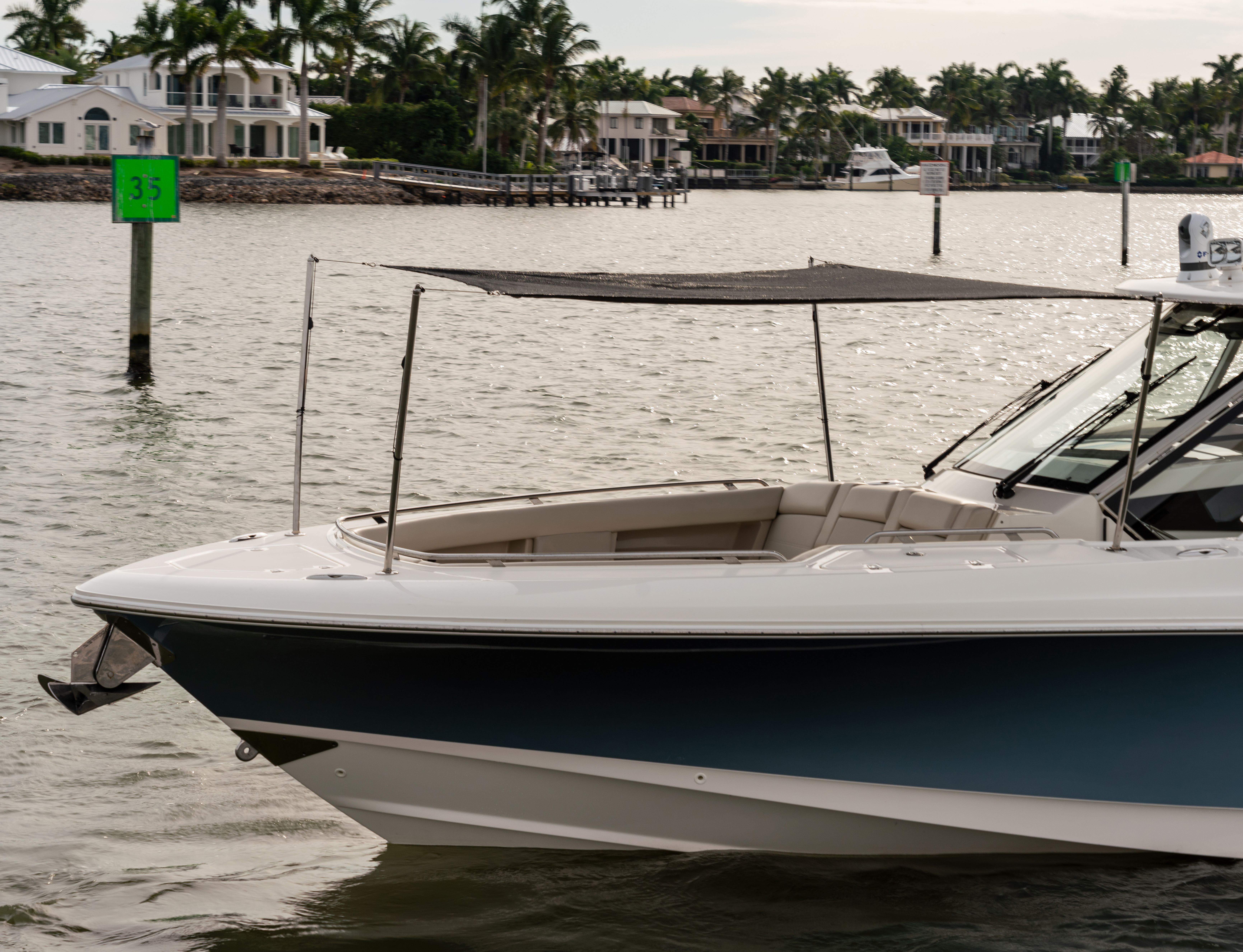

Options including a bow sunshade, table and sun pad filler cushion increase the bow's versitility
Advanced Seakeeper gyro-stabilization technology available
Easy access via starboard boarding steps

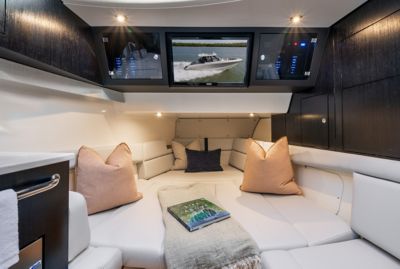

Cabin features fully enclosed head with shower, galley, entertainment center and convertible V-berth for overnight stays
- Variable running surface hull ensures a smooth ride for long-distance journeys and all-day cruising
Capacity
16
Persons Capacity
20 gallons (75.7 L)
Fuel - Diesel Capacity (if equipped)
445 gallons (1,684.5 L)
Fuel Capacity
6,490 lbs (2,944 kg)
Maximum Weight Capacity
10 gallons (37.85 L)
Waste Capacity
55 gallons (208.2 L)
Water Capacity
Dimensions
38’ (11.89 m)
L.O.A.
11’ 8” (3.56 m)
Beam
10’ 5” (3.175m)
Bridge Clearance (with top and radar)
9’ 0” (2.74m)
Bridge Clearance (with top)
29“ (0.74 m)
Draft
29” (0.73 m)
Transom Height
Engines
1,600 HP (1176.6 kW)
Maximum Horsepower
2,800 lbs (1,270.1 kg)
Maximum Engine Weight
1200 HP (882.5 kW)
Minimum Horsepower
Weight
17,000 lbs (7711 kg)
Weight (dry, no engine)
23,500 lbs (10,659.4 kg)
Weight (quad engines, full fluids)
16
Persons Capacity
20 gallons (75.7 L)
Fuel - Diesel Capacity (if equipped)
445 gallons (1,684.5 L)
Fuel Capacity
6,490 lbs (2,944 kg)
Maximum Weight Capacity
10 gallons (37.85 L)
Waste Capacity
55 gallons (208.2 L)
Water Capacity
38’ (11.89 m)
L.O.A.
11’ 8” (3.56 m)
Beam
10’ 5” (3.175m)
Bridge Clearance (with top and radar)
9’ 0” (2.74m)
Bridge Clearance (with top)
29“ (0.74 m)
Draft
29” (0.73 m)
Transom Height
1,600 HP (1176.6 kW)
Maximum Horsepower
2,800 lbs (1,270.1 kg)
Maximum Engine Weight
1200 HP (882.5 kW)
Minimum Horsepower
17,000 lbs (7711 kg)
Weight (dry, no engine)
23,500 lbs (10,659.4 kg)
Weight (quad engines, full fluids)
Standard features & Options
120V receptacle (port side)
12V receptacle (port side)
24” flat screen HDTV
Cabinetry - natural teak wood with satin finish
Carbon monoxide detector
Central vacuum system with hose and attachments with dedicated storage
Corian countertop
Stereo JL Audio MM55 AM/FM, MP3/USB inputs, Bluetooth compatible source unit, and JL Audio speakers 6.5” (2)
Easy to clean interior materials
Hardwood cabin sole
Lighting - LED blue/white diffused courtesy lighting with dimmer switch
Lighting - LED white overhead lights with dimmer switches (6)
Lockable acrylic cabin door
Microwave
Opening portholes (1)

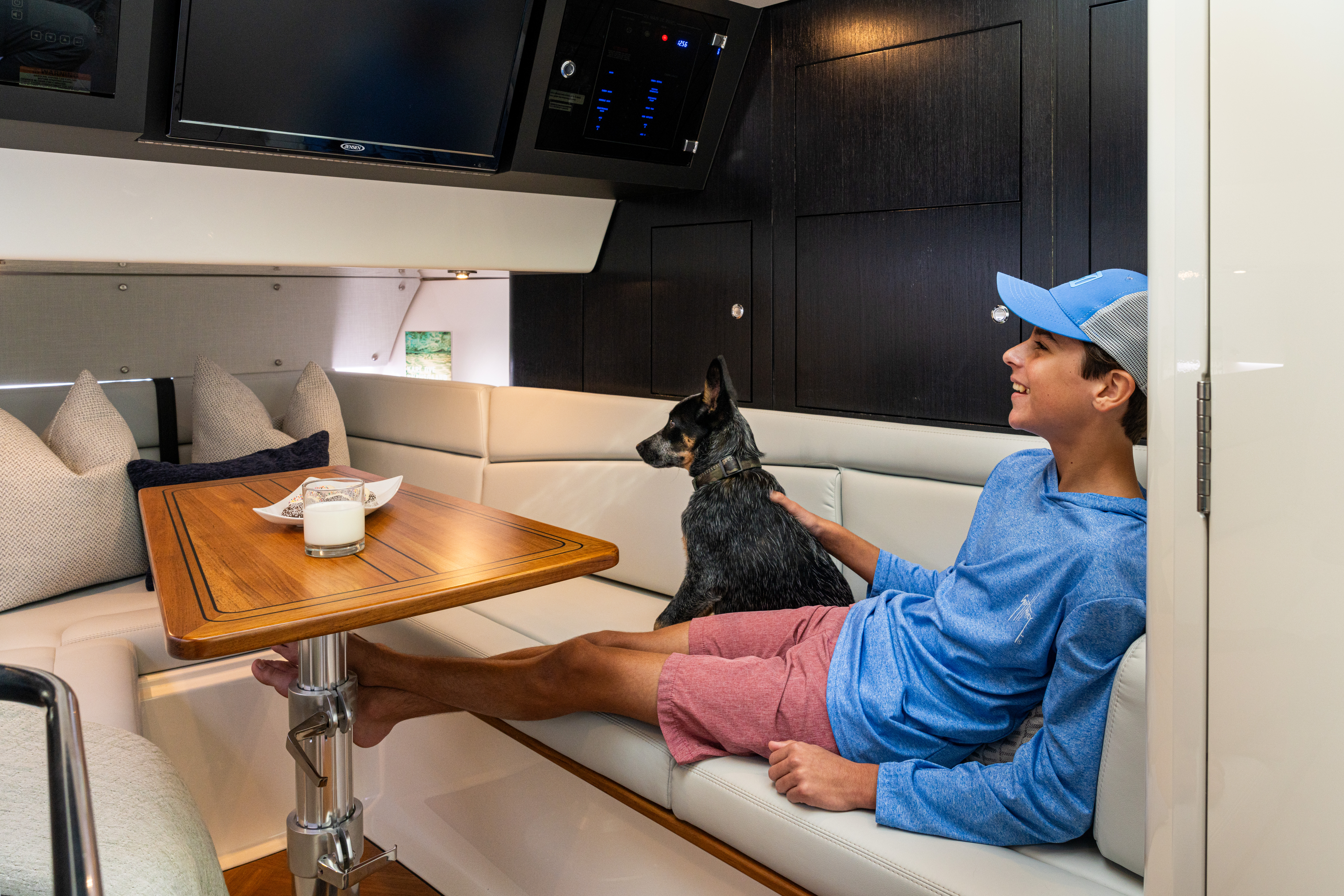

Opposing seating that converts to berth with included fitted sheets
Portside window with pull-down blind
Refrigerator - stainless steel (12V/120V)(1.7 cubic feet)

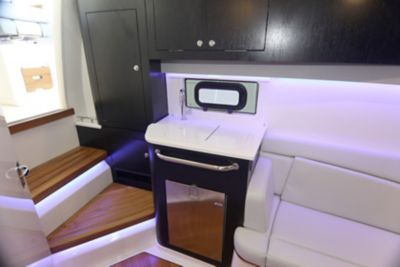

Sink - molded fiberglass sink with hot and cold polished faucet
Sink filler - solid surface matching countertop with integral cutting board on back side
Skylight with removable shade
Storage compartment under port settee
Table - solid teak with high gloss finish on a high low pedestal
USB power receptacle - dual inputs (port and starboard)
10” stainless steel cleats - stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
10” stainless steel pull-up cleats - bow (2), mid-ship spring line (2), crosstie cleats at transom (2)
28” interior freeboard
Acrylic transom door with stainless steel latch
Bow eye
Drink holders (stainless steel) - bow (9), helm (4), prep station (3), second row seating (3), forward console lounge (3), cockpit gunnel boards (2)
Full coaming bolsters
Integral swim platform with recessed telescoping dive ladder and grab rail
Lighting - machinery space LED lighting
Lighting - blue and white LED courtesy lighting (cockpit)
Molded fiberglass port side dive/boarding door with removable stainless steel dive ladder
Rails - bow rail (low profile interior)(welded stainless steel)
Rails - grab rails (stainless steel)
Rails - heavy duty stainless steel rub rail
Rod holders (gunnel mounted) - starboard cockpit (2), port cockpit (2)
Rod holders (transom)(3)
Self-bailing cockpit sole
Thru hull anchor roller davit (stainless steel)
Windlass - 400’ of rode and chain with handheld remote control, stainless steel swivel, galvanized steel anchor (35 lbs) and polished stainless steel bow roller
120V outlet
750 GPH shower sump
Accent wall
Flooring - solid surface tile
Full length mirror mounted on door
Lighting - LED blue/white diffused courtesy lighting
Lighting - LED overhead
Pullout showerhead with mixer valve and vertical adjustment
Seat - teak flip-up seat over toilet
Shower curtain
Sink - vessel sink with hot and cold faucet
Solid surface vanity countertop
Storage cabinet - natural teak wood with satin finish
Storage cabinet - tilt out
Toilet paper holder
VacuFlush™ toilet, holding tank with tank vent filter, dockside pump-out, overboard discharge and tank level indicator integrated into digital network
Vanity grab rail
Ventilation fan
Canvas enclosure or lifejacket storage (white or black depending on frame color selection)
Hardtop frame - custom powder coated aluminum frame integrated into the deck providing unobstructed walkways (white or black depending on frame color selection)
Hardtop hatches (opening) - integrated into the hardtop (2)
Ladder access to hardtop (white or black depending on frame color selection)
Lighting - blue LED courtesy overhead map light (1)
Lighting - LED navigation lights recessed in the hardtop
Lighting - red/white LED courtesy map light (1)
Lighting (flood light) - recessed LED lighting for bow area (2)
Lighting (flood lights) - recessed LED lighting for cockpit area (2)
Lockable electronics box
Outrigger ready
Tempered side glass and windshield with power actuated vent, opening walk-through windshield with separate lower door providing weather protection
Windshield defogger system (integrated into the hardtop)
Windshield wiper - dual pantograph with wash system and intermittent/multi-speed control

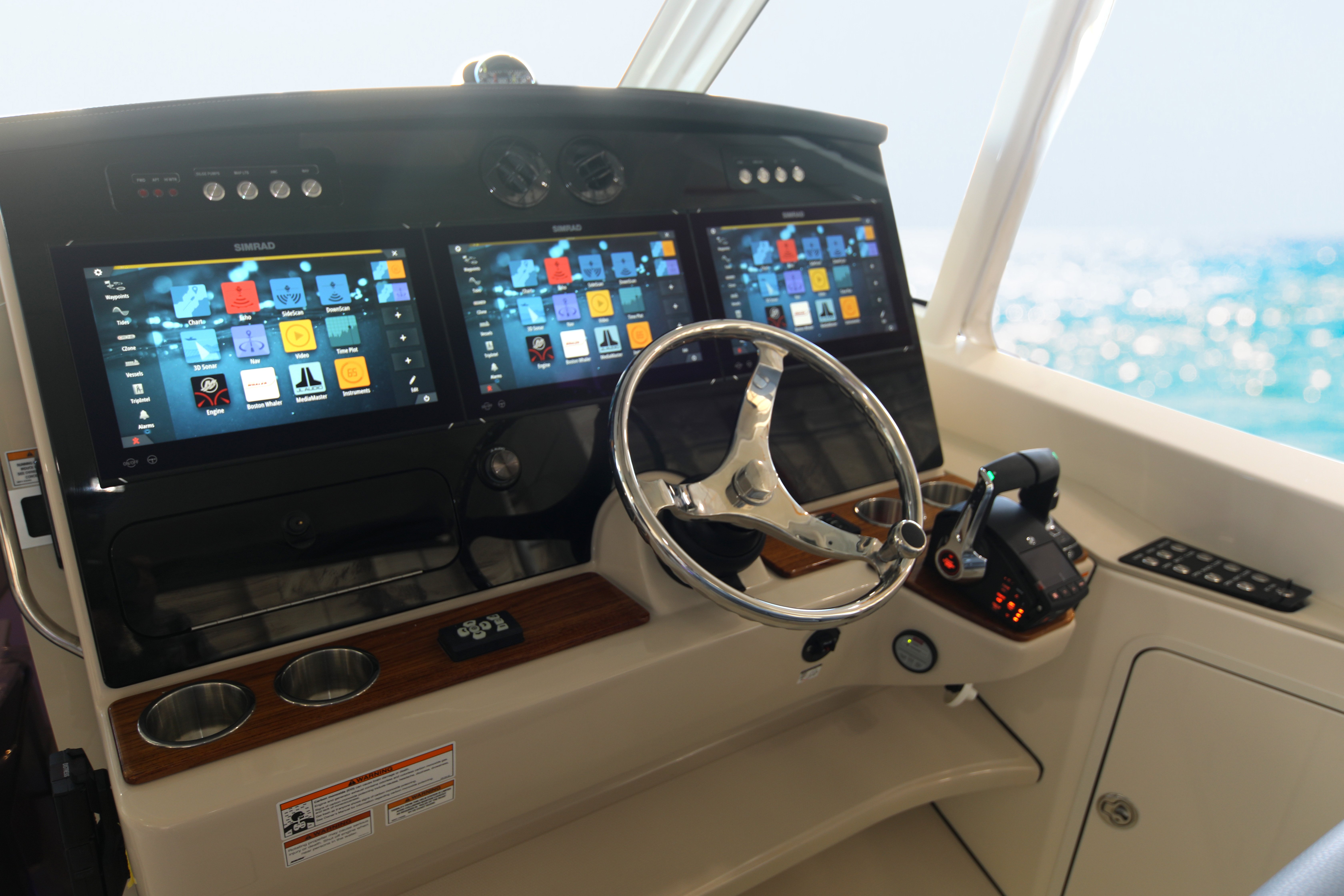

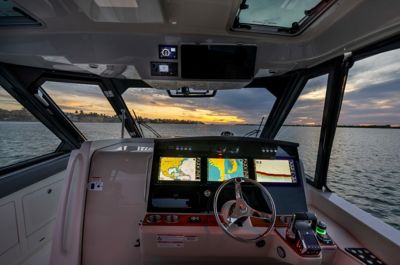

16 SIMRAD NSO EVO3S Electronics / Triple Navigation Package - Dash surface (custom black acrylic integrated with switch panels and flush mounting of displays), (includes: Simrad NSO 16” MFD (GPS, Chart plotter, Fishfinder), (CHIRP, SideScan, DownScan), Integrated Mercury VesselVIew Link, Simrad RS40 VHF Radio with AIS and HS40 wireless handset, GS25 GPS Antenna 15 N2K with Heading Sensor, Simrad S5100 1kw Dual channel CHIRP Sounder Module, Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included)
Compass
Dash visor with custom stitched cover and recessed storage tray with 1 dual USB and 12-V charging receptacle
Drink holders (3)
Electrical system switch panel with illuminated text
Ignition switches - remote key switches in main DC panel cabinet with pushbutton start/stop at helm
Lockable acrylic sliding cabin entry door
Lockable glovebox with 12-V receptacle and dual USB charging port
Mercury® DTS dual binnacle controls featuring Shadow Mode for center engine with integrated engine trim controls
Molded console footrests and fold-down helm standing platform with maintenance free, anti-fatigue synthetic surface providing improved visibility and comfort for the captain
Steering wheel (cast stainless steel with urethane grip, speed knob and tilt)
Stereo - System (JL Audio integration into Simrad Navigation Package) HELM - JL Audio MM105-HR stereo with dash mounted remote volume/mute knob, AM/FM/HD Radio, USB audio, and Sirius XMTM ready, Iphone/Android compatible via integrated Bluetooth 5.0, JL Audio waterproof speakers 7.7 (6), 10 Subwoofer, and 700W & 1000W Amplifiers
JL Audio waterproof speakers (exterior, 7.7" aft cockpit (2), 7.7" coax and helm deck (4), Tweeter in hardtop at helm, 7.7" coax at bow (2), 10" sub-woofer at helm deck (1), 8" sub-woofer at bow (1), with JL Audio amplifiers)
300 V8 AMS Black Quad Mercury Verado engines with Joystick Piloting
445-gallon aluminum fuel tank
Advanced battery management system (remote electric switches with automatic and pushbutton paralleling)
Air conditioning (cabin)(12,000 BTU, reverse cycle)
Air conditioning (cockpit)(18,000 BTU, reverse cycle)
Battery charger (50 AMP at 12V multi-stage charger)
Battery trays
Bilge pump - automatic (1100 GPH fwd, 2000 GPH aft)
Bilge pump - high water pump with alarm (2000 GPH)
Bonding system for underwater through hull fittings
Cast bronze thru hulls, seacocks and sea strainers (below waterline)
Cast stainless steel thru hulls (above waterline)
Electric dual polished stainless steel trumpet horns
Electric trim tabs with indicator (Auto Glide, Dynamic Running Surface, dual ram)
Engine fuel / water separators
Freshwater dockside hookup and tank level indicator integrated into Vessel View for hot and cold pressurized water system
Freshwater manifold plumbing system with individual valve per circuit
Freshwater stainless steel washdown faucet located in anchor locker and cockpit
Freshwater system with 60-gallon tank
Freshwater transom / dive door shower with hot and cold mixer
Generator (low CO gas (7.5 kW) 120V 60 Hz with fire suppression system, automatic with manual override)
Machinery space lighting with automatic hatch activated switch
Propellers - stainless steel
Raw-water washdown with stainless steel faucet (located in cockpit)
Shore power inlets (dual 30 amp, isolation transformers and 50ft shore power cords included)
Transducer pocket in hull bottom for flush mounting B275 transducer
Water heater (6 gallons)
120-V GFI outlet
Corian countertop
Deluxe port side helm seat deck seat with armrests, adjustable slide and swivel enabling rotation of the seat inboard
Drink holders (3)

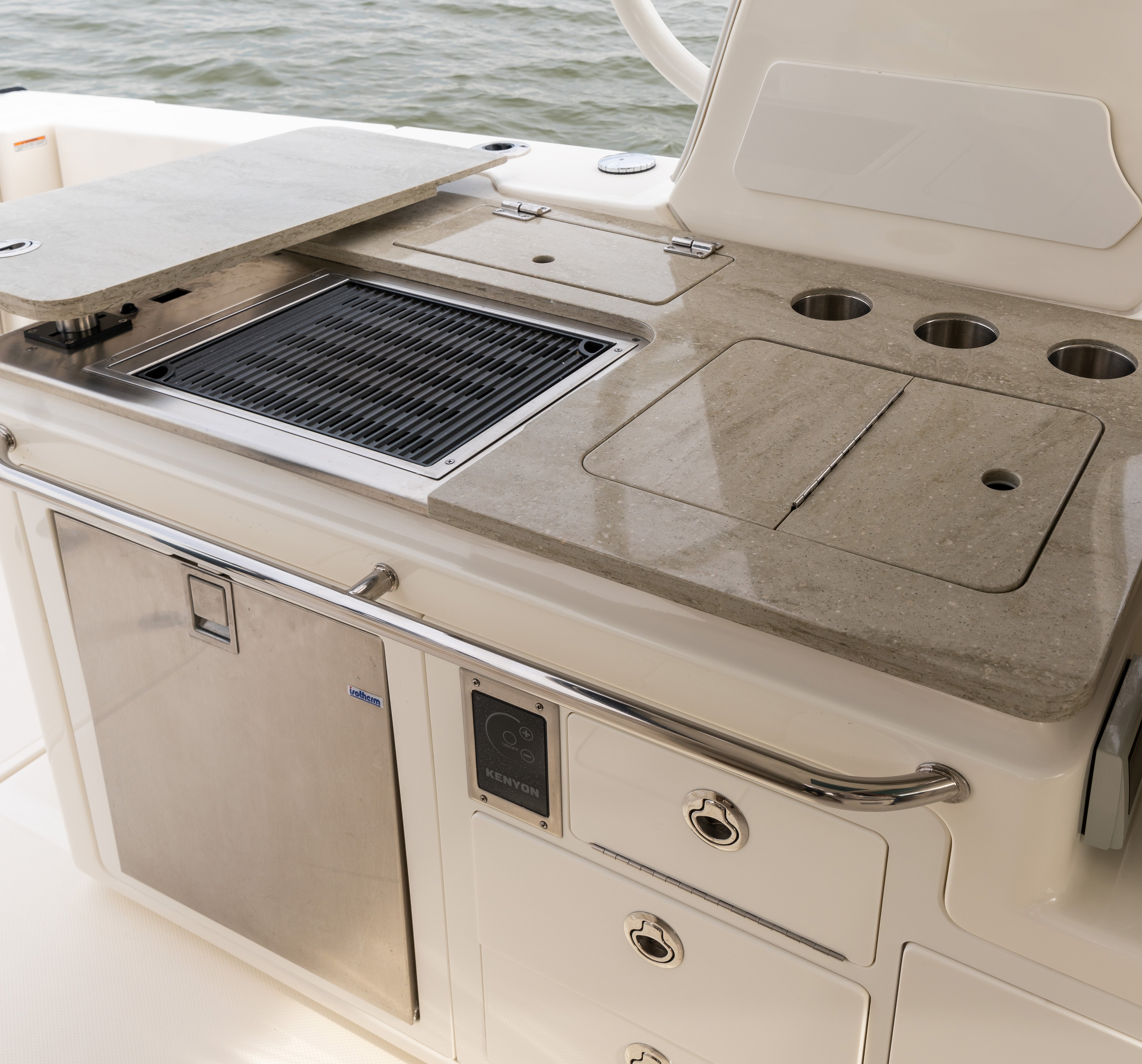

Electric grill with solid surface cover with custom pop-up rotation providing a prep counter while grilling (silicone grill cover included for higher temp grilling)
Grab rail - stainless steel
Refrigerator - stainless steel (12V/120V)(2.3 cubic ft.)
Sink - molded fiberglass sink with fold away polished faucet with hot and cold water
Sink filler - solid surface matching countertop with integral cutting board on back side
Storage compartment built into solid surface behind the grill
Storage drawer with 5-gallon bucket/trash receptacle
Storage drawers

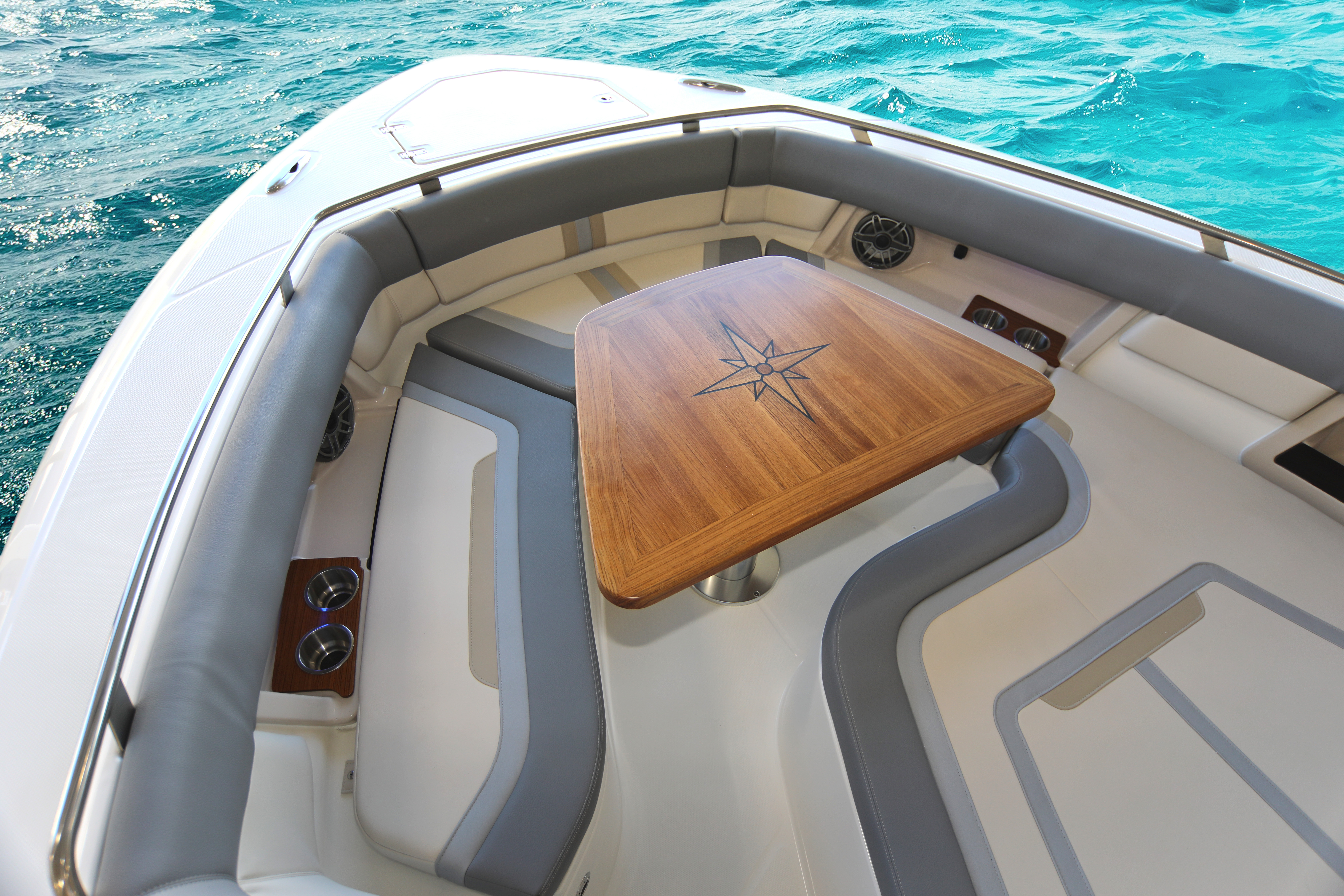

Bow lounge with backrest and fold-down armrests with drink holders (5)
Bow wrap-around seating with drink holders (4), full height forward bolster and removable cushions
Deluxe port side helm deck seat with armrests (adjustable slide and swivel enabling rotation of the seat inboard)

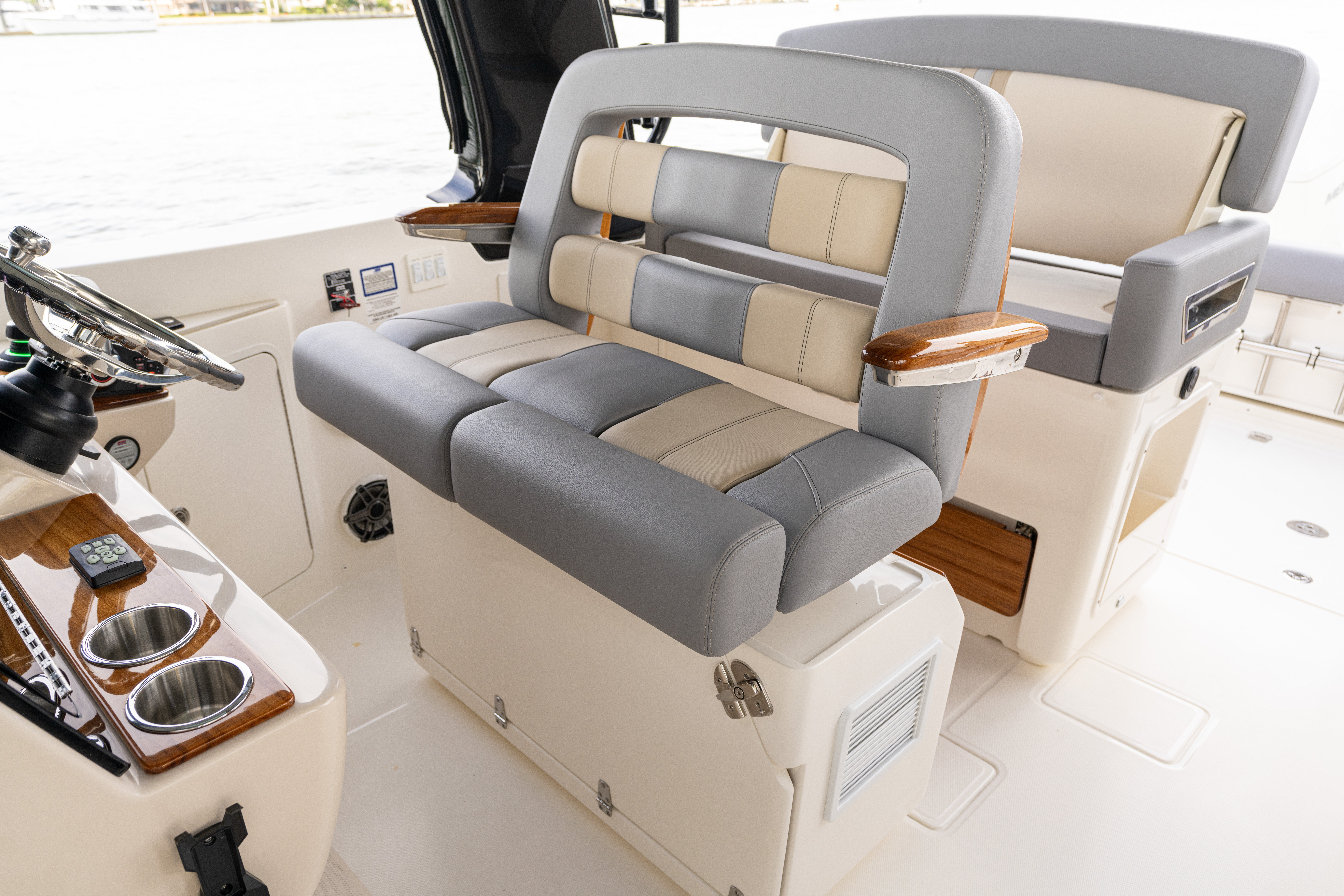

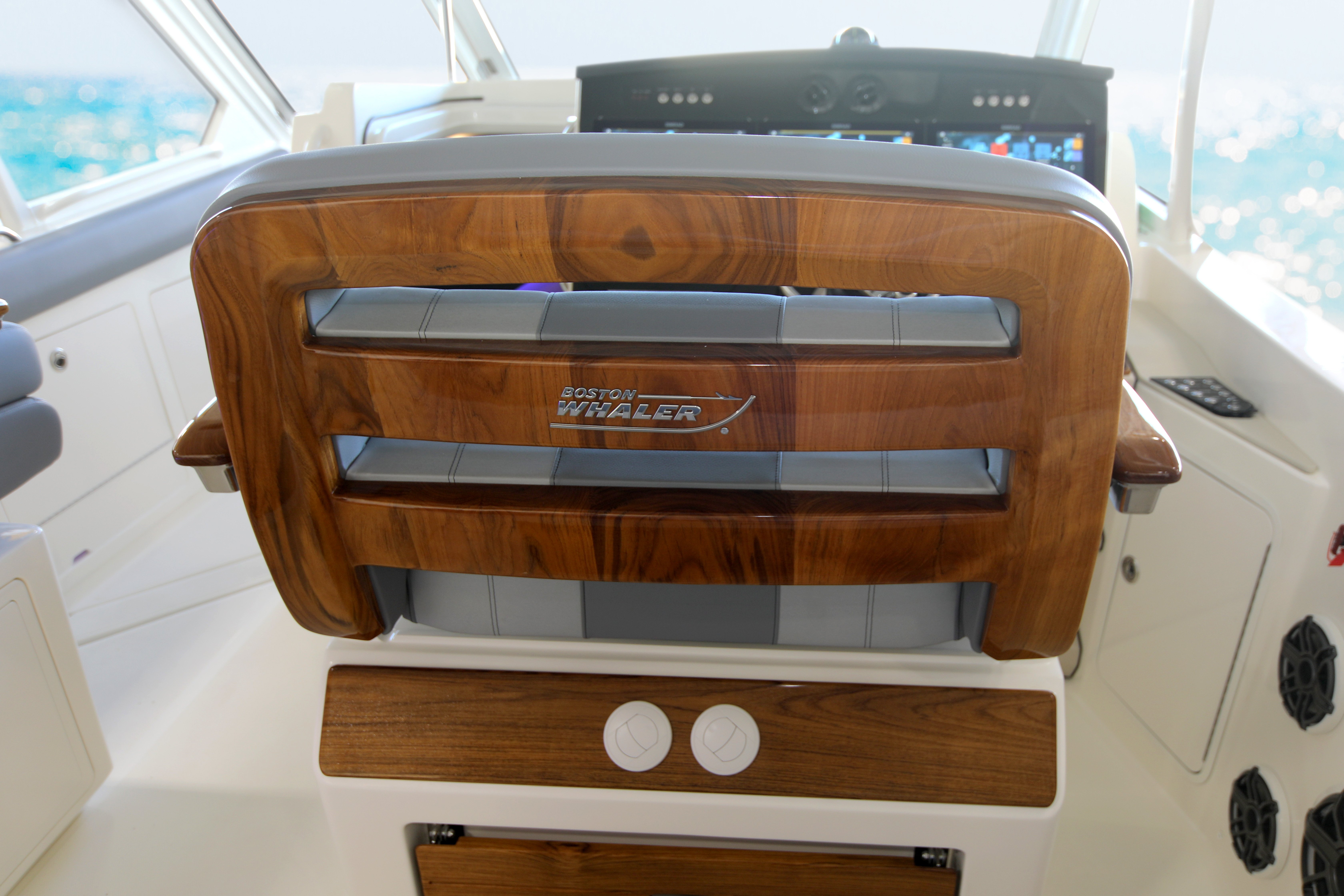

Deluxe swivel 2-person helm seat with armrests (adjustable electric slide and 180-degree rotation creating an apposed seating conversation and dining area)
Foldout stern bench seat with elevated backrest
Helm deck second row with 2-person seat with a conversation seatback transforming to an aft facing seat with flip-down teak foot rests
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bow anchor locker with drains and LED lighting
Cabin - port side cedar-lined storage cabinet
Cabin - port side compartment under settee
Cabin - starboard side storage cabinet with shelves
Canvas enclosure or lifejacket storage in hardtop
Electronics box in hardtop
Forward coaming pockets
Glovebox at helm
Head storage compartment

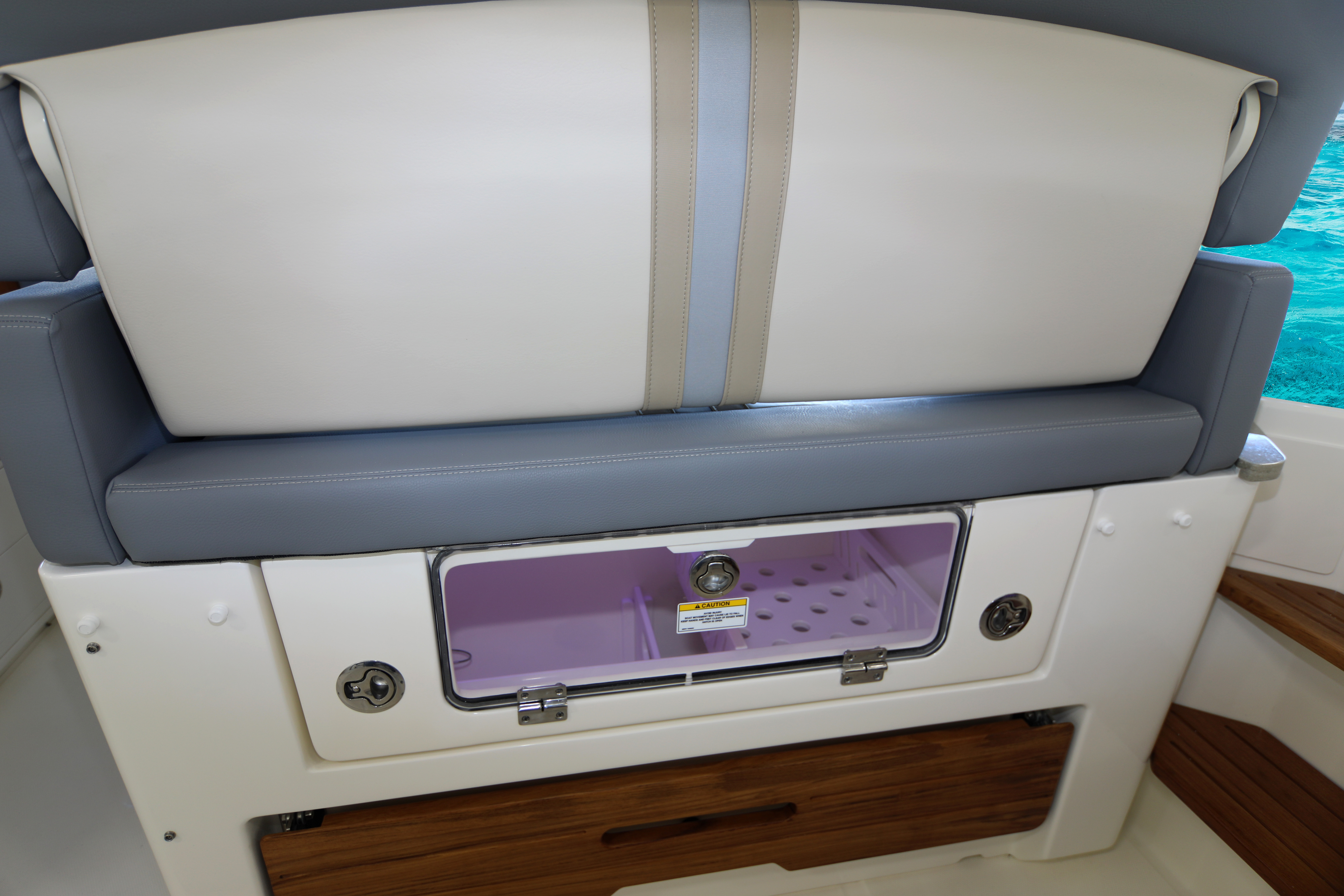

Insulated 260qt built-in cooler/storage under second row seating with dual access
Insulated 70qt cooler/storage in port side bow gunnel
Insulated in-floor fishboxes with pump-out - aft (2)
Prep station drawer storage
Prep station drawer with 5-gallon bucket/trash receptacle
Second row seating port side pocket and starboard pull-out grilling accessory storage
Storage compartment (transom mounted tilt out)
Storage compartments (midship in coaming)
Storage under bow seat with LED lighting (3 compartments with remote latch release)
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Tops & Towers
Hardtop with electric sunroof and skylight
(deletes hatches and storage bag) (white or black depending on frame color selection)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Dual Engines
600 V12 Black Dual Mercury Fourstroke Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
600 V12 White Dual Mercury Fourstroke Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Quad Engines
300 V8 DTS Black Quad Mercury with Joystick Piloting
3 V8 DTS Black Quad Mercury with JOYSTICK PILOTING. Outboard system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Raymarine or other standalone optional autopilot not permitted with Joystick Piloting).
400 V10 Black Quad Mercury Verados w/JPO
400 V10 Black Quad Mercury Verados w/JPO
400 V10 White Quad Mercury Verados w/JPO
400 V10 White Quad Mercury Verados w/JPO
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Table - bow table w/sun lounge
(teak table that is electrically raised and lowered) with filler cushion and canvas cover)
Table - cockpit and helm tables
cockpit and helm deck tables(2) with dedicated storage on underside of mechanical space hatch (teak table)
Fishing Features
Outriggers - premium outriggers
(Gemlux) (stainless steel) (hardtop mounted)
Prep center with livewell
includes: 12V GFI outlet, corian countertop, deluxe portside helm deck seat (with armrests, adjustable slide and swivel enabling rotation of the seat inboard), drink holders (3), electric grill with hinged solid surface cover and silicone grill cover included for higher temp grilling, stainless steel grab rail, pressurized insulated 45-gallon livewell (with viewing window, clear lid, blue interior, red LED lights (2)), storage drawers, sink (molded fiberglass sink with fold away polished faucet with hot and cold water), storage drawer with 5 gallon bucket/trash receptacle (not compatible with electric grill delete option)
Freezer plates and refrigerated bucket (120V)
Notable Options & Accessories
Batteries – dual GR31 AGM (factory installed)
Water delivery at manufacturing plant
Hardtop aft ladder rod holders (3 rod holders integrated into ladder bars on aft hardtop supports) (white or black depending on frame color selection)
Hardtop aft ladder rod holders (3 rod holders integrated into ladder bars on aft hardtop supports) (white or black depending on frame color selection)
Engine flush
(automatic sequencing between engines with separate dockside freshwater hookup on transom)
Hardtop roof rack
(includes radar riser for clearance with navigation package) (white or black depending on frame color selection)
Generator (diesel)
(12kW with 2-gallon diesel tank)(replaces low CO gas generator)
Bow Thruster
Bow Thruster
Fender Hangers - stainless steel (6)
stainless steel fender hangers (6)
Full-height tempered side glass
integrated with hardtop frame
Anchor windlass chain (300 feet)
Anchor windlass chain (300 feet)
Bow tow eye
heavy duty polished stainless steel
Spotlight
Spotlight
Seakeeper 6 Gyro Stabilizer
(must select diesel generator)(freshwater capacity changes to 45 gallons)
Lighting - underwater LED
(blue) transom mounted (3), hull side in trim tab pocket (2)
Teak detail package exterior
Teak detail package exterior
Single bottle chiller
Electronics
M364C Thermal Night Vision w hardtop mount
M332 Thermal Night Vision w hardtop mount
CMAP Chart Card - Asia
(Only compatible with NSX Displays)
Simrad 48" Radar Open Array Bird+
Simrad 48" Radar Open Array Bird+ (Not compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 48" Open Array Antenna
Simrad 36" Radar Open Array Bird+
Simrad 36" Radar Open Array Bird+ (Compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 36" Open Array Antenna
Satellite weather and radio
Satellite weather and radio
Cockpit rear view camera
Auto ID System NSPL - 500 Transceiver
Theft Deterrent w/ First mate / Conn System Dual
Theft Deterrent w/ First mate / Conn System Dual
Theft Deterrent w/ First mate / Conn System Quad
Theft Deterrent w/ First mate / Conn System Quad
First Mate Safety & Security System Dual Engine
First Mate Safety & Security Sys Dual Engine (Includes Captain FOB and 3 passenger FOBs) (Not compatible with Single Engine option) (Included with Theft Deterrent System Option)
First mate safety and security 4/5/6 system
First mate safety and security 4/5/6 system
First mate safety and security system FOB kit
First mate safety and security system FOB kit
Satellite radio
Sirius XM satellite receiver with antenna installed (does not include service)
CMAP Chart Card - S. America/Carib
(Only compatible with NSX Displays)
CMAP Chart Card - Cent/West Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Nor/Cent Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Africa/Arabic Sea
(Only compatible with NSX Displays)
CMAP Chart Card - Au/Nz
(Only compatible with NSX Displays)
Sunshades
Sunshade - at cockpit
(black canvas)(stainless steel telescoping, electronically retracts and deploys)
Sunshade - at bow
(black mesh)(manual setup - attaches to hardtop and 4 stainless steel poles insert into rod holders in forward bow area)
Canvas
Canvas enclosure
(Rigid Makrolon with White Stamoid) (white or black depending on frame color selection) - includes: hardtop aft curtain (full beam enclosure), hardtop side curtains
Full canvas mooring cover
from hardtop to fore and aft deck coverage (not compatible with bow rail option)
Tan Canvas
Black Canvas
Canvas enclosure (for full side glass)
(Rigid Makrolon with White Stamoid) - includes: hardtop aft curtain (full beam enclosure) (must select full-height tempered side glass option)
Standard Features
120V receptacle (port side)
12V receptacle (port side)
24” flat screen HDTV
Cabinetry - natural teak wood with satin finish
Carbon monoxide detector
Central vacuum system with hose and attachments with dedicated storage
Corian countertop
Stereo JL Audio MM55 AM/FM, MP3/USB inputs, Bluetooth compatible source unit, and JL Audio speakers 6.5” (2)
Easy to clean interior materials
Hardwood cabin sole
Lighting - LED blue/white diffused courtesy lighting with dimmer switch
Lighting - LED white overhead lights with dimmer switches (6)
Lockable acrylic cabin door
Microwave
Opening portholes (1)
Opposing seating that converts to berth with included fitted sheets
Portside window with pull-down blind
Refrigerator - stainless steel (12V/120V)(1.7 cubic feet)
Sink - molded fiberglass sink with hot and cold polished faucet
Sink filler - solid surface matching countertop with integral cutting board on back side
Skylight with removable shade
Storage compartment under port settee
Table - solid teak with high gloss finish on a high low pedestal
USB power receptacle - dual inputs (port and starboard)
10” stainless steel cleats - stern cockpit with gunnel board hawse pipe (2), anchor locker (1)
10” stainless steel pull-up cleats - bow (2), mid-ship spring line (2), crosstie cleats at transom (2)
28” interior freeboard
Acrylic transom door with stainless steel latch
Bow eye
Drink holders (stainless steel) - bow (9), helm (4), prep station (3), second row seating (3), forward console lounge (3), cockpit gunnel boards (2)
Full coaming bolsters
Integral swim platform with recessed telescoping dive ladder and grab rail
Lighting - machinery space LED lighting
Lighting - blue and white LED courtesy lighting (cockpit)
Molded fiberglass port side dive/boarding door with removable stainless steel dive ladder
Rails - bow rail (low profile interior)(welded stainless steel)
Rails - grab rails (stainless steel)
Rails - heavy duty stainless steel rub rail
Rod holders (gunnel mounted) - starboard cockpit (2), port cockpit (2)
Rod holders (transom)(3)
Self-bailing cockpit sole
Thru hull anchor roller davit (stainless steel)
Windlass - 400’ of rode and chain with handheld remote control, stainless steel swivel, galvanized steel anchor (35 lbs) and polished stainless steel bow roller
120V outlet
750 GPH shower sump
Accent wall
Flooring - solid surface tile
Full length mirror mounted on door
Lighting - LED blue/white diffused courtesy lighting
Lighting - LED overhead
Pullout showerhead with mixer valve and vertical adjustment
Seat - teak flip-up seat over toilet
Shower curtain
Sink - vessel sink with hot and cold faucet
Solid surface vanity countertop
Storage cabinet - natural teak wood with satin finish
Storage cabinet - tilt out
Toilet paper holder
VacuFlush™ toilet, holding tank with tank vent filter, dockside pump-out, overboard discharge and tank level indicator integrated into digital network
Vanity grab rail
Ventilation fan
Canvas enclosure or lifejacket storage (white or black depending on frame color selection)
Hardtop frame - custom powder coated aluminum frame integrated into the deck providing unobstructed walkways (white or black depending on frame color selection)
Hardtop hatches (opening) - integrated into the hardtop (2)
Ladder access to hardtop (white or black depending on frame color selection)
Lighting - blue LED courtesy overhead map light (1)
Lighting - LED navigation lights recessed in the hardtop
Lighting - red/white LED courtesy map light (1)
Lighting (flood light) - recessed LED lighting for bow area (2)
Lighting (flood lights) - recessed LED lighting for cockpit area (2)
Lockable electronics box
Outrigger ready
Tempered side glass and windshield with power actuated vent, opening walk-through windshield with separate lower door providing weather protection
Windshield defogger system (integrated into the hardtop)
Windshield wiper - dual pantograph with wash system and intermittent/multi-speed control
16 SIMRAD NSO EVO3S Electronics / Triple Navigation Package - Dash surface (custom black acrylic integrated with switch panels and flush mounting of displays), (includes: Simrad NSO 16” MFD (GPS, Chart plotter, Fishfinder), (CHIRP, SideScan, DownScan), Integrated Mercury VesselVIew Link, Simrad RS40 VHF Radio with AIS and HS40 wireless handset, GS25 GPS Antenna 15 N2K with Heading Sensor, Simrad S5100 1kw Dual channel CHIRP Sounder Module, Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included)
Compass
Dash visor with custom stitched cover and recessed storage tray with 1 dual USB and 12-V charging receptacle
Drink holders (3)
Electrical system switch panel with illuminated text
Ignition switches - remote key switches in main DC panel cabinet with pushbutton start/stop at helm
Lockable acrylic sliding cabin entry door
Lockable glovebox with 12-V receptacle and dual USB charging port
Mercury® DTS dual binnacle controls featuring Shadow Mode for center engine with integrated engine trim controls
Molded console footrests and fold-down helm standing platform with maintenance free, anti-fatigue synthetic surface providing improved visibility and comfort for the captain
Steering wheel (cast stainless steel with urethane grip, speed knob and tilt)
Stereo - System (JL Audio integration into Simrad Navigation Package) HELM - JL Audio MM105-HR stereo with dash mounted remote volume/mute knob, AM/FM/HD Radio, USB audio, and Sirius XMTM ready, Iphone/Android compatible via integrated Bluetooth 5.0, JL Audio waterproof speakers 7.7 (6), 10 Subwoofer, and 700W & 1000W Amplifiers
JL Audio waterproof speakers (exterior, 7.7" aft cockpit (2), 7.7" coax and helm deck (4), Tweeter in hardtop at helm, 7.7" coax at bow (2), 10" sub-woofer at helm deck (1), 8" sub-woofer at bow (1), with JL Audio amplifiers)
300 V8 AMS Black Quad Mercury Verado engines with Joystick Piloting
445-gallon aluminum fuel tank
Advanced battery management system (remote electric switches with automatic and pushbutton paralleling)
Air conditioning (cabin)(12,000 BTU, reverse cycle)
Air conditioning (cockpit)(18,000 BTU, reverse cycle)
Battery charger (50 AMP at 12V multi-stage charger)
Battery trays
Bilge pump - automatic (1100 GPH fwd, 2000 GPH aft)
Bilge pump - high water pump with alarm (2000 GPH)
Bonding system for underwater through hull fittings
Cast bronze thru hulls, seacocks and sea strainers (below waterline)
Cast stainless steel thru hulls (above waterline)
Electric dual polished stainless steel trumpet horns
Electric trim tabs with indicator (Auto Glide, Dynamic Running Surface, dual ram)
Engine fuel / water separators
Freshwater dockside hookup and tank level indicator integrated into Vessel View for hot and cold pressurized water system
Freshwater manifold plumbing system with individual valve per circuit
Freshwater stainless steel washdown faucet located in anchor locker and cockpit
Freshwater system with 60-gallon tank
Freshwater transom / dive door shower with hot and cold mixer
Generator (low CO gas (7.5 kW) 120V 60 Hz with fire suppression system, automatic with manual override)
Machinery space lighting with automatic hatch activated switch
Propellers - stainless steel
Raw-water washdown with stainless steel faucet (located in cockpit)
Shore power inlets (dual 30 amp, isolation transformers and 50ft shore power cords included)
Transducer pocket in hull bottom for flush mounting B275 transducer
Water heater (6 gallons)
120-V GFI outlet
Corian countertop
Deluxe port side helm seat deck seat with armrests, adjustable slide and swivel enabling rotation of the seat inboard
Drink holders (3)
Electric grill with solid surface cover with custom pop-up rotation providing a prep counter while grilling (silicone grill cover included for higher temp grilling)
Grab rail - stainless steel
Refrigerator - stainless steel (12V/120V)(2.3 cubic ft.)
Sink - molded fiberglass sink with fold away polished faucet with hot and cold water
Sink filler - solid surface matching countertop with integral cutting board on back side
Storage compartment built into solid surface behind the grill
Storage drawer with 5-gallon bucket/trash receptacle
Storage drawers
Bow lounge with backrest and fold-down armrests with drink holders (5)
Bow wrap-around seating with drink holders (4), full height forward bolster and removable cushions
Deluxe port side helm deck seat with armrests (adjustable slide and swivel enabling rotation of the seat inboard)
Deluxe swivel 2-person helm seat with armrests (adjustable electric slide and 180-degree rotation creating an apposed seating conversation and dining area)
Foldout stern bench seat with elevated backrest
Helm deck second row with 2-person seat with a conversation seatback transforming to an aft facing seat with flip-down teak foot rests
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bow anchor locker with drains and LED lighting
Cabin - port side cedar-lined storage cabinet
Cabin - port side compartment under settee
Cabin - starboard side storage cabinet with shelves
Canvas enclosure or lifejacket storage in hardtop
Electronics box in hardtop
Forward coaming pockets
Glovebox at helm
Head storage compartment
Insulated 260qt built-in cooler/storage under second row seating with dual access
Insulated 70qt cooler/storage in port side bow gunnel
Insulated in-floor fishboxes with pump-out - aft (2)
Prep station drawer storage
Prep station drawer with 5-gallon bucket/trash receptacle
Second row seating port side pocket and starboard pull-out grilling accessory storage
Storage compartment (transom mounted tilt out)
Storage compartments (midship in coaming)
Storage under bow seat with LED lighting (3 compartments with remote latch release)
Options
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Tops & Towers
Hardtop with electric sunroof and skylight
(deletes hatches and storage bag) (white or black depending on frame color selection)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Dual Engines
600 V12 Black Dual Mercury Fourstroke Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
600 V12 White Dual Mercury Fourstroke Verados with Joystick Piloting
Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Quad Engines
300 V8 DTS Black Quad Mercury with Joystick Piloting
3 V8 DTS Black Quad Mercury with JOYSTICK PILOTING. Outboard system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Raymarine or other standalone optional autopilot not permitted with Joystick Piloting).
400 V10 Black Quad Mercury Verados w/JPO
400 V10 Black Quad Mercury Verados w/JPO
400 V10 White Quad Mercury Verados w/JPO
400 V10 White Quad Mercury Verados w/JPO
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Table - bow table w/sun lounge
(teak table that is electrically raised and lowered) with filler cushion and canvas cover)
Table - cockpit and helm tables
cockpit and helm deck tables(2) with dedicated storage on underside of mechanical space hatch (teak table)
Fishing Features
Outriggers - premium outriggers
(Gemlux) (stainless steel) (hardtop mounted)
Prep center with livewell
includes: 12V GFI outlet, corian countertop, deluxe portside helm deck seat (with armrests, adjustable slide and swivel enabling rotation of the seat inboard), drink holders (3), electric grill with hinged solid surface cover and silicone grill cover included for higher temp grilling, stainless steel grab rail, pressurized insulated 45-gallon livewell (with viewing window, clear lid, blue interior, red LED lights (2)), storage drawers, sink (molded fiberglass sink with fold away polished faucet with hot and cold water), storage drawer with 5 gallon bucket/trash receptacle (not compatible with electric grill delete option)
Freezer plates and refrigerated bucket (120V)
Notable Options & Accessories
Batteries – dual GR31 AGM (factory installed)
Water delivery at manufacturing plant
Hardtop aft ladder rod holders (3 rod holders integrated into ladder bars on aft hardtop supports) (white or black depending on frame color selection)
Hardtop aft ladder rod holders (3 rod holders integrated into ladder bars on aft hardtop supports) (white or black depending on frame color selection)
Engine flush
(automatic sequencing between engines with separate dockside freshwater hookup on transom)
Hardtop roof rack
(includes radar riser for clearance with navigation package) (white or black depending on frame color selection)
Generator (diesel)
(12kW with 2-gallon diesel tank)(replaces low CO gas generator)
Bow Thruster
Bow Thruster
Fender Hangers - stainless steel (6)
stainless steel fender hangers (6)
Full-height tempered side glass
integrated with hardtop frame
Anchor windlass chain (300 feet)
Anchor windlass chain (300 feet)
Bow tow eye
heavy duty polished stainless steel
Spotlight
Spotlight
Seakeeper 6 Gyro Stabilizer
(must select diesel generator)(freshwater capacity changes to 45 gallons)
Lighting - underwater LED
(blue) transom mounted (3), hull side in trim tab pocket (2)
Teak detail package exterior
Teak detail package exterior
Single bottle chiller
Electronics
M364C Thermal Night Vision w hardtop mount
M332 Thermal Night Vision w hardtop mount
CMAP Chart Card - Asia
(Only compatible with NSX Displays)
Simrad 48" Radar Open Array Bird+
Simrad 48" Radar Open Array Bird+ (Not compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 48" Open Array Antenna
Simrad 36" Radar Open Array Bird+
Simrad 36" Radar Open Array Bird+ (Compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 36" Open Array Antenna
Satellite weather and radio
Satellite weather and radio
Cockpit rear view camera
Auto ID System NSPL - 500 Transceiver
Theft Deterrent w/ First mate / Conn System Dual
Theft Deterrent w/ First mate / Conn System Dual
Theft Deterrent w/ First mate / Conn System Quad
Theft Deterrent w/ First mate / Conn System Quad
First Mate Safety & Security System Dual Engine
First Mate Safety & Security Sys Dual Engine (Includes Captain FOB and 3 passenger FOBs) (Not compatible with Single Engine option) (Included with Theft Deterrent System Option)
First mate safety and security 4/5/6 system
First mate safety and security 4/5/6 system
First mate safety and security system FOB kit
First mate safety and security system FOB kit
Satellite radio
Sirius XM satellite receiver with antenna installed (does not include service)
CMAP Chart Card - S. America/Carib
(Only compatible with NSX Displays)
CMAP Chart Card - Cent/West Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Nor/Cent Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Chart Card - Africa/Arabic Sea
(Only compatible with NSX Displays)
CMAP Chart Card - Au/Nz
(Only compatible with NSX Displays)
Sunshades
Sunshade - at cockpit
(black canvas)(stainless steel telescoping, electronically retracts and deploys)
Sunshade - at bow
(black mesh)(manual setup - attaches to hardtop and 4 stainless steel poles insert into rod holders in forward bow area)
Canvas
Canvas enclosure
(Rigid Makrolon with White Stamoid) (white or black depending on frame color selection) - includes: hardtop aft curtain (full beam enclosure), hardtop side curtains
Full canvas mooring cover
from hardtop to fore and aft deck coverage (not compatible with bow rail option)
Tan Canvas
Black Canvas
Canvas enclosure (for full side glass)
(Rigid Makrolon with White Stamoid) - includes: hardtop aft curtain (full beam enclosure) (must select full-height tempered side glass option)

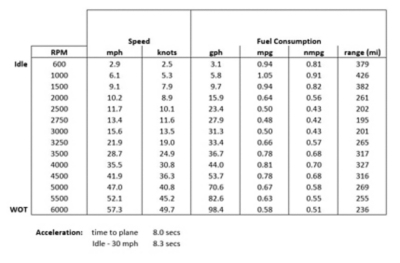

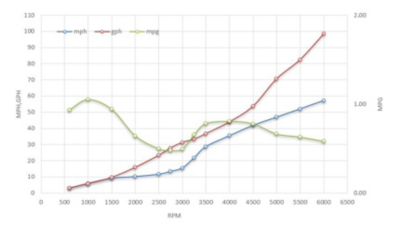

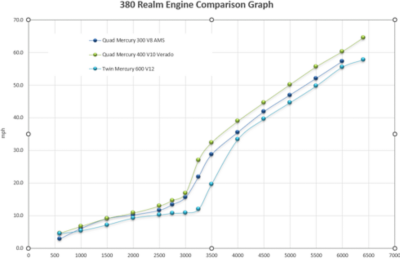

Model: 380 Realm
Hull #: USBWCE0003I819
Engine: Quad Mercury 300 V8 AMS
Horsepower: 1200
Gear Ratio: 1.85:1
Prop: 14 5/8 x 20 Rev 4
Fuel Capacity: 450 gallons
Notable Options: Joystick Piloting, Chain Rode, Bow Table, Bow Sunshade, Retractable Sunshade, Cockpit Table, Refrigerated Bucket, Seakeeper, 16” Electronics
Test Date: 8-Feb-19
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: NA
Fuel: 220 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: NA
Water Conditions: 61° F
Weather Conditions: 72° F

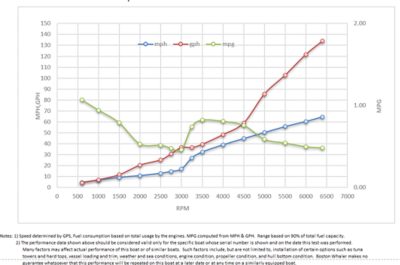

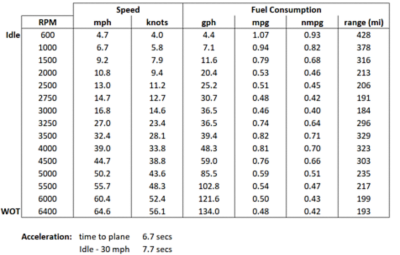

Model: 380 Realm
Hull #: USBWCE0237G324
Engine: Quad Mercury 400 V10 Verado
Horsepower: 1600
Gear Ratio: 2.08:1
Prop: 23P Revolution X
Fuel Capacity: 445 gal.
Notable Options: Gyro, Diesel Generator, Radar, Bow Table, Sure Shade, Bow Table, Sure Shade
Test Date: 8-November-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 21,905 lbs
Fuel: 50 gal.
Diesel: 20 gal.
Water: 50 gal.
Test Gear: 25 lbs
Personnel: 370 lbs
Test Weight: 23,168 lbs
Water Conditions: 72° F
Weather Conditions: 79° F

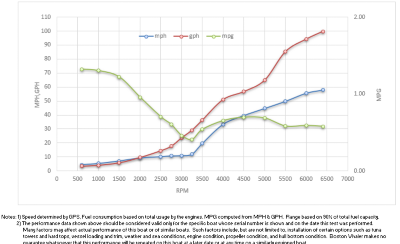

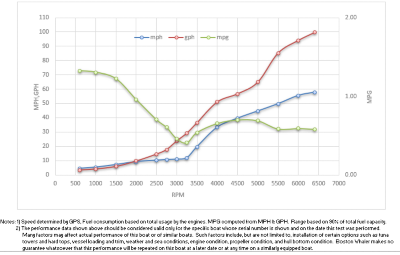

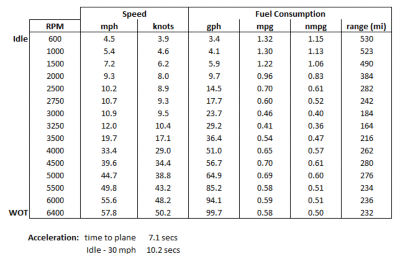

Model: 380 Realm
Hull #: USBWCP0048B222
Engine: Twin Mercury 600 V12
Horsepower: 1200
Gear Ratio: 2.50:1
Prop: 27.5P V12
Fuel Capacity: 445 gal.
Notable Options: Windlass All Chain, Bow Table, Hartop with Skylight, Sureshade, Gyro, Diesel Generator
Test Date: 16-Aug-22
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 20,740 lbs
Fuel: 209 gallons
Water: 58 gallons
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 22,895
Water Conditions: 89° F
Weather Conditions: 76° F
Model: 380 Realm
Hull #: USBWCE0003I819
Engine: Quad Mercury 300 V8 AMS
Horsepower: 1200
Gear Ratio: 1.85:1
Prop: 14 5/8 x 20 Rev 4
Fuel Capacity: 450 gallons
Notable Options: Joystick Piloting, Chain Rode, Bow Table, Bow Sunshade, Retractable Sunshade, Cockpit Table, Refrigerated Bucket, Seakeeper, 16” Electronics
Test Date: 8-Feb-19
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: NA
Fuel: 220 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: NA
Water Conditions: 61° F
Weather Conditions: 72° F
Model: 380 Realm
Hull #: USBWCE0237G324
Engine: Quad Mercury 400 V10 Verado
Horsepower: 1600
Gear Ratio: 2.08:1
Prop: 23P Revolution X
Fuel Capacity: 445 gal.
Notable Options: Gyro, Diesel Generator, Radar, Bow Table, Sure Shade, Bow Table, Sure Shade
Test Date: 8-November-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 21,905 lbs
Fuel: 50 gal.
Diesel: 20 gal.
Water: 50 gal.
Test Gear: 25 lbs
Personnel: 370 lbs
Test Weight: 23,168 lbs
Water Conditions: 72° F
Weather Conditions: 79° F
Model: 380 Realm
Hull #: USBWCP0048B222
Engine: Twin Mercury 600 V12
Horsepower: 1200
Gear Ratio: 2.50:1
Prop: 27.5P V12
Fuel Capacity: 445 gal.
Notable Options: Windlass All Chain, Bow Table, Hartop with Skylight, Sureshade, Gyro, Diesel Generator
Test Date: 16-Aug-22
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 20,740 lbs
Fuel: 209 gallons
Water: 58 gallons
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 22,895
Water Conditions: 89° F
Weather Conditions: 76° F
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 20,740 lbs
Fuel: 209 gal.
Water: 58 gal.
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: 22,895 lbs
Water Conditions: 89° F
Weather Conditions: 76° F
