130 Super Sport
With its shallow draft, nimble performance and unsinkable safety you can explore even the skinniest waterways with total confidence in our 130 Super Sport. Exciting new features include lockable front-of-console storage, aft swim platforms, and a rear-accent hull color. Choose from a variety of seating configurations and options to best suit your favorite activities, from fishing, watersports, cruising, lounging and beyond. Remarkably low-maintenance and easy to operate, the 130 Super Sport is the most reliable, user-friendly and stylish skiff on the market - and the most fun!
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
130 SUPER SPORT FEATURES

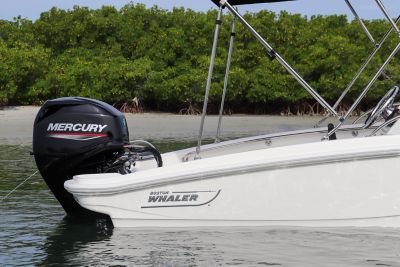

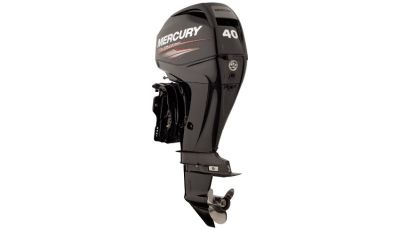

- 40-hp Mercury Fourstroke Engine provides reliable, efficient power
- An optional cooler seat with cushion adds comfort and convvenient drink storage

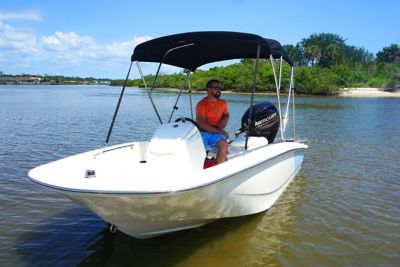

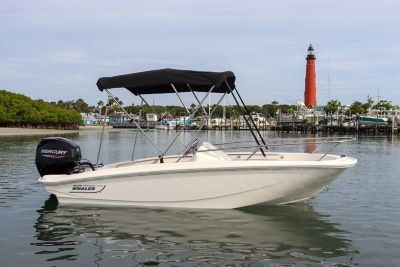

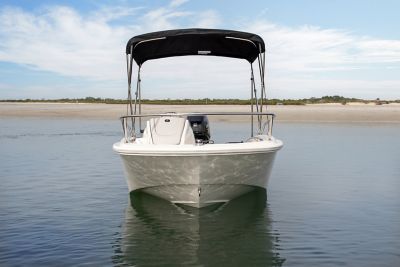

- Optional suntop with boot and stainless-steel fittings provides shade on sunny days

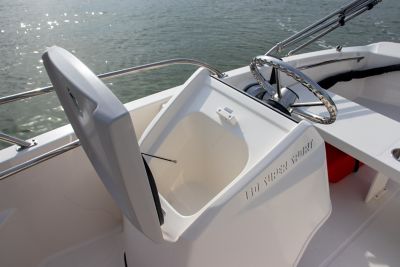

- A lockable, water-resistant storage compartment in the console secures your valubles

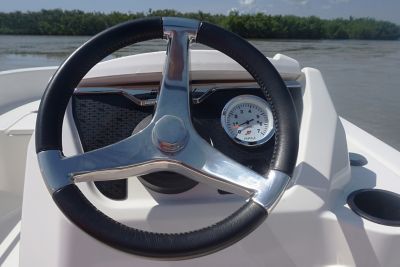

- Stainless-steel side rails, steering wheel and cleats lend style and durability
Dimensions
13’ 1” (3.99 m)
L.O.A. (Centerline)
14’ 0” (4.27 m)
L.O.A. (with platforms)
5’ 10” (1.78 m)
Beam
9” (0.23 m)
Draft
20” (0.50 m)
Transom Height
13 degrees
Deadrise at Transom
3’ 6” (1.067 m)
Bridge Clearance (no top)
6’ 0” (1.822 m)
Bridge Clearance (with suntop)
18’ 2”L x 6’ 5”W x 6’ 1”H
Package Boat Specs (on trailer/engine up)
C
European Certification
Weight
695 lbs (315 kg)
Weight (dry, no engine)
1,005 lbs (456 kg)
Weight (with engines and fuel)
Capacity
990 lbs (449 kg)
Maximum Weight Capacity
1,525 lbs (692 kg)
Swamped Capacity
4
Persons Capacity
6.5 gallons (24.6 L)
Fuel Capacity
Engines
40 HP (30 kW)
Maximum Horsepower
25 HP (19 kW)
Minimum Horsepower
235 lbs (107 kg)
Maximum Engine Weight
13’ 1” (3.99 m)
L.O.A. (Centerline)
14’ 0” (4.27 m)
L.O.A. (with platforms)
5’ 10” (1.78 m)
Beam
9” (0.23 m)
Draft
20” (0.50 m)
Transom Height
13 degrees
Deadrise at Transom
3’ 6” (1.067 m)
Bridge Clearance (no top)
6’ 0” (1.822 m)
Bridge Clearance (with suntop)
18’ 2”L x 6’ 5”W x 6’ 1”H
Package Boat Specs (on trailer/engine up)
C
European Certification
695 lbs (315 kg)
Weight (dry, no engine)
1,005 lbs (456 kg)
Weight (with engines and fuel)
990 lbs (449 kg)
Maximum Weight Capacity
1,525 lbs (692 kg)
Swamped Capacity
4
Persons Capacity
6.5 gallons (24.6 L)
Fuel Capacity
40 HP (30 kW)
Maximum Horsepower
25 HP (19 kW)
Minimum Horsepower
235 lbs (107 kg)
Maximum Engine Weight
Standard features & Options
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
8” bow cleat
20” interior freeboard
Bow locker with fiberglass cover and overboard drain
Cockpit drain plug
Heavy-duty rub rail

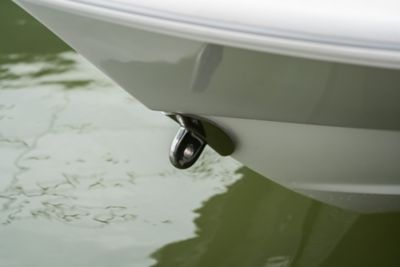

Lifting eyes - bow and stern
Side rails - welded stainless steel (2 short starboard, 1 long port-side)
Stern eye cleats

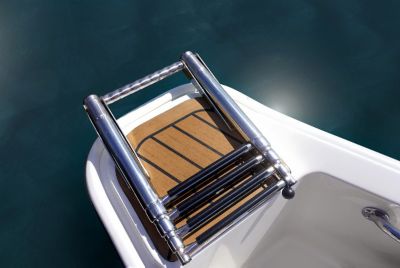

Swim ladder
12-V receptacle
All around navigation light receptacle
Drink holders (2)
Fiberglass side console with lockable storage
Safety switch
Side mount Mercury® control

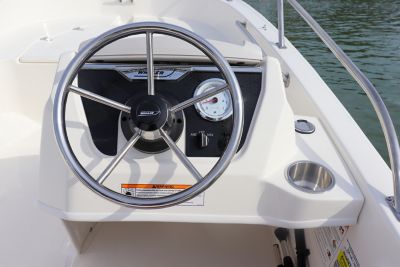

Steering wheel - stainless steel
Tachometer
Fiberglass helm bench seat with drink holders (2)
40 ELPT EFI FourStroke Mercury engine
Battery box with hold-down strap
Fuel tank (portable) (6.5 gallons) with hold-down strap
Navigation lights with rope guide
No-feedback steering
Propeller - aluminum
Vessel view mobile (not compatible with 25hp engine option)

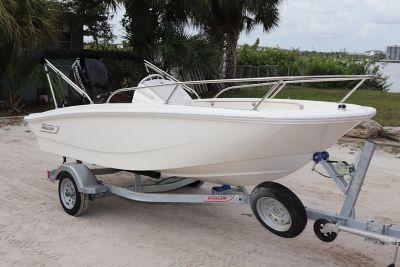

Lights
Tie downs
Torsion axle
Trailer jack
Winch with nylon strap
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
Platinum
Platinum
White
White
Graphic Colors
Black graphics
Black graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
Red graphics
Red graphics
White graphics
White graphics
Helm Seating

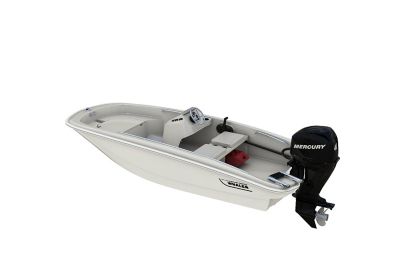

Seating - bench seat cushions (tan)
(dealer installation required*)
Seating - bucket sport seat (pair) (tan)
(dealer installation required*)
Seating - bucket sport seat (tan)
(dealer installation required*)

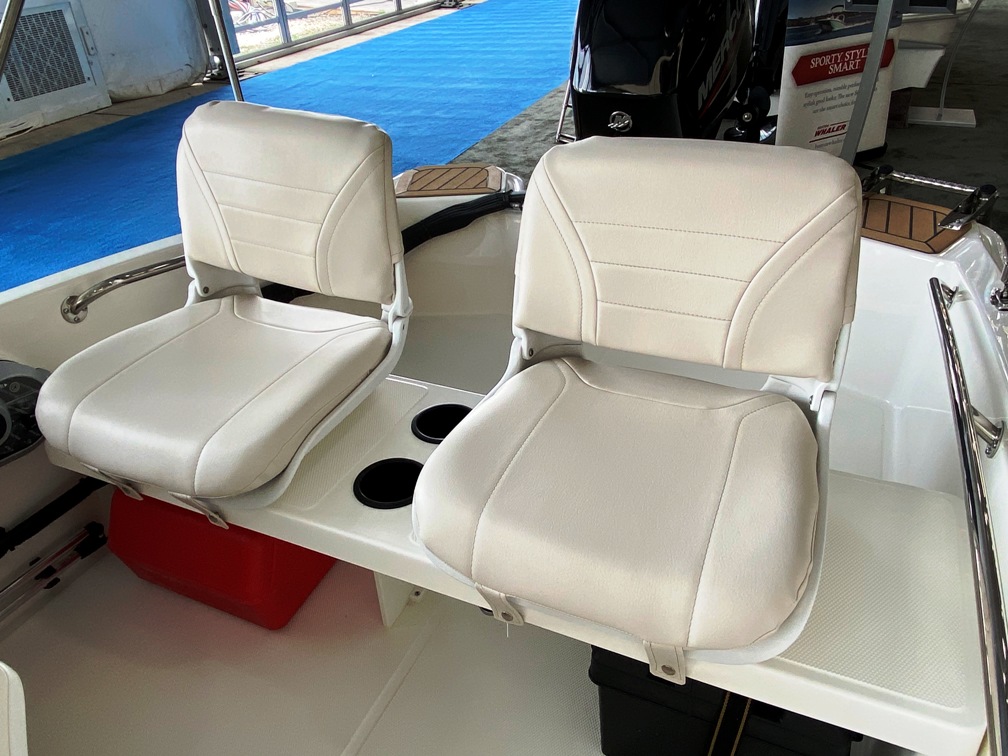

Seating - helm seat w/backrest (tan)
(hinged backrest) (single seat) (tan) (dealer installation required*)
Seating- helm seat w/backrest (tan)(pair)
(hinged backrest) (dealer installation required*)
Railings and Rub Rails

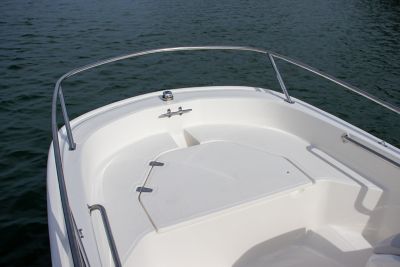

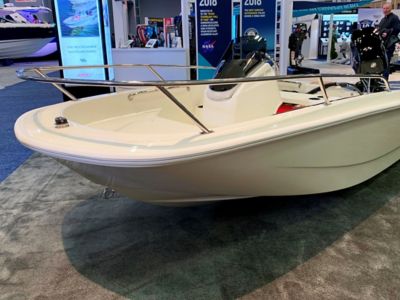

Rails - at bow
Rails - at bow

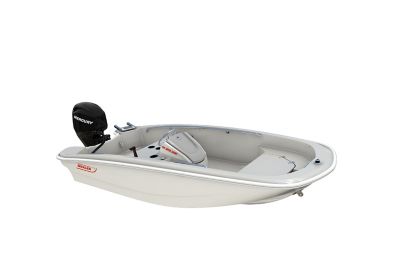

Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert

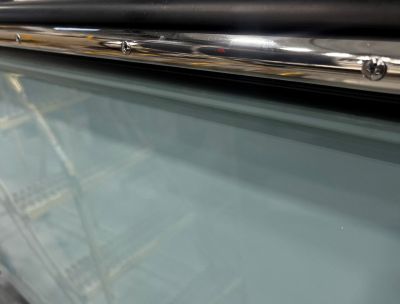

Black Rubrail with Stainless Steel Insert
Black Rubrail with Stainless Steel Insert
Fishing Features

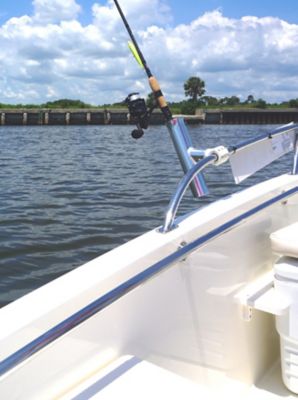

Rod holder (rail mounted)
(pair) (dealer installation required*)
Standard Features
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
8” bow cleat
20” interior freeboard
Bow locker with fiberglass cover and overboard drain
Cockpit drain plug
Heavy-duty rub rail
Lifting eyes - bow and stern
Side rails - welded stainless steel (2 short starboard, 1 long port-side)
Stern eye cleats
Swim ladder
12-V receptacle
All around navigation light receptacle
Drink holders (2)
Fiberglass side console with lockable storage
Safety switch
Side mount Mercury® control
Steering wheel - stainless steel
Tachometer
Fiberglass helm bench seat with drink holders (2)
40 ELPT EFI FourStroke Mercury engine
Battery box with hold-down strap
Fuel tank (portable) (6.5 gallons) with hold-down strap
Navigation lights with rope guide
No-feedback steering
Propeller - aluminum
Vessel view mobile (not compatible with 25hp engine option)
Lights
Tie downs
Torsion axle
Trailer jack
Winch with nylon strap
Options
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
Platinum
Platinum
White
White
Graphic Colors
Black graphics
Black graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
Red graphics
Red graphics
White graphics
White graphics
Helm Seating
Seating - bench seat cushions (tan)
(dealer installation required*)
Seating - bucket sport seat (pair) (tan)
(dealer installation required*)
Seating - bucket sport seat (tan)
(dealer installation required*)
Seating - helm seat w/backrest (tan)
(hinged backrest) (single seat) (tan) (dealer installation required*)
Seating- helm seat w/backrest (tan)(pair)
(hinged backrest) (dealer installation required*)
Railings and Rub Rails
Rails - at bow
Rails - at bow
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Black Rubrail with Stainless Steel Insert
Black Rubrail with Stainless Steel Insert
Fishing Features
Rod holder (rail mounted)
(pair) (dealer installation required*)

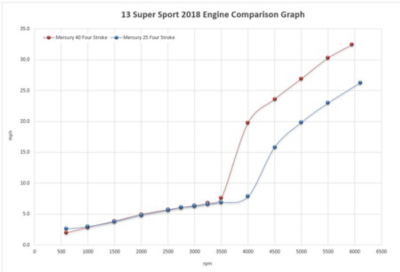

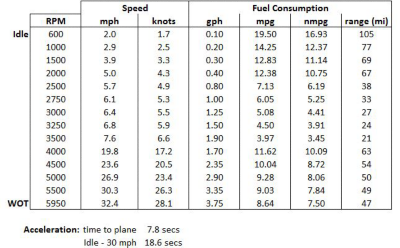

Model: 130 Super Sport
Hull #: USBWCE0021F819
Engine: Mercury 40 FourStroke
Horsepower: 40
Gear Ratio: 2.00 : 1
Prop: 10.1” x 14” Spitfire
Fuel Capacity: 6 gallons
Notable Options: Teak package, Bimini top
Test Date: 11-June-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 798 lbs
Fuel: 6 gallons
Water: 0 gallons
Test Gear: 272 lbs
Personnel: 390 lbs
Test Weight: 1,497 lbs
Water Conditions: 82° F
Weather Conditions: 78° F

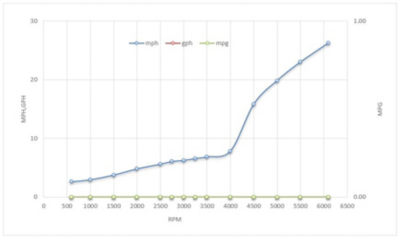

Model: 130 Super Sport
Hull #: USBWCE0600I819

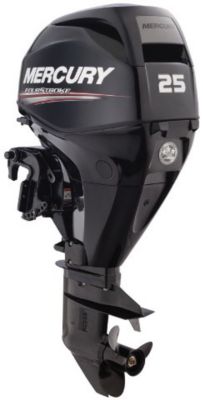

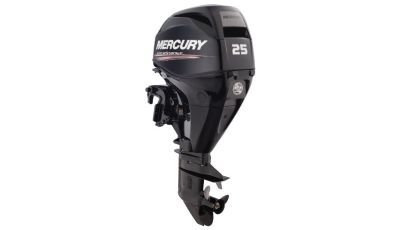

Engine: Mercury 25 Four Stroke
Horsepower: 25
Gear Ratio: 1.92:1
Prop: 9 3/4 X 9 1/2 Black Max
Fuel Capacity: 6 gallons
Notable Options: Bow Rail
Test Date: 25-Sep-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 920 lbs
Fuel: 6 gallons
Water: 0 gallon
Test Gear: 10 lbs
Personnel: 330 lbs
Test Weight: 1297 lbs
Water Conditions: 84° F
Weather Conditions: 88° F
Model: 130 Super Sport
Hull #: USBWCE0021F819
Engine: Mercury 40 FourStroke
Horsepower: 40
Gear Ratio: 2.00 : 1
Prop: 10.1” x 14” Spitfire
Fuel Capacity: 6 gallons
Notable Options: Teak package, Bimini top
Test Date: 11-June-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 798 lbs
Fuel: 6 gallons
Water: 0 gallons
Test Gear: 272 lbs
Personnel: 390 lbs
Test Weight: 1,497 lbs
Water Conditions: 82° F
Weather Conditions: 78° F
Model: 130 Super Sport
Hull #: USBWCE0600I819
Engine: Mercury 25 Four Stroke
Horsepower: 25
Gear Ratio: 1.92:1
Prop: 9 3/4 X 9 1/2 Black Max
Fuel Capacity: 6 gallons
Notable Options: Bow Rail
Test Date: 25-Sep-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 920 lbs
Fuel: 6 gallons
Water: 0 gallon
Test Gear: 10 lbs
Personnel: 330 lbs
Test Weight: 1297 lbs
Water Conditions: 84° F
Weather Conditions: 88° F
