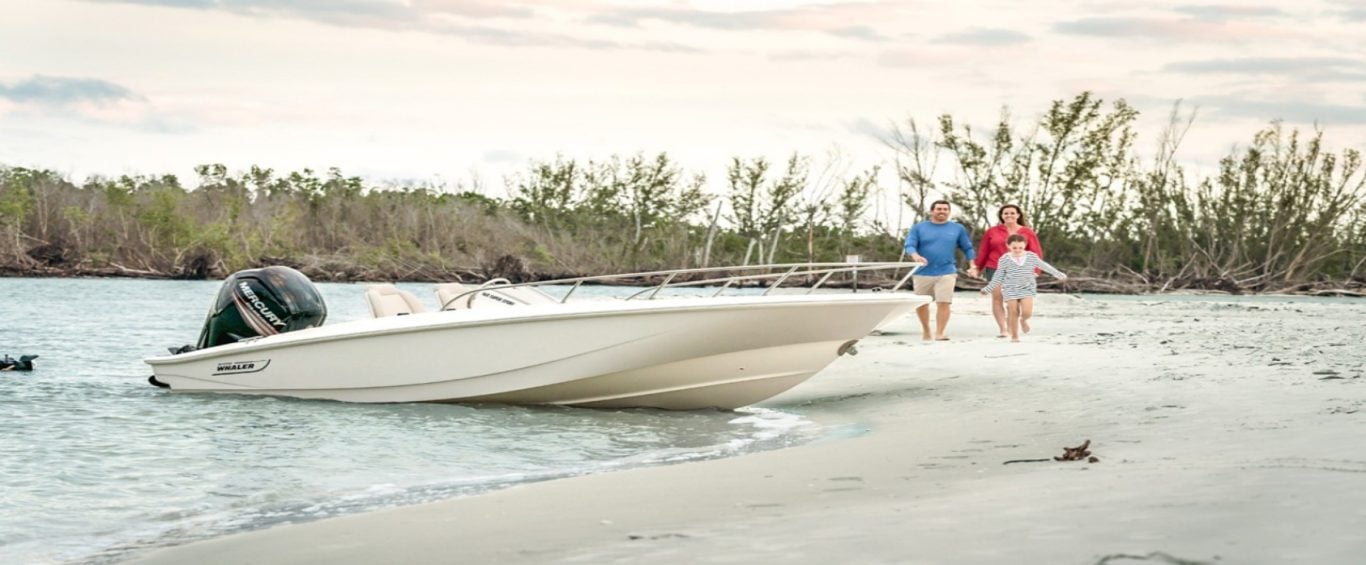

160 Super Sport
Get ready to explore: The all-new 160 Super Sport makes every outing safer, more comfortable and more fun. Marking a keel-up redesign for Boston Whaler's popular Super Sport series, the 160 delivers effortless operation, low-maintenance durability and a smart, spacious layout. Exciting new features include dual aft swim platforms, a lockable storage compartment in the front of the console, and a stylish new rear-accent hull color. Choose from several available seating configurations to accommodate your whole crew in comfort, and count on the 160 Super Sport to be ready for action!
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.

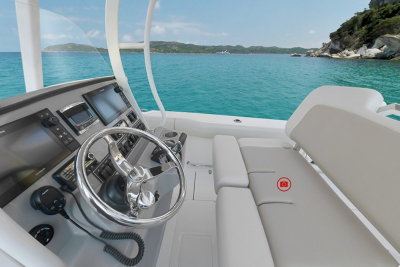

Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
160 SUPER SPORT FEATURES

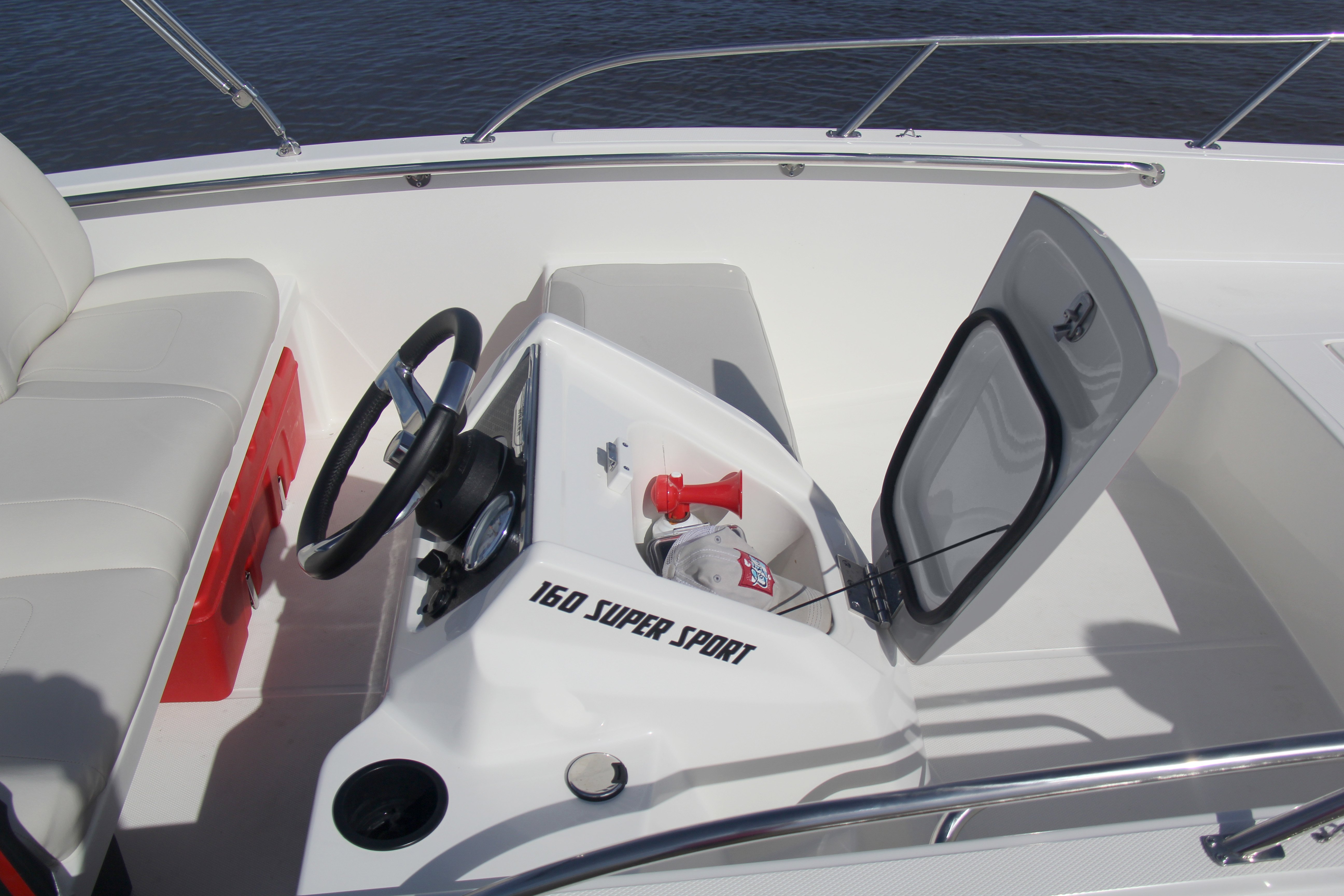

- Lockable, water-resistant front-of-console storage keeps valuables safe and dry
- 2 console drink holders put hydration at your fingertips

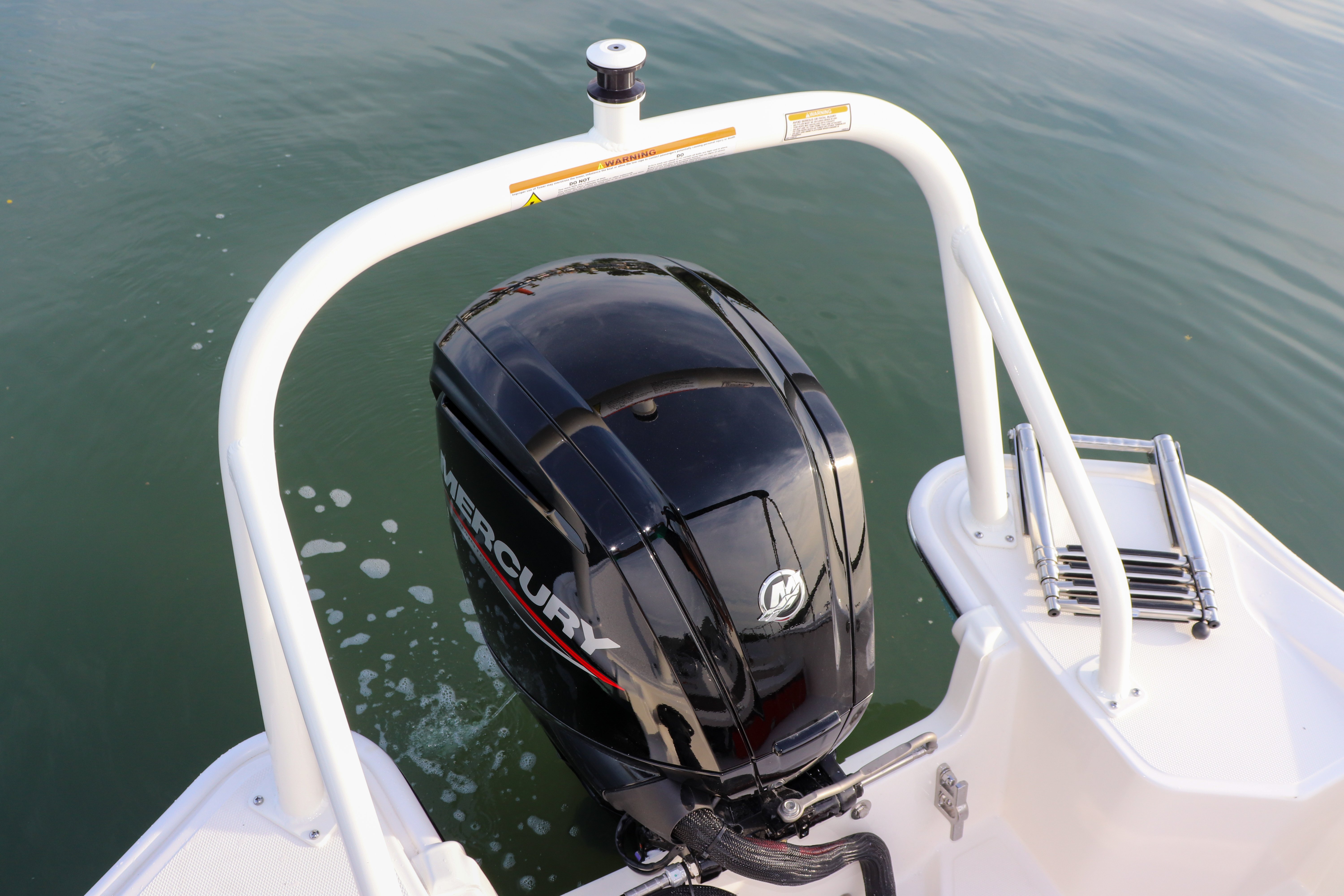

- An optional ski tow elevates watersports capabilities

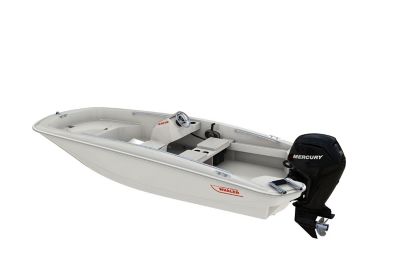

- Available seating options include bench seats with cushions and backrest for added comfort

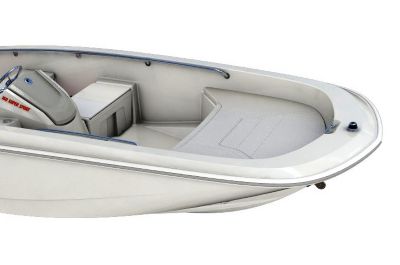

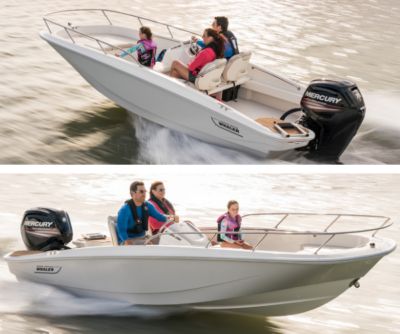

- Choose the bow cushion and bow rail for lounging up front
- Enhance performance with the available 90-hp Mercury FourStroke engine upgrade and optional 19 gallon fuel tank
Dimensions
16’ 2” (4.93 m)
L.O.A. (Centerline)
17’ 5” (5.31 m)
L.O.A. (with platforms)
6’ 10” (2.08 m)
Beam
10” (0.25 m)
Draft
20” (0.50 m)
Transom Height
15 degrees
Deadrise at Transom
3’ 10” (1.16 m)
Bridge Clearance (no top)
6’ 3” (1.91 m)
Bridge Clearance (with suntop)
21’ 10”L x 7’ 5”W x 6’ 3”H
Package Boat Specs (on trailer/engine up reduction for swing tongue: 1’ 8”)
C
European Certification
Weight
1,060 lbs (480 kg)
Weight (dry, no engine)
1,525 lbs (692 kg)
Weight (with std. engine, fuel and water)
Capacity
1,529 lbs (694 kg)
Maximum Weight Capacity
3,000 lbs (1,360 kg)
Swamped Capacity
6
Persons Capacity
13 gallons (49.2 L)
Fuel Capacity - Standard
19 gallons (71.9 L)
Fuel Capacity - Optional
Engines
90 HP (67.11 kW)
Maximum Horsepower
75 HP (55.92 kW)
Minimum Horsepower
418 lbs (190 kg)
Maximum Engine Weight
16’ 2” (4.93 m)
L.O.A. (Centerline)
17’ 5” (5.31 m)
L.O.A. (with platforms)
6’ 10” (2.08 m)
Beam
10” (0.25 m)
Draft
20” (0.50 m)
Transom Height
15 degrees
Deadrise at Transom
3’ 10” (1.16 m)
Bridge Clearance (no top)
6’ 3” (1.91 m)
Bridge Clearance (with suntop)
21’ 10”L x 7’ 5”W x 6’ 3”H
Package Boat Specs (on trailer/engine up reduction for swing tongue: 1’ 8”)
C
European Certification
1,060 lbs (480 kg)
Weight (dry, no engine)
1,525 lbs (692 kg)
Weight (with std. engine, fuel and water)
1,529 lbs (694 kg)
Maximum Weight Capacity
3,000 lbs (1,360 kg)
Swamped Capacity
6
Persons Capacity
13 gallons (49.2 L)
Fuel Capacity - Standard
19 gallons (71.9 L)
Fuel Capacity - Optional
90 HP (67.11 kW)
Maximum Horsepower
75 HP (55.92 kW)
Minimum Horsepower
418 lbs (190 kg)
Maximum Engine Weight
Standard features & Options
All hardware 316-L stainless steel
All rails welded 316-L stainless steel

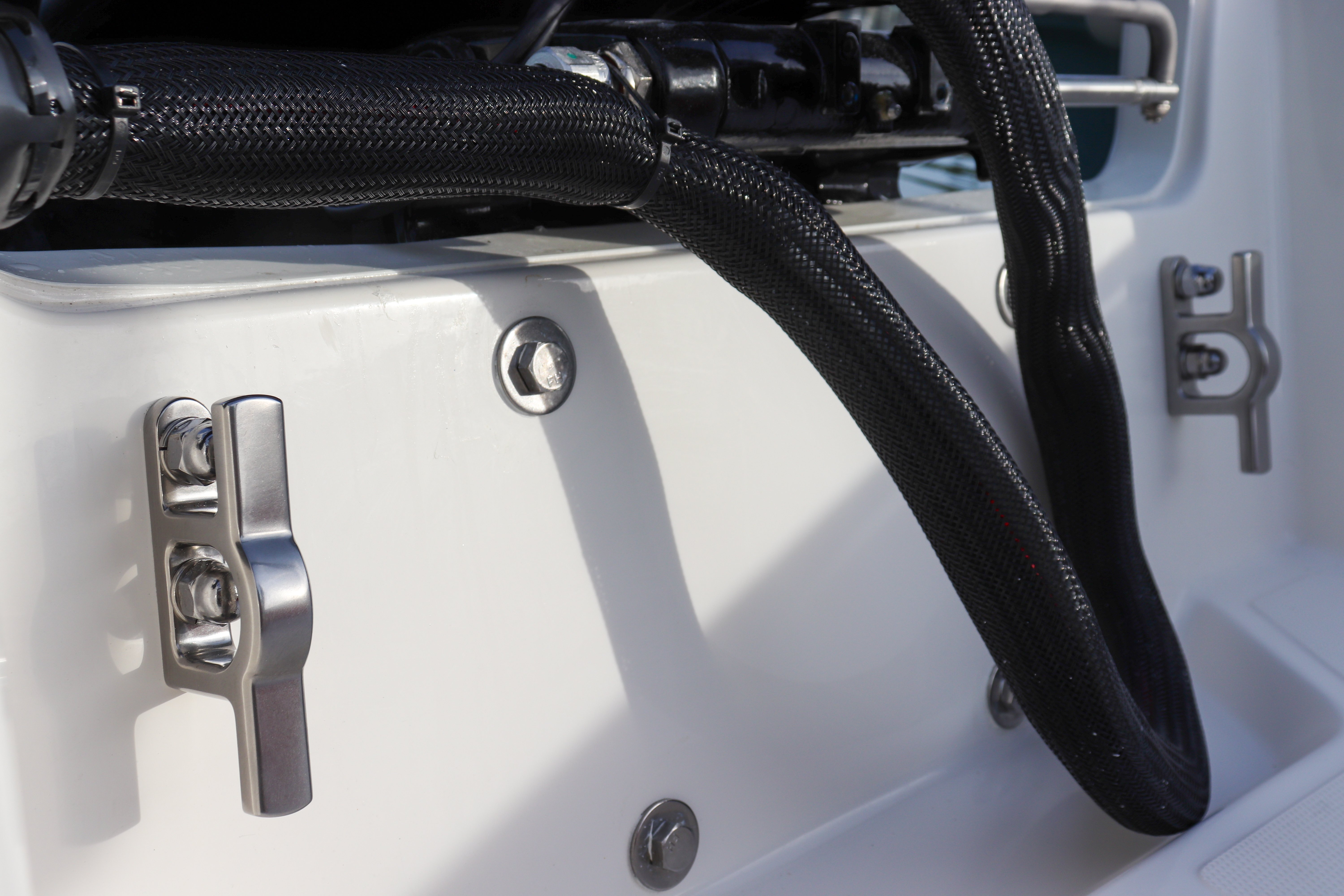

8” cleats (3)
24.5” interior freeboard
Bow and stern lifting eyes
Bow locker with fiberglass cover and overboard drain
Cockpit drain plug
Heavy-duty rub rail
Side rails - welded stainless steel
Starboard side storage shelf
Swim ladder
Transom boarding steps
12-V receptacle
Drink holders (2)
Fiberglass side console with lockable storage
Safety switch

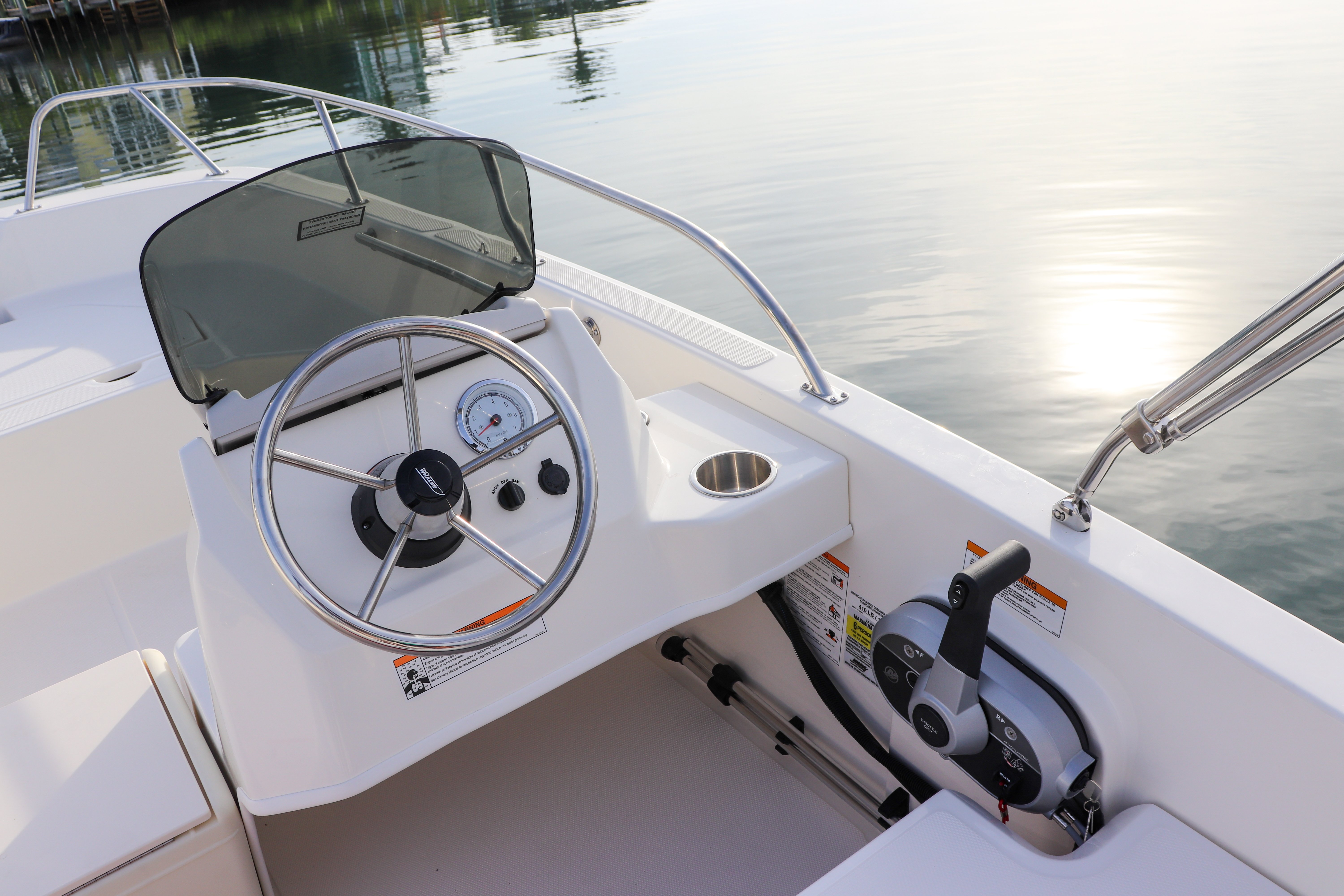

Side mount Mercury® control

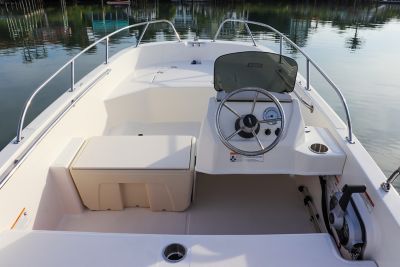

Steering wheel - stainless steel
Tachometer
Console side seat cooler
Fiberglass helm bench seat with drink holders (2)

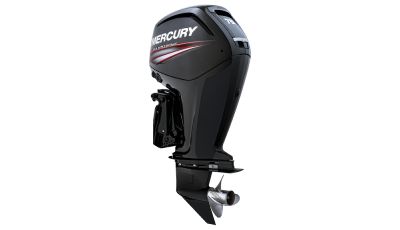

75 ELPT EFI FourStroke Mercury engine
Battery box with hold-down strap

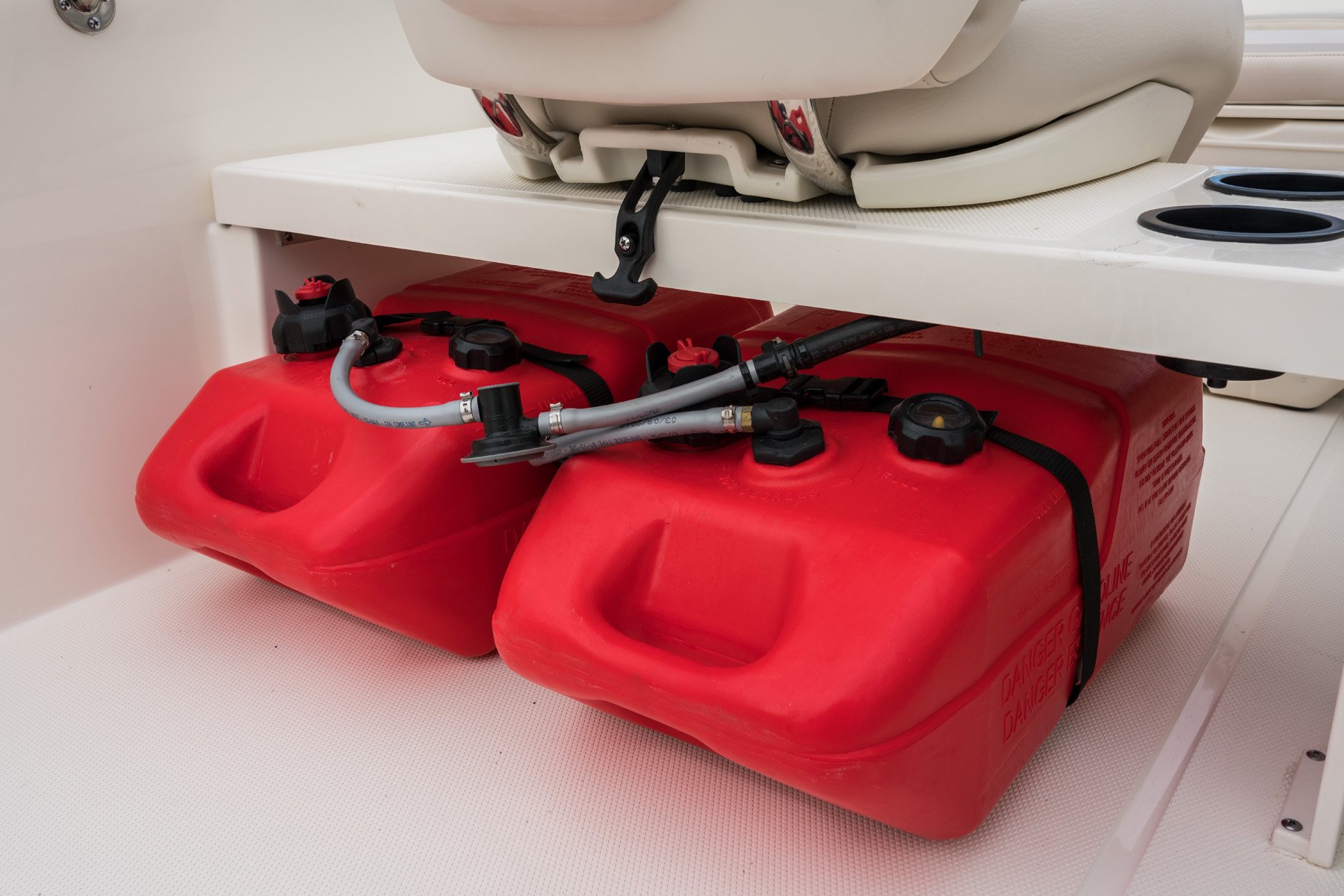

Fuel tanks (2)(portable) (6.5 gallons) with hold-down strap
Navigation lights with rope guide
No-feedback steering
Propeller - aluminum
Vessel view mobile
LED lights
Tie downs
Torsion axle
Trailer jack
Winch with nylon strap
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
Platinum
Platinum
White
White
Graphic Colors
Black graphics
Black graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator)
Red graphics
Red graphics
White graphics
White graphics
Frame Color
Black Frame
White Frame
Helm Seating
Seating - bench seat cushions (tan)
(dealer installation required*)
Seating - bench seat with backrest (tan)
(dealer installation required*)

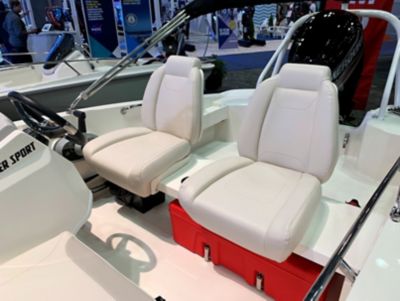

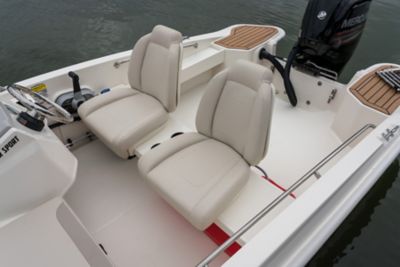

Seating - bucket sport seat (tan)
(dealer installation required*)

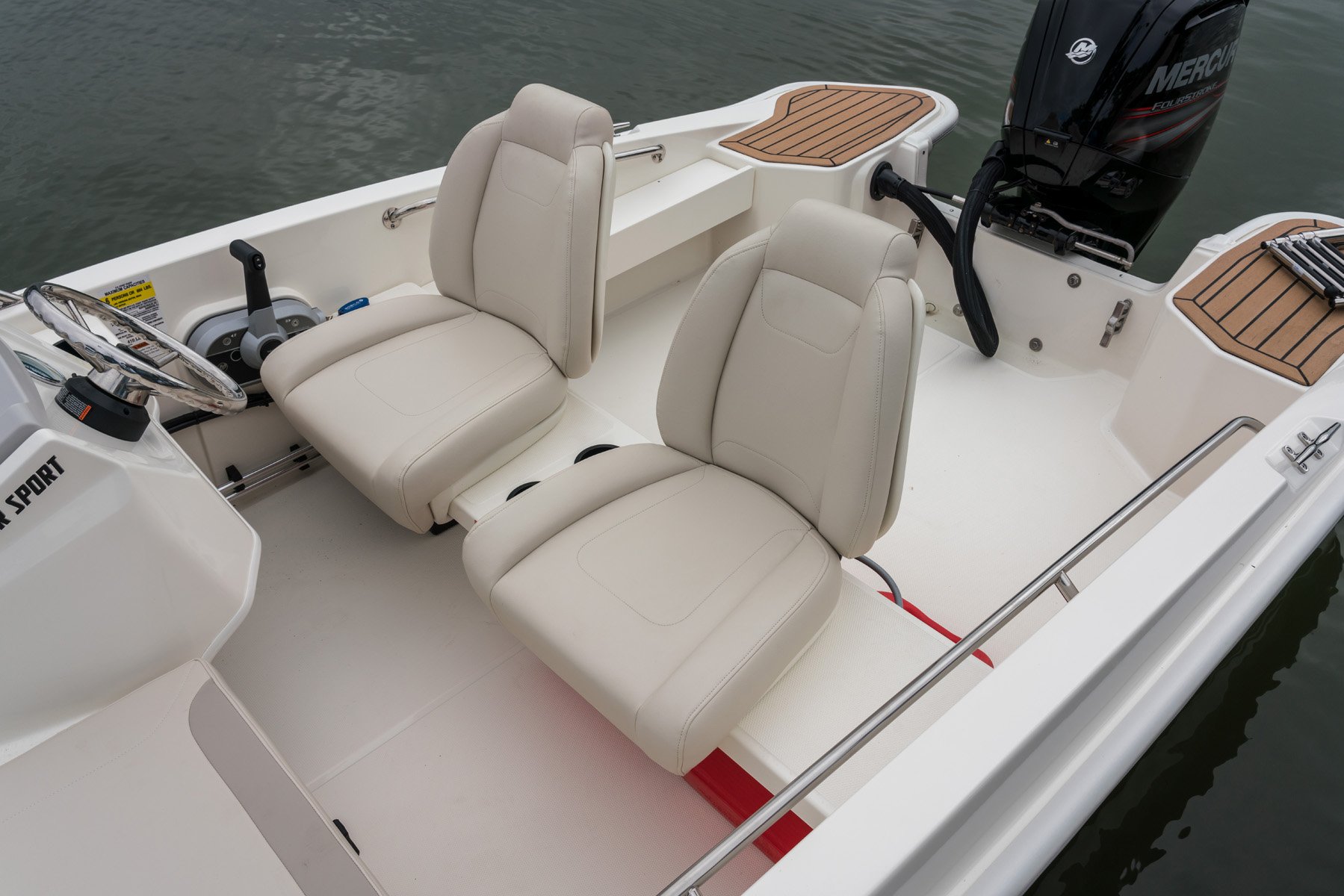

Seating - bucket sport seat (tan) (pair)
(dealer installation required*)

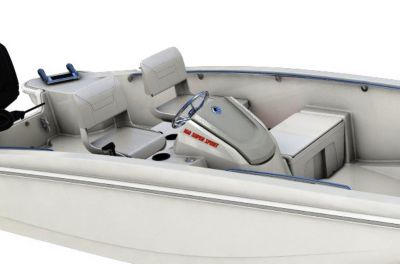

Seating - helm seat w/backrest (tan)
(hinged backrest) (single seat) (tan) (dealer installation required*)
Seating - helm seat w/backrest (tan) (pair)
(hinged backrest) (pair) (tan) (dealer installation required*)
Railings and Rub Rails
Rails - at bow
Rails - at bow

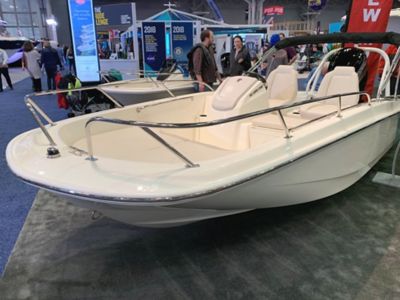

Rails - split bow rail
(factory installed only)

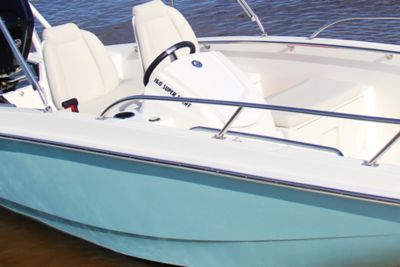

Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert

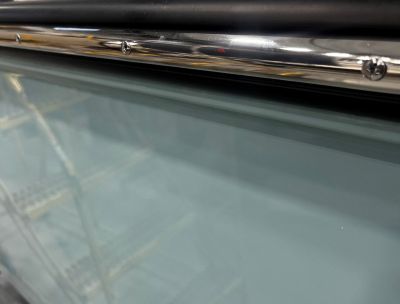

Black Rubrail with Stainless Steel Insert
Black Rubrail with Stainless Steel Insert
Notable Options & Accessories
Bow tow eye
(factory installed only)

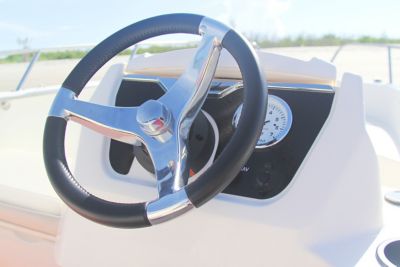

Dash applique
Dash applique

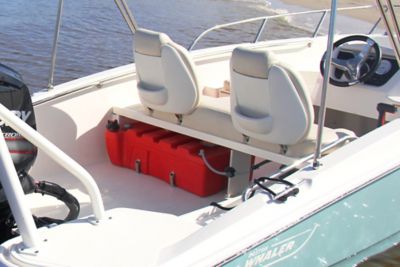

Fuel tank
(single 19-gallon tank) (factory installed only)

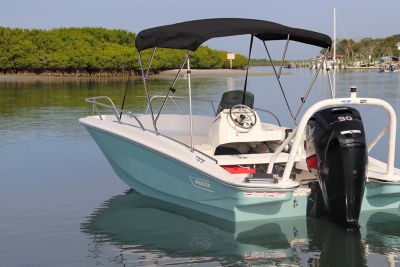

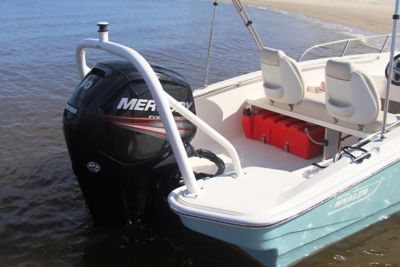

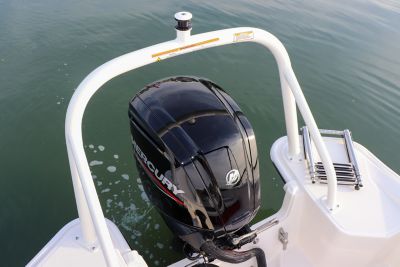

Ski tow (powder-coated)
(not compatible with standard 75 HP engine) (not compatible with teak boarding steps) (must select frame color, white or black)

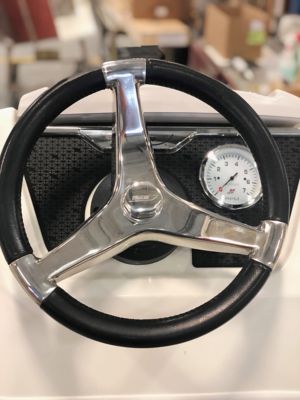

Steering wheel
(stainless steel) (dealer installation required*)

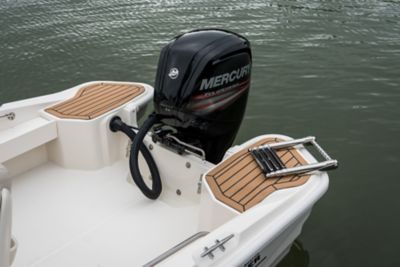

Teak boarding steps
(synthetic teak) (not compatible with ski tow)

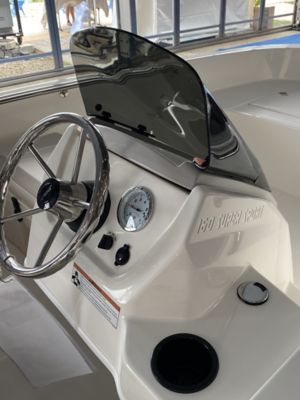

Windshield
Windshield
Standard Features
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
8” cleats (3)
24.5” interior freeboard
Bow and stern lifting eyes
Bow locker with fiberglass cover and overboard drain
Cockpit drain plug
Heavy-duty rub rail
Side rails - welded stainless steel
Starboard side storage shelf
Swim ladder
Transom boarding steps
12-V receptacle
Drink holders (2)
Fiberglass side console with lockable storage
Safety switch
Side mount Mercury® control
Steering wheel - stainless steel
Tachometer
Console side seat cooler
Fiberglass helm bench seat with drink holders (2)
75 ELPT EFI FourStroke Mercury engine
Battery box with hold-down strap
Fuel tanks (2)(portable) (6.5 gallons) with hold-down strap
Navigation lights with rope guide
No-feedback steering
Propeller - aluminum
Vessel view mobile
LED lights
Tie downs
Torsion axle
Trailer jack
Winch with nylon strap
Options
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
Platinum
Platinum
White
White
Graphic Colors
Black graphics
Black graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator)
Red graphics
Red graphics
White graphics
White graphics
Frame Color
Black Frame
White Frame
Helm Seating
Seating - bench seat cushions (tan)
(dealer installation required*)
Seating - bench seat with backrest (tan)
(dealer installation required*)
Seating - bucket sport seat (tan)
(dealer installation required*)
Seating - bucket sport seat (tan) (pair)
(dealer installation required*)
Seating - helm seat w/backrest (tan)
(hinged backrest) (single seat) (tan) (dealer installation required*)
Seating - helm seat w/backrest (tan) (pair)
(hinged backrest) (pair) (tan) (dealer installation required*)
Railings and Rub Rails
Rails - at bow
Rails - at bow
Rails - split bow rail
(factory installed only)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Black Rubrail with Stainless Steel Insert
Black Rubrail with Stainless Steel Insert
Notable Options & Accessories
Bow tow eye
(factory installed only)
Dash applique
Dash applique
Fuel tank
(single 19-gallon tank) (factory installed only)
Ski tow (powder-coated)
(not compatible with standard 75 HP engine) (not compatible with teak boarding steps) (must select frame color, white or black)
Steering wheel
(stainless steel) (dealer installation required*)
Teak boarding steps
(synthetic teak) (not compatible with ski tow)
Windshield
Windshield

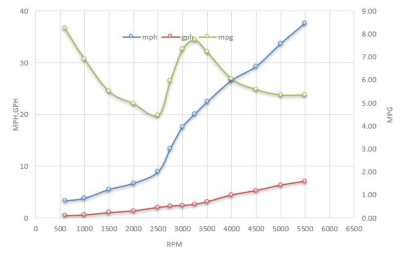

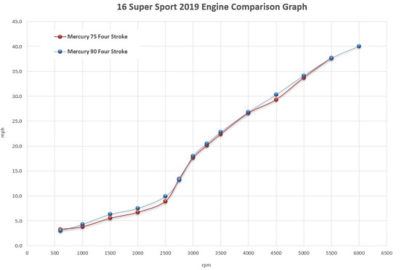

Model: 160 Super Sport
Hull #: USBWCE0423G819
Engine: Mercury 75 FourStroke
Horsepower: 75
Gear Ratio: 2.07 : 1
Prop: 13.5” x 15” Spitfire
Fuel Capacity: 13 gallons

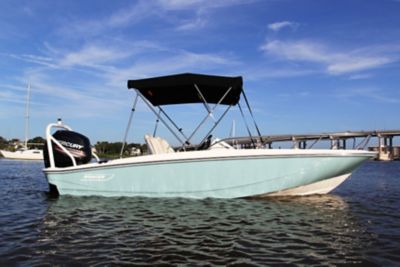

Notable Options: Bimini Top, Split Bow Rail
Test Date: 23-August-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 1,590 lbs
Fuel: 6 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: 2,062 lbs
Water Conditions: 84° F
Weather Conditions: 83° F
Model: 160 Super Sport
Hull #: USBWCE0423G819
Engine: Mercury 90 FourStroke
Horsepower: 90
Gear Ratio: 2.07 : 1
Prop: 13.5” x 15” Spitfire
Fuel Capacity: 13 gallons
Notable Options: Bimini Top, Ski Tow
Test Date: 31-July-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 1,590 lbs
Fuel: 8 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: 2,074 lbs
Water Conditions: 84° F
Weather Conditions: 80° F

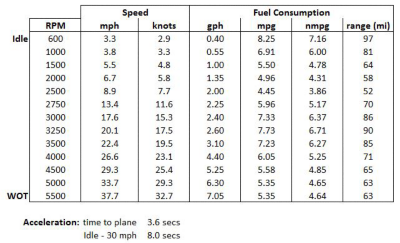

Model: 160 Super Sport
Hull #: USBWCE0423G819
Engine: Mercury 75 FourStroke
Horsepower: 75
Gear Ratio: 2.07 : 1
Prop: 13.5” x 15” Spitfire
Fuel Capacity: 13 gallons
Notable Options: Bimini Top, Split Bow Rail
Test Date: 23-August-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 1,590 lbs
Fuel: 6 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: 2,062 lbs
Water Conditions: 84° F
Weather Conditions: 83° F

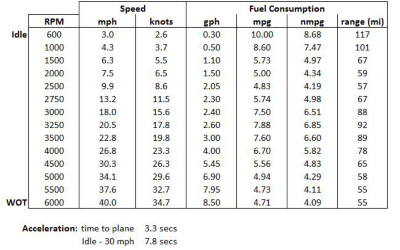

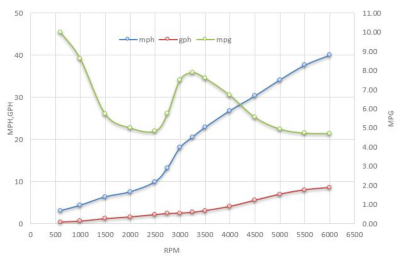

Model: 160 Super Sport
Hull #: USBWCE0423G819
Engine: Mercury 90 FourStroke
Horsepower: 90
Gear Ratio: 2.07 : 1
Prop: 13.5” x 15” Spitfire
Fuel Capacity: 13 gallons
Notable Options: Bimini Top, Ski Tow
Test Date: 31-July-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 1,590 lbs
Fuel: 8 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: 2,074 lbs
Water Conditions: 84° F
Weather Conditions: 80° F
