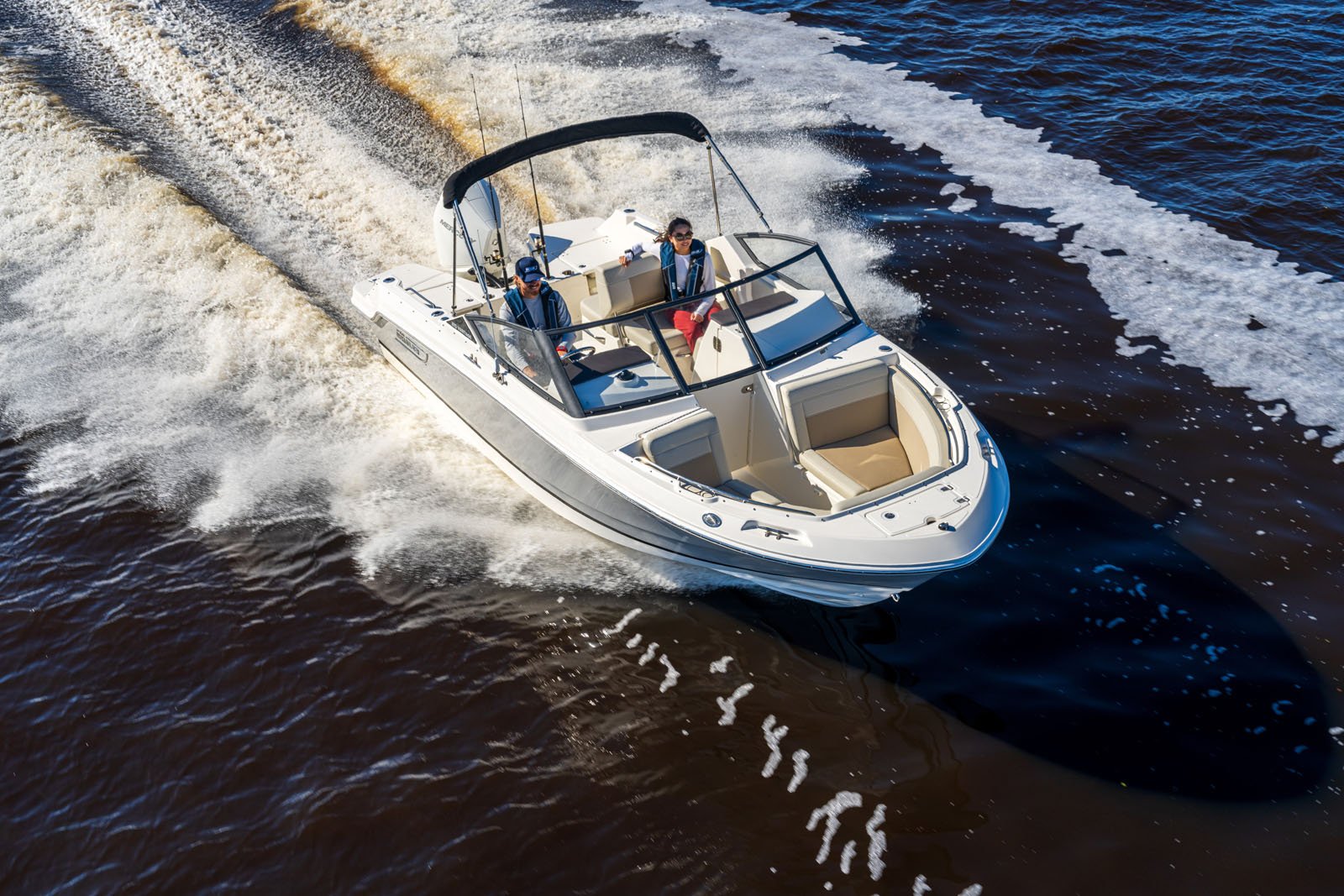

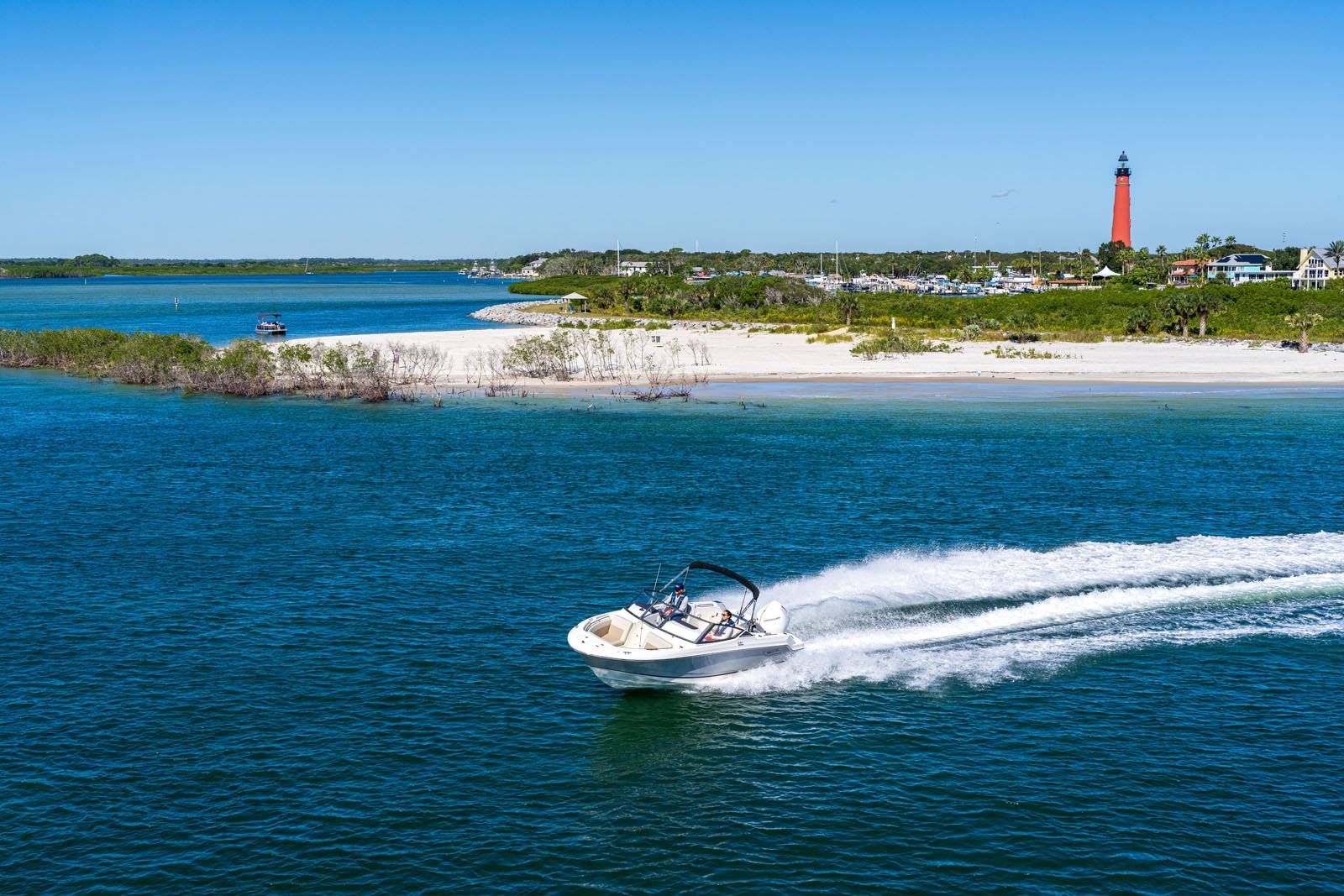

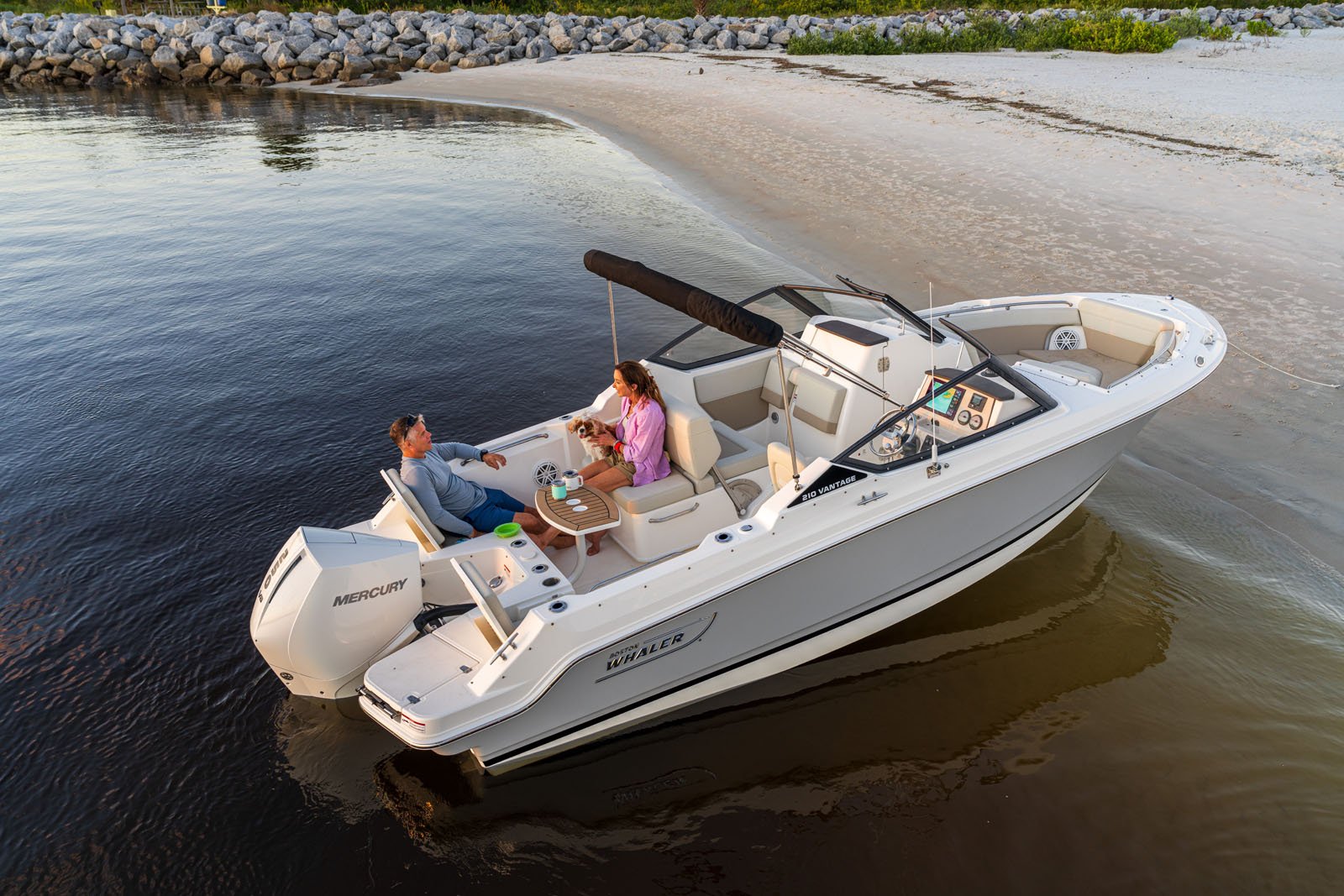

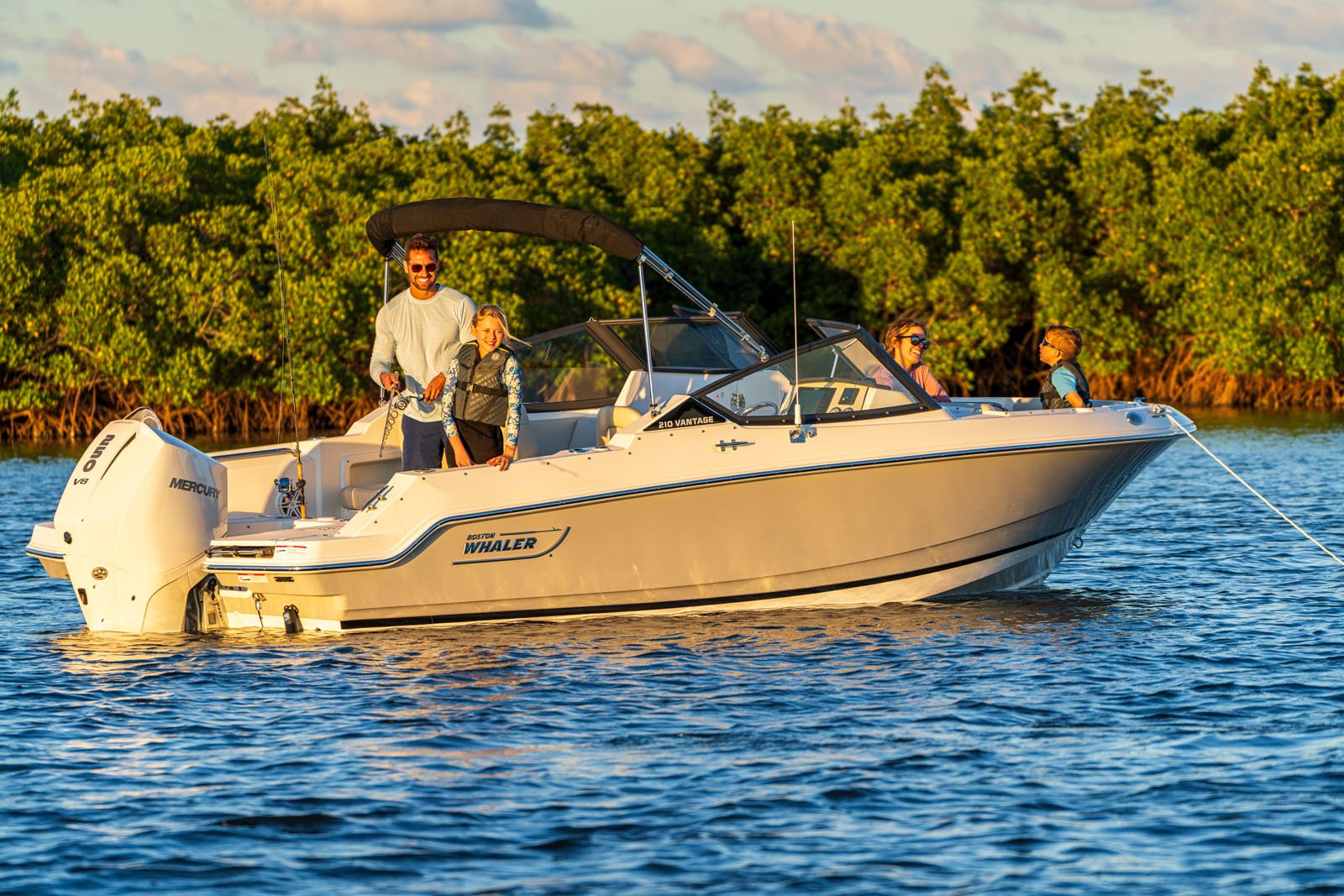

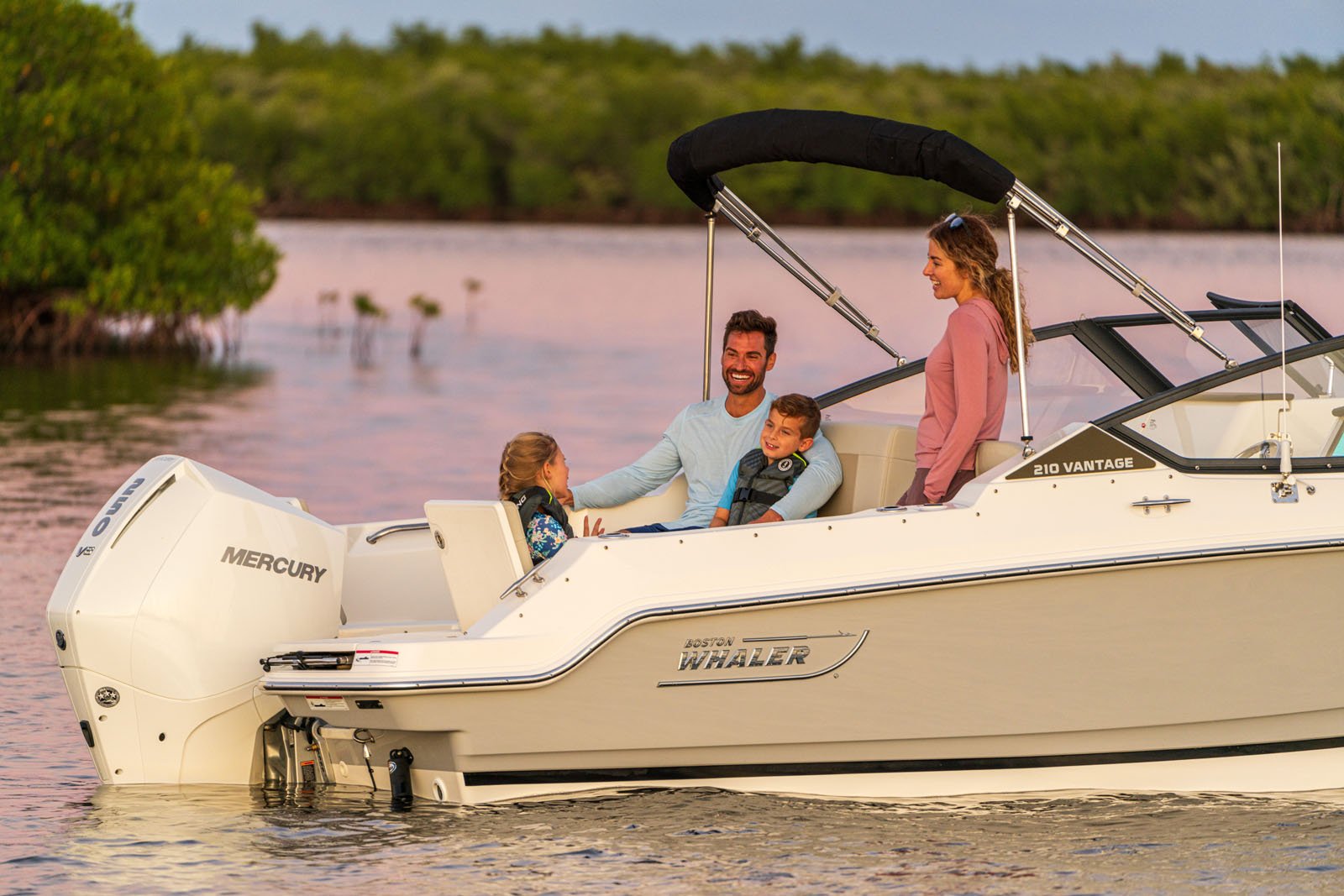

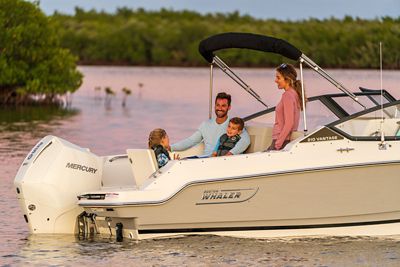

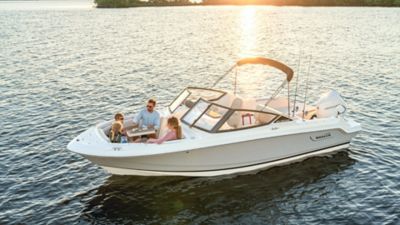

210 Vantage

*Suggested MSRP retail price in US dollars (applies to the US only) for the current model year. Pricing does not include taxes or registration fees. Dealer alone sets the final price.

The 210 Vantage just will surprise you. It’s a boat designed to meet the needs of the widest possible range of boaters—from fun-loving families to hardcore anglers. A dual console cockpit with wraparound windshield provides functional comfort for passengers. Comfortable seating in the bow, cockpit and stern allows for family-sized crews to relax all day. And roomy storage throughout the boat means you can load in all the gear you need for any type of adventure on the water. At a mere 21 feet, it’s easily trailerable, but 250 horsepower on the transom means you can get up and go when you’re ready to ride.



210-vantage-virtual-tour
VIRTUAL TOUR

Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!

Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.

210 VANTAGE FEATURES


  • Wrap-around glass windshield provides maximum protection from the elements
  • Flip up backrest for stern seating and additional cockpit space
  • Stern casting platform for fishing when seat backrests are down
  • Optional convertible portside lounge with flipdown back rest and storage beneath
  • Convenient portable head in the portside storage compartment

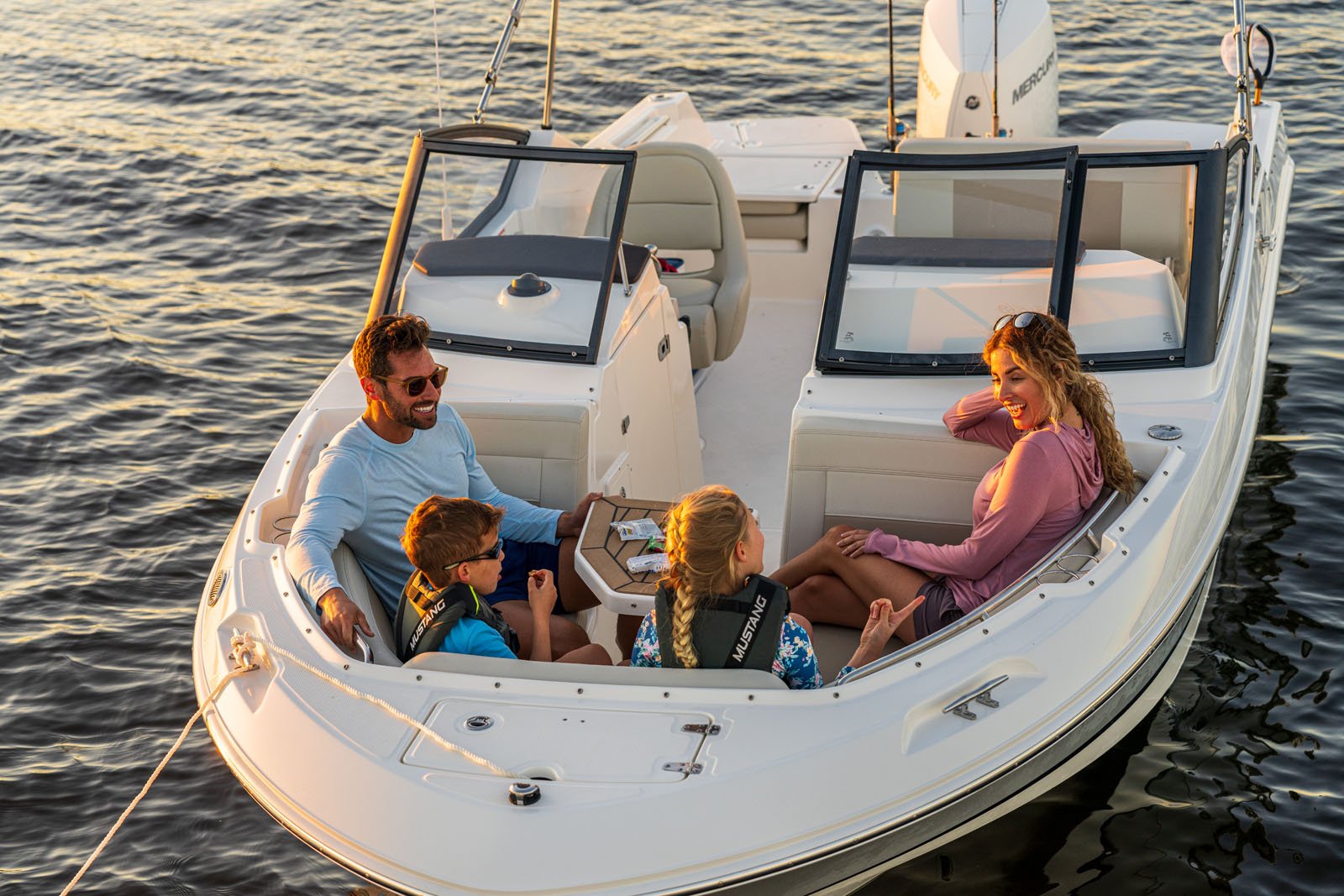

  • Spacious, cushioned bow seating with roomy storage beneath
  • Anchor locker for a convenient and accessible storage space
  • Optional premium upholstery package for luxurious comfort and durability
  • Optional state of the art electronics by Simrad® and JL Systems®

Capacity

9

Persons Capacity

80 gallons (303 L)

Fuel Capacity

2490 lbs (1129 kg)

Maximum Weight Capacity

2600 lbs (1179 kg)

Swamped Capacity

10 gallons (37.8 L)

Water Capacity

Dimensions

21' 3" (6.47 m)

L.O.A. (on centerline, from bow to engine mounting location)

8' 6" (2.59 m)

Beam

6' 11" (2.11 m)

Bridge Clearance (with suntop)

4' 11" (1.50 m)

Bridge Clearance

20º

Deadrise at Transom

18" in (0.46 m)

Draft

22' 8" (6.91 m)

L.O.A (with platforms)

28’ 10” X 8’ 6” X 7’ 11”

Package boat specs (on trailer/engine up)

25" (0.64 m)

Transom Height

Engines

250 hp (149 kW)

Maximum Horsepower

550 lbs (249 kg)

Maximum Engine Weight

200 hp (112 kW)

Minimum Horsepower

Weight

4,880 lbs (2214 kg)

Weight (with engine, fuel and water)

3,810 lbs (1728 kg)

Weight (dry, no engine)

9

Persons Capacity

80 gallons (303 L)

Fuel Capacity

2490 lbs (1129 kg)

Maximum Weight Capacity

2600 lbs (1179 kg)

Swamped Capacity

10 gallons (37.8 L)

Water Capacity

21' 3" (6.47 m)

L.O.A. (on centerline, from bow to engine mounting location)

8' 6" (2.59 m)

Beam

6' 11" (2.11 m)

Bridge Clearance (with suntop)

4' 11" (1.50 m)

Bridge Clearance

20º

Deadrise at Transom

18" in (0.46 m)

Draft

22' 8" (6.91 m)

L.O.A (with platforms)

28’ 10” X 8’ 6” X 7’ 11”

Package boat specs (on trailer/engine up)

25" (0.64 m)

Transom Height

250 hp (149 kW)

Maximum Horsepower

550 lbs (249 kg)

Maximum Engine Weight

200 hp (112 kW)

Minimum Horsepower

4,880 lbs (2214 kg)

Weight (with engine, fuel and water)

3,810 lbs (1728 kg)

Weight (dry, no engine)

Standard features & Options

Bow bolsters

Bow cushions with backrests

Bow walkthrough block off panel

Drink holders (4)

Fiberglass lids with latches (2)

Low profile welded stainless steel forward grab rails

26" cockpit depth

8" stainless steel cleats; (2) bow, (2) stern (2) spring line

Anchor locker with storage for fluke anchors

Bow and stern eyes

Cockpit courtesy lights (Blue)

Covered telescoping swim ladder with stainless steel grab rail

Casting platform – Port and Starboard aft

Heavy-duty rub rail

Motorwell drains (2)

Stainless cup holders for aft seats (2)

Rod holders – Stainless Steel, (2 gunnel mounted, 3 on transom box)

Self-bailing cockpit sole

Low profile stainless steel grab rails

200 XL V6 CMS (DTS) Black Mercury four stroke engine with hydraulic power steering

SmartCraft deluxe gauge package

Tilt steering

Stainless steel propeller

80 -gallon fuel tank

Automatic bilge pump

Dual battery trays with switch and automatic charging relay for house bank charging

Electric horn

LED navigation lights

Vessel View Mobile

Active engine trim

Grab rail - stainless steel

Interior light (white)

Gasketed lockable entry door

Bow seating area with lounge backrests port and starboard

Port and Starboard - Custom helm seat with pedestal and slide

Port and Starboard stern seats with folding backrests

All Rails Welded 316-L Stainless Steel

All Hardware 316-L Stainless Steel

Access panel to electronics

Cast stainless steel steering wheel with knob

Compass

Dash visor

Drink holders (2)

Electronics mounting surface

12V receptacle

USB outlet

Helm footrests

Electrical switch panel with integrated circuit breaker protection

Tempered glass windshield

Bow anchor locker with drain

Starboard console storage with stainless steel latch

Port console storage compartment with stainless steel latch

Port and starboard bow storage lockers with overboard drains

Gelcoat Hull Side Colors

White

Glacier Green

Classic Desert Tan

Light Blue

Platinum

Graphic Colors

Red graphics

Blue graphics

Black graphics

White graphics

Silver graphics

Chrome graphics

Upholstery Package

Standard upholstery package

Premium upholstery package

Tops & Towers

Suntop with boot

Single Engine

200 XL V6 DTS Black Mercury engine

200 XL V6 DTS White Mercury engine

225 XL V6 DTS Black Mercury engine

225 XL V6 DTS White Mercury engine

250 XL V8 DTS Black Mercury engine

250 XL V8 DTS White Mercury engine

Additional Seating

Convertible port lounge with storage

Packages

Plumbing package

Fishing package

Railings and Rub Rails

Rails- white rub rail with stainless insert

Rails- black rub rail with stainless insert

Notable Options & Accessories

Bow tow eye

Table - bow table with filler cushion

Table - at cockpit

Ski pylon

Electric trim tabs with indicator

Trailer - aluminum

Battery Package-factory installed GR31 AGM batteries

Navigation

Nav Package, Simrad 12" NSX

Nav Package, Simrad 9" NSX

Electronics

Deluxe Electronics Navigational Package

Stereo - JL Audio AM/FM

VHF Radio (Simrad)

CMAP Discovery X Chart Card - South America/Caribbean

CMAP Discovery X Chart Card - Australia/New Zealand

CMAP Discovery X Chart Card - Central/West Europe

CMAP Discovery X Chart Card - North/Central Europe

CMAP Discovery X Chart Card - Southern Europe

CMAP Discovery X Chart Card - Africa/Arabic Sea

CMAP Discovery X Chart Card - Asia

First Mate Safety & Security System Single Engine

First Mate Safety & Security System FOB Kit

Canvas

Black canvas

Blue canvas

Cockpit cover

Pedestal seat cover

Pedestal seat and lounge cover

Standard Features

Bow bolsters

Bow cushions with backrests

Bow walkthrough block off panel

Drink holders (4)

Fiberglass lids with latches (2)

Low profile welded stainless steel forward grab rails

26" cockpit depth

8" stainless steel cleats; (2) bow, (2) stern (2) spring line

Anchor locker with storage for fluke anchors

Bow and stern eyes

Cockpit courtesy lights (Blue)

Covered telescoping swim ladder with stainless steel grab rail

Casting platform – Port and Starboard aft

Heavy-duty rub rail

Motorwell drains (2)

Stainless cup holders for aft seats (2)

Rod holders – Stainless Steel, (2 gunnel mounted, 3 on transom box)

Self-bailing cockpit sole

Low profile stainless steel grab rails

200 XL V6 CMS (DTS) Black Mercury four stroke engine with hydraulic power steering

SmartCraft deluxe gauge package

Tilt steering

Stainless steel propeller

80 -gallon fuel tank

Automatic bilge pump

Dual battery trays with switch and automatic charging relay for house bank charging

Electric horn

LED navigation lights

Vessel View Mobile

Active engine trim

Grab rail - stainless steel

Interior light (white)

Gasketed lockable entry door

Bow seating area with lounge backrests port and starboard

Port and Starboard - Custom helm seat with pedestal and slide

Port and Starboard stern seats with folding backrests

All Rails Welded 316-L Stainless Steel

All Hardware 316-L Stainless Steel

Access panel to electronics

Cast stainless steel steering wheel with knob

Compass

Dash visor

Drink holders (2)

Electronics mounting surface

12V receptacle

USB outlet

Helm footrests

Electrical switch panel with integrated circuit breaker protection

Tempered glass windshield

Bow anchor locker with drain

Starboard console storage with stainless steel latch

Port console storage compartment with stainless steel latch

Port and starboard bow storage lockers with overboard drains

Options

Gelcoat Hull Side Colors

White

Glacier Green

Classic Desert Tan

Light Blue

Platinum

Graphic Colors

Red graphics

Blue graphics

Black graphics

White graphics

Silver graphics

Chrome graphics

Upholstery Package

Standard upholstery package

Premium upholstery package

Tops & Towers

Suntop with boot

Single Engine

200 XL V6 DTS Black Mercury engine

200 XL V6 DTS White Mercury engine

225 XL V6 DTS Black Mercury engine

225 XL V6 DTS White Mercury engine

250 XL V8 DTS Black Mercury engine

250 XL V8 DTS White Mercury engine

Additional Seating

Convertible port lounge with storage

Packages

Plumbing package

Fishing package

Railings and Rub Rails

Rails- white rub rail with stainless insert

Rails- black rub rail with stainless insert

Notable Options & Accessories

Bow tow eye

Table - bow table with filler cushion

Table - at cockpit

Ski pylon

Electric trim tabs with indicator

Trailer - aluminum

Battery Package-factory installed GR31 AGM batteries

Navigation

Nav Package, Simrad 12" NSX

Nav Package, Simrad 9" NSX

Electronics

Deluxe Electronics Navigational Package

Stereo - JL Audio AM/FM

VHF Radio (Simrad)

CMAP Discovery X Chart Card - South America/Caribbean

CMAP Discovery X Chart Card - Australia/New Zealand

CMAP Discovery X Chart Card - Central/West Europe

CMAP Discovery X Chart Card - North/Central Europe

CMAP Discovery X Chart Card - Southern Europe

CMAP Discovery X Chart Card - Africa/Arabic Sea

CMAP Discovery X Chart Card - Asia

First Mate Safety & Security System Single Engine

First Mate Safety & Security System FOB Kit

Canvas

Black canvas

Blue canvas

Cockpit cover

Pedestal seat cover

Pedestal seat and lounge cover

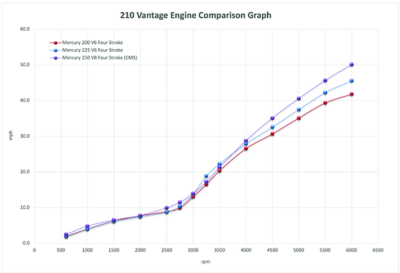

240 Vantage Engine Comparison


Model: 210 Vantage

Hull #: USBWCE0047F324

Engine: Mercury 2500 v8 Four Stroke (CMS)

Gear Ratio: 1.75 :1

Prop: 17P Enertia

Fuel Capacity: 80 gallons

Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio, 12" Electronics

Test Date: 23-Aug-23

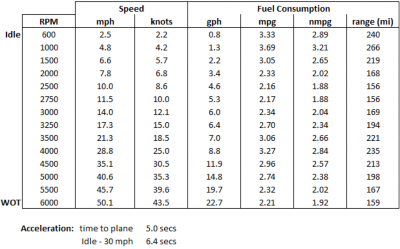

bw-vantage-210-single-250-v8-speedtable-2023



Tested weight is for the vessel as configured. Subject to change based on options and loading condition.



Dry Weight: 4,235 LBS

Fuel: 40 gallons

Water: 0 gallon

Test Gear: 25 lbs

Personnel: 330 lbs

Test Weight: 4,836 lbs

Water Conditions: 89° F

Weather Conditions: 84° F

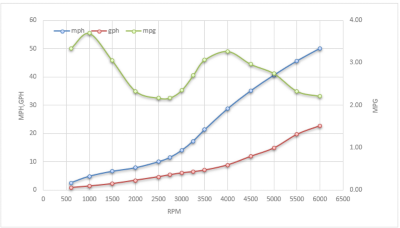

bw-vantage-210-single-250-v8-speedgraph-2023

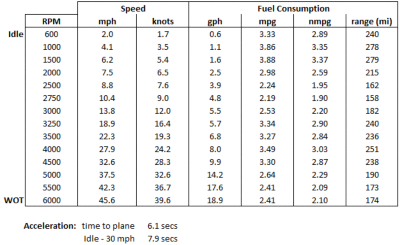

Model: 210 Vantage

Hull #: USBWCE0047F324

Engine: Mercury 225 V6 Four Stroke

Horsepower: 225

Gear Ratio: 1.85 :1

Prop: 16P Enertia

Fuel Capacity: 80 gallons

Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio, 12" Electronics

Test Date: 6-Nov-23

240-vantage-300-hp-performance-graph



Tested weight is for the vessel as configured. Subject to change based on options and loading condition.



Dry Weight: 4,181 LBS

Fuel: 34 gallons

Water: 0 gallons

Test Gear: 25 lbs

Personnel: 370 lbs

Test Weight: 4,785 lbs

Water Conditions: 70° F

Weather Conditions: 61° F

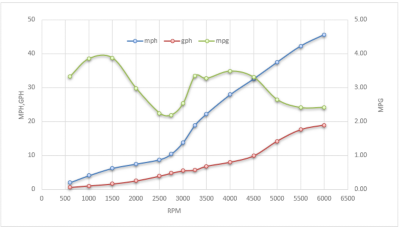

bw-vantage-210-single-225-v6-speedgraph-2023


Model: 210 Vantage

Hull #:USBWCE0047F324

Engine: Mercury 200 V6 Four Stroke

Horsepower: 200

Gear Ratio: 1.85 :1

Prop: 15P Enertia

Fuel Capacity: 80 gallons

Notable Options: Cockpit Table, Ski Pylon, Plumbing Package, Fishing Package, Trim Tabs, Stereo, VHF Radio,12" Electronics

Test Date: 6-Nov-23

bw-vantage-210-single-200-v6-speedtable-2023



Tested weight is for the vessel as configured. Subject to change based on options and loading condition.



Dry Weight: 4,181 LBS

Fuel: 46 gallons

Water: 0 gallons

Test Gear: 25 lbs

Personnel: 370 lbs

Test Weight: 4,859 lbs

Water Conditions: 70° F

Weather Conditions: 76° F

bw-vantage-210-single-200-v6-speedgraph-2023
bw-210-vantage-still

We can tell you how innovative and industry-leading our products are, but don’t take our word for it! Learn what others have to say in these third-party reviews.

Cookie Preferences
