320 Vantage
Cutting-edge features, great capacity and easy adaptability are hallmarks of the dual-console 320 Vantage®, winner of the National Marine Manufacturers Association's Innovation Award for it's convertible seating. Rock-solid control meets the ultimate in versatility and comfort with the many accessories and options the 320 provides. Serious fishing, joyful entertaining, day-long watersports or cruising and even a place to sneak in a nap or an overnight stay, the 320 is ready for your day. When the softest, safest ride meets the best equipped dual-console around, new possibilities become eminently possible. With Whaler, you can be confident to the core.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
320 VANTAGE FEATURES
- Uniquely convertible portside seating offers an array of configurations.
- Spacious open bow features backrests, a large under-seat cooler, an optional bow table and more.
- A cockpit utility center includes a sink, 18-gallon cooler and prep surface, plus optional grill and fridge.
- Below deck, a cozy interior seating area offers a break from the weather.
Dimensions
32' 1" (9.78 m)
L.O.A. (on centerline, from bow to engine mounting location)
33' 6" (10.21 m)
L.O.A. (with platforms)
10' 4" (3.15 m)
Beam
22" (0.56 m)
Draft
25" (0.63 m)
Transom Height
21°
Deadrise at Transom
8' 9" (2.67 m)
Bridge Clearance (with hardtop)
9' 7" (2.92 m)
Bridge Clearance (with radar)
45' 0"L x 10' 4"W x 12' 0"H
Package Boat Specs (on trailer/engine up )
B
European Certification
Weight
9,800 lbs. (4,445 kg)
Weight (dry, no engine)
13,142 lbs (5,961 kg)
Weight (with engine, fuel and water)
Capacity
4,145 lbs. (1,880 kg)
Maximum Weight Capacity
4,825 lbs. (2,189 kg)
Swamped Capacity
14
Persons Capacity
285 gallons (1,078 L)
Fuel Capacity
30 gallons (113.5 L)
Water Capacity
6.5 gallons (24.6 L)
Waste Capacity
18 gallons (68.1 L)
Livewell Volume
Engines
800 HP (597 kW)
Maximum Horsepower
500 HP (372 kW)
Minimum Horsepower
1,400 lbs. (635 kg)
Maximum Engine Weight
32' 1" (9.78 m)
L.O.A. (on centerline, from bow to engine mounting location)
33' 6" (10.21 m)
L.O.A. (with platforms)
10' 4" (3.15 m)
Beam
22" (0.56 m)
Draft
25" (0.63 m)
Transom Height
21°
Deadrise at Transom
8' 9" (2.67 m)
Bridge Clearance (with hardtop)
9' 7" (2.92 m)
Bridge Clearance (with radar)
45' 0"L x 10' 4"W x 12' 0"H
Package Boat Specs (on trailer/engine up )
B
European Certification
9,800 lbs. (4,445 kg)
Weight (dry, no engine)
13,142 lbs (5,961 kg)
Weight (with engine, fuel and water)
4,145 lbs. (1,880 kg)
Maximum Weight Capacity
4,825 lbs. (2,189 kg)
Swamped Capacity
14
Persons Capacity
285 gallons (1,078 L)
Fuel Capacity
30 gallons (113.5 L)
Water Capacity
6.5 gallons (24.6 L)
Waste Capacity
18 gallons (68.1 L)
Livewell Volume
800 HP (597 kW)
Maximum Horsepower
500 HP (372 kW)
Minimum Horsepower
1,400 lbs. (635 kg)
Maximum Engine Weight
Standard features & Options
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
8" cleats
10" stainless steel pop-up cleats - (2) bow, (2) stern with stainless steel hawse pipes, (2) spring line
28" interior freeboard
Anchor storage
Anchor windlass with 200' of rode, chain, and anchor
Bow and stern eyes
Cockpit coaming bolsters
Cockpit courtesy lights (dual color blue/white)
Drink holders (stainless steel)
Extended integral swim platform with stainless steel ladder and grab rail
Grab rails (stainless steel)
Hawse pipes with drink holders (2), stern (stainless steel)
Heavy-duty rub rail
Molded fiberglass starboard dive/boarding door with removable stainless steel dive ladder
Motorwell drains (2)
Self-bailing cockpit sole
Stainless steel thru hull anchor roller davit
Transom door with stainless steel latch
Grab rails, located on centerline (stainless steel)
Mold in non-skid
Navigation light
Bank of drawers
Battery switch panel
Built-in storage
Cutting board
Dedicated trash can storage
Drink holders (stainless steel)
Grab rail (stainless steel)
Insulated livewell/cooler (18 gallons)
Outboard fiddle rail
Sink with pull-out sprayer
Solid surface countertop
12-V receptacle
Bow bolster
Bow cushions with backrests
Bow walkthrough block off panel
Drink holders (4) - stainless steel
Fiberglass lids with latches
Folding armrests, port and starboard
Forward side rails (welded stainless steel)
Forward step to bow
Molded-in insulated cooler on centerline
Recessed storage/cup holder compartment
Convertible berth
Dash visor
Lighting - blue accent
Lighting - interior light
Lockable console door
Molded fiberglass console liner
Molded fiberglass entry door
Opening air vent in port and starboard compartments for natural airflow
Rod storage
Skylight (tinted)
Storage hooks (stainless steel)
Storage locker
Storage underneath seating
USB/Aux inputs
Wood flooring
Wood grain storage cabinets
Access panel to electronics
Cast stainless steel steering wheel with urethane grip
Compass
Courtesy light
Dash visor
Decorative flooring
Drink holders (2) (stainless steel)
Electronics mounting surface
Fold-down teak bench seat above porcelain head
Flip-up entry step
Helm and companion footrests
Elevated electrical switch panel with circuit breaker protection
Interior light
Lockable entry door
Mirror
Molded fiberglass console liner
Molded fiberglass entry door
Opening air vents in port and starboard compartments for natural air flow
Porcelain VacuFlush® toilet, holding tank, overboard discharge, and dockside pump-out
Pull-out sink/shower sprayer
Skylight (tinted)
Solid surface countertop
Storage hooks (stainless steel)
Trash receptacle
Windshield wiper (port and starboard)
Wood grain storage cabinets
Bow seating area with lounge backrests and armrests, port and starboard
Deluxe custom helm seat with electric high/low pedestal
Deluxe swivel double port helm seating with 4 position indexing rotating stops
Double convertible port lounge seat with storage (not available with Deluxe Prep Center with Livewell)
Fold-out stern seat with elevated backrest
Bow anchor locker with drain
Cockpit storage center
Head storage compartment
Bow storage lockers, port and starboard drains
Storage forward of helm on console
Storage under port console convertible berth
Storage under port lounge
Under-gunnel storage shelves
250 V8 DTS Black Dual Mercury Verado engines with hydraulic power steering
285-gallon fuel tank
Automatic bilge pumps
Dual battery trays with switch
Electric horn
Electric trim tabs with indicator
Engine fuel/water separators
Freshwater system (30 gallons) with bow and stern sprayers
LED navigation lights
Shore power with single 30 AMP charger and galvanic isolator
Stainless steel propellers
Stereo - Fusion® AM/FM with waterproof speakers (6) and MP3/USB inputs (Fusion® Bluetooth enabled)
Tilt steering
Transducer mount area
Variable running surface
Vessel View 4" display (network connections to Raymarine with Navigation Package)
Display key engine data on your smartphone (Android or Apple iPhone)
Bluetooth connection vi Vessel View Mobile app (compatible while connected to stereo)
Troubleshooting assistance with dealer notification
Gelcoat Hull Side Colors
Classic Desert Tan
Classic Desert Tan
Glacier Green
Glacier Green
Light Blue
Light Blue
Platinum
Platinum
White
White
Painted Hull Colors
Abaco Blue
Abaco Blue
Fighting Lady Yellow
Fighting Lady Yellow
Horizon Blue
Horizon Blue
Ice Blue
Ice Blue
Jadestone
Jadestone
Oyster Grey
Oyster Grey
Platinum
Platinum
Sand Metallic
Sand Metallic
Steel Blue
Steel Blue
Tectonic Silver
Tectonic Silver
Wasabi
Wasabi
Graphic Colors
Black graphics
Black graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator and stripe)
Red graphics
Red graphics
Silver graphics
Silver graphics
White graphics
White graphics
Frame Color
Black Frame
White Frame
Hardtop Underside Color
Abaco Blue
Abaco Blue
(hardtop underside color matches hull color)
Classic Desert Tan
Classic Desert Tan
(hardtop underside color matches hull color)
Glacier Green
Glacier Green
(hardtop underside color matches hull color)
Horizon Blue
Horizon Blue
(hardtop underside color matches hull color)
Light Blue
Light Blue
(hardtop underside color matches hull color)
Platinum
Platinum
(hardtop underside color matches hull color)
Steel Blue
Steel Blue
(hardtop underside color matches hull color)
White
White
(hardtop underside color matches hull color)
Dual Engines
250 V8 DTS Black Dual Mercury Verado
engines with hydraulic power steering(standard engine)
250 V8 DTS White Dual Mercury Verado
engines with hydraulic power steering
250 V8 DTS Black Dual Mercury Verado w/JPO
dual engines with Joystick Piloting.Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Raymarine or other standalone optional autopilot not permitted with Joystick Piloting)
250 V8 DTS White Dual Mercury Verado w/JPO
dual engines with Joystick Piloting.Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Raymarine or other standalone optional autopilot not permitted with Joystick Piloting)
300 V8 DTS Black Dual Mercury Verado
engines with hydraulic power steering
300 V8 DTS White Dual Mercury Verado
engines with hydraulic power steering
300 V8 DTS Black Dual Mercury Verado w/JPO
dual engines with Joystick Piloting.Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Raymarine or other standalone optional autopilot not permitted with Joystick Piloting)
300 V8 DTS White Dual Mercury Verado w/JPO
dual engines with Joystick Piloting.Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality.(Raymarine or other standalone optional autopilot not permitted with Joystick Piloting)
Railings and Rub Rails
Rails - split bow rail
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Electric grill (120V)
(must select generator or inverter system for use while away from shore power)
Electric grill (220V)
(must select generator or inverter system for use while away from shore power)
Flat screen HDTV (22 inch)(12-V)
Flat screen HDTV (22 inch)(12-V)
Refrigerator at cockpit
Refrigerator at cockpit
Table at bow (with dedicated storage)
Table at bow (with dedicated storage)

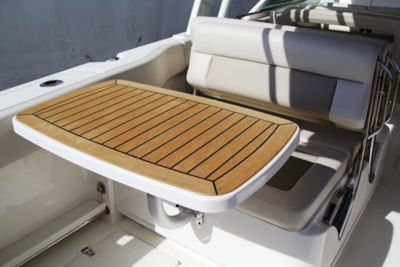

Table at cockpit
Table at cockpit
Table at cockpit - Additional
(must select cockpit table) (shares cockpit table storage space; additional storage for both table at the same time not provided)
Table - fold-down table (port console)
)
Table - fold-down table (port console)
Fishing Features
Deluxe prep center with livewell
(not compatible with additional cockpit table) - includes: 4-gallon livewell with light, convertible forward seat backrest, port side fishing prep station, white solid surface countertop material (replaces solid slate surface at cockpit utility center)
Seating
Seating - bow filler cushion
Seating - bow filler cushion
Notable Options & Accessories
12-V input, port console
12-V input, port console
Air compressor system
Air compressor system
Air Conditioning- reverse cycle (6000 BTU)
(Includes additional 3 amp shore power service)(must select generator for use while away from shore power)

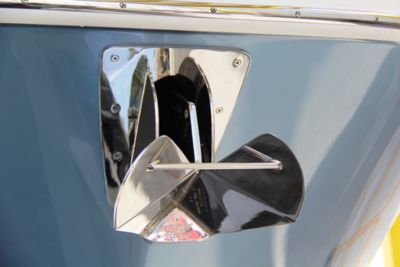

Anchor - stainless steel
Anchor - stainless steel
Beach boarding ladder
(not compatible with optional bow rail)
Bow tow eye
Bow tow eye

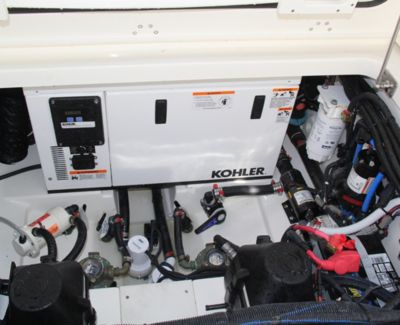

Generator (120V)
(low CO gas (5 kW) - Kohler)
Generator (220V)
(low CO gas (5 kW) - Kohler)
Gray water system
