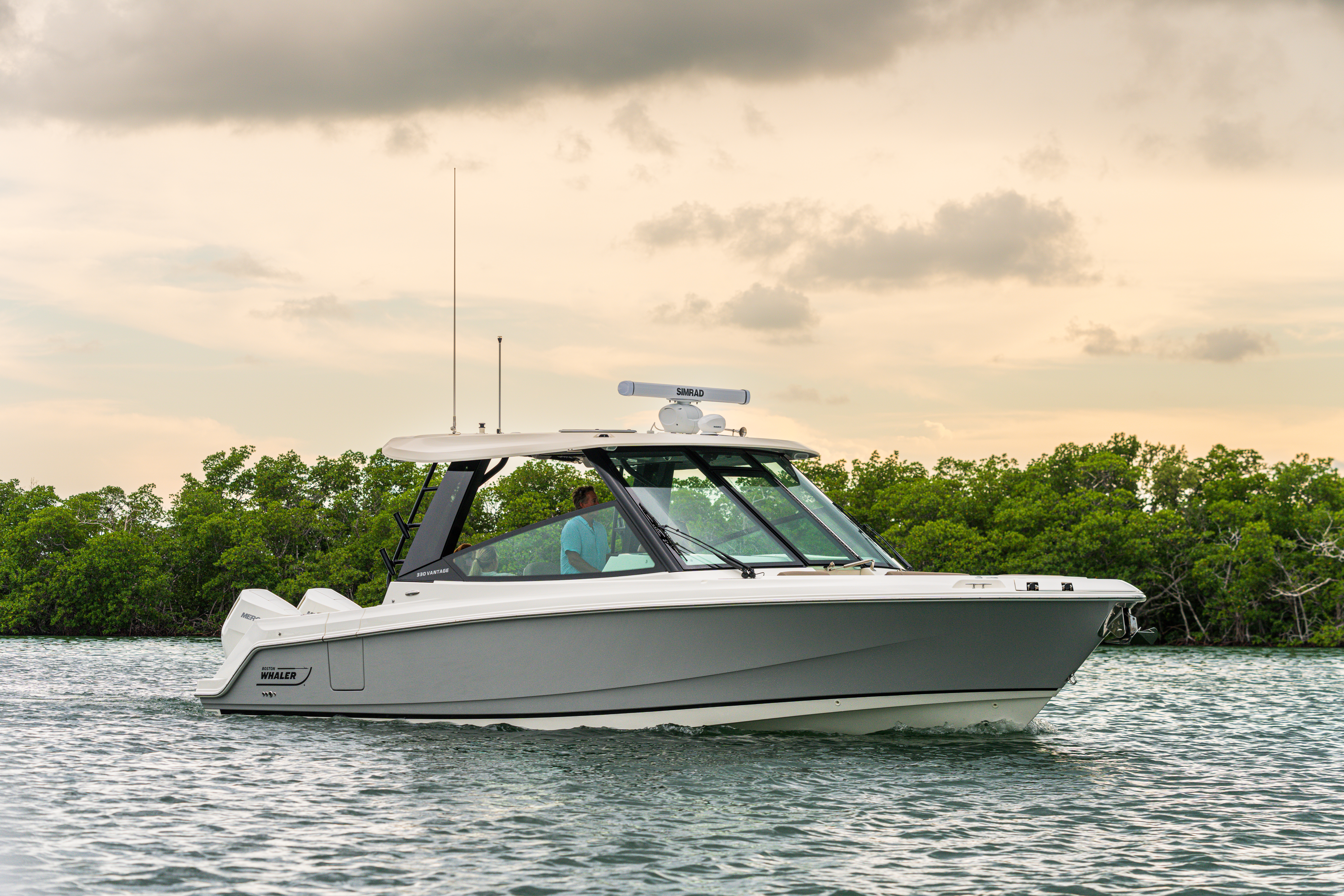

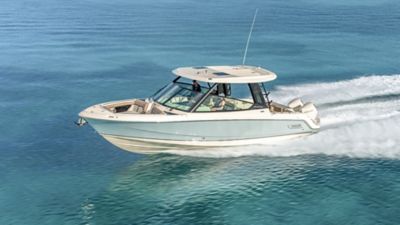

330 Vantage

*Suggested MSRP retail price in US dollars (applies to the US only) for the current model year. Pricing does not include dealer preparation fees, taxes or registration fees. Dealer alone sets the final price.

Our largest dual console brings family and friends together on the water like no boat you’ve ever encountered. An expansive deck is surrounded by luxurious seating, including our award-winning convertible port lounge and an inward-facing couch at starboard. The dual console seats two on the port side and gives the captain the visibility and technology to lead any adventure with ease. A sleek and protective hardtop and half or full windshield options shield you from the weather, and a large head means comfort for all. With Whaler’s legendary unsinkable hull and premium, rock-solid performance, the 330 Vantage will transform the way you and your crew experience the water.



210-vantage-virtual-tour

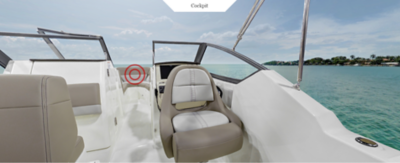

VIRTUAL TOUR

Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!

Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.

330 VANTAGE FEATURES

  •  Award-winning port-side convertible seat/ lounge with multiple configurations

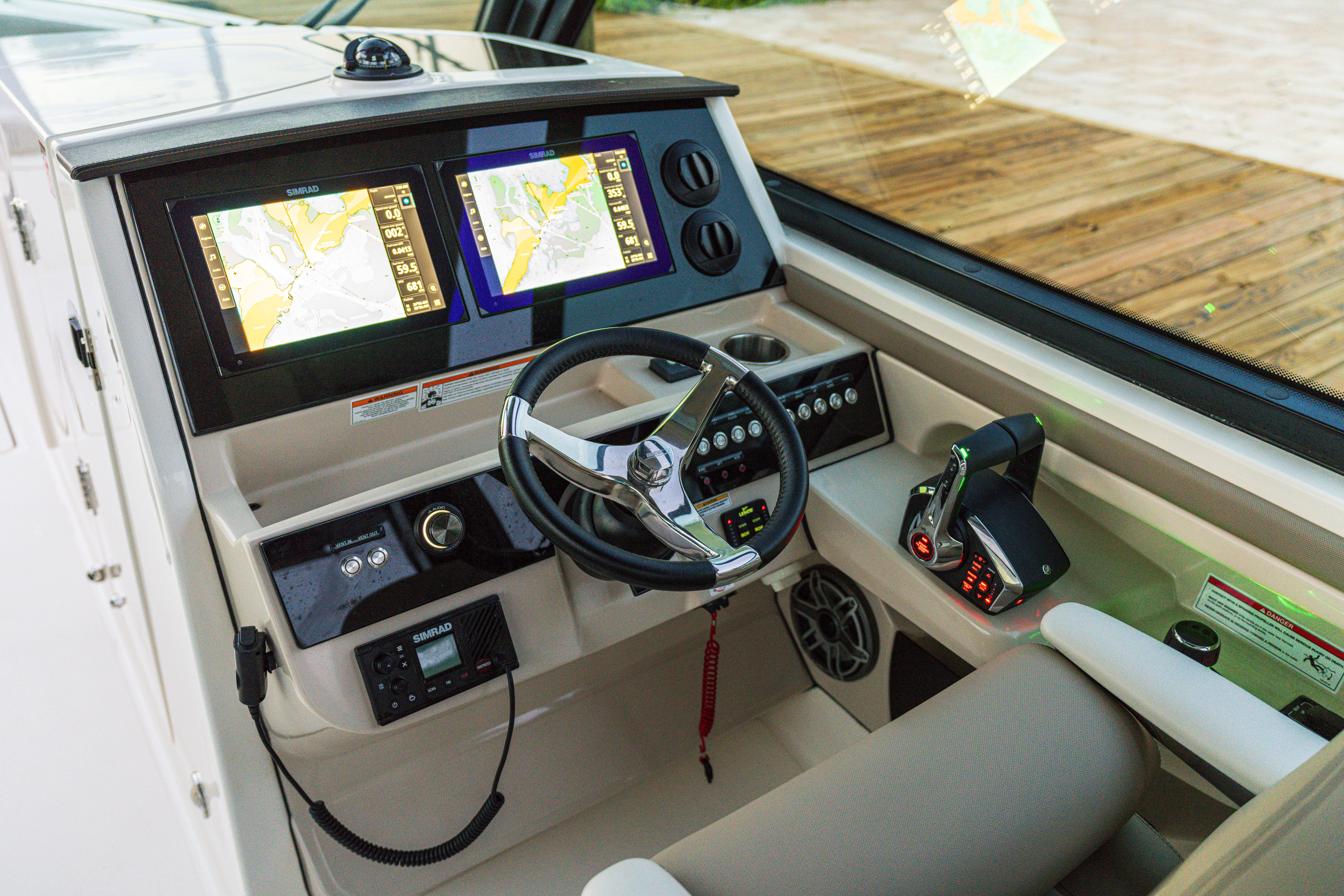

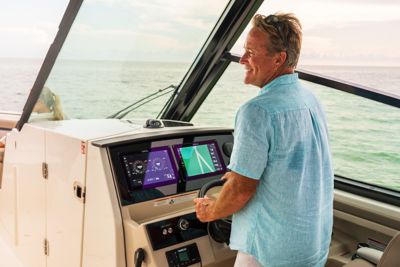

  • Integrated Simrad® technology for full control of all boat systems at your fingertips
  • Half or full walkthrough windshield options for enhanced weather protection
  • Large, easy-access head under passenger console with updated comfort features

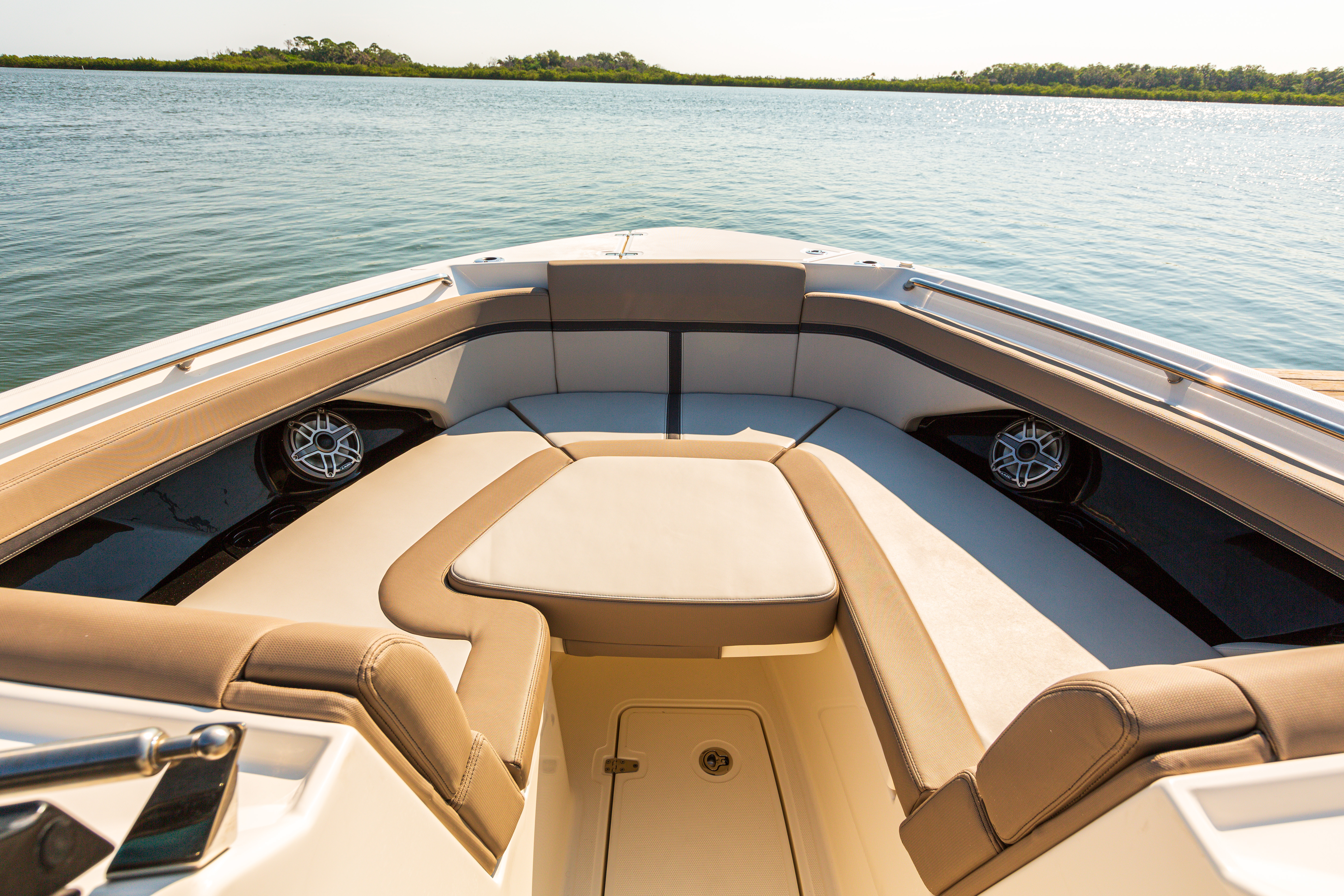

  • Wrap-around bow lounges with durable and luxurious restyled upholstery
  • Starboard two-person couch under hardtop with generous storage beneath

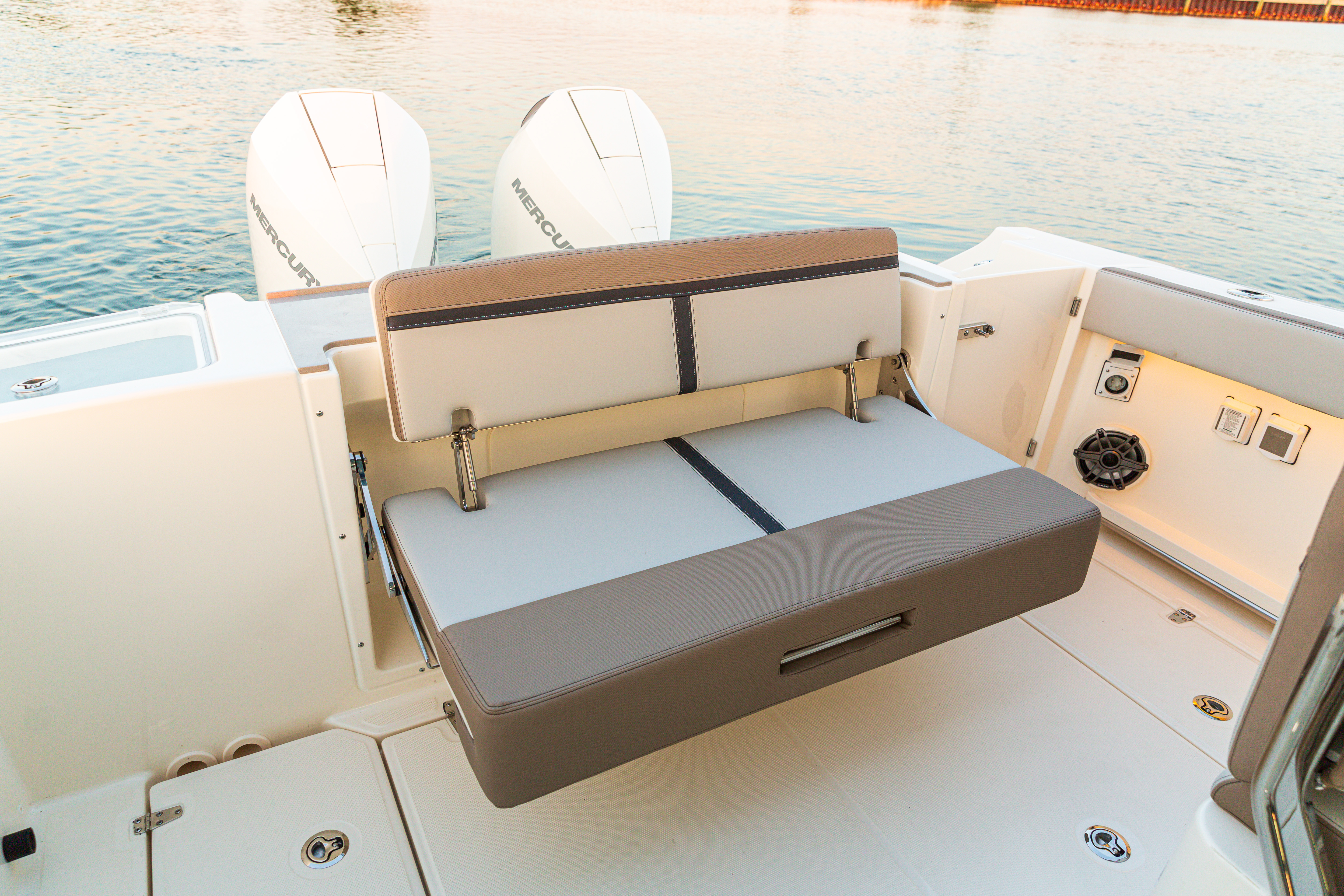

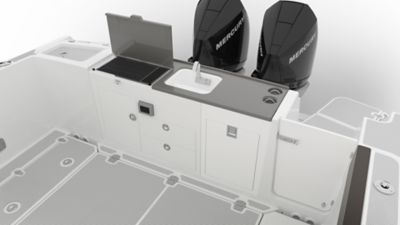

  • Flip-down transom seat with bait-prep station or optional summer kitchen

Capacity

14

Persons Capacity

285 gallons (1078 L)

Fuel Capacity

2,865 lbs (1300 kg)

Maximum Weight Capacity

6,500 lbs (2948 kg)

Swamped Capacity

6.5 gallons (24.6 L)

Waste Capacity

30 gallons (113.5 L)

Water Capacity

Dimensions

33’ 0” (10.06 m)

L.O.A. (on centerline, from bow to engine mounting location)

10‘ 4“ (3.15 m)

Beam

10’ 1” (3.07 m)

Bridge Clearance (with hardtop and radar)

9’ 3” (2.94 m)

Bridge Clearance (with hardtop)

21°

Deadrise at Transom

25“ (0.63 m)

Draft

34’ 3” (10.44 m)

L.O.A (with platforms)

25” (0.63 m)

Transom Height

Engines

800 HP (597kW)

Maximum Horsepower

1,520 lbs (689 kg)

Maximum Engine Weight

600 hp (372 kW))

Minimum Horsepower

Weight

14,784 lbs (6706 kg)

Weight (with engine, fuel and water)

11,302 lbs (5126 kg)

Weight (dry, no engine)

14

Persons Capacity

285 gallons (1078 L)

Fuel Capacity

2,865 lbs (1300 kg)

Maximum Weight Capacity

6,500 lbs (2948 kg)

Swamped Capacity

6.5 gallons (24.6 L)

Waste Capacity

30 gallons (113.5 L)

Water Capacity

33’ 0” (10.06 m)

L.O.A. (on centerline, from bow to engine mounting location)

10‘ 4“ (3.15 m)

Beam

10’ 1” (3.07 m)

Bridge Clearance (with hardtop and radar)

9’ 3” (2.94 m)

Bridge Clearance (with hardtop)

21°

Deadrise at Transom

25“ (0.63 m)

Draft

34’ 3” (10.44 m)

L.O.A (with platforms)

25” (0.63 m)

Transom Height

800 HP (597kW)

Maximum Horsepower

1,520 lbs (689 kg)

Maximum Engine Weight

600 hp (372 kW))

Minimum Horsepower

14,784 lbs (6706 kg)

Weight (with engine, fuel and water)

11,302 lbs (5126 kg)

Weight (dry, no engine)

Standard features & Options

USB receptacles (2)

Bow bolster

Bow cushions with backrests

Bow walkthrough block off panel

Drink holders (4) - stainless steel

Fiberglass lids (3) with latches

Folding armrests port and starboard

Forward side rails - welded stainless steel

Molded in insulated cooler on centerline

Recessed storage / cup holder compartment

Insulated in floor bow fishbox with pump-out

8” stainless steel cleats (2) Bow

8" stainless steel pop-up cleats; (2) stern, (2) spring line

28” interior freeboard

Anchor storage

Anchor windlass with 200’ of rode, chain and anchor

Bow and stern eyes

Cockpit coaming bolsters

Cockpit courtesy lights –RGBW

Drink holders - stainless steel(6)

Extended integral swim platform with ladder and grab rail

Grab rails - stainless steel and Heavy-duty rub rail

27 gallon livewell with light

Molded fiberglass starboard dive/boarding door with removable stainless steel dive ladder and deployable grab rail

Rod holders - stainless steel, gunnel mounted; (2) stbd cockpit, (2) port cockpit, (3) transom mounted

Self-bailing cockpit sole

Stainless steel toe rail on port side and stainless steel thru hull anchor roller davit

Transom door with stainless steel latch

Insulated in floor fishboxes with pump-out aft (2)

Grab rails- port and Starboard - stainless steel (2)

Molded in non-skid

Outrigger flats

Navigation lights

Rod holders (4) in aft pillars

Tow bit

Welded aluminum integrated frame with tempered glass low windshield, side glass, and B pillar tinted glass panel. Hinged center windshield door latches in open and closed positions.

300 V8 DTS Dual Black Mercury Verado with hydraulic power steering

Integrated Mercury SmartCraft Connect

Tilt steering

Stainless steel propellers

285 gallon fuel tank

Bilge pump – automatic with visual indicator (1200 GPH bilge)

Bilge pumps – high water bilge pumps, automatic with visual and audible notification (1200 GPH aft, 1200 GPH cabin)

Battery trays Engine (2), House (2) with remote switches and automatic charging/paralleling relays

Digital Vessel Control and Monitoring System - Monitoring: Batteries, Tanks, Bilge pumps - Controlling: Wiper/wash, Running/Anchor lights, Courtesy lights (RGBW), Underwater lighting, fishbox pumps - Auto text backlighting - Dash panel switches

Electric trumpet horn

Engine and fuel/water separators

Freshwater system (30 gallons) with bow and stern sprayers and faucet at transom box sink

LED navigation lights

Shore power with battery charger and galvanic isolator – ELCI system – single 30A Transducer mount area

Anchor windlass with 200’ of rode, chain and polished stainless-steel anchor

Active engine trim

Bow seating area with lounge backrests and armrests port and starboard

Deluxe custom Boston Whaler helm seat with electric high/low pedestal and slide

Deluxe double port helm seating with electric high/low pedestal and foot rest

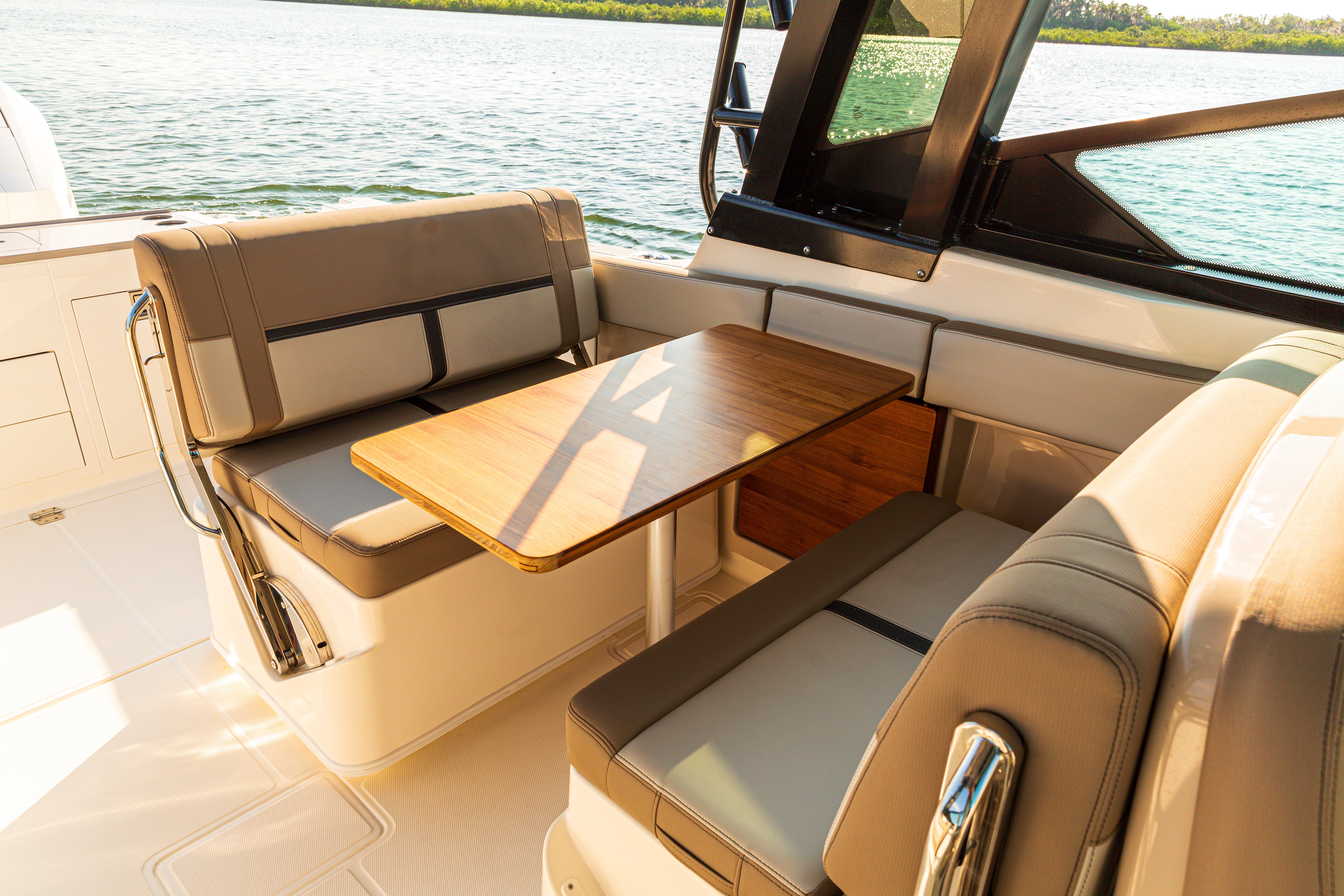

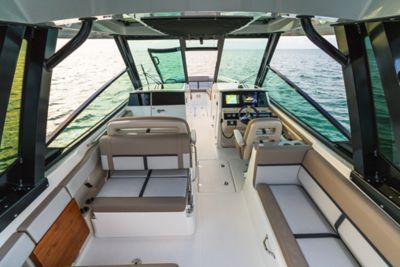

Port dinette with forward and aft facing seat and fold out table. Converts to form 2 person forward or aft facing lounge by converting the forward or aft backrest into a filler.

Starboard lounge, functions as aft facing lounge for one or side facing seat for 2-3 beside dinette. Foldout stern seat with elevated backrest

All Rails Welded 316-L Stainless Steel

All Hardware 316-L Stainless Steel

Bow anchor locker with overboard drain

Bow storage lockers, port and starboard with overboard drains

Helm deck center storage within mechanical space, bulkhead dividers separate mechanicals from dedicated storage

Head storage compartment

Storage under port dinette seats

Insulated cooler under starboard lounge seat

Insulated in floor cockpit fishboxes with pump-out aft (2)

Insulated in floor bow fishbox with pump-out

Troubleshooting assistance with dealer notification

Display key engine data on your smartphone (Android® or Apple® iPhone®)

Bluetooth® connection via Vessel View Mobile app (compatible while connected to stereo)

Dash visor

Gasketed, lockable, fiberglass entry door with gaskets and draw down latch

Teak footrest across deck and door

Lighting – interior overhead light

Fold-down teak seating above porcelain head

Opening air vents in deck mount overhead portlight for natural air flow

Porcelain vacuflush® toilet, holding tank, overboard discharge, and dockside pump-out

Pull out sink/shower sprayer

Skylight – fixed tinted

Solid surface countertop

Trash receptacle

Wood flooring

Acrylic storage cabinet

Toilet paper holder

Cast stainless steel steering wheel with urethane grip

Compass

Dash visor

Drink holders (2) - stainless steel

Electronics mounting surface

Gasketed, lockable, fiberglass entry door with gasket

Helm footrest molded into console

Elevated electrical switch panel with circuit breaker protection

Windshield wiper (port and starboard)

Storage recess on top of dash

Storage at starboard coaming pocket with dual USB receptacle and LED light

Access panel to electronics

Bench / Convertible berth

Lighting - blue courtesy accent

Lighting – interior overhead light

Opening air vents in deck mount overhead portlight for natural air flow

Skylight - fixed tinted

Teak entry step

USB charger

Wood flooring

Wood grain storage cabinets

Foldout stern seat with elevated backrest

Countertop - Solid surface

Compact freshwater sink (cold only without water heater)

12” SIMRAD NSX ELECTRONICS/NAVIGATION PACKAGE - Simrad NSX 12” MFD (GPS, Chart plotter, Fishfinder) - Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan) - C-Map® DiscoverTM X Chart Card: North America/Canada

STEREO (JL Audio integration into Simrad Navigation Package) - JL Audio MM105-HR stereo with Dash mounted remote volume/mute knob - AM/FM/HD Radio, USB audio, and Sirius XMTM ready - Iphone/Android compatible via integrated Bluetooth 5.0 • JL waterproof speakers (8), Subwoofers(2) and 1200W Amplifier • HTML server integration

Gelcoat Full Hull Colors

Classic Desert Tan

Glacier Green

Light Blue

Platinum

Painted Hull Colors

Abaco Blue

Fighting Lady Yellow

Horizon Blue

Ice Blue

Jadestone

Oyster Grey

Platinum

Sand Metallic

Steel Blue

Tectonic Silver

Wasabi

White

Graphic Colors

Black Graphics

Blue Graphics

Chrome Graphics

Red Graphics

Silver Graphics

White Graphics

Frame Color

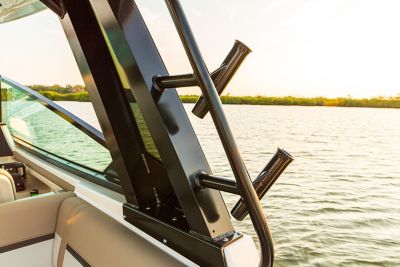

Black Frame

Hardtop Underside Color

Abaco Blue

Classic Desert Tan

Glacier Green

Horizon Blue

Light Blue

Platinum

Steel Blue

White

Windshield Options

Full Glass Windshield with vent

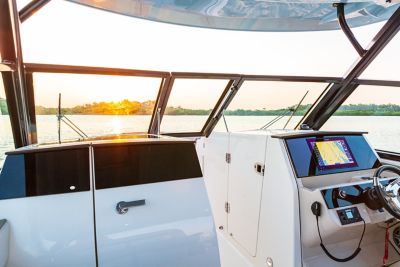

Half Glass Windshield

Dual Engines

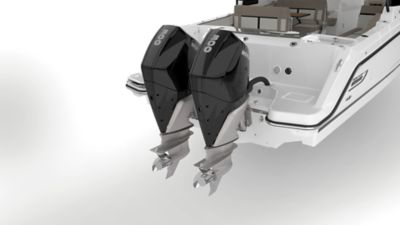

300 V8 AMS Dual Black Mercury Verado Four Stroke with hydraulic steering

300 V8 AMS Dual Black Mercury Verado Four Stroke with Joystick Piloting

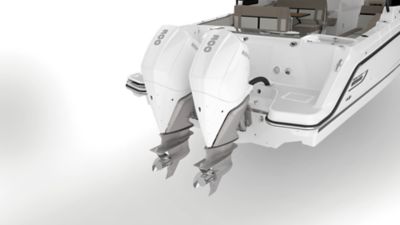

300 V8 AMS Dual White Mercury Verado Four Stroke with hydraulic steering

300 V8 AMS Dual White Mercury Verado Four Stroke with Joystick Piloting

400 V10 AMS Dual Black Mercury Verado with Joystick Piloting

400 V10 AMS Dual Black Mercury Verado with hydraulic steering

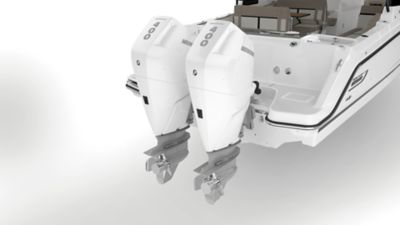

400 V10 AMS Dual White Mercury Verado with hydraulic steering

400 V10 AMS Dual White Mercury Verado with Joystick Piloting

Painted Engines

Painted engines (for dual engines)

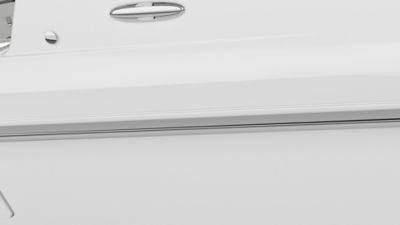

Railings and Rub Rails

Black rubrail with stainless steel insert

White rubrail with stainless steel insert

Entertaining Features

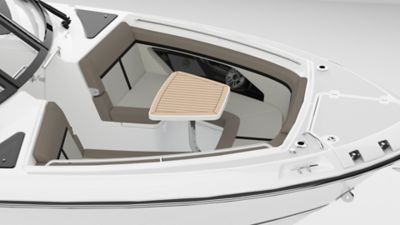

Bow Table with filler

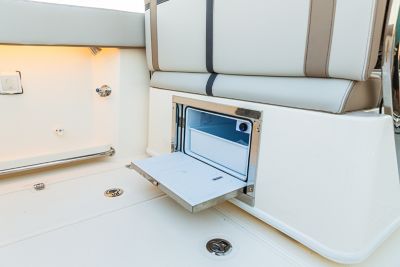

Cockpit Refrigerator

Cockpit Refridgerator 220V

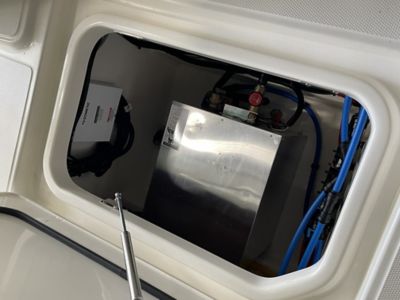

Water Heater (120V)

Notable Options & Accessories

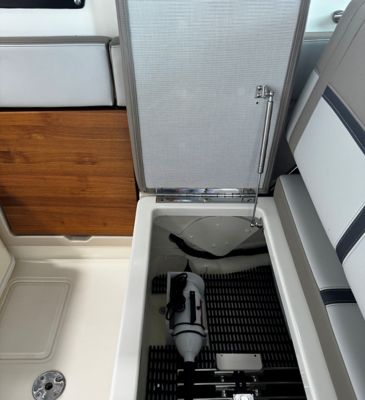

Air Compressor System

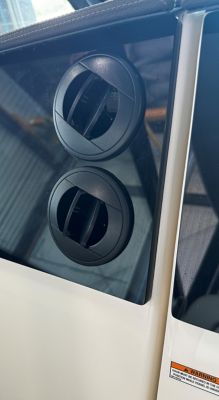

Air Conditioning

Aluminum Trailer

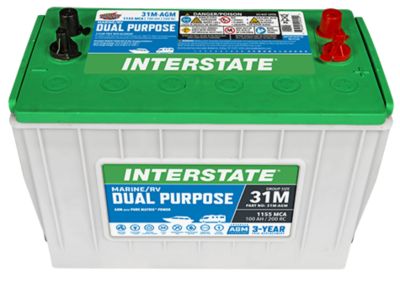

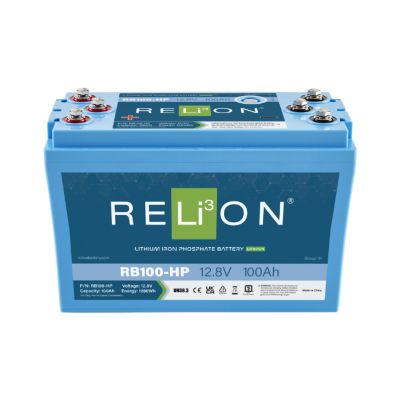

Battery Package

Battery Package (for dual engines)

Battery Package (with gyro)

Beach boarding Ladder

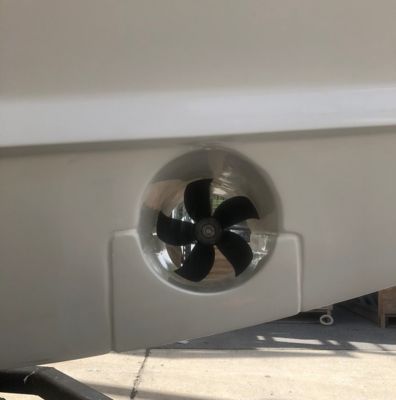

Bow Thruster

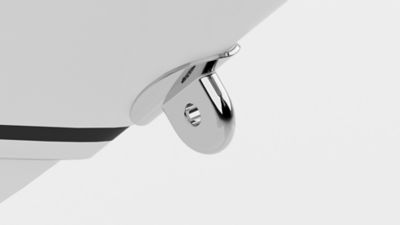

Bow Tow Eye

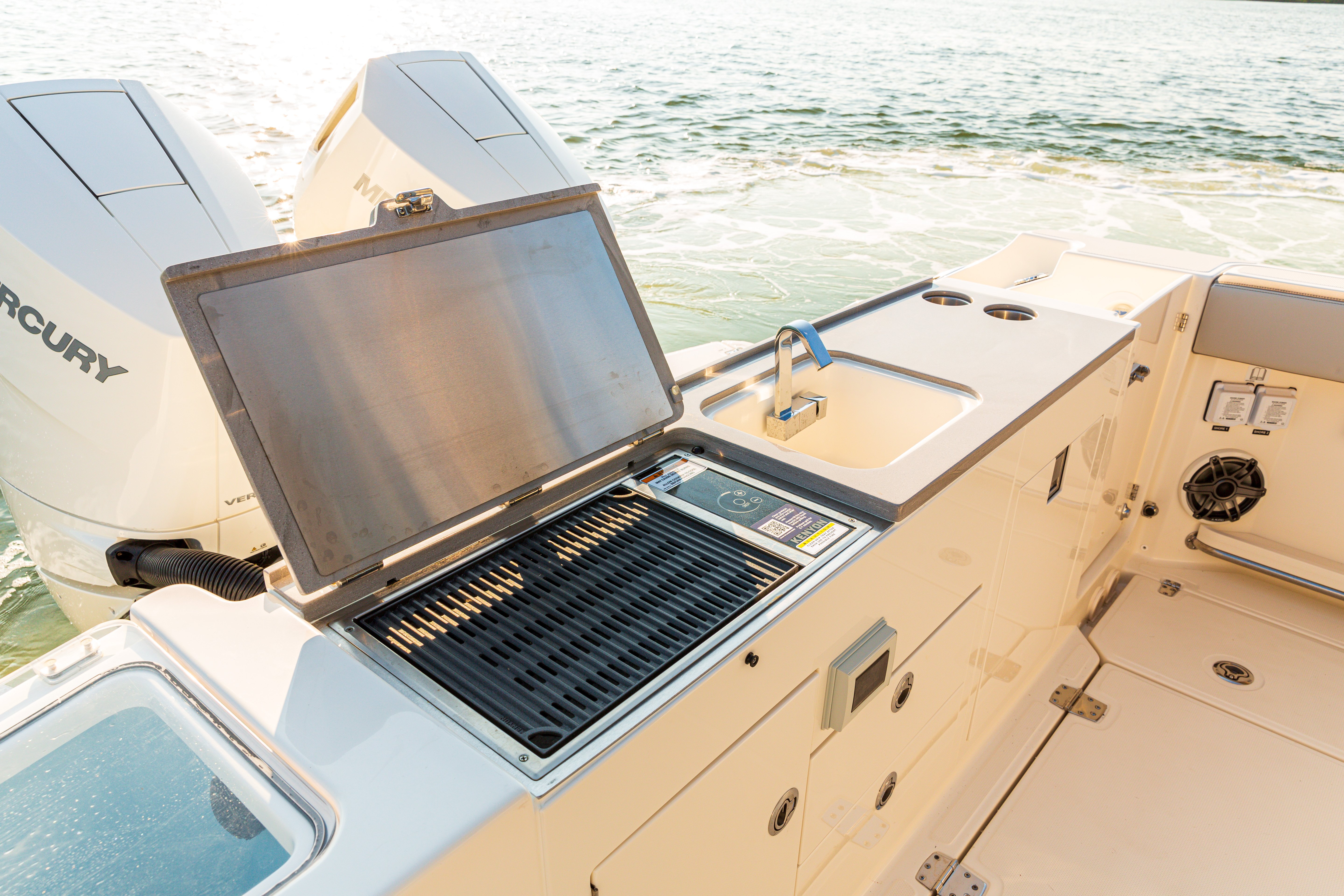

Deluxe Transom Prep Station

Electric Grill ( 220V)

Electric Grill (120V)

European Shore Power

Gray Water System

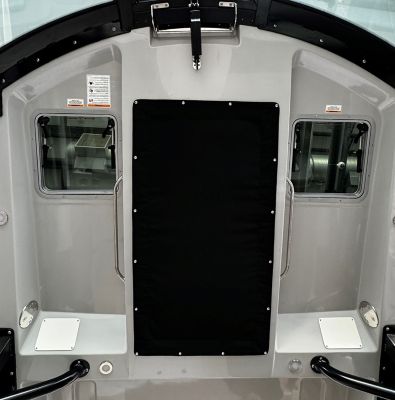

Hardtop Hatches

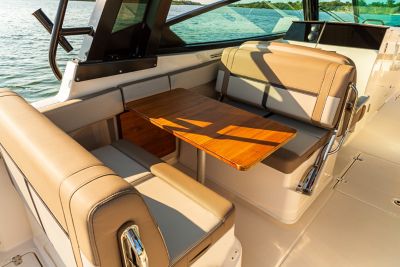

Helm Deck table

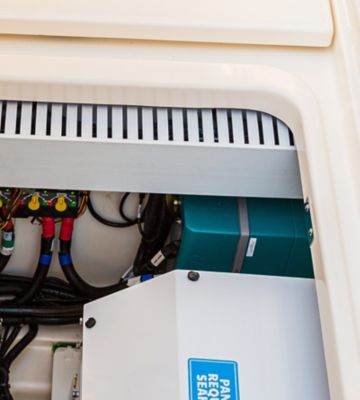

Inverter System(120V)

Inverter System(220V)

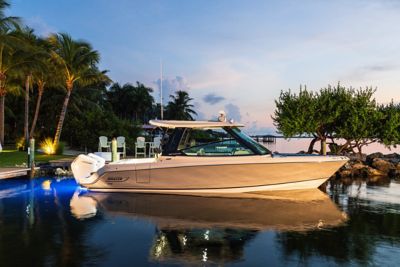

Lighting - underwater LED

Raw Water Wash Down

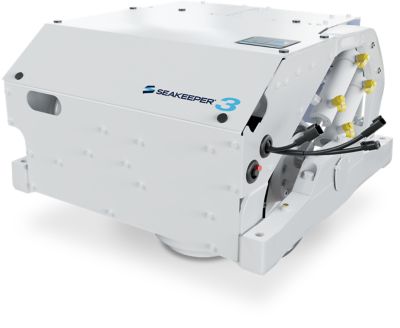

Seakeeper 3 Gyroscopic Stabilizer

Spotlight

Spotlight

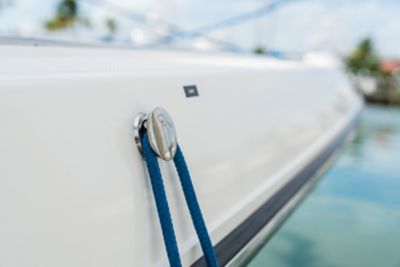

Stainless Steel Fender Holders

Water Heater (220V)

European Air Conditioning

Navigation

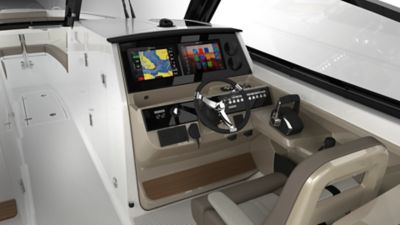

Deluxe Navigation Package Dual 12"

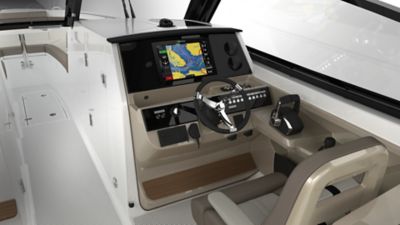

Deluxe Navigation Package Single Simrad 16"

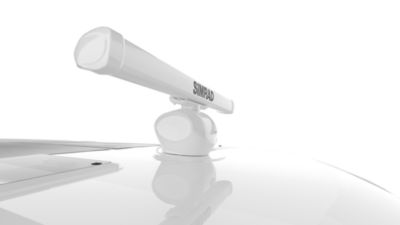

Simrad 48" Radar Open Array Halo with Bird+

Simrad 48" Radar Open Array Halo with Bird+

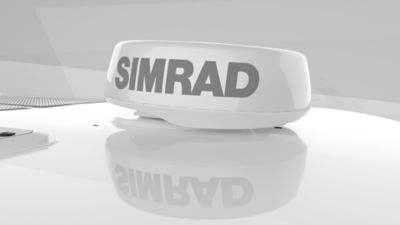

Simrad HALO24 Radar Dome

Simrad HALO24 Radar Dome

Electronics

CMAP Discovery Chart Card - Asia

CMAP Discovery Chart Card - Arica/Arabic Sea
