380 Realm
Gelcoat Full Hull Colors
White
Painted Hull Colors
Horizon Blue
Tectonic Silver
Jadestone
Steel Blue
Platinum
Sand Metallic
Fighting Lady Yellow
Ice Blue
Wasabi
Abaco Blue
Oyster Grey
Graphic Colors
Red graphics
Black graphics
White graphics
Silver graphics
Blue graphics

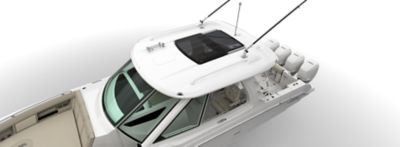

Tops & Towers
-
(deletes hatches and storage bag) (white or black depending on frame color selection)
Hardtop Underside Color
Hardtop underside color matches hull color
Abaco Blue
Platinum
Horizon Blue
Steel Blue
Dual Engines
-
Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
-
Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Quad Engines
-

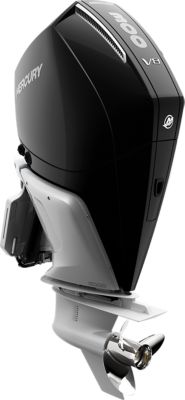

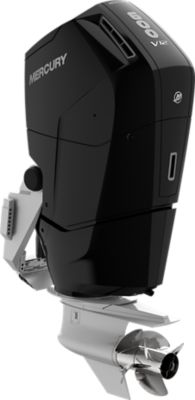

3 V8 DTS Black Quad Mercury with JOYSTICK PILOTING. Outboard system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Raymarine or other standalone optional autopilot not permitted with Joystick Piloting).
-
Outboard system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Raymarine or other standalone optional autopilot not permitted with Joystick Piloting).
-
-
Painted Engines
-
(engine color will match hull color) (must select a quad engine option)

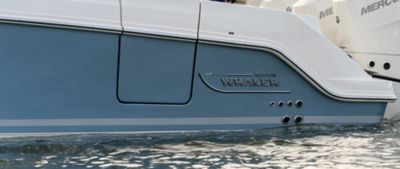

Railings and Rub Rails
-
-
(interior rail is powder painted white)
Entertaining Features
-
(located in cockpit) (12V/12V 1.9 cubic feet) (replaces standard cockpit prep center refrigerator)
-

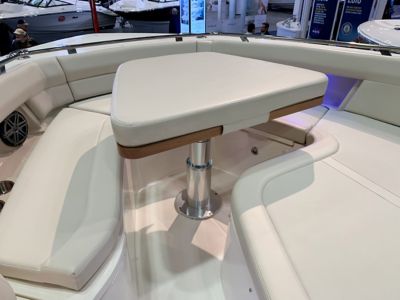

(teak table that is electrically raised and lowered) with filler cushion and canvas cover)
-
(turns insulated 260 Qt cooler bucket under 2nd row seat into a refrigerator)
-

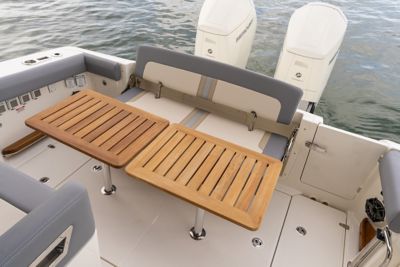

cockpit and helm deck tables(2) with dedicated storage on underside of mechanical space hatch (teak table)
Fishing Features
-

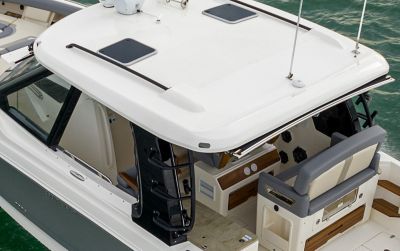

(3 rod holders integrated into ladder bars on aft hardtop supports) (white or black depending on frame color selection)
-
(Gemlux) (stainless steel) (hardtop mounted)
-

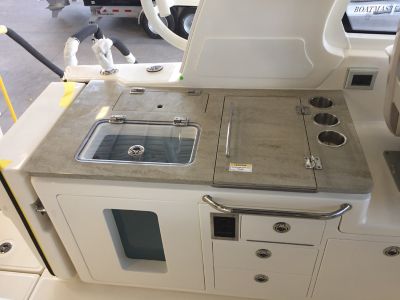

includes: 12V GFI outlet, corian countertop, deluxe portside helm deck seat (with armrests, adjustable slide and swivel enabling rotation of the seat inboard), drink holders (3), electric grill with hinged solid surface cover and silicone grill cover included for higher temp grilling, stainless steel grab rail, pressurized insulated 45-gallon livewell (with viewing window, clear lid, blue interior, red LED lights (2)), storage drawers, sink (molded fiberglass sink with fold away polished faucet with hot and cold water), storage drawer with 5 gallon bucket/trash receptacle (not compatible with electric grill delete option)
Notable Options & Accessories
-
Scanstrut ATMOS Air Station 2-stage pump (0-1 PSI and 1.1-20 PSI)
-
Remote operated powered VHF Antenna and Mast light controllable through MFD
-

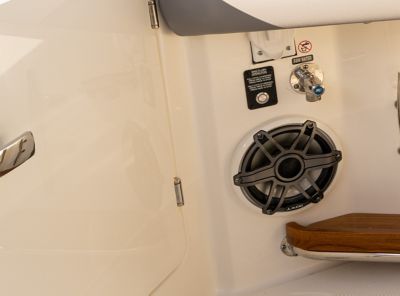

(automatic sequencing between engines with separate dockside freshwater hookup on transom)
-
includes: air horn, batteries - group 31 AGM (6), boat hook, dock lines (8), fenders (4), fire extinguishers (2), first aid kit, flare kit, life vests (type 1 offshore (1) with custom storage bags), spare fuel filters (4), throw cushion, tool kit (basic), water/holding tank supplies
-

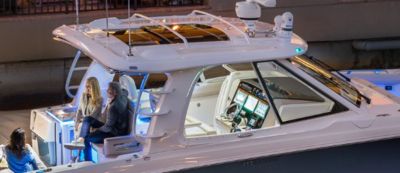

(includes radar riser for clearance with navigation package) (white or black depending on frame color selection)
-

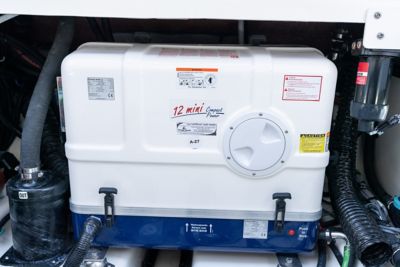

(12kW with 2-gallon diesel tank)(replaces low CO gas generator)
-

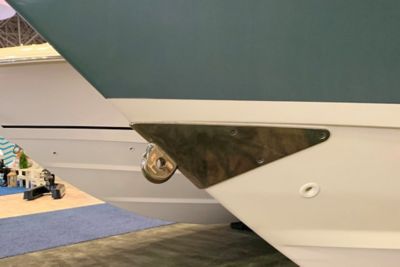

(must be selected if vessel will be towed as a tender)(must select bow tow eye) - includes: ball valves on box thru hulls, clam shells over critical hull side thru hulls, engine covers (4), high water activated strobe light and horn
-
-

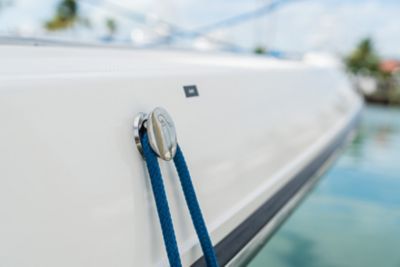

stainless steel fender hangers (6)
-
integrated with hardtop frame
-
-
for electric reels / downriggers (2)
-
heavy duty polished stainless steel
-
-
(must select diesel generator)(freshwater capacity changes to 45 gallons)
-

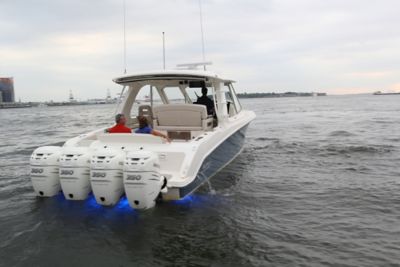

(blue) transom mounted (3), hull side in trim tab pocket (2)
-
Electronics
-
M364C Thermal Camera Dual Payload with pan, tilt and zoom
-
(Only compatible with NSX Displays)
-

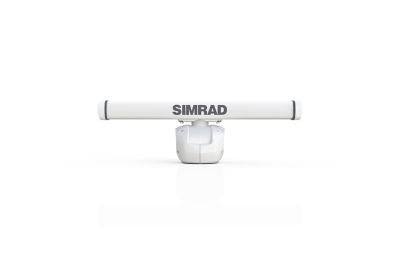

Simrad 48" Radar Open Array Bird+ (Not compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 48" Open Array Antenna
-
Simrad 36" Radar Open Array Bird+ (Compatable with Hardtop Storage Rack & Thermal Night Vision Option) Simrad HALO 30004 130W Pulse Compression Radar with 36" Open Array Antenna
-
-
-
-

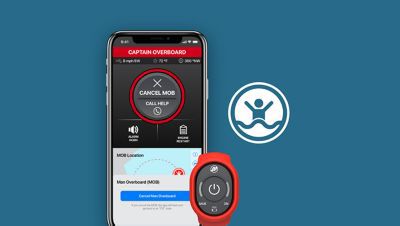

First Mate Safety & Security Sys Dual Engine (Includes Captain FOB and 3 passenger FOBs) (Not compatible with Single Engine option) (Included with Theft Deterrent System Option)
-
-
-
Sirius XM satellite receiver with antenna installed (does not include service)
-
(Only compatible with NSX Displays)
-
(Only compatible with NSX Displays)
-
(Only compatible with NSX Displays)
-
(Only compatible with NSX Displays)
-
(Only compatible with NSX Displays)
-
(Only compatible with NSX Displays)
-
M332 with pan, tilt and zoom (30Hz)
Sunshades
-

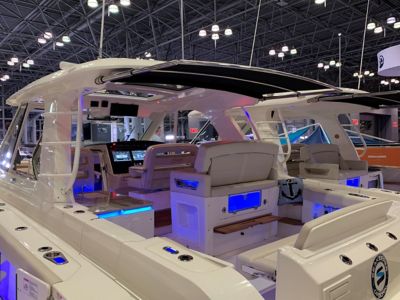

(black canvas)(stainless steel telescoping, electronically retracts and deploys)
-

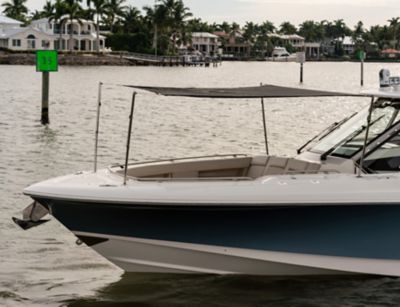

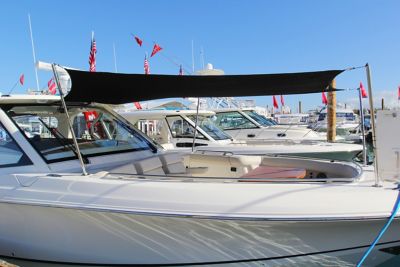

(black mesh)(manual setup - attaches to hardtop and 4 stainless steel poles insert into rod holders in forward bow area)
Canvas
-
includes: black sunbrella, cockpit seat back cover, console cover, bow forward cushion covers, helm seat cover, second row seat cover, bow lounge cover, helm deck passenger seat cover
-

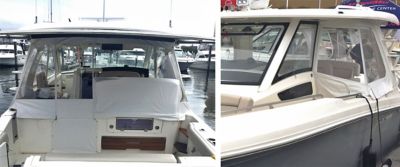

(Rigid Makrolon with White Stamoid) (white or black depending on frame color selection) - includes: hardtop aft curtain (full beam enclosure), hardtop side curtains
-
from hardtop to fore and aft deck coverage (not compatible with bow rail option)
-

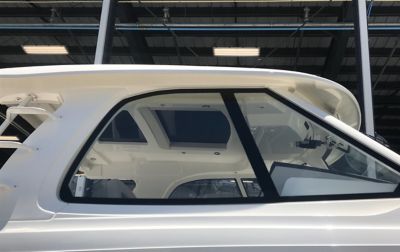

(Rigid Makrolon with White Stamoid) - includes: hardtop aft curtain (full beam enclosure) (must select full-height tempered side glass option)
Finish your build
Make your dream a reality
Check your inbox for a link to your configuration along with details on what to expect next. Your dealer will be in touch soon!
Check your inbox for a link to your configuration along with details on what to expect next. Your dealer will be in touch soon!
A factory concierge will be in touch soon! In the meantime, click below to learn more about the Whaler lifestyle and all it has to offer.

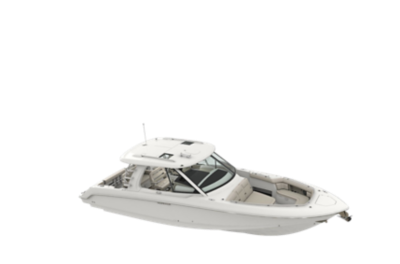

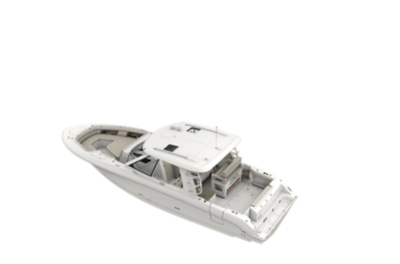

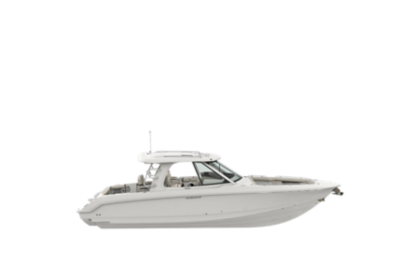

At nearly 40 feet and with a maximum 1,600 horsepower, the 380 Realm express cabin cruiser is a sleek and powerful offshore boat that synthesizes sumptuous comfort amenities, advanced power and performance, and a peerless fishing experience. The commanding center console layout provides seamless Simrad® integration with all navigation and power functions, and the customizable aft deck is ideal for angling or entertaining. Below deck, you’ll find a stunningly appointed cabin with refined and relaxing features that make short or long stays on the water transformative. Explore the many benefits of this 38-ft. express cruiser boat today, and finally make your grandest boating dreams real.
Capacity
Dimensions
Engines
1,600 HP
Maximum Horsepower
2,800 lbs
Maximum Engine Weight
1200 HP
Minimum Horsepower
Weight
17,000 lbs
Weight (dry, no engine)
23,500 lbs
Weight (quad engines, full fluids)
fr_totalPrice
Browse nearby inventory available now
Your 380 Realm Build Summary
DETAILS
At nearly 40 feet and with a maximum 1,600 horsepower, the 380 Realm express cabin cruiser is a sleek and powerful offshore boat that synthesizes sumptuous comfort amenities, advanced power and performance, and a peerless fishing experience. The commanding center console layout provides seamless Simrad® integration with all navigation and power functions, and the customizable aft deck is ideal for angling or entertaining. Below deck, you’ll find a stunningly appointed cabin with refined and relaxing features that make short or long stays on the water transformative. Explore the many benefits of this 38-ft. express cruiser boat today, and finally make your grandest boating dreams real.
SPECS
Capacity
Dimensions
Engines
1,600 HP
Maximum Horsepower
2,800 lbs
Maximum Engine Weight
1200 HP
Minimum Horsepower
Weight
17,000 lbs
Weight (dry, no engine)
23,500 lbs
Weight (quad engines, full fluids)
Capacity
16
Persons Capacity
20 gallons
Fuel - Diesel Capacity (if equipped)
445 gallons
Fuel Capacity
6,490 lbs
Maximum Weight Capacity
10 gallons
Waste Capacity
55 gallons
Water Capacity
Dimensions
38’
L.O.A.
11’ 8”
Beam
10’ 5”
Bridge Clearance (with top and radar)
9’ 0”
Bridge Clearance (with top)
29“
Draft
29”
Transom Height
Engines
1,600 HP
Maximum Horsepower
2,800 lbs
Maximum Engine Weight
1200 HP
Minimum Horsepower
Weight
17,000 lbs
Weight (dry, no engine)
23,500 lbs
Weight (quad engines, full fluids)
