280 Outrage
When it comes to fishability, comfort, and performance, nothing compares to the 280 Outrage. The dominant boat in the 28-ft. center console boat class, the 280 is the choice of serious offshore anglers and guides around the world. Generous bow lounges provide relaxation and storage beneath, while the smartly appointed aft fishing deck gives you the tools to succeed in your quest for a trophy. Add in integrated Simrad® technology and smooth, powerful Mercury® engines, and you’ve got a boat that does it all from the coast to the horizon.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
280 OUTRAGE FEATURES
- Seamlessly integrated Simrad technology for precise navigation and enhanced onboard control
- Portside dive door, seamlessly integrated into the hull design, providing effortless access to the water

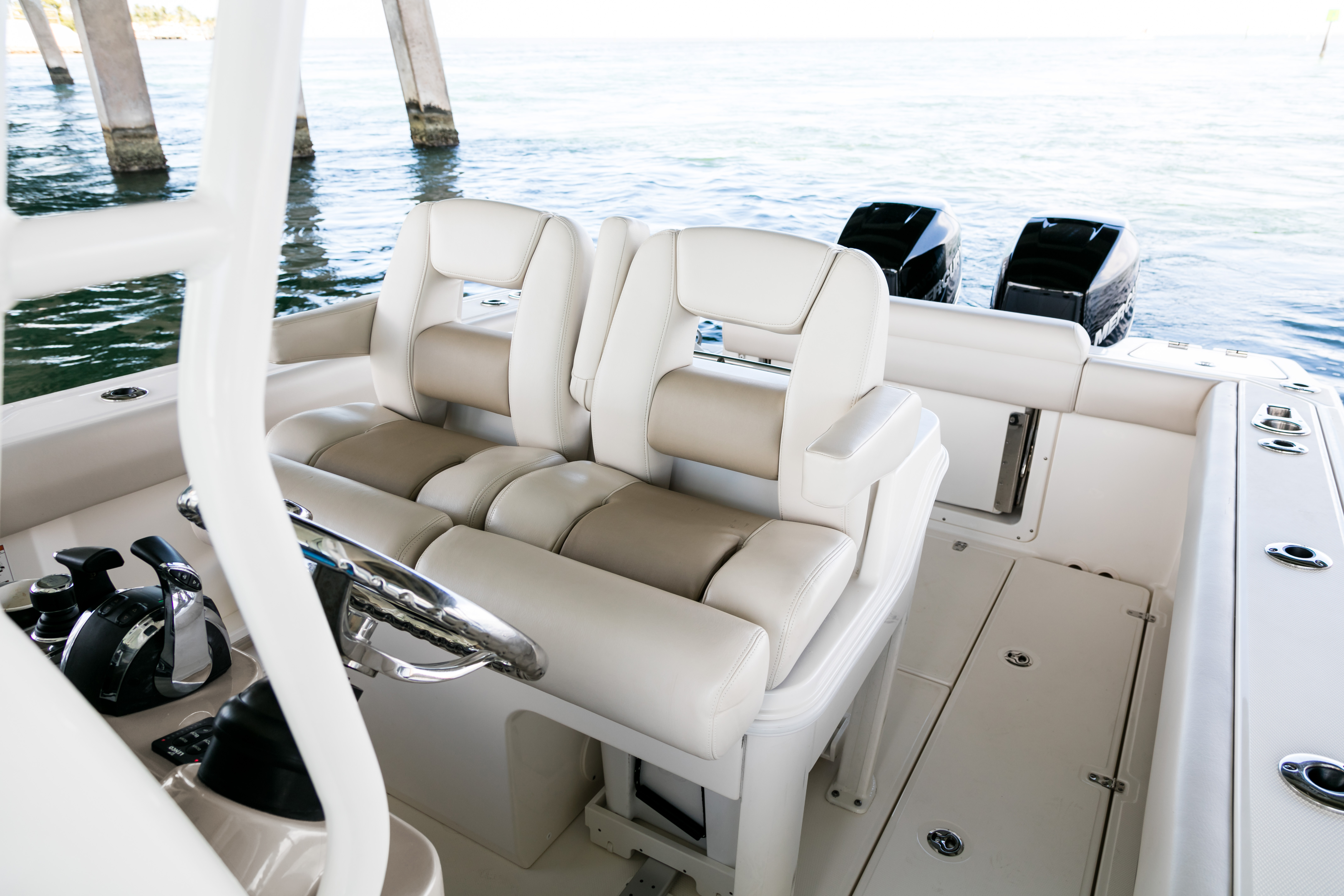

- Optional deluxe helm seating includes an adjustable captain’s chair and stationary companion seat
- A comfortable aft bench folds cleanly away to maximize fish-fighting room
- Large open bow includes a generous lounge with armrests and social-forward seating
- Deluxe leaning post with bait-prep area, 30-gallon livewell, 2 large fish boxes and more
- Featuring an optional hardtop with full-glass windshield and optional heavy-duty integrated hardtop system with floodlights and life-jacket storage available
- Available with Seakeeper gyro-stabilizing system
Capacity
12
Persons Capacity
186 gallons (704 L)
Fuel Capacity
3,750 lbs. (1,701 kg)
Maximum Weight Capacity
4,450 lbs. (2018 kg)
Swamped Capacity
6.5 gallons (24.6 L)
Waste Capacity
26 gallons (98.4 L)
Water Capacity
Dimensions
28’ (8.53 m)
L.O.A.
9' 4" (2.84 m)
Beam
9’ 11.5” (3.04 m)
Bridge Clearance (with Hardtop and Radar)
8' 6 .5” (2.6 m)
Bridge Clearance (with Hardtop)
22” (.56 m)
Draft
30 gallons (113.5 L)
Livewell Volume
25” (.64 m)
Transom Height
Engines
600 HP (597 kW)
Maximum Horsepower
1,400 lbs. (635 kg)
Maximum Engine Weight
500 HP (373 kW)
Minimum Horsepower
Weight
6,200 lbs. (2,812 kg)
Weight (dry, no engine)
8,961 lbs. (4,065 kg)
Weight (with engines, fuel and water)
12
Persons Capacity
186 gallons (704 L)
Fuel Capacity
3,750 lbs. (1,701 kg)
Maximum Weight Capacity
4,450 lbs. (2018 kg)
Swamped Capacity
6.5 gallons (24.6 L)
Waste Capacity
26 gallons (98.4 L)
Water Capacity
28’ (8.53 m)
L.O.A.
9' 4" (2.84 m)
Beam
9’ 11.5” (3.04 m)
Bridge Clearance (with Hardtop and Radar)
8' 6 .5” (2.6 m)
Bridge Clearance (with Hardtop)
22” (.56 m)
Draft
30 gallons (113.5 L)
Livewell Volume
25” (.64 m)
Transom Height
600 HP (597 kW)
Maximum Horsepower
1,400 lbs. (635 kg)
Maximum Engine Weight
500 HP (373 kW)
Minimum Horsepower
6,200 lbs. (2,812 kg)
Weight (dry, no engine)
8,961 lbs. (4,065 kg)
Weight (with engines, fuel and water)
Standard features & Options
12-V receptacle
Access panels to electronics
Acrylic entry door with lock
Bi-level molded console footrests
Compass
Dash visor
Drink holders (2)
Easy access storage space for personal items
Nav Package, Simrad 12" NSX
Enclosed head/storage area in console with easy clean liner
Fold-down step inside console
Glove box - lockable dry storage
Instrumentation and electrical switch panel with circuit breaker protection and illuminated text
Interior courtesy light
Port light with screen -stainless steel
Portable head with pump-out
Remote ignition key switches with pushbutton start at helm
Steering wheel with knob - cast stainless steel
28” interior freeboard
8" stainless steel cleats; bow (2), spring line (2), stern with hawse pipes (2), anchor locker (1)
Acrylic transom door with stainless steel latch
Aft coaming bolsters
Aft tackle storage center (port side) (2 drawers)
Bow and stern eyes
Cockpit and bow courtesy lights
Drink holders; (2) in bow, (2) in hawse pipes, (2) in leaning post, (2) in console)
Heavy-duty rub rail
Welded low profile rail - stainless steel
Motorwell drains
Port aft storage (2)
Rod holders - gunnel mounted stainless steel (6)
Rod holders - transom mounted stainless steel (3)
Rod racks - under gunnel
Self-bailing cockpit sole
Toe rails - stainless steel
Swim platform with covered telescoping swim ladder with stainless steel grab rail
Thru hull anchor roller davit - stainless steel
Molded fiberglass portside dive/boarding door with removable stainless steel dive ladder
Bait prep area
Drink holders (2)
Grab rail - welded stainless steel
Livewell lights - red

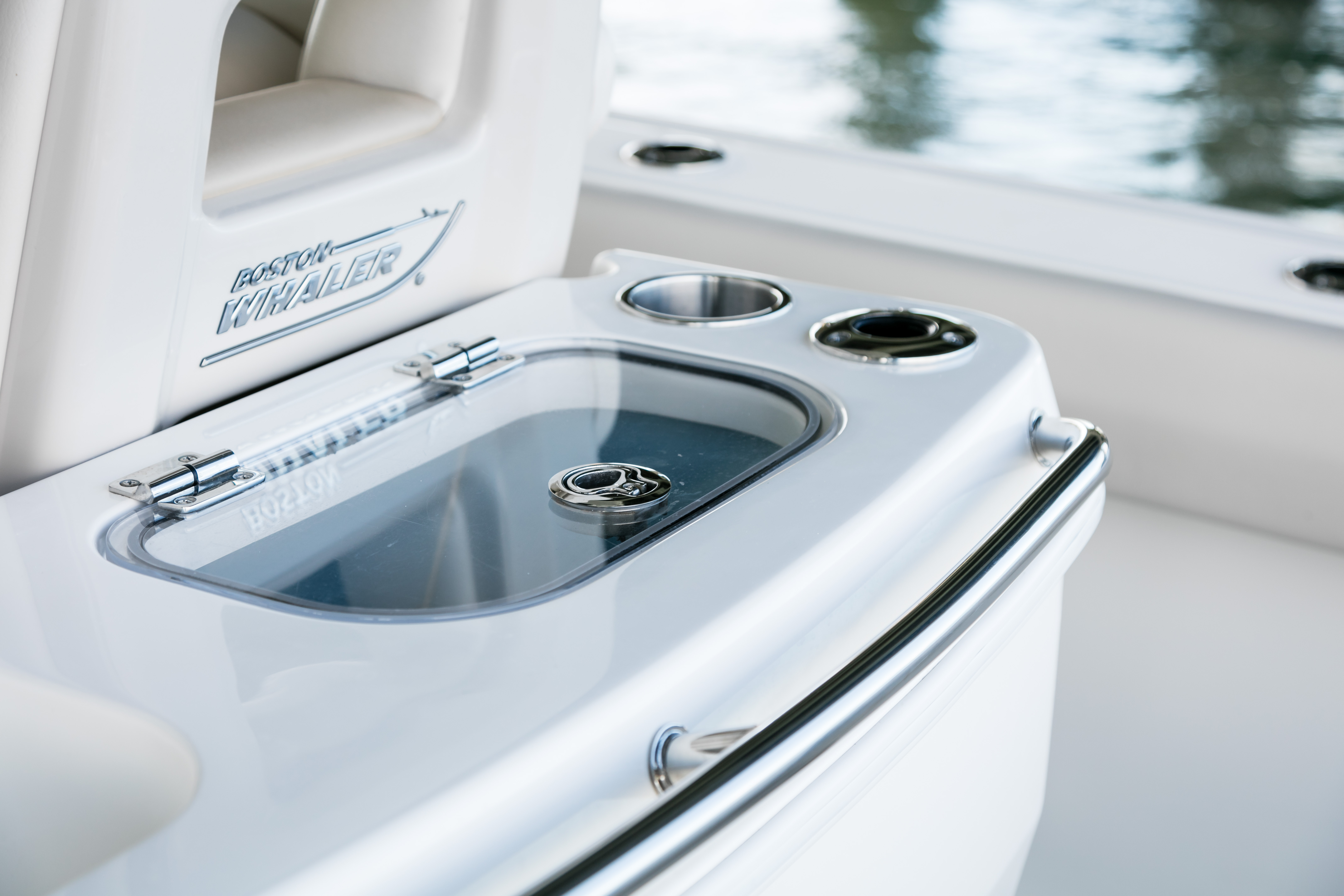

Pressurized livewell with clear lid and blue interior (30 gallons)
Rod holders (2)
Sink with freshwater and pullout sprayer
Tackle storage drawers (3) port side (deleted with Optional Deluxe Leaning Post with Cooler)
Tip-out trashcan (deleted with Optional Deluxe Leaning Post with Cooler)
Upholstered leaning post with flip-up bolster and backrest
T-top
186-gallon fuel tank
250 V8 DTS Black Dual Mercury Verado engines with hydraulic power steering
Automatic bilge pumps (750 GPH fwd and 1100 GPH aft)
Battery trays (3) with switches
Electric horn
Electrical distribution/breaker panel with key switches (inside console)
Engine fuel/water separators
Fishbox pump-out (54 gallons each)
Freshwater system with 26-gallon tank, sink at leaning post, transom shower, and anchor washdown
LED navigation lights
Propellers stainless steel
Raw-water washdown
Recessed electric trim tabs with indicators
SmartCraft deluxe gauge package
Tilt steering
Foldaway stern seat
Forward console seat with integrated storage
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Aft tackle storage center (port side)
Bow anchor locker with drain
Dry storage areas in console (3)
Forward deck storage / seats (port and starboard) with drains, gaskets, garage storage, lockable rod storage
Forward in floor storage and (2) 5-gallon buckets
Leaning post tackle storage
Lockable console storage
Port and starboard aft fishboxes with pump-out and drains
Under gunnel rod racks (2 per side)
Bow area floodlight
Cockpit floodlights (3)
Dome light (red and white)
Life jacket storage
Rod holders (5) (white or black depending on frame color selection)
(white or black depending on frame color selection)
Bluetooth connection via Vessel View Mobile app (compatible while connected to stereo)
Display key engine data on your smartphone (Android or Apple iPhone)
Gelcoat Hull Side Colors
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Platinum
Platinum
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver stripe)
Upholstery Package
Shore (Tan) Exterior Upholstery Package (standard)
Shore (Tan) Exterior Upholstery Package (standard)
Sea (Gray) Exterior Upholstery Package
Sea (Gray) Exterior Upholstery Package
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Black Frame
(updates standard T-Top or optional hardtop)
Tops & Towers
Hardtop with electronics box
(includes: bow area flood light, cockpit flood lights (2), dome light (red and white), electronics box, Windshield wiper, lifejacket storage, outrigger ready, rod holders (5) (white or black depending on frame color selection), tempered glass windshield with power actuated vent)
T-top
Hardtop Underside Color
White
White
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Dual Engines
250 V8 DTS Black Dual Mercury Verados
with hydraulic power steering (standard engine)
250 V8 DTS White Dual Mercury Verados
with hydraulic power steering
300 V8 DTS Black Dual Mercury Verados
with hydraulic power steering
300 V8 DTS White Dual Mercury Verados
with hydraulic power steering
250 V8 (DTS) Dual Mercury Engines with Joystick Piloting
(engines with Joystick Piloting) Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
250 V8 (DTS) Dual Mercury Engines (white) with Joystick Piloting
(engines with Joystick Piloting) Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
300 V8 (DTS) Black Dual Mercury Engines with Joystick Piloting
(engines with Joystick Piloting) Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
300 V8 (DTS) Dual Mercury Engines (white) with Joystick Piloting
(engines with Joystick Piloting) Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Helm Seating
Seating - deluxe helm seating
Seating - deluxe helm seating
Additional Seating
Seating - bow filler
(must select bow table)Spotlight (hardtop only)
Seating - deluxe leaning post with cooler
includes: bench seat with backrest and flip-up thigh rise (optional dual helm seat with flip-up armrests can be selected), cooler - 35 Qt YETI with slide, drink holders (2), grab rails - stainless steel, 3 gallon livewell with red light, rod holders (2), sink with freshwater and pull out sprayer
Seating - fold down trolling seats
Seating - fold down trolling seats
Packages
Premium package
includes: 8-inch cross tie cleats at transom, bow cushions, cockpit line holders (4), stainless steel fender clips (4) deluxe helm seating, forward coaming bolsters, pullout sprayer in console, stainless steel drink holders (12), under gunnel storage shelves, Vacu-flush toilet, holding tank, overboard discharge and dockside pump-out
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Entertaining Features
Table - at bow with canvas cover
(black or blue canvas)
Fishing Features

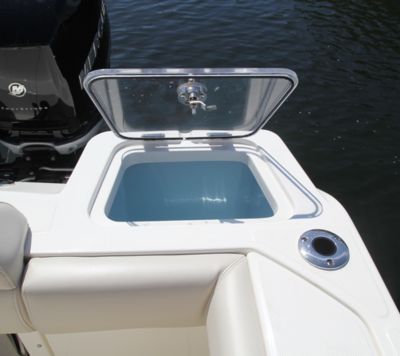

Livewell - 17 gallons - port aft
Livewell - 17 gallons - port aft
Notable Options & Accessories
SeaKeeper 1 Gyroscopic Stabilizer 220V
SeaKeeper 1 Gyroscopic Stabilizer
SeaKeeper 1 Gyroscopic Stabilizer
Factory installed GR31 AGM batteries

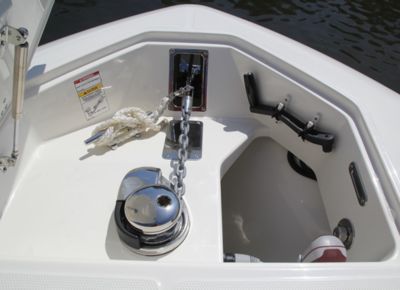

Anchor windlass chain
(15 feet) (must select anchor windlass)
Outriggers - radial (for Hardtop)
(black)
T-Top electronics box
Bow tow eye
Bow tow eye

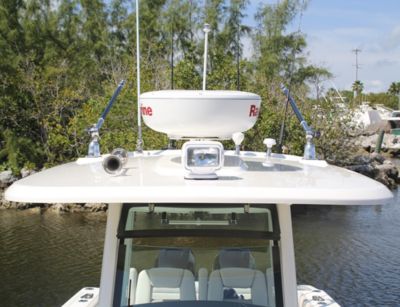

Spotlight
(must select hardtop option)
Trailer - aluminum
Lighting - Underwater LED
Lighting - Underwater LED
Dive tank holders (4)
Dive tank holders (4)
Battery charging system
Thru hull transducer
1000W thru hull transducer (SS175 med) and SonarHub™ module
Navigation
Nav Package, Simrad 12" NSX Add'l Display
Nav Package, Simrad 12" NSX Add'l Display
Nav Package, Simrad 16" NSO
Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder), Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury VesselView Link , GS25 GPS Antenna 15 N2K with Heading Sensor
Radar, Simard Dome Halo24
Radar, Simard Dome Halo24
Autopilot Simard NAC-2
Nav Package, Simrad 12" NSX
Nav Package, Simrad 12" NSX
Electronics
Satellite Weather and Radio
Satellite Weather and Radio
VHF Radio (Simrad)
VHF Radio (Simrad)
Satellite Radio
(Sirius satellite receiver with antenna) (must select stereo option)
Vessel View 4 inch display
(network connections to Simrad with navigation package)
Stereo - JL Audio AM/FM
with waterproof speakers (6), 800-Watt Amp, Subwoofer and MP3/USB inputs (JL Audio Bluetooth enabled)
First Mate safety & security system dual
Dual engine (includes captain fob and 3 passenger fobs)
First Mate Safety & Security System Fob Kit
Includes additional Man Overboard (MOB) FOB’s for additional passengers (Qty 4)
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
Packages
Standard canvas cover package
(includes: black or blue console cover with leaning post cover)
Seating canvas cover package
(includes: black or blue bow cushion cover, console cover with backrest covers, and stern seat backrest cover; must select premium package)
Sunshades
Sunshade at cockpit
(Must select fiberglass hardtop)
Sunshade at bow
(must select hardtop option)
Standard Features
12-V receptacle
Access panels to electronics
Acrylic entry door with lock
Bi-level molded console footrests
Compass
Dash visor
Drink holders (2)
Easy access storage space for personal items
Nav Package, Simrad 12" NSX
Enclosed head/storage area in console with easy clean liner
Fold-down step inside console
Glove box - lockable dry storage
Instrumentation and electrical switch panel with circuit breaker protection and illuminated text
Interior courtesy light
Port light with screen -stainless steel
Portable head with pump-out
Remote ignition key switches with pushbutton start at helm
Steering wheel with knob - cast stainless steel
28” interior freeboard
8" stainless steel cleats; bow (2), spring line (2), stern with hawse pipes (2), anchor locker (1)
Acrylic transom door with stainless steel latch
Aft coaming bolsters
Aft tackle storage center (port side) (2 drawers)
Bow and stern eyes
Cockpit and bow courtesy lights
Drink holders; (2) in bow, (2) in hawse pipes, (2) in leaning post, (2) in console)
Heavy-duty rub rail
Welded low profile rail - stainless steel
Motorwell drains
Port aft storage (2)
Rod holders - gunnel mounted stainless steel (6)
Rod holders - transom mounted stainless steel (3)
Rod racks - under gunnel
Self-bailing cockpit sole
Toe rails - stainless steel
Swim platform with covered telescoping swim ladder with stainless steel grab rail
Thru hull anchor roller davit - stainless steel
Molded fiberglass portside dive/boarding door with removable stainless steel dive ladder
Bait prep area
Drink holders (2)
Grab rail - welded stainless steel
Livewell lights - red
Pressurized livewell with clear lid and blue interior (30 gallons)
Rod holders (2)
Sink with freshwater and pullout sprayer
Tackle storage drawers (3) port side (deleted with Optional Deluxe Leaning Post with Cooler)
Tip-out trashcan (deleted with Optional Deluxe Leaning Post with Cooler)
Upholstered leaning post with flip-up bolster and backrest
T-top
186-gallon fuel tank
250 V8 DTS Black Dual Mercury Verado engines with hydraulic power steering
Automatic bilge pumps (750 GPH fwd and 1100 GPH aft)
Battery trays (3) with switches
Electric horn
Electrical distribution/breaker panel with key switches (inside console)
Engine fuel/water separators
Fishbox pump-out (54 gallons each)
Freshwater system with 26-gallon tank, sink at leaning post, transom shower, and anchor washdown
LED navigation lights
Propellers stainless steel
Raw-water washdown
Recessed electric trim tabs with indicators
SmartCraft deluxe gauge package
Tilt steering
Foldaway stern seat
Forward console seat with integrated storage
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Aft tackle storage center (port side)
Bow anchor locker with drain
Dry storage areas in console (3)
Forward deck storage / seats (port and starboard) with drains, gaskets, garage storage, lockable rod storage
Forward in floor storage and (2) 5-gallon buckets
Leaning post tackle storage
Lockable console storage
Port and starboard aft fishboxes with pump-out and drains
Under gunnel rod racks (2 per side)
Bow area floodlight
Cockpit floodlights (3)
Dome light (red and white)
Life jacket storage
Rod holders (5) (white or black depending on frame color selection)
(white or black depending on frame color selection)
Bluetooth connection via Vessel View Mobile app (compatible while connected to stereo)
Display key engine data on your smartphone (Android or Apple iPhone)
Options
Gelcoat Hull Side Colors
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Platinum
Platinum
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Silver graphics
Silver graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver stripe)
Upholstery Package
Shore (Tan) Exterior Upholstery Package (standard)
Shore (Tan) Exterior Upholstery Package (standard)
Sea (Gray) Exterior Upholstery Package
Sea (Gray) Exterior Upholstery Package
Frame Color
White Frame
White Frame
(Standard)
Black Frame
Black Frame
(updates standard T-Top or optional hardtop)
Tops & Towers
Hardtop with electronics box
(includes: bow area flood light, cockpit flood lights (2), dome light (red and white), electronics box, Windshield wiper, lifejacket storage, outrigger ready, rod holders (5) (white or black depending on frame color selection), tempered glass windshield with power actuated vent)
T-top
Hardtop Underside Color
White
White
Abaco Blue
Abaco Blue
Platinum
Platinum
Horizon Blue
Horizon Blue
Steel Blue
Steel Blue
Glacier Green
Glacier Green
Classic Desert Tan
Classic Desert Tan
Light Blue
Light Blue
Dual Engines
250 V8 DTS Black Dual Mercury Verados
with hydraulic power steering (standard engine)
250 V8 DTS White Dual Mercury Verados
with hydraulic power steering
300 V8 DTS Black Dual Mercury Verados
with hydraulic power steering
300 V8 DTS White Dual Mercury Verados
with hydraulic power steering
250 V8 (DTS) Dual Mercury Engines with Joystick Piloting
(engines with Joystick Piloting) Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
250 V8 (DTS) Dual Mercury Engines (white) with Joystick Piloting
(engines with Joystick Piloting) Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
300 V8 (DTS) Black Dual Mercury Engines with Joystick Piloting
(engines with Joystick Piloting) Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
300 V8 (DTS) Dual Mercury Engines (white) with Joystick Piloting
(engines with Joystick Piloting) Outboard docking system with joystick, electronic steering, Skyhook/autopilot keypad and functionality.(Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Helm Seating
Seating - deluxe helm seating
Seating - deluxe helm seating
Additional Seating
Seating - bow filler
(must select bow table)Spotlight (hardtop only)
Seating - deluxe leaning post with cooler
includes: bench seat with backrest and flip-up thigh rise (optional dual helm seat with flip-up armrests can be selected), cooler - 35 Qt YETI with slide, drink holders (2), grab rails - stainless steel, 3 gallon livewell with red light, rod holders (2), sink with freshwater and pull out sprayer
Seating - fold down trolling seats
Seating - fold down trolling seats
Packages
Premium package
includes: 8-inch cross tie cleats at transom, bow cushions, cockpit line holders (4), stainless steel fender clips (4) deluxe helm seating, forward coaming bolsters, pullout sprayer in console, stainless steel drink holders (12), under gunnel storage shelves, Vacu-flush toilet, holding tank, overboard discharge and dockside pump-out
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Entertaining Features
Table - at bow with canvas cover
(black or blue canvas)
Fishing Features
Livewell - 17 gallons - port aft
Livewell - 17 gallons - port aft
Notable Options & Accessories
SeaKeeper 1 Gyroscopic Stabilizer 220V
SeaKeeper 1 Gyroscopic Stabilizer
SeaKeeper 1 Gyroscopic Stabilizer
Factory installed GR31 AGM batteries
Anchor windlass chain
(15 feet) (must select anchor windlass)
Outriggers - radial (for Hardtop)
(black)
T-Top electronics box
Bow tow eye
Bow tow eye
Spotlight
(must select hardtop option)
Trailer - aluminum
Lighting - Underwater LED
Lighting - Underwater LED
Dive tank holders (4)
Dive tank holders (4)
Battery charging system
Thru hull transducer
1000W thru hull transducer (SS175 med) and SonarHub™ module
Navigation
Nav Package, Simrad 12" NSX Add'l Display
Nav Package, Simrad 12" NSX Add'l Display
Nav Package, Simrad 16" NSO
Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder), Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan), Integrated Mercury VesselView Link , GS25 GPS Antenna 15 N2K with Heading Sensor
Radar, Simard Dome Halo24
Radar, Simard Dome Halo24
Autopilot Simard NAC-2
Nav Package, Simrad 12" NSX
Nav Package, Simrad 12" NSX
Electronics
Satellite Weather and Radio
Satellite Weather and Radio
VHF Radio (Simrad)
VHF Radio (Simrad)
Satellite Radio
(Sirius satellite receiver with antenna) (must select stereo option)
Vessel View 4 inch display
(network connections to Simrad with navigation package)
Stereo - JL Audio AM/FM
with waterproof speakers (6), 800-Watt Amp, Subwoofer and MP3/USB inputs (JL Audio Bluetooth enabled)
First Mate safety & security system dual
Dual engine (includes captain fob and 3 passenger fobs)
First Mate Safety & Security System Fob Kit
Includes additional Man Overboard (MOB) FOB’s for additional passengers (Qty 4)
CMAP Discovery X Chart Card - South America/Caribbean
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Central/West Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - North/Central Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Southern Europe
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Arica/Arabic Sea
(Only compatible with NSX Displays)
CMAP Discovery X Chart Card - Australia/New Zealand
(Only compatible with NSX Displays)
Packages
Standard canvas cover package
(includes: black or blue console cover with leaning post cover)
Seating canvas cover package
(includes: black or blue bow cushion cover, console cover with backrest covers, and stern seat backrest cover; must select premium package)
Sunshades
Sunshade at cockpit
(Must select fiberglass hardtop)
Sunshade at bow
(must select hardtop option)
Model: 280 Outrage
Hull #: USBWCE2520D818
Engine: Dual Mercury 300 V8 AMS
Horsepower: 600
Gear Ratio: 1.85 : 1
Prop: 14 5/8” x 21” Rev4
Fuel Capacity: 186 gallons
Notable Options: Windlass, Premium Package, Port Aft Livewell
Test Date: 2-May-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 96 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 385 lbs
Test Weight: N/A
Water Conditions: 74° F
Weather Conditions: 70° F
Model: 280 Outrage
Hull #: USBWCE2520D818
Engine: Dual Mercury 250 V8 AMS
Horsepower: 500
Gear Ratio: 1.85 : 1
Prop: 14 5/8” x 19” Rev4
Fuel Capacity: 186 gallons
Notable Options: Windlass, Premium Package, Port Aft Livewell
Test Date: 03-May-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 96 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 385 lbs
Test Weight: N/A
Water Conditions: 75° F
Weather Conditions: 76° F
Model: 280 Outrage
Hull #: USBWCE2520D818
Engine: Dual Mercury 300 V8 AMS
Horsepower: 600
Gear Ratio: 1.85 : 1
Prop: 14 5/8” x 21” Rev4
Fuel Capacity: 186 gallons
Notable Options: Windlass, Premium Package, Port Aft Livewell
Test Date: 2-May-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 96 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 385 lbs
Test Weight: N/A
Water Conditions: 74° F
Weather Conditions: 70° F
Model: 280 Outrage
Hull #: USBWCE2520D818
Engine: Dual Mercury 250 V8 AMS
Horsepower: 500
Gear Ratio: 1.85 : 1
Prop: 14 5/8” x 19” Rev4
Fuel Capacity: 186 gallons
Notable Options: Windlass, Premium Package, Port Aft Livewell
Test Date: 03-May-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A
Fuel: 96 gallons
Water: 0 gallons
Test Gear: 20 lbs
Personnel: 385 lbs
Test Weight: N/A
Water Conditions: 75° F
Weather Conditions: 76° F
