420 Outrage

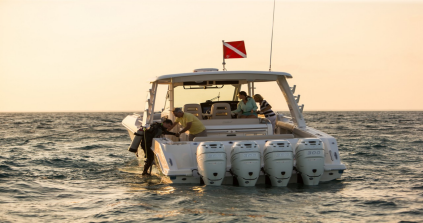

The flagship of Boston Whaler’s offshore fishing fleet, the 420 Outrage dominates blue water angling in sport fisheries around the world. This formidable 42-foot center-console boat can be powered by up to 1,800 horses—which means you can hang three advanced 600-hp V12 Mercury® Verado® outboards on the transom. Advanced angling, technology, and comfort features abound—an immense and well-equipped aft fishing deck, a Simrad®-integrated helm, roomy bow lounges, and a spacious cabin with head, V-berth, and seven feet of headroom. If you want to experience the ultimate in offshore angling, look no further than the 420 Outrage.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
420 OUTRAGE FEATURES
- Quad 300-HP V8 , Quad 400-HP V10 or Triple 600-HP V12 Mercury Verado engines with Joystick Piloting offer incredible power and precision
- Helm seating accommodates 6 people and converts easily to face forward or aft.
- Cockpit sunshade deploys electronically and features black Sunbrella canvas.
- Enclosed head includes electric VacuFlush toilet and an enclosed shower with rain shower head
- Spacious cabin with V-berth offers 7 feet of headroom and available color schemes
- Convertible aft bench tucks away to expand the cockpit with even more fish-fighting room.
- Seamlessly integrated Simrad technology for precise navigation and enhanced onboard control
- Standard Whaler Watch technology provides remote connectivity by monitoring systems and vessel position via satellite, ensuring 24/7 security even while away
Capacity
20
Persons Capacity
700 gallons (2649 L)
Fuel Capacity
7,482 lbs (3,394 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
20 gallons (76 L)
Waste Capacity
60 gallons (227 L)
Water Capacity
Dimensions
42’ 6” (13.0 m)
L.O.A.
13’ (3.96 m)
Beam
12’ 5” (3.79 m)
Bridge Clearance (with Hardtop)
14’ 2” (4.32 m)
Bridge Clearance (with Hardtop, Radar and Satellite TV)
18’ 6” (5.64 m)

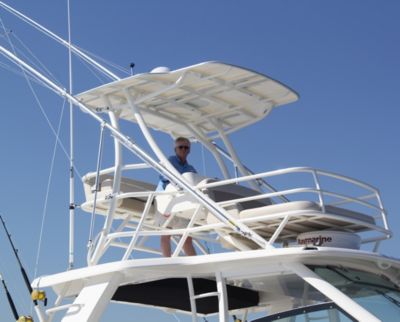

Bridge Clearance (with upper station )
31” (0.79 m)
Draft
40 gal
Livewell Volume
30” (0.76 m)
Transom Height
Engines
1,800 HP (1,342 kW)
Maximum Horsepower
3,400 lbs (1,542 kg)
Maximum Engine Weight
1,200 HP (895 kW)
Minimum Horsepower
Weight
22,000 lbs (9,979 kg)
Weight (dry, no engine)
29,500 lbs (13381 kg)
Weight (with engines, fuel and water)
20
Persons Capacity
700 gallons (2649 L)
Fuel Capacity
7,482 lbs (3,394 kg)
Maximum Weight Capacity
4,000 lbs (1,814 kg)
Swamped Capacity
20 gallons (76 L)
Waste Capacity
60 gallons (227 L)
Water Capacity
42’ 6” (13.0 m)
L.O.A.
13’ (3.96 m)
Beam
12’ 5” (3.79 m)
Bridge Clearance (with Hardtop)
14’ 2” (4.32 m)
Bridge Clearance (with Hardtop, Radar and Satellite TV)
18’ 6” (5.64 m)
Bridge Clearance (with upper station )
31” (0.79 m)
Draft
40 gal
Livewell Volume
30” (0.76 m)
Transom Height
1,800 HP (1,342 kW)
Maximum Horsepower
3,400 lbs (1,542 kg)
Maximum Engine Weight
1,200 HP (895 kW)
Minimum Horsepower
22,000 lbs (9,979 kg)
Weight (dry, no engine)
29,500 lbs (13381 kg)
Weight (with engines, fuel and water)
Standard features & Options
120-V receptacle - port side
12-V USB charging ports - port and starboard sides
24” flat screen HDTV
Air conditioner (12,000 BTU)
Carbon monoxide detector
Central vacuum system with hose and attachments with dedicated storage
Console side windows with (2) opening port lights with shades
Convertible double berth with filler cushion; comes with fitted sheet, comforter and two regular size pillowcases
Convertible pull-out settee
Digital vessel control; iPad with inductive charging case, CZone App (monitor vessel systems and control DC circuits)
Easy to clean interior materials
Elite interior color and material package
Hanging locker
Hardwood cabin sole
Hull side windows with shades
Lighting - LED diffused courtesy lights (blue)
Lighting - LED diffused overhead lights (white)
Lighting - LED reading lights (2)
Rod storage (4)
Skylight with integrated shade system
Table - wood table that lowers to support filler cushion for forward double berth
Throw pillows (3)
10” stainless steel cleats (stern cockpit with gunnel board hawse pipe (2), anchor locker (1))
10” stainless steel pull-up cleats (bow (2), spring line (2), crosstie cleats at transom (2))
28” interior freeboard
Acrylic transom door with stainless steel latch
Anchor roller davit - stainless steel thru hull
Boarding ladder at transom
Bow tow eye - heavy duty polished stainless steel
Chrome Boston Whaler logo/model designator
Drink holders - stainless steel (4 in bow, 2 in hawse pipes, 6 at helm, 2 at console lounge, 2 at leaning post)
Full coaming bolsters
Lighting - LED courtesy lighting in cockpit (blue)
Livewell - pressurized insulated (24 gallons) in aft port corner with clear lid, blue interior and red LED light
Molded fiberglass boarding/dive door port side with removable stainless steel dive ladder with dedicated storage
Rails - cockpit toe rails - stainless steel
Rails - hand rails; companion way, boarding ladders, prep station - welded stainless steel
Rails - low profile interior bow rails - welded stainless steel
Rod holders - gunnel mounted (bow (4), aft cockpit starboard (4), port (2)
Rod holders - transom mounted (5)
Rod holders - under gunnel (3) S
Rub rail - white with stainless steel inserts
Self-bailing cockpit sole
Ship’s bell
Under gunnel storage shelf with downrigger weight holders (2 per side)
Windlass with 400’ rode and chain with handheld remote control, stainless steel swivel and polished stainless steel anchor (44 lbs)
120-V outlets (2)
Bait prep area with cutting board
Drink holders (2)
Electric grill with hinged solid surface lid over grill providing counter surface when not in use
Freshwater sink with hot and cold water
Leaning post cushion on forward side of prep-station that also converts to a 3 person bench seat providing a second row of seating
Lighting - LED task lighting
Livewell - (insulated 24 gallons) pressurized with viewing window, clear lid, blue interior and red LED light
Pump switch panel with 12-V outlet
Rail - grab rail - stainless steel
Refrigerator - stainless steel drawer 12-V/120-V (2.3 cubic ft) (starboard side)
Solid surface countertop
Storage lid with tool holders, storage nets and leader holders
Tackle storage drawers (3) (port side)
Accent wall
Electric Vacu-Flush® toilet, holding tank with vent filter, overboard discharge, dockside pump-out and tank level indicator
Enclosed shower - rain shower head with hot and cold faucet and shower curtain providing protection of vanity area
Flooring - solid surface tile
Lighting - LED overhead light
Mirror
Opening port light
Rail - hand rail - stainless steel
Shower sump
Solid surface pull-out countertop forward of vanity
Toilet paper holder
Vanity storage
Vanity with sink, polished chrome faucet and backlit mirror
120-V receptacle
12-V receptacle
Dedicated dish storage in pull-out drawer below sink and in a cabinet above the sink
Microwave
Pull-out waste receptacle
Rail - hand rail - stainless steel
Refrigerator/freezer - stainless steel 12-V/120-V (1.7 cubic ft)
Sink filler - solid surface matching countertop with integral cutting board
Sink with fold down faucet
A/C vents (2)
Center helm layout
Compass
Dash visor
Drink holders (2)
Electrical switch panel with stainless steel switches with illuminated text
Electronics mounting surface with space for triple 15” displays
Footrest - port side passenger fold-down footrest
Footrest molded into console with fold-down standing platform and maintenance free, anti-fatigue synthetic surface
Lockable acrylic sliding entry door with translucent skylight inset at the top of door for natural light Lockable glove box with 12-V receptacles and USB charging port
Mercury DTS dual binnacle controls with integrated engine trim controls
Dash surface – custom black acrylic integrated with switch panels and flush mounting of dual displays
Rails - grab rail - stainless steel
Simrad RS40 VHF Radio with AIS and HS40 wireless handset
Steering wheel - cast stainless steel with knob and tilt helm
Dual Nav Package 19" Simrad NSO (includes: Simrad NSO 19" MFD (GPS, Chart plotter, Fishfinder), (CHIRP, SideScan, DownScan), Integrated Mercury VesselVIew Link, Simrad RS40 VHF Radio with AIS and HS40 wireless handset, GS25 GPS Antenna 15 N2K with Heading Sensor, Simrad S5100 1kw Dual channel CHIRP Sounder Module, Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included)
Switches - remote ignition key switches in cabin with pushbutton start/stop at helm
Windshield defogger with remote shutoff control
ACR spotlight (premium)
Advanced battery management system; in cabin electric switches and charging relays with remote paralleling
Air conditioner (cabin) (12,000 BTU) reverse cycle
Air conditioner (helm deck) (18,000 BTU) reverse cycle
Battery trays (7)
Bilge pump - high water bilge pump with alarm (2,000 GPH)
Bilge pumps - automatic (1,100 GPH forward, 2,000 GPH aft)
Bonding system for underwater through hull fittings
Dockside cable TV inlet
Dual 30-amp shore power inlets with battery chargers, isolation transformers and 50’ shore power cords
Dual sounder transducer mount area
Electric dual trumpet horn
Electric trim tabs with indicator (auto glide, dynamic running surface, dual ram)
Engine fuel / water separators (4)
Freshwater anchor washdown with integrated coiled hose system
Freshwater hot and cold water system with dockside hookup and tank level indicator integrated into VesselView
Freshwater pull-out hot and cold transom shower
Freshwater system with 60-gallon tank
Freshwater washdown hot and cold retractable hose reel at mid-ship
Fuel tanks - dual 300-gallon aluminum fuel tanks
Generator - low CO gas (7.5 kW) 120-V 60 Hz with fire suppression system, automatic with manual override
Lighting - LED cockpit and machinery space lighting
Manifold plumbing system with individual valve per circuit
Raw-water washdown with retractable hose reel at mid-ship
Stainless steel propellers
Thru hulls - cast bronze thru hulls (below waterline)
Thru hulls - cast stainless steel thru hulls (above waterline)
Water heater
Stereo System- JL Audio integration into Simrad Navigation Package
Helm- JL Audio MM105-HR stereo with Dash mounted remote volume/mute knob.
AM/FM/HD Radio
USB audio
Sirius XMTM ready
Iphone/Android compatible via integrated Bluetooth 5.0
JL Audio MMR-40 Stereo Remote at bow
JL Audio waterproof speakers (8)
10” Subwoofer (2)
600W & 800W Amplifier
Cabin Includes- JL Audio MMR-40 Stereo Remote and JL Audio speakers 6.5” (4)
300 V8 Black Quad Mercury Verado with JOYSTICK PILOTING. Outboard system with joystick electronic steering, skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
THEFT DETERRENT W/FIRST MATE AND REMOTE CONNECTIVITY SYSTEM (Whaler Watch®) (3 Year monitoring included), Whaler Watch mobile app, First Mate Safety & Security System – Quad or Triple Engines (Includes Captain FOB and 3 passenger FOB’s), Anti theft feature immobilizes engines, Telematics tracking system with GeoFence notification, Remote monitoring and notification of high-water bilge alarm, tank levels, batteries, shore power connections and propulsion system information
Electronics box with locking latch above helm
Ladder access to hardtop integrated into hardtop frame, port side
Lighting - LED flood lights bow (1), cockpit (2)
Lighting - LED navigation lights
Lighting - LED overhead courtesy/chart light (red and white)
Lighting - LED overhead lighting (blue)
Open tempered side glass with upper removable rigid acrylic canvas curtain

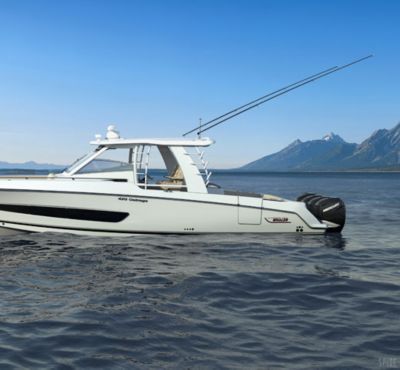

Outrigger ready
Sunshade for cockpit - telescoping polished stainless steel frame retracts and deploys electrically (black Sunbrella® canvas)
Windshield - full tempered glass, full height with electric actuated center vent
Windshield wipers - (1) stainless steel pantograph with wash-system
Custom powder coated frame integrated into the deck providing clean unobstructed walkways (White or Black depending on frame color selection)
Rod holders integrated onto hardtop supports (6) (White or Black depending on frame color selection)
Flip-up backrest at forward end of lounge providing wraparound seating
Fold-away stern bench seat
Forward console lounge with fold-down armrests, drink holders (4), backrests and removable cushion
Forward port and starboard seats with folding backrests and drink holders (4) with stereo remote and 12-V receptacle on port side
Helm and companion bolster style seats (3) with fold-down armrests (center seat is electrically actuated) (port and starboard seats rotate to face aft)
Leaning post cushion on forward side of the prep station that also converts to 3 person bench seat providing a second row of seating behind the helm
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bilge storage aft
Bow anchor locker with drains
Coaming storage pockets with acrylic doors in port and starboard fore deck area (4)
Coaming storage pockets with net retainers in port and starboard helm deck area (4)
Forward lounge storage - miscellaneous gear, fender storage or optional dive tank storage
Insulated built-in storage/cooler compartment at forward end of the console lounge
Insulated in-floor fishboxes with drains, helm deck (2)
Insulated in-floor storage/fishbox with drains, fore deck (2)
Insulated in-floor storage/fishboxes with pump-out, cockpit (2)
Lifejacket or weather curtain storage in overhead hardtop storage compartment
Lighting - LED lighting in storage compartments
Lockable electronics box in hardtop
Lockable glove box
Prep station side pockets (2)
Prep station storage drawers
Storage under bow seating
Companionway hanging locker
Galley - cabinet aft of microwave
Galley - hinged lid integrated into countertop providing access to storage compartment
Galley - pull-out waste receptacle and dish storage
Head cabinetry
Storage under interior seating
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Chrome graphics
Chrome graphics
Interior
Teak
Teak
(interior color package)
Natural Tones
Legacy
Legacy
(interior color package)
Dusk
Upholstery Package
Shore (Tan) Exterior Upholstery Package (standard)
Shore (Tan) Exterior Upholstery Package (standard)
All exterior upholstery (based on option selection), console dash and second row bench backrest tan gelcoat
Sea (Gray) Exterior Upholstery Package
Sea (Gray) Exterior Upholstery Package
All exterior upholstery (based on option selection), console dash and second row bench backrest gray gelcoat
Frame Color
White Frame
White Frame
(Standard) Hardtop frame, Hardtop ladder bars (Upper Station Frame, Hardtop Storage Rack and Canvas Enclosure Options if applicable)
Black Frame
Black Frame
Hardtop frame, Hardtop ladder bars (Upper Station Frame, Hardtop Storage Rack and Canvas Enclosure Options if applicable)
Tops & Towers
Upper Station (Flybridge) with Joystick
includes: all flybridge content, electronic steering, joystick control, skyhook/autopilot (must select flybridge)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
(hardtop underside color matches hull color)
Horizon Blue
Horizon Blue
(hardtop underside color matches hull color)
Steel Blue
Steel Blue
(hardtop underside color matches hull color)
Triple Engines
600 V12 DTS Triple Black Mercury Four Strokes with Joystick Piloting
600 V12 DTS Triple Black Mercury Four Strokes with JOYSTICK PILOTING. Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
600 V12 DTS Triple White Mercury Four Strokes with Joystick Piloting
600 V12 DTS Triple White Mercury Four Strokes with JOYSTICK PILOTING. Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Quad Engines
300 V8 DTS Black Quad Mercury with Joystick Piloting
300 V8 DTS Black Quad Mercury with JOYSTICK PILOTING. Outboard system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting).
300 V8 DTS White Quad Mercury with Joystick Piloting
300 V8 DTS White Quad Mercury with JOYSTICK PILOTING. Outboard system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting).
400 V10 DTS Quad Black Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
400 V10 DTS Quad White Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Additional Seating
Seating - cockpit fold-out bench seat
fiberglass cockpit fold-out bench seat (replaces under gunnel rod holders and (1) gunnel rod holder) (starboard side)
Seating - fold-down trolling seats (2)
(replaces (2) port and starboard net storage compartments on helm deck)
Seating - summer kitchen leaning post
(replaces bait prep center) - includes:12- V outlet, cutting board, drawer storage replaces livewell in center, drink holders (2), electric grill with hinged solid surface lid over grill providing counter surface when not in use, freshwater sink with hot and cold water, leaning post cushion on forward side of prep station that also converts to a 3 person bench seat providing a second row of seating, LED task lighting, pump switch panel with 12-V outlet, grab rail (stainless steel), refrigerators with stainless steel drawer (port and starboard) 12-V / 12\u1aV (2.3 cubic ft), solid surface countertop, storage lid with tool holders, storage nets and leader holders
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Table - fiberglass bow table
(maintenance free synthetic teak)(electrically raised and lowered) with filler cushion and canvas cover
Table - solid teak bow table
(electrically raised and lowered) with filler cushion and canvas cover
Table - solid teak aft cockpit tables (2)
with dedicated storage on underside of mechanical hatch
Fishing Features
Outriggers - premium radial
(Gemlux) (stainless steel) (hardtop mounted)
Outriggers - competition (for flybridge)
(must select flybridge package)
Refrigeration frostbox chiller system (120V)
(port and starboard)
Refrigeration frostbox chiller system (starboard) (120V)
(starboard only)
Refrigerated chiller fishbox (220V)
Refrigerated chiller fishbox (starboard) (220V)
Notable Options & Accessories
Battery Package JPO (factory installed)
Water delivery with V12 600 at manufacturing plant
Water delivery with flybridge and V12 600 at manufacturing plant
Engine flushing system (automatic)
Generator (diesel)
(12Kw with 35 gallon. diesel tank)(replaces low CO gas generator)
Bow Thruster
Bow Thruster
Fender Hangers - stainless steel (6)
stainless steel fender hangers (6)
Full height tempered side glass
integrated with hardtop frame
Anchor windlass chain (300 feet)
Anchor windlass chain (300 feet)
12-V receptacles at transom
for electric reels/downriggers (2)
Seakeeper 6 Gyroscopic Stabilizer
Lighting - underwater LED (blue)
(transom mounted -3)(hull-bottom mounted-3)
Dive tank holders (6)
Dive tank holders (6)
Boston Whaler dishware set
with dedicated storage
Navigation
16" Simrad NSO EVO3S Electronics / Triple Navigation Package
Dash surface (Custom black acrylic integrated with switch panels and flush mounting of displays) Simrad NSO EVO3S 16" screens (GPS, Chart plotter and Fishfinder)(3)
Electronics
M364C Thermal Night Vision w hardtop mount
M332 Thermal Night Vision w hardtop mount
Satellite weather and radio (requires monthly subscription)
Cockpit rear view Simrad camera
Automatic Identification System (AIS) Transciever
First Mate Safety & Security FOB Kit (Includes additional Man Overboard (MOB) FOB’s for additional passengers (Qty 4))
Simrad 48" Radar Open Array Bird+
Simrad 48" Radar Open Array Bird+ Simrad HALO 30004 130W Pulse Compression Radar with 48" Open Array Antenna
Satellite Radio - Sirius
(Sirius satellite receiver with antenna)
Premium Audio Package
includes:additional JL Audio waterproof speakers - exterior 7.7 inch helm deck (2), 8.8 inch bow (2), 8 inch sub-woofer bow (1), additional JL Audio speakers - interior 8 inch subwoofer, additional JL Audio amplifiers (2)
First Mate Safety & Security System (Triple Engine) (Includes Captain FOB and 3 passenger FOB’s)
First Mate Safety & Security System (Quad Engine) (Includes Captain FOB and 3 passenger FOB’s)
Sunshades
Sunshade at bow
(manual setup) (attaches to hardtop and 4 poles on forward bow)
Canvas
Black canvas
Hardtop aft enclosure curtains
(Rigid Makrolon with white or black stamoid material depending on frame color selection)(full helm deck enclosure, forward wing curtains with side panels and aft/full beam panels enclosing second row seat) storage bag (protective mesh bag for enclosure storage)
Tan Canvas
Standard Features
120-V receptacle - port side
12-V USB charging ports - port and starboard sides
24” flat screen HDTV
Air conditioner (12,000 BTU)
Carbon monoxide detector
Central vacuum system with hose and attachments with dedicated storage
Console side windows with (2) opening port lights with shades
Convertible double berth with filler cushion; comes with fitted sheet, comforter and two regular size pillowcases
Convertible pull-out settee
Digital vessel control; iPad with inductive charging case, CZone App (monitor vessel systems and control DC circuits)
Easy to clean interior materials
Elite interior color and material package
Hanging locker
Hardwood cabin sole
Hull side windows with shades
Lighting - LED diffused courtesy lights (blue)
Lighting - LED diffused overhead lights (white)
Lighting - LED reading lights (2)
Rod storage (4)
Skylight with integrated shade system
Table - wood table that lowers to support filler cushion for forward double berth
Throw pillows (3)
10” stainless steel cleats (stern cockpit with gunnel board hawse pipe (2), anchor locker (1))
10” stainless steel pull-up cleats (bow (2), spring line (2), crosstie cleats at transom (2))
28” interior freeboard
Acrylic transom door with stainless steel latch
Anchor roller davit - stainless steel thru hull
Boarding ladder at transom
Bow tow eye - heavy duty polished stainless steel
Chrome Boston Whaler logo/model designator
Drink holders - stainless steel (4 in bow, 2 in hawse pipes, 6 at helm, 2 at console lounge, 2 at leaning post)
Full coaming bolsters
Lighting - LED courtesy lighting in cockpit (blue)
Livewell - pressurized insulated (24 gallons) in aft port corner with clear lid, blue interior and red LED light
Molded fiberglass boarding/dive door port side with removable stainless steel dive ladder with dedicated storage
Rails - cockpit toe rails - stainless steel
Rails - hand rails; companion way, boarding ladders, prep station - welded stainless steel
Rails - low profile interior bow rails - welded stainless steel
Rod holders - gunnel mounted (bow (4), aft cockpit starboard (4), port (2)
Rod holders - transom mounted (5)
Rod holders - under gunnel (3) S
Rub rail - white with stainless steel inserts
Self-bailing cockpit sole
Ship’s bell
Under gunnel storage shelf with downrigger weight holders (2 per side)
Windlass with 400’ rode and chain with handheld remote control, stainless steel swivel and polished stainless steel anchor (44 lbs)
120-V outlets (2)
Bait prep area with cutting board
Drink holders (2)
Electric grill with hinged solid surface lid over grill providing counter surface when not in use
Freshwater sink with hot and cold water
Leaning post cushion on forward side of prep-station that also converts to a 3 person bench seat providing a second row of seating
Lighting - LED task lighting
Livewell - (insulated 24 gallons) pressurized with viewing window, clear lid, blue interior and red LED light
Pump switch panel with 12-V outlet
Rail - grab rail - stainless steel
Refrigerator - stainless steel drawer 12-V/120-V (2.3 cubic ft) (starboard side)
Solid surface countertop
Storage lid with tool holders, storage nets and leader holders
Tackle storage drawers (3) (port side)
Accent wall
Electric Vacu-Flush® toilet, holding tank with vent filter, overboard discharge, dockside pump-out and tank level indicator
Enclosed shower - rain shower head with hot and cold faucet and shower curtain providing protection of vanity area
Flooring - solid surface tile
Lighting - LED overhead light
Mirror
Opening port light
Rail - hand rail - stainless steel
Shower sump
Solid surface pull-out countertop forward of vanity
Toilet paper holder
Vanity storage
Vanity with sink, polished chrome faucet and backlit mirror
120-V receptacle
12-V receptacle
Dedicated dish storage in pull-out drawer below sink and in a cabinet above the sink
Microwave
Pull-out waste receptacle
Rail - hand rail - stainless steel
Refrigerator/freezer - stainless steel 12-V/120-V (1.7 cubic ft)
Sink filler - solid surface matching countertop with integral cutting board
Sink with fold down faucet
A/C vents (2)
Center helm layout
Compass
Dash visor
Drink holders (2)
Electrical switch panel with stainless steel switches with illuminated text
Electronics mounting surface with space for triple 15” displays
Footrest - port side passenger fold-down footrest
Footrest molded into console with fold-down standing platform and maintenance free, anti-fatigue synthetic surface
Lockable acrylic sliding entry door with translucent skylight inset at the top of door for natural light Lockable glove box with 12-V receptacles and USB charging port
Mercury DTS dual binnacle controls with integrated engine trim controls
Dash surface – custom black acrylic integrated with switch panels and flush mounting of dual displays
Rails - grab rail - stainless steel
Simrad RS40 VHF Radio with AIS and HS40 wireless handset
Steering wheel - cast stainless steel with knob and tilt helm
Dual Nav Package 19" Simrad NSO (includes: Simrad NSO 19" MFD (GPS, Chart plotter, Fishfinder), (CHIRP, SideScan, DownScan), Integrated Mercury VesselVIew Link, Simrad RS40 VHF Radio with AIS and HS40 wireless handset, GS25 GPS Antenna 15 N2K with Heading Sensor, Simrad S5100 1kw Dual channel CHIRP Sounder Module, Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W), StructureScan 3D transducer included)
Switches - remote ignition key switches in cabin with pushbutton start/stop at helm
Windshield defogger with remote shutoff control
ACR spotlight (premium)
Advanced battery management system; in cabin electric switches and charging relays with remote paralleling
Air conditioner (cabin) (12,000 BTU) reverse cycle
Air conditioner (helm deck) (18,000 BTU) reverse cycle
Battery trays (7)
Bilge pump - high water bilge pump with alarm (2,000 GPH)
Bilge pumps - automatic (1,100 GPH forward, 2,000 GPH aft)
Bonding system for underwater through hull fittings
Dockside cable TV inlet
Dual 30-amp shore power inlets with battery chargers, isolation transformers and 50’ shore power cords
Dual sounder transducer mount area
Electric dual trumpet horn
Electric trim tabs with indicator (auto glide, dynamic running surface, dual ram)
Engine fuel / water separators (4)
Freshwater anchor washdown with integrated coiled hose system
Freshwater hot and cold water system with dockside hookup and tank level indicator integrated into VesselView
Freshwater pull-out hot and cold transom shower
Freshwater system with 60-gallon tank
Freshwater washdown hot and cold retractable hose reel at mid-ship
Fuel tanks - dual 300-gallon aluminum fuel tanks
Generator - low CO gas (7.5 kW) 120-V 60 Hz with fire suppression system, automatic with manual override
Lighting - LED cockpit and machinery space lighting
Manifold plumbing system with individual valve per circuit
Raw-water washdown with retractable hose reel at mid-ship
Stainless steel propellers
Thru hulls - cast bronze thru hulls (below waterline)
Thru hulls - cast stainless steel thru hulls (above waterline)
Water heater
Stereo System- JL Audio integration into Simrad Navigation Package
Helm- JL Audio MM105-HR stereo with Dash mounted remote volume/mute knob.
AM/FM/HD Radio
USB audio
Sirius XMTM ready
Iphone/Android compatible via integrated Bluetooth 5.0
JL Audio MMR-40 Stereo Remote at bow
JL Audio waterproof speakers (8)
10” Subwoofer (2)
600W & 800W Amplifier
Cabin Includes- JL Audio MMR-40 Stereo Remote and JL Audio speakers 6.5” (4)
300 V8 Black Quad Mercury Verado with JOYSTICK PILOTING. Outboard system with joystick electronic steering, skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
THEFT DETERRENT W/FIRST MATE AND REMOTE CONNECTIVITY SYSTEM (Whaler Watch®) (3 Year monitoring included), Whaler Watch mobile app, First Mate Safety & Security System – Quad or Triple Engines (Includes Captain FOB and 3 passenger FOB’s), Anti theft feature immobilizes engines, Telematics tracking system with GeoFence notification, Remote monitoring and notification of high-water bilge alarm, tank levels, batteries, shore power connections and propulsion system information
Electronics box with locking latch above helm
Ladder access to hardtop integrated into hardtop frame, port side
Lighting - LED flood lights bow (1), cockpit (2)
Lighting - LED navigation lights
Lighting - LED overhead courtesy/chart light (red and white)
Lighting - LED overhead lighting (blue)
Open tempered side glass with upper removable rigid acrylic canvas curtain
Outrigger ready
Sunshade for cockpit - telescoping polished stainless steel frame retracts and deploys electrically (black Sunbrella® canvas)
Windshield - full tempered glass, full height with electric actuated center vent
Windshield wipers - (1) stainless steel pantograph with wash-system
Custom powder coated frame integrated into the deck providing clean unobstructed walkways (White or Black depending on frame color selection)
Rod holders integrated onto hardtop supports (6) (White or Black depending on frame color selection)
Flip-up backrest at forward end of lounge providing wraparound seating
Fold-away stern bench seat
Forward console lounge with fold-down armrests, drink holders (4), backrests and removable cushion
Forward port and starboard seats with folding backrests and drink holders (4) with stereo remote and 12-V receptacle on port side
Helm and companion bolster style seats (3) with fold-down armrests (center seat is electrically actuated) (port and starboard seats rotate to face aft)
Leaning post cushion on forward side of the prep station that also converts to 3 person bench seat providing a second row of seating behind the helm
All Hardware 316-L Stainless Steel
All Rails Welded 316-L Stainless Steel
Bilge storage aft
Bow anchor locker with drains
Coaming storage pockets with acrylic doors in port and starboard fore deck area (4)
Coaming storage pockets with net retainers in port and starboard helm deck area (4)
Forward lounge storage - miscellaneous gear, fender storage or optional dive tank storage
Insulated built-in storage/cooler compartment at forward end of the console lounge
Insulated in-floor fishboxes with drains, helm deck (2)
Insulated in-floor storage/fishbox with drains, fore deck (2)
Insulated in-floor storage/fishboxes with pump-out, cockpit (2)
Lifejacket or weather curtain storage in overhead hardtop storage compartment
Lighting - LED lighting in storage compartments
Lockable electronics box in hardtop
Lockable glove box
Prep station side pockets (2)
Prep station storage drawers
Storage under bow seating
Companionway hanging locker
Galley - cabinet aft of microwave
Galley - hinged lid integrated into countertop providing access to storage compartment
Galley - pull-out waste receptacle and dish storage
Head cabinetry
Storage under interior seating
Options
Gelcoat Full Hull Colors
White
White
Painted Hull Colors
Horizon Blue
Horizon Blue
Tectonic Silver
Tectonic Silver
Jadestone
Jadestone
Steel Blue
Steel Blue
Platinum
Platinum
Sand Metallic
Sand Metallic
Fighting Lady Yellow
Fighting Lady Yellow
Ice Blue
Ice Blue
Wasabi
Wasabi
Abaco Blue
Abaco Blue
Oyster Grey
Oyster Grey
Graphic Colors
Chrome graphics
Chrome graphics
Interior
Teak
Teak
(interior color package)
Natural Tones
Legacy
Legacy
(interior color package)
Dusk
Upholstery Package
Shore (Tan) Exterior Upholstery Package (standard)
Shore (Tan) Exterior Upholstery Package (standard)
All exterior upholstery (based on option selection), console dash and second row bench backrest tan gelcoat
Sea (Gray) Exterior Upholstery Package
Sea (Gray) Exterior Upholstery Package
All exterior upholstery (based on option selection), console dash and second row bench backrest gray gelcoat
Frame Color
White Frame
White Frame
(Standard) Hardtop frame, Hardtop ladder bars (Upper Station Frame, Hardtop Storage Rack and Canvas Enclosure Options if applicable)
Black Frame
Black Frame
Hardtop frame, Hardtop ladder bars (Upper Station Frame, Hardtop Storage Rack and Canvas Enclosure Options if applicable)
Tops & Towers
Upper Station (Flybridge) with Joystick
includes: all flybridge content, electronic steering, joystick control, skyhook/autopilot (must select flybridge)
Hardtop Underside Color
Abaco Blue
Abaco Blue
Platinum
Platinum
(hardtop underside color matches hull color)
Horizon Blue
Horizon Blue
(hardtop underside color matches hull color)
Steel Blue
Steel Blue
(hardtop underside color matches hull color)
Triple Engines
600 V12 DTS Triple Black Mercury Four Strokes with Joystick Piloting
600 V12 DTS Triple Black Mercury Four Strokes with JOYSTICK PILOTING. Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
600 V12 DTS Triple White Mercury Four Strokes with Joystick Piloting
600 V12 DTS Triple White Mercury Four Strokes with JOYSTICK PILOTING. Outboard docking system with joystick electronic steering, and electronic remote control (ERC). (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Quad Engines
300 V8 DTS Black Quad Mercury with Joystick Piloting
300 V8 DTS Black Quad Mercury with JOYSTICK PILOTING. Outboard system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting).
300 V8 DTS White Quad Mercury with Joystick Piloting
300 V8 DTS White Quad Mercury with JOYSTICK PILOTING. Outboard system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting).
400 V10 DTS Quad Black Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
400 V10 DTS Quad White Mercury Verado with Joystick Piloting
Outboard docking system with joystick electronic steering, Skyhook/autopilot keypad and functionality. (Simrad or other standalone optional autopilot not permitted with Joystick Piloting)
Additional Seating
Seating - cockpit fold-out bench seat
fiberglass cockpit fold-out bench seat (replaces under gunnel rod holders and (1) gunnel rod holder) (starboard side)
Seating - fold-down trolling seats (2)
(replaces (2) port and starboard net storage compartments on helm deck)
Seating - summer kitchen leaning post
(replaces bait prep center) - includes:12- V outlet, cutting board, drawer storage replaces livewell in center, drink holders (2), electric grill with hinged solid surface lid over grill providing counter surface when not in use, freshwater sink with hot and cold water, leaning post cushion on forward side of prep station that also converts to a 3 person bench seat providing a second row of seating, LED task lighting, pump switch panel with 12-V outlet, grab rail (stainless steel), refrigerators with stainless steel drawer (port and starboard) 12-V / 12\u1aV (2.3 cubic ft), solid surface countertop, storage lid with tool holders, storage nets and leader holders
Railings and Rub Rails
Black Rubrail With Stainless Steel Insert
Black Rubrail With Stainless Steel Insert
Entertaining Features
Table - fiberglass bow table
(maintenance free synthetic teak)(electrically raised and lowered) with filler cushion and canvas cover
Table - solid teak bow table
(electrically raised and lowered) with filler cushion and canvas cover
Table - solid teak aft cockpit tables (2)
with dedicated storage on underside of mechanical hatch
Fishing Features
Outriggers - premium radial
(Gemlux) (stainless steel) (hardtop mounted)
Outriggers - competition (for flybridge)
(must select flybridge package)
Refrigeration frostbox chiller system (120V)
(port and starboard)
Refrigeration frostbox chiller system (starboard) (120V)
(starboard only)
Refrigerated chiller fishbox (220V)
Refrigerated chiller fishbox (starboard) (220V)
Notable Options & Accessories
Battery Package JPO (factory installed)
Water delivery with V12 600 at manufacturing plant
Water delivery with flybridge and V12 600 at manufacturing plant
Engine flushing system (automatic)
Generator (diesel)
(12Kw with 35 gallon. diesel tank)(replaces low CO gas generator)
Bow Thruster
Bow Thruster
Fender Hangers - stainless steel (6)
stainless steel fender hangers (6)
Full height tempered side glass
integrated with hardtop frame
Anchor windlass chain (300 feet)
Anchor windlass chain (300 feet)
12-V receptacles at transom
for electric reels/downriggers (2)
Seakeeper 6 Gyroscopic Stabilizer
Lighting - underwater LED (blue)
(transom mounted -3)(hull-bottom mounted-3)
Dive tank holders (6)
Dive tank holders (6)
Boston Whaler dishware set
with dedicated storage
Navigation
16" Simrad NSO EVO3S Electronics / Triple Navigation Package
Dash surface (Custom black acrylic integrated with switch panels and flush mounting of displays) Simrad NSO EVO3S 16" screens (GPS, Chart plotter and Fishfinder)(3)
Electronics
M364C Thermal Night Vision w hardtop mount
M332 Thermal Night Vision w hardtop mount
Satellite weather and radio (requires monthly subscription)
Cockpit rear view Simrad camera
Automatic Identification System (AIS) Transciever
First Mate Safety & Security FOB Kit (Includes additional Man Overboard (MOB) FOB’s for additional passengers (Qty 4))
Simrad 48" Radar Open Array Bird+
Simrad 48" Radar Open Array Bird+ Simrad HALO 30004 130W Pulse Compression Radar with 48" Open Array Antenna
Satellite Radio - Sirius
(Sirius satellite receiver with antenna)
Premium Audio Package
includes:additional JL Audio waterproof speakers - exterior 7.7 inch helm deck (2), 8.8 inch bow (2), 8 inch sub-woofer bow (1), additional JL Audio speakers - interior 8 inch subwoofer, additional JL Audio amplifiers (2)
First Mate Safety & Security System (Triple Engine) (Includes Captain FOB and 3 passenger FOB’s)
First Mate Safety & Security System (Quad Engine) (Includes Captain FOB and 3 passenger FOB’s)
Sunshades
Sunshade at bow
(manual setup) (attaches to hardtop and 4 poles on forward bow)
Canvas
Black canvas
Hardtop aft enclosure curtains
(Rigid Makrolon with white or black stamoid material depending on frame color selection)(full helm deck enclosure, forward wing curtains with side panels and aft/full beam panels enclosing second row seat) storage bag (protective mesh bag for enclosure storage)
Tan Canvas
Model: 420 Outrage
Hull #: USBWCP0125H324
Engine: Quad Mercury 400 V10 Verado
Horsepower: 1600
Gear Ratio: 2.08:1
Prop: 22P Revolution X
Fuel Capacity: 700 gal.
Notable Options: Bow Thruster, Bow Sunshade, Full Side Glass, Premium Audio, Diesel Generator, Gyro Stabilizer, Radar, Nav Package
Test Date: 20-December-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 27,206 lbs
Fuel: 343 gal.
Water: 41 gal.
Test Gear: 25 lbs
Personnel: 365 lbs
Test Weight: 30,162 lbs
Water Conditions: 60° F
Weather Conditions: 55° F
Model: 420 Outrage
Hull #: BWCE0012F122
Engine: Triple Mercury 600 Verado V12
Horsepower: 1800
Gear Ratio: 2.50 : 1
Prop: 27.5P Verado 12
Fuel Capacity: 700 gal.
Notable Options: Joystick Piloting, Full Side Glass, Teak Detail, Canvas Package, Gyro, Diesel Generator, Radar, 16" Electronics, Upper Station with Outriggers and Joystick Piloting, Scuba Tank Rack
Test Date: 8-Dec-2021
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A lbs
Fuel: 476 gal.
Water: 5 gal.
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: N/A lbs
Water Conditions: 70° F
Weather Conditions: 67° F
Model: 420 Outrage
Hull #: USBWCP0125H324
Engine: Quad Mercury 400 V10 Verado
Horsepower: 1600
Gear Ratio: 2.08:1
Prop: 22P Revolution X
Fuel Capacity: 700 gal.
Notable Options: Bow Thruster, Bow Sunshade, Full Side Glass, Premium Audio, Diesel Generator, Gyro Stabilizer, Radar, Nav Package
Test Date: 20-December-2023
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 27,206 lbs
Fuel: 343 gal.
Water: 41 gal.
Test Gear: 25 lbs
Personnel: 365 lbs
Test Weight: 30,162 lbs
Water Conditions: 60° F
Weather Conditions: 55° F
Model: 420 Outrage
Hull #: BWCE0012F122
Engine: Triple Mercury 600 Verado V12
Horsepower: 1800
Gear Ratio: 2.50 : 1
Prop: 27.5P Verado 12
Fuel Capacity: 700 gal.
Notable Options: Joystick Piloting, Full Side Glass, Teak Detail, Canvas Package, Gyro, Diesel Generator, Radar, 16" Electronics, Upper Station with Outriggers and Joystick Piloting, Scuba Tank Rack
Test Date: 8-Dec-2021
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: N/A lbs
Fuel: 476 gal.
Water: 5 gal.
Test Gear: 25 lbs
Personnel: 360 lbs
Test Weight: N/A lbs
Water Conditions: 70° F
Weather Conditions: 67° F
