160 Super Sport
Adventure never ends on the Boston Whaler 160 Super Sport. This easy and fun to use 16-foot boat combines our legendary unsinkability with an easy-going versatility, making it a boat that’s equally at home at watersports, cruising, fishing, or just about anything else you can imagine. This 16-ft. fishing and fun boat is loaded with intuitive features like dual swim platforms and lockable, water-resistant storage, plus options that include multiple seating configurations, bow cushion and rails, and power up to 90 horses.
Image Disclaimer: Some configurations, options, accessories, and/or colors may not be shown. Some images may depict optional equipment. Options and features are subject to change without notice. Confirm availability of all accessories, options and equipment with an authorized Boston Whaler dealer prior to purchase.
Take a stroll through this model with our interactive virtual tour. Explore the layout and abundance of features and options from different angles and views. Imagine the cool air blowing on your face and the warm sun shining down from above, as you virtually walk around your favorite Whaler!
Disclaimer: Some options viewed in the tour may have changed since it was created. Please refer to the Spec Sheet for the most updated information.
160 SUPER SPORT FEATURES
- Customize how you ride in comfort with six selectable helm seating options
- Lockable, water-resistant front-of-console storage keeps valuables safe and dry
- 2 console drink holders put hydration at your fingertips
- An optional ski tow elevates watersports capabilities
- Available seating options include bench seats with cushions and backrest for added comfort
- Choose the bow cushion and bow rail for lounging up front
- Enhance performance with the available 90-hp Mercury FourStroke engine upgrade and optional 19 gallon fuel tank
Capacity
6
Persons Capacity
19 gallons (71.9 L)
Fuel Capacity - Optional
13 gallons (49.2 L)
Fuel Capacity - Standard
1,529 lbs (694 kg)
Maximum Weight Capacity
3,000 lbs (1,360 kg)
Swamped Capacity
Dimensions
16’ 2” (4.93 m)
L.O.A. (Centerline)
6’ 10” (2.08 m)
Beam
3’ 10” (1.16 m)
Bridge Clearance (no top)
6’ 3” (1.91 m)
Bridge Clearance (with suntop)
10” (0.25 m)
Draft
17’ 5” (5.31 m)
L.O.A. (with platforms)
20” (0.50 m)
Transom Height
Engines
90 HP (67.11 kW)
Maximum Horsepower
418 lbs (190 kg)
Maximum Engine Weight
75 HP (55.92 kW)
Minimum Horsepower
Weight
1,060 lbs (480 kg)
Weight (dry, no engine)
1,525 lbs (692 kg)
Weight (with std. engine, fuel and water)
6
Persons Capacity
19 gallons (71.9 L)
Fuel Capacity - Optional
13 gallons (49.2 L)
Fuel Capacity - Standard
1,529 lbs (694 kg)
Maximum Weight Capacity
3,000 lbs (1,360 kg)
Swamped Capacity
16’ 2” (4.93 m)
L.O.A. (Centerline)
6’ 10” (2.08 m)
Beam
3’ 10” (1.16 m)
Bridge Clearance (no top)
6’ 3” (1.91 m)
Bridge Clearance (with suntop)
10” (0.25 m)
Draft
17’ 5” (5.31 m)
L.O.A. (with platforms)
20” (0.50 m)
Transom Height
90 HP (67.11 kW)
Maximum Horsepower
418 lbs (190 kg)
Maximum Engine Weight
75 HP (55.92 kW)
Minimum Horsepower
1,060 lbs (480 kg)
Weight (dry, no engine)
1,525 lbs (692 kg)
Weight (with std. engine, fuel and water)
Standard features & Options
12-V receptacle
Drink holders (2)
Fiberglass side console with lockable storage
Safety switch
Side mount Mercury® control
Steering wheel - stainless steel
Tachometer
24.5” interior freeboard
8” cleats (3)
Bow and stern lifting eyes
Bow locker with fiberglass cover and overboard drain
Cockpit drain plug
Heavy-duty rub rail
Side rails - welded stainless steel
Starboard side storage shelf
Swim ladder
Transom boarding steps
LED lights
Tie downs
Torsion axle
Trailer jack
Winch with nylon strap
Spare tire with holder
75 ELPT EFI FourStroke Mercury engine
Battery box with hold-down strap
Fuel tanks (2)(portable) (6.5 gallons) with hold-down strap
Navigation lights with rope guide
No-feedback steering
Propeller - aluminum
Vessel view mobile
Console side seat cooler
Fiberglass helm bench seat with drink holders (2)
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
White
White
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator)
Frame Color
White Frame
Black Frame
Helm Seating
Seating - helm seat w/backrest (tan)
(hinged backrest) (single seat) (tan) (dealer installation required*)
Seating - bucket sport seat (tan) (pair)
(dealer installation required*)
Seating - helm seat w/backrest (tan) (pair)
(hinged backrest) (pair) (tan) (dealer installation required*)
Seating - bucket sport seat (tan)
(dealer installation required*)
Seating - bench seat with backrest (tan)
(dealer installation required*)
Seating - bench seat cushions (tan)
(dealer installation required*)
Railings and Rub Rails
Black Rubrail with Stainless Steel Insert
Black Rubrail with Stainless Steel Insert
Rails - at bow
Rails - at bow
Rails - split bow rail
(factory installed only)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Notable Options & Accessories
Teak boarding steps
(synthetic teak) (not compatible with ski tow)
Fuel tank
(single 19-gallon tank) (factory installed only)
Ski tow (powder-coated)
(not compatible with standard 75 HP engine) (not compatible with teak boarding steps) (must select frame color, white or black)
Bow tow eye
(factory installed only)
Steering wheel
(stainless steel) (dealer installation required*)
Dash applique
Dash applique
Windshield
Windshield
Spare tire with trailer mount
(full size for galvanized trailer)
Standard Features
12-V receptacle
Drink holders (2)
Fiberglass side console with lockable storage
Safety switch
Side mount Mercury® control
Steering wheel - stainless steel
Tachometer
24.5” interior freeboard
8” cleats (3)
Bow and stern lifting eyes
Bow locker with fiberglass cover and overboard drain
Cockpit drain plug
Heavy-duty rub rail
Side rails - welded stainless steel
Starboard side storage shelf
Swim ladder
Transom boarding steps
LED lights
Tie downs
Torsion axle
Trailer jack
Winch with nylon strap
Spare tire with holder
75 ELPT EFI FourStroke Mercury engine
Battery box with hold-down strap
Fuel tanks (2)(portable) (6.5 gallons) with hold-down strap
Navigation lights with rope guide
No-feedback steering
Propeller - aluminum
Vessel view mobile
Console side seat cooler
Fiberglass helm bench seat with drink holders (2)
All hardware 316-L stainless steel
All rails welded 316-L stainless steel
Options
Gelcoat Full Hull Colors
Classic Desert Tan
Classic Desert Tan
(full hull)
Glacier Green
Glacier Green
(full hull)
Light Blue
Light Blue
(full hull)
White
White
Platinum
Platinum
Graphic Colors
Red graphics
Red graphics
Black graphics
Black graphics
White graphics
White graphics
Blue graphics
Blue graphics
Chrome graphics
Chrome graphics
(with silver model designator)
Frame Color
White Frame
Black Frame
Helm Seating
Seating - helm seat w/backrest (tan)
(hinged backrest) (single seat) (tan) (dealer installation required*)
Seating - bucket sport seat (tan) (pair)
(dealer installation required*)
Seating - helm seat w/backrest (tan) (pair)
(hinged backrest) (pair) (tan) (dealer installation required*)
Seating - bucket sport seat (tan)
(dealer installation required*)
Seating - bench seat with backrest (tan)
(dealer installation required*)
Seating - bench seat cushions (tan)
(dealer installation required*)
Railings and Rub Rails
Black Rubrail with Stainless Steel Insert
Black Rubrail with Stainless Steel Insert
Rails - at bow
Rails - at bow
Rails - split bow rail
(factory installed only)
Rails- white rub rail with stainless insert
Rails- white rub rail with stainless insert
Notable Options & Accessories
Teak boarding steps
(synthetic teak) (not compatible with ski tow)
Fuel tank
(single 19-gallon tank) (factory installed only)
Ski tow (powder-coated)
(not compatible with standard 75 HP engine) (not compatible with teak boarding steps) (must select frame color, white or black)
Bow tow eye
(factory installed only)
Steering wheel
(stainless steel) (dealer installation required*)
Dash applique
Dash applique
Windshield
Windshield
Spare tire with trailer mount
(full size for galvanized trailer)

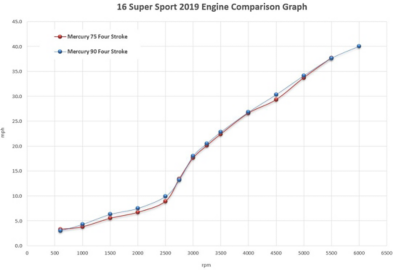

Model: 160 Super Sport
Hull #: USBWCE0423G819
Engine: Mercury 75 FourStroke
Horsepower: 75
Gear Ratio: 2.07 : 1
Prop: 13.5” x 15” Spitfire
Fuel Capacity: 13 gallons
Notable Options: Bimini Top, Split Bow Rail
Test Date: 23-August-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 1,590 lbs
Fuel: 6 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: 2,062 lbs
Water Conditions: 84° F
Weather Conditions: 83° F
Model: 160 Super Sport
Hull #: USBWCE0423G819
Engine: Mercury 90 FourStroke
Horsepower: 90
Gear Ratio: 2.07 : 1
Prop: 13.5” x 15” Spitfire
Fuel Capacity: 13 gallons
Notable Options: Bimini Top, Ski Tow
Test Date: 31-July-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 1,590 lbs
Fuel: 8 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: 2,074 lbs
Water Conditions: 84° F
Weather Conditions: 80° F
Model: 160 Super Sport
Hull #: USBWCE0423G819
Engine: Mercury 75 FourStroke
Horsepower: 75
Gear Ratio: 2.07 : 1
Prop: 13.5” x 15” Spitfire
Fuel Capacity: 13 gallons
Notable Options: Bimini Top, Split Bow Rail
Test Date: 23-August-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 1,590 lbs
Fuel: 6 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: 2,062 lbs
Water Conditions: 84° F
Weather Conditions: 83° F
Model: 160 Super Sport
Hull #: USBWCE0423G819
Engine: Mercury 90 FourStroke
Horsepower: 90
Gear Ratio: 2.07 : 1
Prop: 13.5” x 15” Spitfire
Fuel Capacity: 13 gallons
Notable Options: Bimini Top, Ski Tow
Test Date: 31-July-2018
Tested weight is for the vessel as configured. Subject to change based on options and loading condition.
Dry Weight: 1,590 lbs
Fuel: 8 gallons
Water: 0 gallons
Test Gear: 25 lbs
Personnel: 410 lbs
Test Weight: 2,074 lbs
Water Conditions: 84° F
Weather Conditions: 80° F
